Product Name:
High Speed 8t Electric Winch
Capacity(T):
6
Rope Capacity(M):
500
Working Direction:
Horizontal
Pulling Goods:
Rail Cart
Pulling Tention(Kn):
60
Pulling Speed(M/Min):
8
Control Method:
Electric Panel
Weight(T):
2.5
Type:
Electric Winch
Driven Type:
AC
Carrying Capacity:
Light Level
Tonnage:
6T
Running Mode:
Stationary
Feature:
Explosion-Proof
Standard:
Nonstandard
Product Description

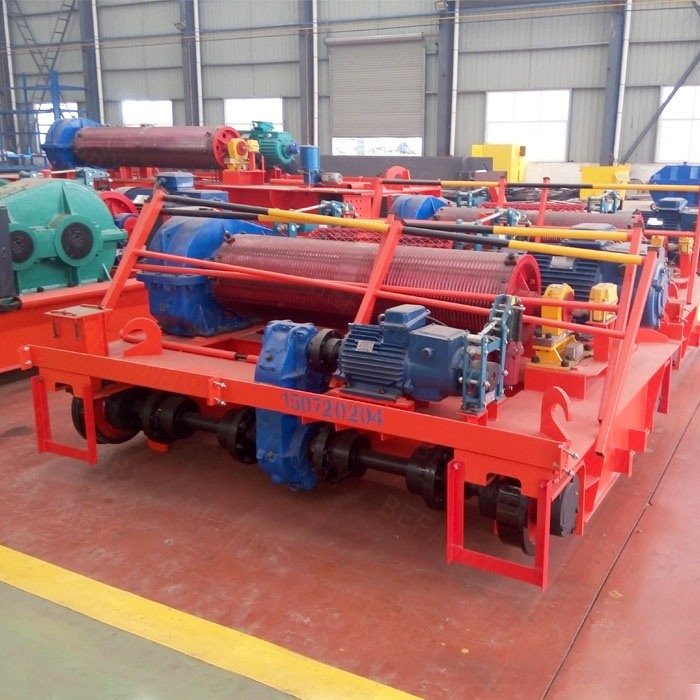

Hot selling electric power motorized winch with remote control
Crane winch description The 10t crane winch is a kind of machine to pull or lift heavy cargoes or milling cart. It can be divided into single drum winch and double drums winch.Generally the working temperature can be from -40 to +40 degree.
Application of 10t crane winch
Applicable to all kinds of bridge, port, dock of road and bridge engineering and large factories and equipment installation project.

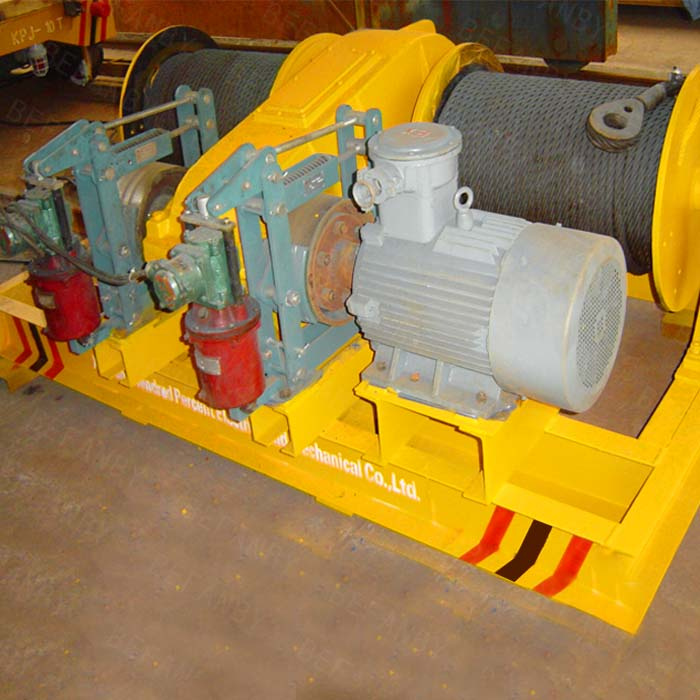

Double drum crane winch Working principle It rising or falling materials reached through clockwise revolving and counterclockwise revolving. We can add frequency device according the working environment. Installation The 10t crane winch can be stationry(fixed on the ground or other structure), haulage, moving. Advantages of 10t crane winch Simple operation, larger wire rope capacity, Convenient to shift. Light weight and large lifting / pulling capacity. Convenient to operate and safety.

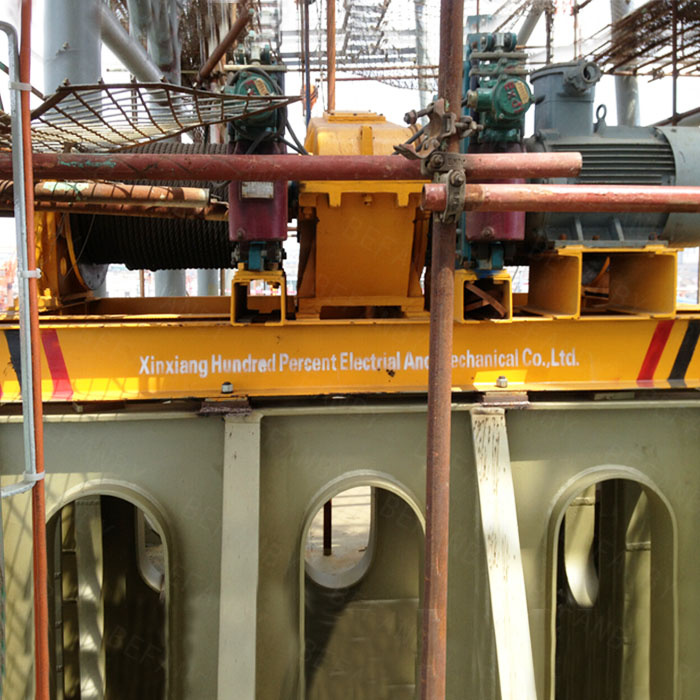

Application of double drum crane winch at site
Technical parameters
Model
JM2
JM3
JM5
JM8
JM10
Line pull capacity (kg)
2000
3000
5000
8000
10000
Wire rope average speed (m/min)
12
10
10
10
9
Wire rope(mm):
12.5
15.5
21.5
26
30
Reduction box
Type
JZQ350
JZQ350
JZQ400
JZQ500
JZQ650
Transmission ratio
23.34
31.5
23.34
31.5
40.17
Drum (mm)
Diameter()
273
325
406
500
550
Length
480
520
645
900
1000
Capacity(m)
150
180
250
300
450
motor
Type
YZ160M2-6
YZ160M2-6
YZ160L-6
YZR225M-8
YZR250M1-8
Power(kW)
7.5
7.5
11
22
30
Rotate speed(r/min)
948
948
953
720
720
Hydraulic Brake
YWZ-200/25
YWZ-200/25
YWZ-300/45
YWZ-300/45
YWZ-300
Equipment Dimension (cm)
142 x96 x62
154 x107 x70
185 x135 x90
205x275x105
220x190x110
Weight(kg)
630
680
1400
3000
4000

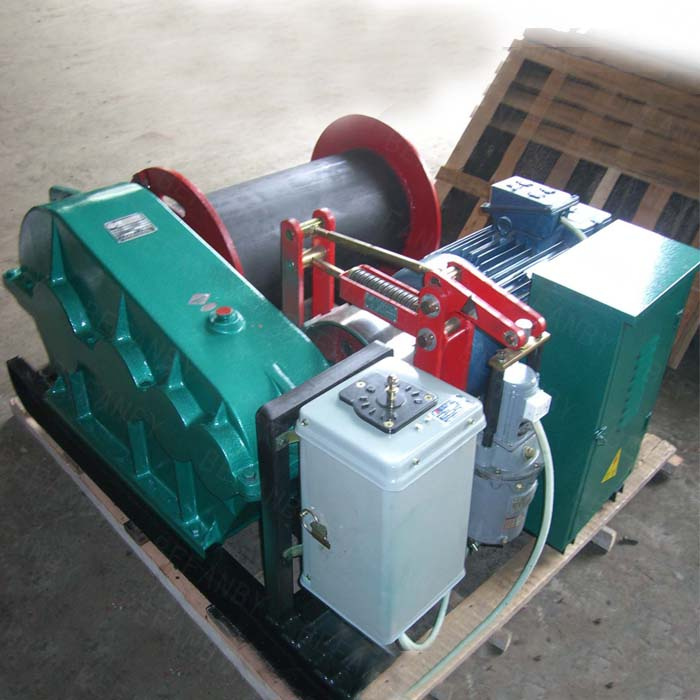

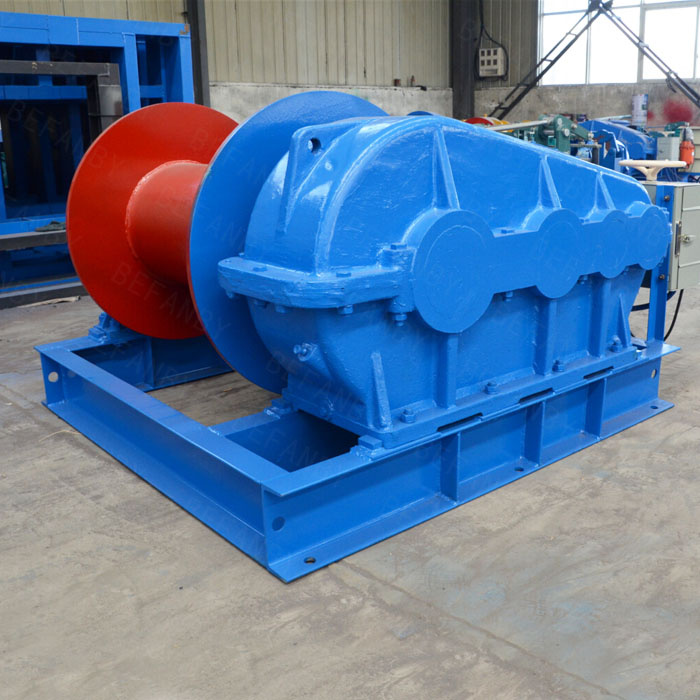

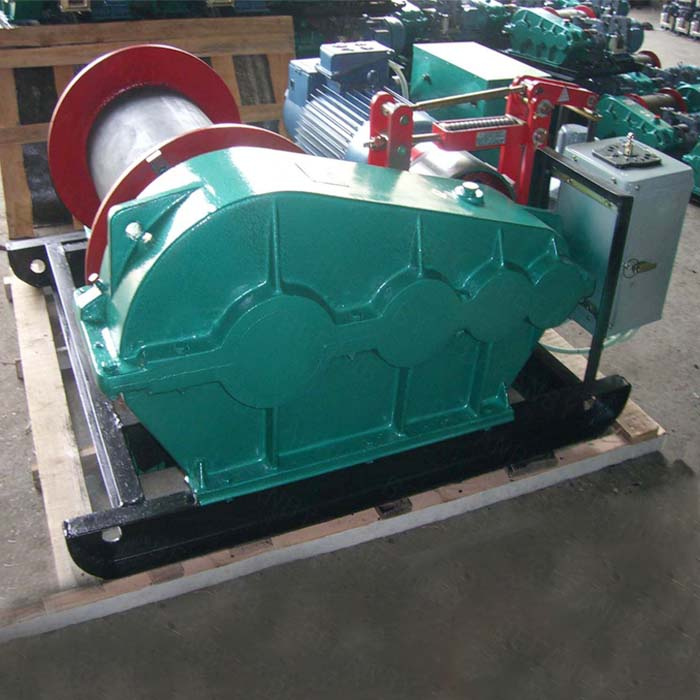

Other type electric crane winch
Xinxiang hundred percent electrical &mechanical Co., Ltd is one of the leading manufacturers of material handling equipment and handling solution design expert in China. We have gotten ISO9001: 2000, ISO9001: 2008, SGS and CE certifications.
Our products include rail transfer car, turntable, transfer table, wheels, rails, winch, hoist, crane etc. Strong designing group can heip you to provide the whole solution for material handiing and customized product, auxiliary equipment. We have rich experience in these projects, such steel plant, automobile assembly line, painting line, shipyard, energy industry etc.
All our products are manufactured using finest quality raw material, which is sourced from the leading manufacturer of the market. Our range is known for its optimized structure design which make sailing more steady and reliable, competitive price, durability, sturdy construction, corrosion resistance, high strength and low maintenance, highest safety keeps our products first class which can compete with those coming from the famous manufacturer of the world. These rail transfer carts are suitable for transportation in various environments (such as ferry condition and flammable, explosive environment and high temperature) and are widely used in these fields of metallurgy, coal, electronics, heavy industry, shipbuilding and light industry.
Assisted with an efficient workforce and advanced manufacturing machines, we have been able to offer custom designed products that are designed and developed in adherence with industry standards. The team also conducts stringent quality tests to ensure delivery of flawless products to the clients.
Moreover, our professionals support us in undertaking various material handling projects. Our commitment: Reliable product, timely delivery, which has helped us in gaining huge client base across the country. Our products have been sold to every city in China and exported to many countries, such as Germany, Turkey, South Africa, Thailand, Syria, Singapore, Australia, Saudi Arabia and so on.
