Hot Sale in Africa Water Well Drilling Equipment (HW-190)

Hot Sale in Africa Water Well Drilling Equipment (HW-190)
Price: US $ 1000-7000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: HW-190
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Part Name: Water Well Drilling Rig
Model Number: Hw-190
Drilling Depth: 190m
Maximum Open Hole Caliber: 300mm
End Hole Caliber: 75mm
Drill Rod Caliber: 50mm
Drilling Angle: 90~75
Diesle Engine Power: 18 HP
Warranty: 1 Year
Usage: Coal, Water Well

Product Description

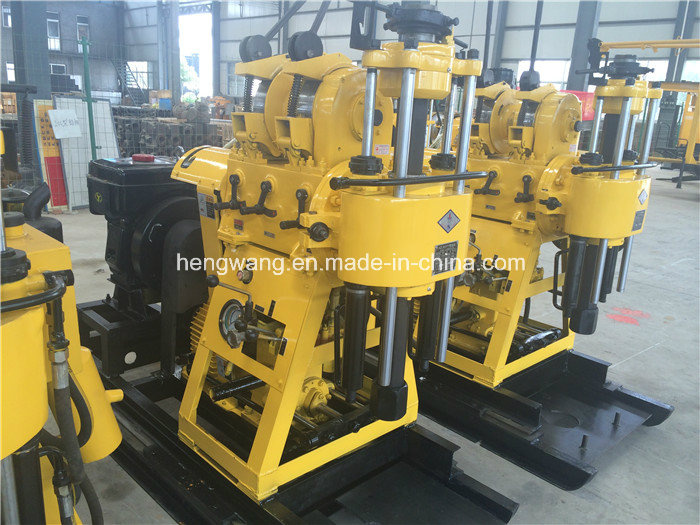

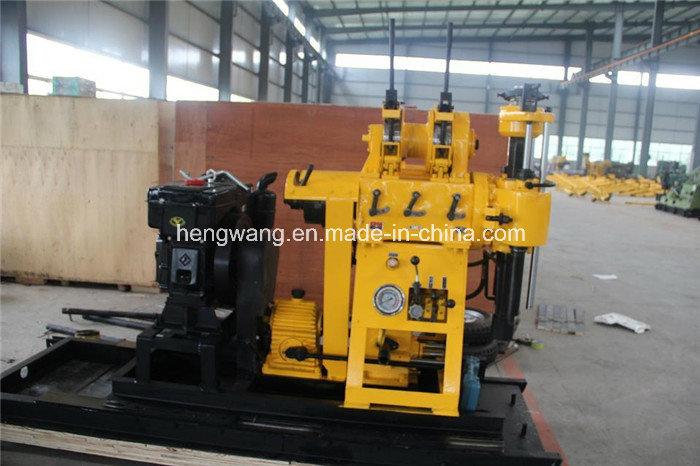

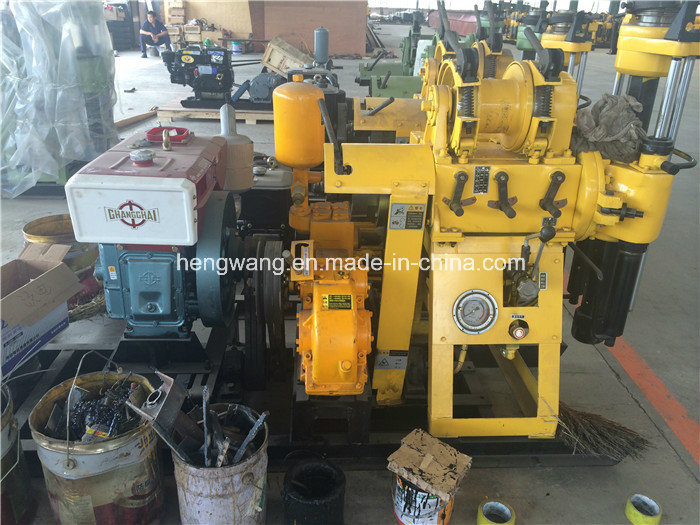

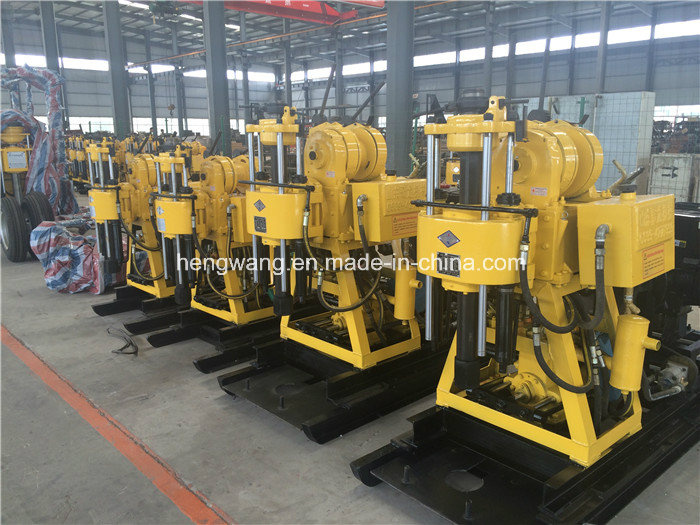

Hot sale in Africa Water Well Drilling Equipment (HW-190)

HW-190 Water well drilling rig Features

a. five gears, and the highest speed can reach 1045r/min, improving drill efficiency
b. 53 x 59 drilling rod adopted, high rigidity and strong delivery torque.
c. the machine is equipped with national patent technology---taper clutch, with charactristics of strong transmission troque, easy operation and free maintenance.
d. for the winch, we use large module planetary gear and add supporting frame, greatly increasing hoisting and braking ability of the winch.
e. Vertical spidle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geoloical conditions.

HW-190 Water well drilling rig Applications

HW-190 drilling rig is mainly used for geological general investigation and exploration, road and tall buliding foundation exploration, kinds of hole in concrete structure, river levees, civil wells and earth temperature central air-conditioner,etc

Main parameters


Unity machine parameter
Drilling depth30-190m
Drill rod caliber50 42mm
End hole caliber75 46mm
Max. open hloe caliber220mm
Drilling angle90°~75°
Drill weight (No include power)610kg
Unity machine dimensions2.1×0.9×1.3m
Spindle
spindle speed130, 300, 480, 730, 830, 1045r/min
Spindle stroke450mm
Hoist
Max.single line hoisting capacity1600kg
Single line lifting speed1.06, 0.67, 0.32m/s
Wirerope caliber13mm
Wirerope cubic measure35m
Hug floodgate caliber254mm
Hug folldgate belt width50mm
Distance between drill and hole230mm
Mud pump
TypeHorizontal single urn twin-action
Displacement170L/min
Maximum pressure1.5Mpa
Work pressure0.7Mpa
Power
Diesle engineS1105 18HP
Electric motorY160M-4 15KW
