Hot Dipped Galvanized Hexagonal Wire Mesh Riverbank Gabion Box

Hot Dipped Galvanized Hexagonal Wire Mesh Riverbank Gabion Box
Price: US $ 1.19-1.3/Square Meter
Min Order: 1600/Square Meter
Pay Type: L/C,T/T,Western Union
Prod Model: JSL04
Materials: Hot-Dipped Galvanized Low Carbon Steel Wire
Treatment: Hot-Dipped Galvanized, PVC Coated, Heavy Zinc Coat
Wire Diameter: 2.5mm, 2.7mm
Selvedge: 3.4mm
Binding Wire: 2.0mm, 2.2mm
Mesh Opening: 60*80mm, 80*100mm, 100*120mm
Gabion Dimension: 1*1*1m, 2*1*1m, 3*1*1m, etc.
Packing: in Bulk or on Pallet
Certificate: ISO9001, ISO14001, Co, Ce, SGS, Soncap, etc
Material: Low Carbon Steel Wire
Application: Gabions
Hole Shape: Hexagonal
Usage: Retaining Wall
Technics: Woven
Surface Treatment: Galvanized
Size: 2m x 1m x 1m
Aperture: 80*100mm

Product Description

               Hot Dipped Galvanized Hexagonal Wire Mesh Riverbank Gabion Box

1. INTRODUCTION:

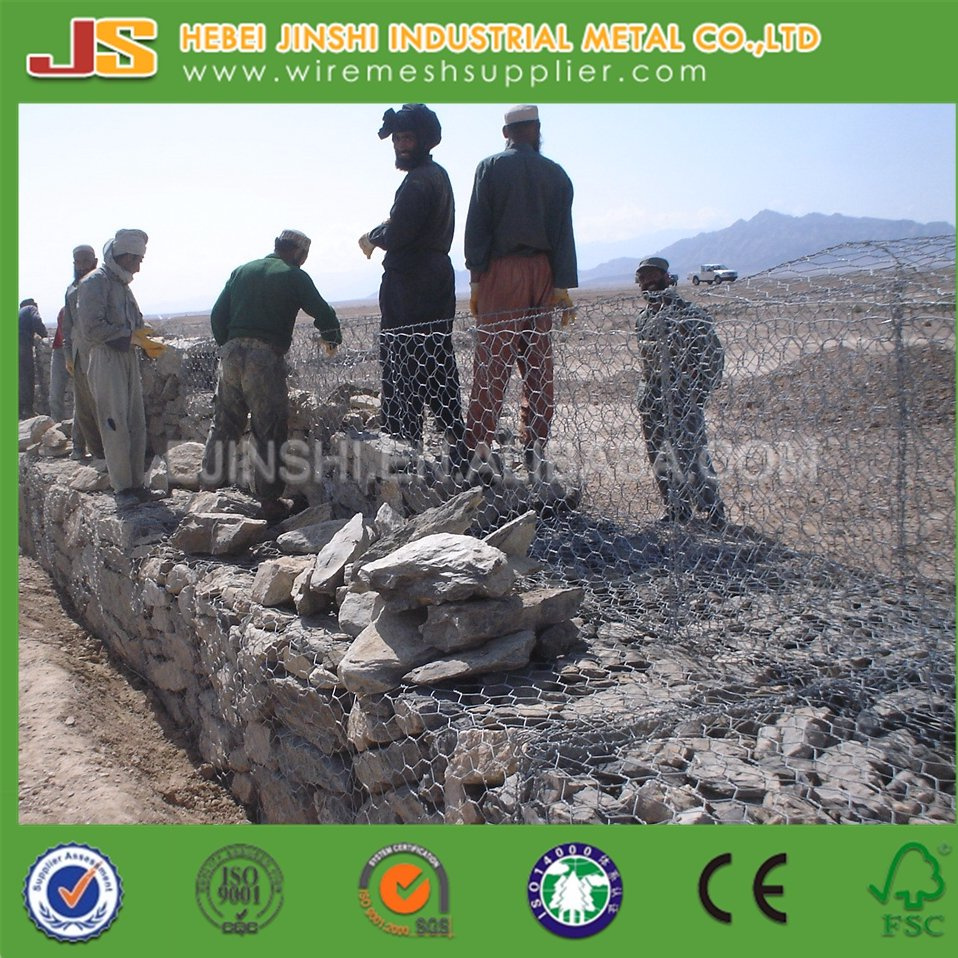

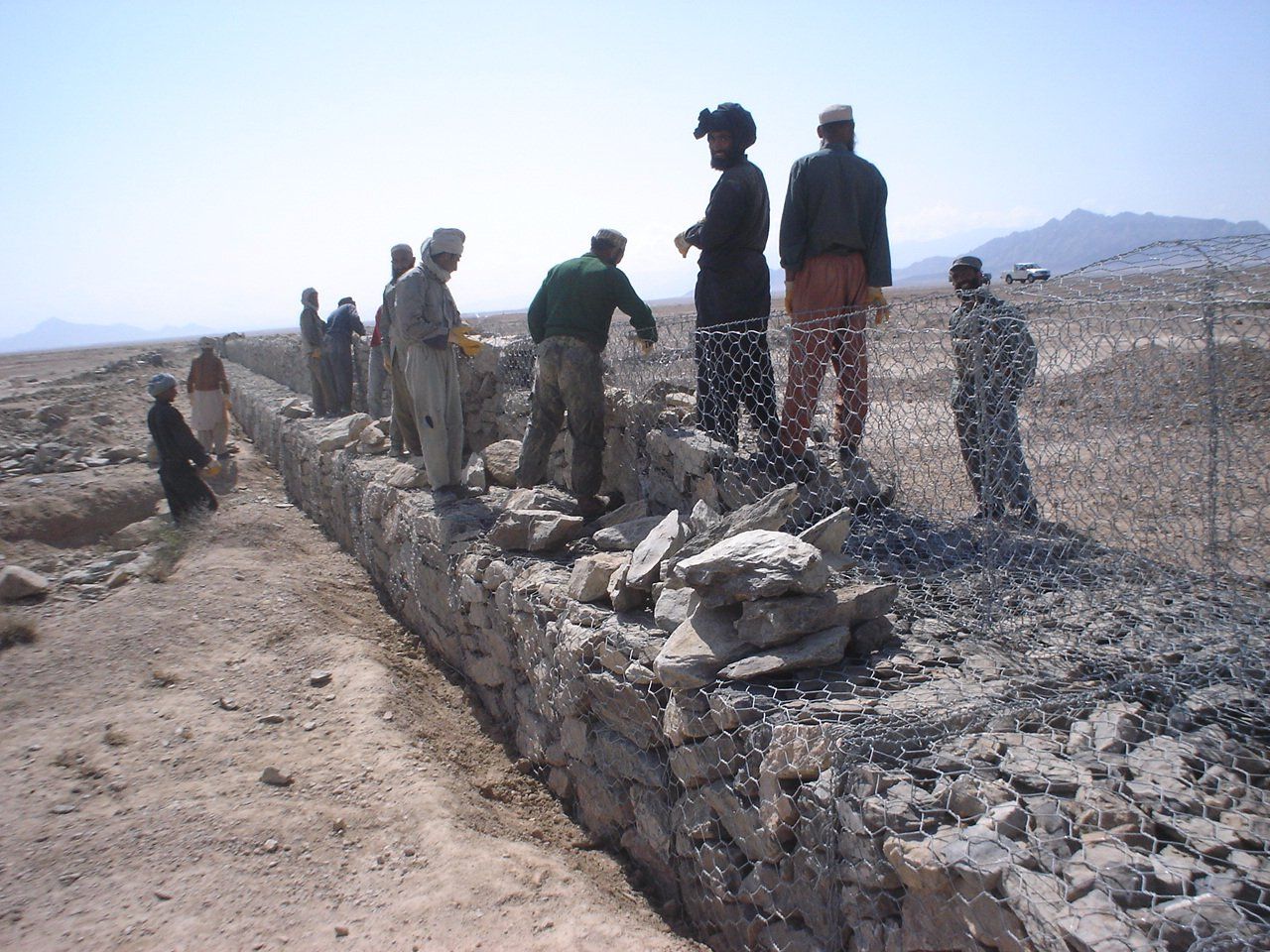

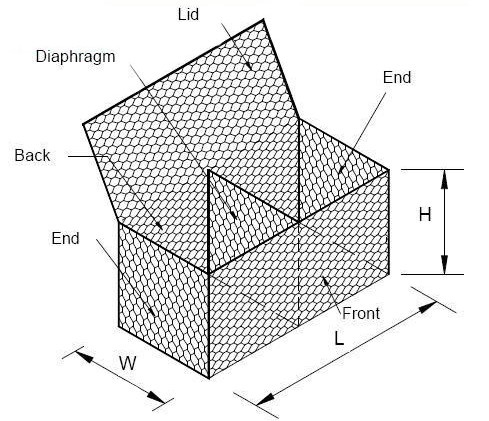

Riverbank Gabion Box is a double-twisted wire mesh container of variable sizes, uniformly partitioned into internal cells, interconnected with other similar units, and filled with stone at the project site to form flexible, permeable, monolithic structures such as retaining walls, sea wall, channel linings, revetments, and weirs for erosion control projects.



2. GABION BASKET USAGE:
a. for permanent erosion control in channels, streambank, spillways and stable slopes from surficial erosion.
b.The stone confinement within the units allows for higher shear stress resistance than the riprap.



3.POPULAR SPECIFICATIONS OF Riverbank Gabion Box

Characteristics

Galvanized

PVC Coated

Galvanized

PVC Coated

Galvanized

PVC Coated

Mesh Hole

80 x 100mm

60 x 80mm

100x120mm

Wire Dia

2.7mm

3.7mm

2.2mm

3.2mm

2.7mm

3.7mm

Selvedge Wire

3.4mm

4.4mm

2.7mm

3.7mm

3.4mm

4.4mm

Binding Wire

2.2mm

3.2mm

2.2mm

3.2mm

2.2mm

3.2mm

Gabion Size

2m x 1m x 1m

2m x 1m x 0.5m

3m x 1m x 1m

3m x 1m x 0.5m

4m x 1m x 1m

4m x 1m x 0.5m




4. ADVANTAGES OF JINSHI Riverbank Gabion Box
a.Gabion mat strength lies in their double twisted hexagonal mesh of steel wire which is reinforced by selvedges of heavier wire running along the edges.
b.The base section is divided into compartments to restrict the movement of stone and strengthen the structure.
c.The lid is supplied as a separate panel.
d.The wire will not unravel even when cut.
e.Assembly is easy, requiring no specialized labor and nearby rock is used for fill.
f.Free drainage and 30-35% voids allow vegetation to grow.



FAQ:

1. How to get a quotation ?
a) the diameter and mesh size .
b) confirm order quantity
c) material and surface tratement type

2. Payment term
a) TT
b) LC AT SIGHT
c) cash
d) 30% contact value as deposit ,the blance 70% be paid after received the copy of bl .

3. Delivery time
a) 19-25 days after received your depsit .

4. What is MOQ ?
a) 50 sets as MOQ , we can also produce sample for you .
5.Can you supply samples?
a)Yes,we could supply free samples for you
