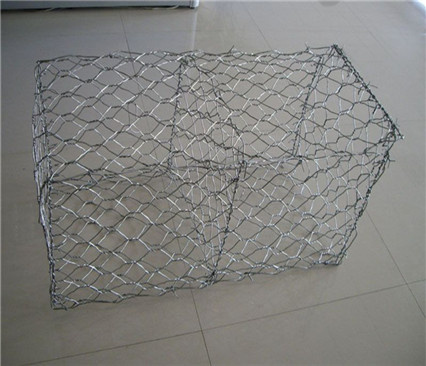

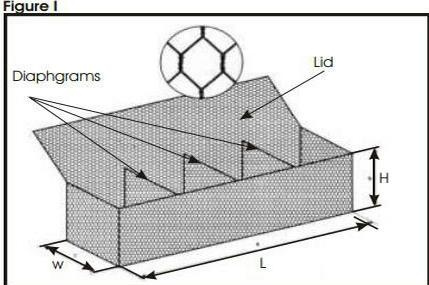

Hot dipped galvanized double twist gabion box Gabions are baskets manufactured from 8x10 double twisted hexagonal woven steel wire mesh, as per ASTM A975-97 Gabions are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects. The steel wire used in the manufacture of the Gabion is heavily Galfan (zinc-5% aluminum-mischmetal [Zn-5 Al-MM] alloy) coated soft temper steel. A PVC coating is then applied to provide additional protection for use in polluted, contaminated or aggressive environments: in salt, fresh water, acid soil or wherever the risk of corrosion is present. The PVC coating has a nominal thickness of 0.02 in. (0.50 mm). The Gabion is divided into cells by diaphragms positioned at approximately 3 ft (0.9m) centers. To reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter. Gabions shall be manufactured and shipped with all components mechanically connected at the production facility.
Wire All tests on wire must be performed prior to manufacturing the mesh. All wire should comply with ASTM A975-97, style 3 coating, Galfan and PVC coated steel wire. Wire used for the manufacture of Gabions and the lacing wire, shall have a maximum tensile strength of 75 000 psi (515 MPa) as per ASTM A856-03, soft temper steel.
Specification of Stone Gabion
Mesh Size (mm)
Number of Diaphragm
Approximate dimensions and Volumes
Tolerance
Color
Wire diameter (mm)
Length (m)
Width (m)
Height (m)
Capacity (m3)
80x100
80x120
100x120
120x150
1
2.00
1.00
0.30
0.60
Length 5% Width 5% Height 5%
BlueRed Green Black
2.0-4.0
1
2.00
1.00
0.50
1.00
1
2.00
1.00
1.00
2.00
2
3.00
1.00
0.30
0.90
2
3.00
1.00
0.50
1.50
2
3.00
1.00
1.00
3.00
3
4.00
1.00
0.30
1.20
3
4.00
1.00
0.50
2.00
3
4.00
1.00
1.00
4.00
1
2.00
0.50
0.50
0.50
2
3.00
0.50
0.50
0.75
Remark:other size can be produced according to customer's request

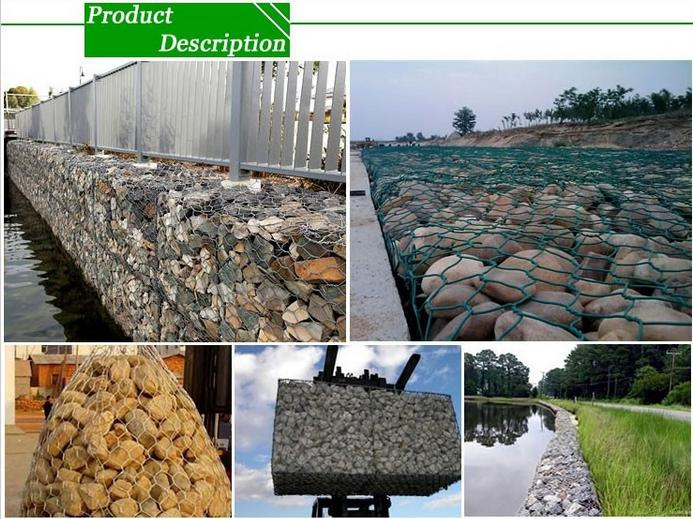

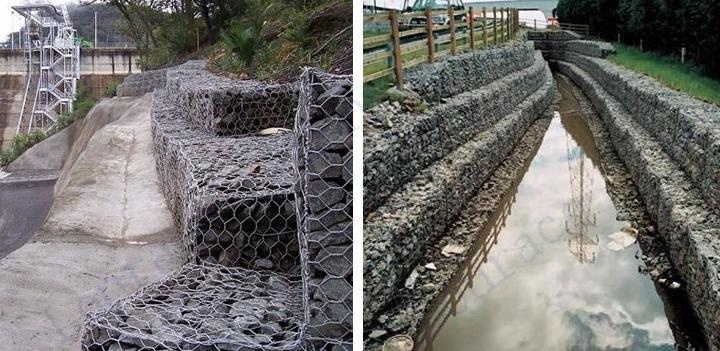

Gabion Baskets applications
Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Bridge Protection
Water and soil protection
Coast protection
Seaport engineering
Strengthening structure of soil
Protection of road
Features
Economic.
Just fill the stone into the Gabions and seal it.
Simple installation.
No special technology needed.Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing.
Mixed to form a integrity with the natural environment.Good permeation can prevent the damage by hydrostatic.

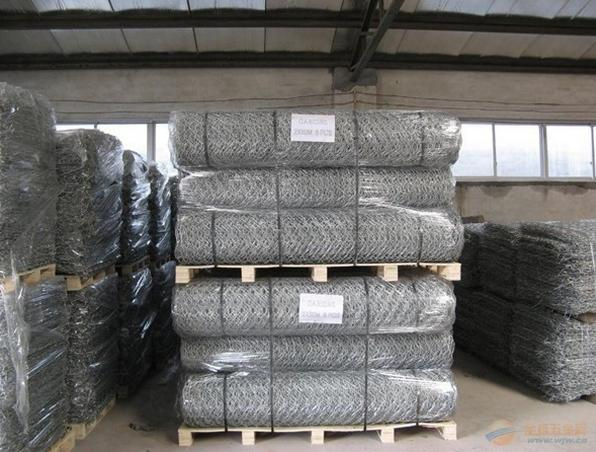

Less transport freight. It can be folded together for transport and further installation.
