Horizontal Metal Engine Bench Lathe Machine (Bench Lathe CZ1224G CZ1324G)

Horizontal Metal Engine Bench Lathe Machine (Bench Lathe CZ1224G CZ1324G)
Price: US $ 1700-2200/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CZ1224G CZ1324G
Product Name: Horizontal Metal Engine Bench Lathe Machine (Bench
Max. Swing Over Bed: 305/330mm
Max.Swing Over Gap: 440/465mm
Max.Processing Length: 530mm
Spindle Taper: Mt5
Spindle Speed: 64-1500rpm
Spindle Speed Steps: 9steps
Spindle Motor: 1.1kw
Spindle Bore: 38mm
Tailstock Taper: Mt3
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Manual
Setting Mode: Table
Precision: High Precision
Tool Holder: 4 Station Manual Tool Post

Product Description

Horizontal Metal Engine Bench Lathe Machine (Bench Lathe CZ1224G CZ1324G)

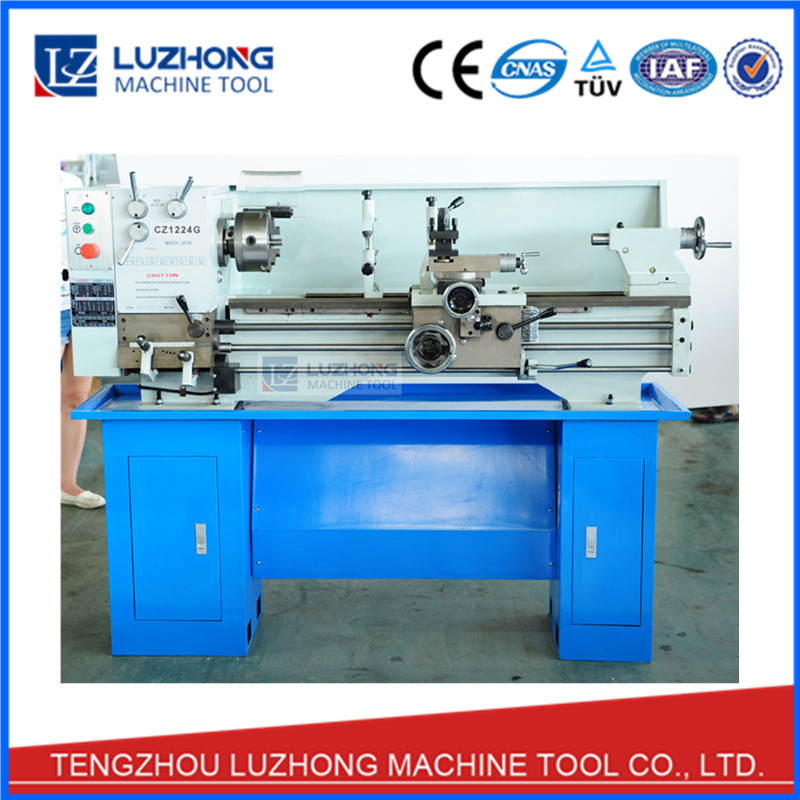

Product picture:

The main performance characteristics:
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.Inching switch for test running
6.Metric/Imperial threading available
7.Precise gear-driven headstock

Product main technical parameters:
Specifications CZ1224 GCZ1324G
Swing over bedmm305330
Swing over carriagemm173195
Swing over gapmm440465
Width of bed-waymm182
Distance between centersmm530
Spindle taper MT5
Spindle boremm38
Step of speed 9
Range of speedrpm64-1500
Metric threadmmClosed box:11kinds(0.5~43.5)
Norton box:15kinds(0.25~47.5)
Inch threadT.P.IClosed box:14kinds(7-1/2~48)
Norton box:40kinds(4~112)
Range of feed amountMm/rClosed box:0.051~0.303(0.002''-0.012'')
Norton box:0.12~0.42(0.0047''-0.0165'')
Diameter of lead screwmm22(7/8'')
Pitch of lead screw 3mm or 8 T.P.I
Saddle travelmm510
Cross travelmm150
Compound travelmm85
Barrel travelmm95
Barrel diametermm32
Taper of centermmMT3
Motor powerKw1.1(1.5HP)
Motor for coolant system's powerKw0.04(0.055HP)
Machine(L×W×H)mm1420x750x760
Stand (left)(L×W×H)mm400x370x700
Stand (right)(L×W×H)mm300x370x700
MachineKg380/430
Standard accessories:
Tool post wrench
Double end wrench
Inner hexagon spanner
Screw driver
Dead centers
Center sleeve
Change gear
Oil gun
Tool box
Steady rest
Follow rest
3 jaw chuck

Optional accessories :
Drill chuck
Lead screw guard
4 jaw chuck seat
Taper shank
Work lamp
Tool post guard
Live centers
Coolant system
Chuck guard
Face plate
Taper attachment
Back plate
Foot brake

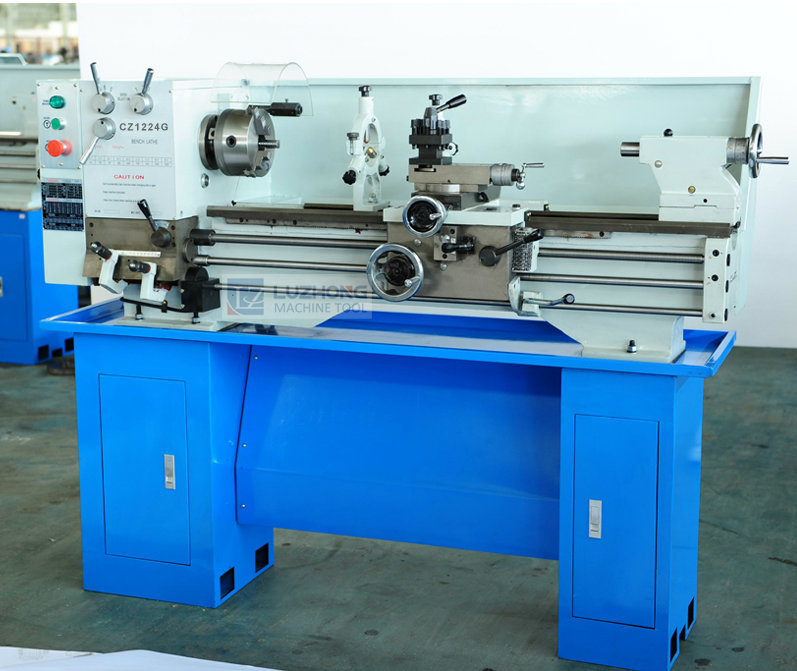

Details Pictures:



Contact Information :

Founded in 1992, We, Tengzhou Luzhong Machine Tool Co., Ltd., is a large enterprises with glorious chievement and long history, covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.

We have been providing all kind of CNC milling machine, vertical machining center, lathe machines, drilling machines and others CNC mechanical equipment, products, to all sectors of the national economy for more than 20 years. And our machines are very popular overseas, and they are exported to more than 50 countries and zones, and our machines are loved and welcomed by customers.

In the deepening of economic reform, in accordance with the requirements of the overall planning, we enhance our traditional manufacturing industry, so we build the Shandong CNC Machine Tool Production Base in Jiyang city, Shandong Province. In this production base, we produce vertical machining center, CNC lathe, CNC milling, assembly production line, machine tools and so on, it will be the world's first-class modern manufacturing enterprises.

In order to strengthen our own technology, research and development advantages, we, Tengzhou Luzhong Machine Tool Co., Ltd, founded our design company -Luzhong Design Co., Ltd in 2004, which specialize in the design of CNC machine tools.

Our company formed a good win-win relationship with mechanical and electrical companies in provinces, complete sets of companies and foreign agents. Not only in the country Company formed a mature sales network not only in the country, but also our products are exported to South America, Africa, the Middle East, Southeast Asia and other countries, and are trusted and praised by vast number of users. Our company focuses on strict and effective management, product quality and service is our eternal pursuit of the theme. Our company will always be the spirit of "the pursuit of excellence, sincere service" purposes, and strive to provide users with high-quality products and fast, thoughtful after-sales service.

"Regard the quality as life, undertake the heavy responsibility ", with your support, we will get big progress. Let us join hands to create a better future!

'The pursuit of excellence in service'
