Home Use Tile Roof Solar System Mounting Brackets

Home Use Tile Roof Solar System Mounting Brackets
Price: US $ 0.25-0.35watt
Min Order: 1000watt
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SLF-TR32
Certificate: ISO9001/Ce
Wind Load: 60m/S
Snow Load: 1.4kn/M2
Warranty: 25 Years Service Time

Product Description

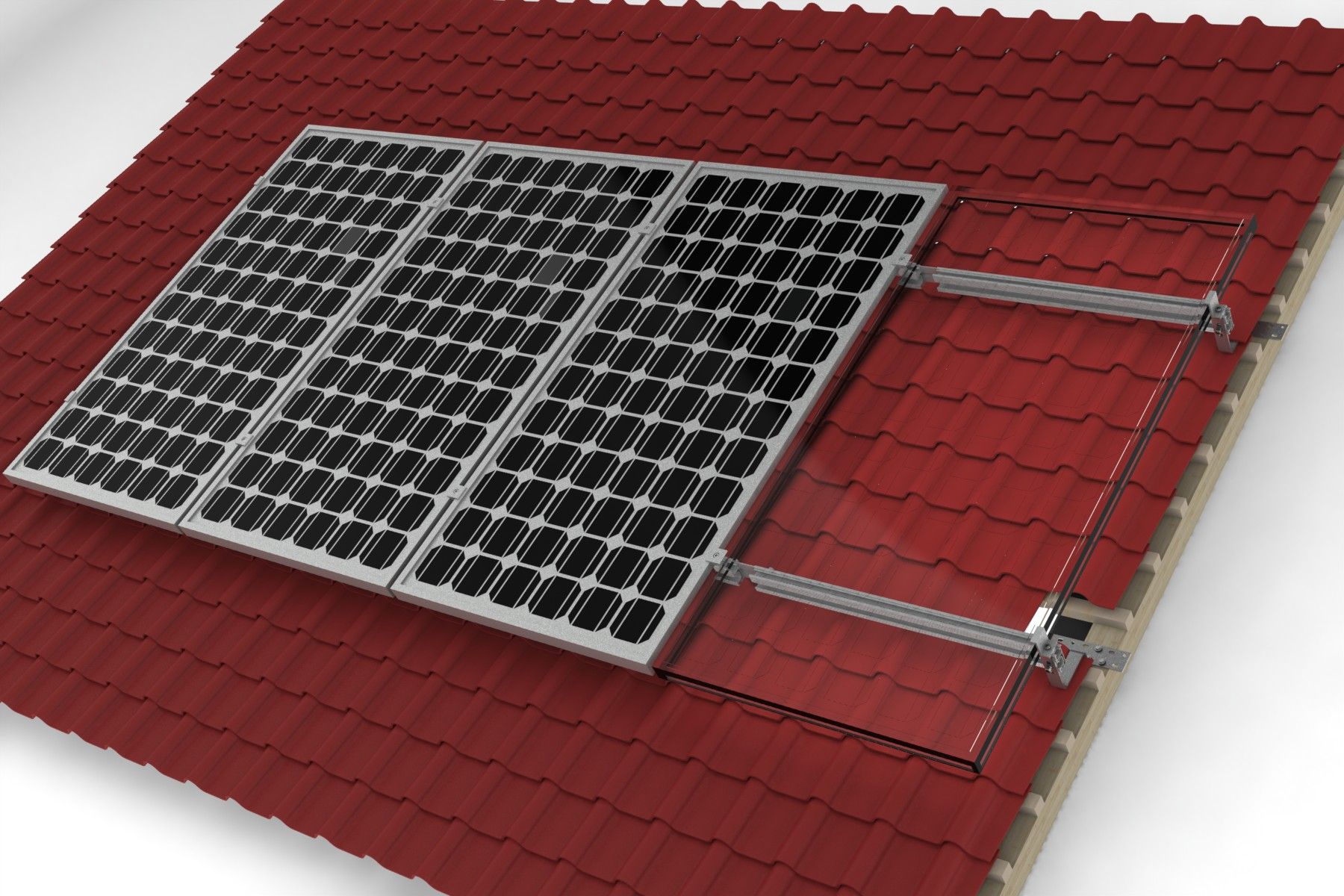

Home Use Tile Roof Solar System Mounting Brackets

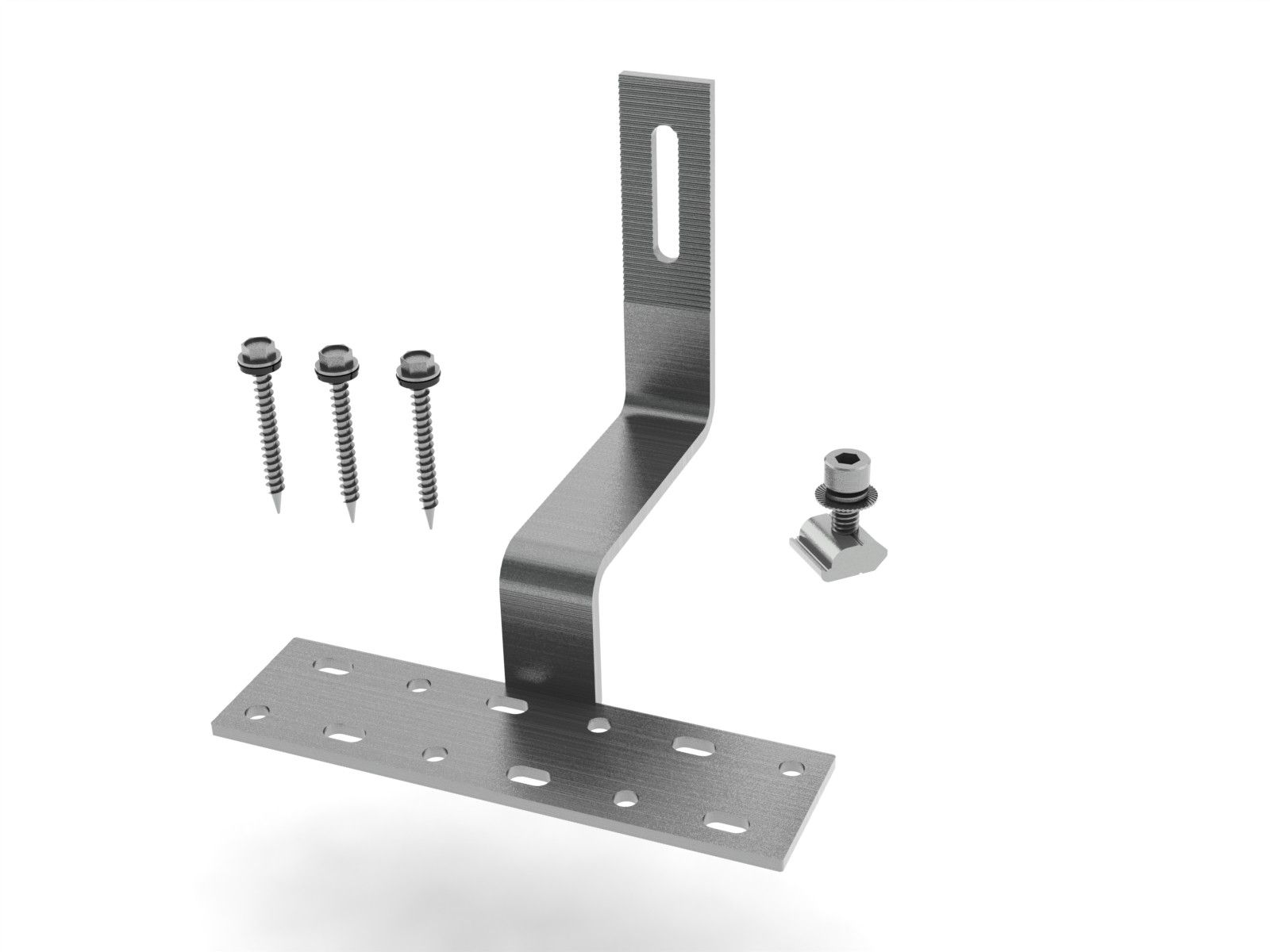

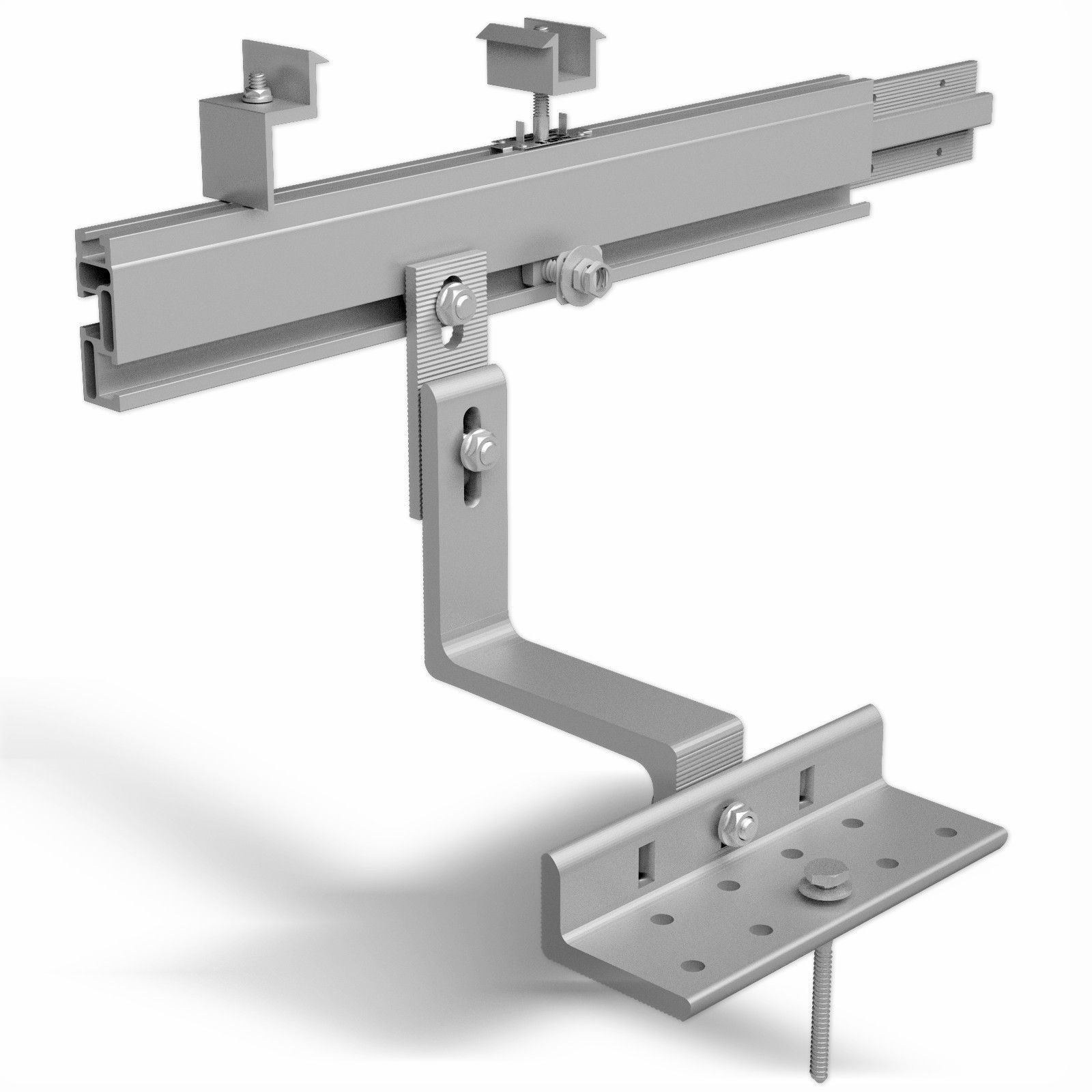

Introductions of hook brackets
tile roof mount system,accommdating a wide range of modules framed or frameless,is suitable for most types of roof with different roof hooks.With innovative rail and module,our tile roof mounting enables significantly faster and easier installation than others.
materialaluminum 6005-T5
fasteners materialstainless steel
applicationpitched tile roof
module array2*2/ 4*1 or customized
panel typeframed or frameless solar panel
panel orientationhorizontal/vertical
wind speedup to 130mph(60m/s)
snow loadup to 30psf(1.4kn/m2)
warrenty 10 years warranty,25 years service life
certifications:ASNZS1170/UL/SGS/Gamcorp/MCS/Intertek/SPAD
OEM mounting partsaccepted
place of originJiangsu,China

Features of hook brackets
1. Easy Installation.
The design brief of roof tile hook is to facilitate customers' understanding and installation. Compared to other products ,it can be installed easily with a single hexagon key and standard tool kit and also save a lot of energy and time.

2. Great Flexbility
The roof tile hook have an excellent compatibility. It can be easily mounted on almost every roof cladding available.

3. Maximum Lifespan
The roof tile hook is made of quality extruded stainless steel and aluminium which come from local well-known suppliers.

4. Excellent Adaptability
No matter how rough the roof ,the roof tile hook can be made height adjustment according to customers' demands at any time.

5. Guaranteed Durability
Our company provides a guarantee of 25 years on the durability of all materials use.

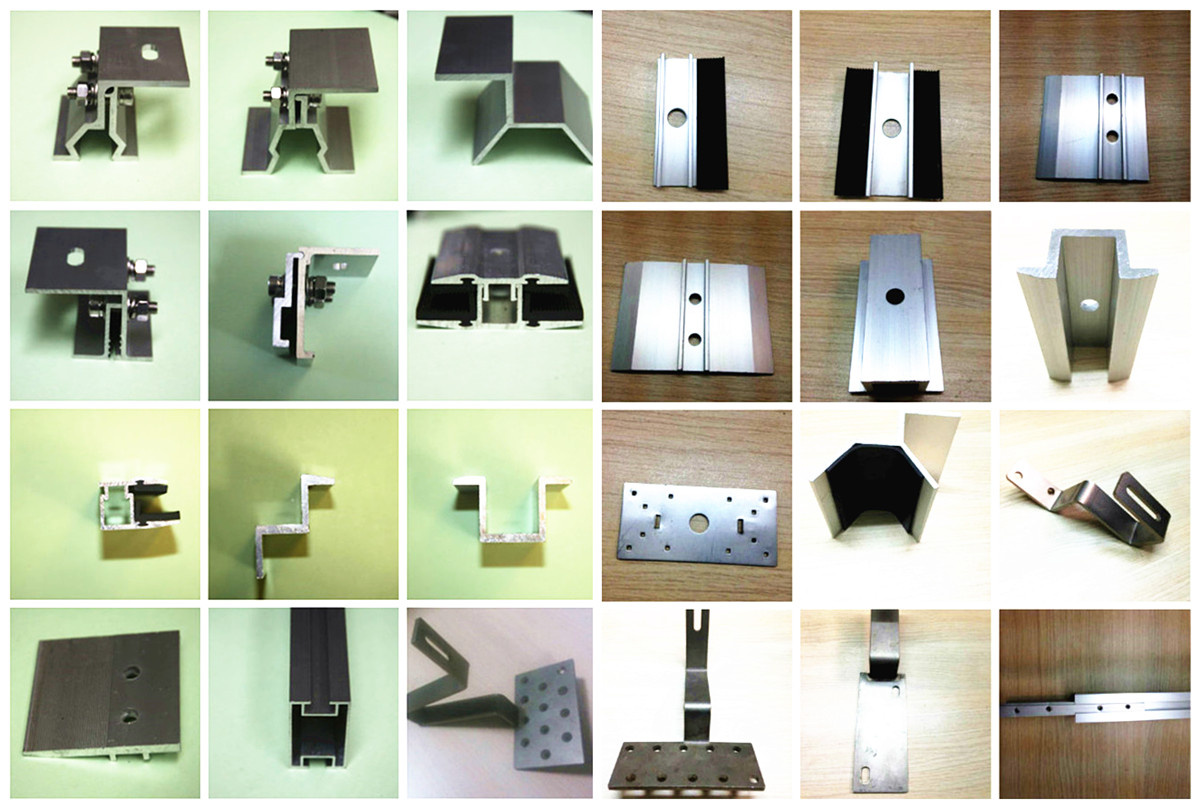

Mounting Parts OEM
OEM partsmaterial
middle clamp with rubberanodized aluminum
end clamp with rubberanodized aluminum
tile roof hookhot dipped galvanized steel
up-right bracketanodized aluminum
joint bracketanodized aluminum
hanger bolt-L bracketanodized aluminum
mounting railsanodized aluminum
rail connectorhot dipped galvanized steel
ground mounting purlinehot dipped galvanized steel
ground mounting beamhot dipped galvanized steel
ground screw pilehot dipped galvanized steel
steel pilehot dipped galvanized steel
rail joineranodized aluminum
L-bracketanodized aluminum
earthing lugandoized aluminum
klip-lok bracketanodized aluminum
clamped rail pieceanodized aluminum


Company Profile
Wuxi Solarfu Mechanical Equipment Manufacturing Co.,LTD is a high-tech enterprise specialized in the R&D, Manufacturing and Service of solar mounting systems,Founded  in 2010 and has a manufacturing base in Yangtze Delta with 4000m2, just one hour distance t away from Shanghai port by car.
In the past 6 years, Solarfu has developed into one of the major solar mounting systems suppliers in China mainland.our products line include ground mounting system/roof mounting system/carport mounting system and OEM solar mounting parts like clamps/rails/hooks.all the brackets we offer are made of Anodized Aluminum and Galvanized Steel which quality are highly-apprecaited.
Solarfu has passed ISO 9001 and other various qualified certifications,The production process is always adhere to the ISO 9001:2000 quality management system and the industry standards. The company continues to forge ahead, and strives to become a world-class leading enterprise of pv products.We warmly welcome you for popularizing the clean energy together with us.

As a manufacture,what we can offer


Contact us now
In order to help you get the right system, please offer the following necessary info:
1. Dimension of solar panels(length*width*thickness)?
2.Solar panels array?
3. Where to install (which kind of rooftop or ground)?
4. Tilt angle?
5. Any requirements about wind load and snow load?


Wuxi Solarfu Mechanical Equipment Manufacturing Co., Ltd is a high-tech enterprise specialized in the R&D, Manufacturing and Service of solar mounting systems, Founded in 2010 and has a manufacturing base in Yangtze Delta with 4000, just one hour distance t away from Shanghai port by car.

In the past 6 years, Solarfu has developed into one of the major solar mounting systems suppliers in China mainland. Our products line include ground mounting system/roof mounting system/carport mounting system and OEM solar mounting parts like clamps/rails/hooks. All the brackets we offer are made of Anodized Aluminum and Galvanized Steel which quality are highly-apprecaited.

Solarfu has passed ISO 9001 and other various qualified certifications, The production process is always adhere to the ISO 9001: 2000 quality management system and the industry standards. The company continues to forge ahead, and strives to become a world-class leading enterprise of PV products. We warmly welcome you for popularizing the clean energy together with us.
