Only Allows Water to Flow in One Direction and Pre
Connection Form:
Cartridge
Product Description
DESCRIPTIONS
OUR COMPANY

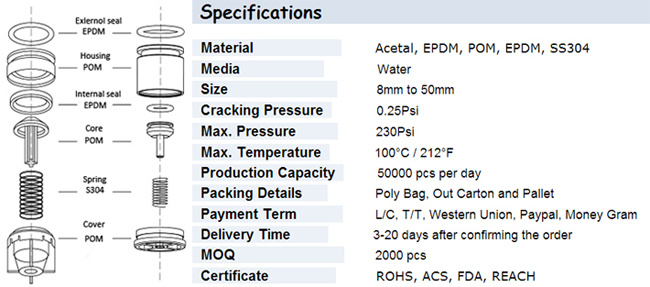

MATERIAL CONSTRUCTION
Structure
Material
External Seal
EPDM
Housing
POM
Internal Seal
EPDM
Core
POM
Spring
SS304
Cover
POM
SPECIFICATIONS
Max. Pressure
150Psi/ 10bar
Max. Temperature
65°C / 150°F
Media
Drinking Water
Capacity
Over 50000pcs/day
Marketing Area
All over the world
ADVANTAGE
1.High precision automatic lathe to make the claws not hurt tube surface. 2.5% tested by water at 10 bar, 100% tested by air and appearance test. 3. Easy to push in and put out on the basis of working pressure assured 4. 1 year quanlity assurance after shipment. 5. Custom fitting as your drawing or we make drawing as your sample.
WHY CHHOSE US ?
1. We offer one stop solution. Over 5000 items for you to save efforts and costs. 2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function. 3. We will reply you within 24 hours. 4. Whatever quantity you are requesting, we always offer you the best quality. 5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Packing: Transparent plastic bag + white small box + neutral carton + pallet Custom packaging are available, XHnotion brand packaging are available
Shipping : Export port: Ningbo or Shanghai, China Shipping way: by sea, by air, by courier Delivery time: 3 days to 30 days depends on actual orders.
Payment Terms : We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy : For regular fittings below 20 pcs, free samples against your courier account or you pick up from us. For custom items, we will discuss by email.
Return Policy: We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
XHnotion, is a leading manufacturer of pneumatic components and solenoid valve in China. Our products include below items
Pneumatic fittings, plastic, brass, stainless steel push in fittings
Pneumatic quick coupling, air tool kits, air blow gun
Pneumatic muffler, silencer, filter
Air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
Solenoid control valve for water, air, diesel, oil
Air cylinder, air preparation, pneumatic directional valve
Modular hose, water push in fitting
Ball valve, brass connector
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder
Our production is strictly under the control of ISO9001: 2000, and many products get CE approval. Since founded in 1997, we have marketed over 70 countries and firmly established our reputation for the excellence of our design, quality, service and pricing.
