Cutter Type:
Core Drill Bit
Shank Diameter:
19.05mm
Shank Type:
Weldon Shank Cutter Surface
Treatment:
All-Ground
Performance:
Better Endurance
Product Description

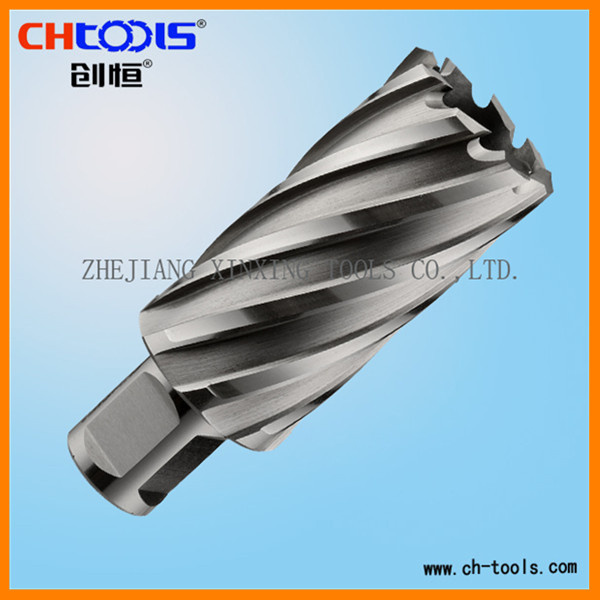

High Speed Steel 50mm depth Weldon Shank Magnetic Drill
1. Applicable to hole cutting and process of annular groove on various magnetic drills and press, like Alfra, Hougen, Jancy, Euroboor, BDS, Ruko.
2. Can be used on various materials, like steel plate, Copper, aluminium, cast iron, stainless steel and plastic. And complex material available for drilling, a higher cutting speed available.
3. Selected geometry for ply-cutting and lower friction. Reduced damage of tips and improved performance of ships removal.
4. Multi-ply cutting end edge geometry, to improve removal of chips and keep less resistance.
5. The specifications from the Φ 12mm ~ Φ 150mm, depth of cutting 35mm, 50mm, 75mm, 100mm series.
6. Special cutter for special occasion are available according to customer.
7. The product is mainly used to process the hole of steel component, such as steel structure project, railway traffic, bridging, shipbuilding, machine manufacture, aviation and spaceflight.
Type
Size
Type
Size
DNHX-40120
12*50
DNHX-40350
35*50
DNHX-40130
13*50
DNHX-40360
36*50
DNHX-40140
14*50
DNHX-40370
37*50
DNHX-40150
15*50
DNHX-40380
38*50
DNHX-40160
16*50
DNHX-40390
39*50
DNHX-40170
17*50
DNHX-40400
40*50
DNHX-40175
17.5*50
DNHX-40410
41*50
DNHX-40180
18*50
DNHX-40420
42*50
DNHX-40185
18.5*50
DNHX-40430
43*50
DNHX-40190
19*50
DNHX-40440
44*50
DNHX-40200
20*50
DNHX-40450
45*50
DNHX-40210
21*50
DNHX-40460
46*50
DNHX-40215
21.5*50
DNHX-40470
47*50
DNHX-40220
22*50
DNHX-40480
48*50
DNHX-40225
22.5*50
DNHX-40490
49*50
DNHX-40230
23*50
DNHX-40500
50*50
DNHX-40240
24*50
DNHX-40510
51*50
DNHX-40250
25*50
DNHX-40520
52*50
DNHX-40260
26*50
DNHX-40530
53*50
DNHX-40270
27*50
DNHX-40540
54*50
DNHX-40280
28*50
DNHX-40550
55*50
DNHX-40290
29*50
DNHX-40560
56*50
DNHX-40300
30*50
DNHX-40570
57*50
DNHX-40310
31*50
DNHX-40580
58*50
DNHX-40320
32*50
DNHX-40590
59*50
DNHX-40330
33*50
DNHX-40600
60*50
DNHX-40340
34*50
DNHX-40650
65*50
Zhejiang Xinxing Tools Co., Ltd. Established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. It is the worldwide leader in annular cutter industry.
Our products include: Annular cutter, rail cutter, hole saw, spade drill, step drill, countersink, solid carbide cutter, magnetic drill machine, diamond drilling bit, deep hole drill, etc.
We concentrate on manufacturing high-quality cutting tools, normalize ISO9001: 2008 quality control system under operation strictly, and ensure unified high standard quality requirements. Staying with hardwork and perseverance, CHTOOLS Brand has been created and widely acknowledged resulting from the valuable trust of all esteemed customers.

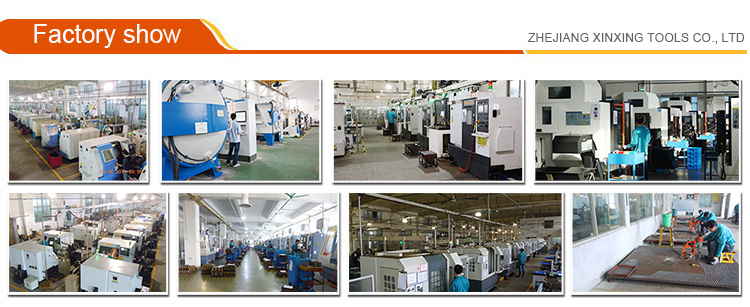

We have modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, and all the production processes are completed by our own factory. We also own top detecting instrument in the world, conducting a series of detections to raw materials, heat treatment, and cutting tools. For you, which means: The most reliable products supply and the fastest delivery time.
For 25 years, the company has won over one hundred honors successively.
In future, we will continue to devote to be an international leading cutting tools manufacturer, to provide you with more effective and excellent service, be a designated cutting tools supplier who you can rely on from your deep heart.
