High Quality Fitted Kitchens Cabinet Hardware China

Name: High Quality Fitted Kitchens Cabinet Hardware China
Brand: tool-buy.com
SKU: 720297422
Availability: InStock
Rating: 4.7 (91 reviews)

Price:	US $ 0.1/Piece
Min Order:	10000/Piece
Pay Type:	T/T

Contact Supplier

Foshan Shunde Dongyue Metal & Plastic Products Co., Ltd.

Showroom Product Company Profile

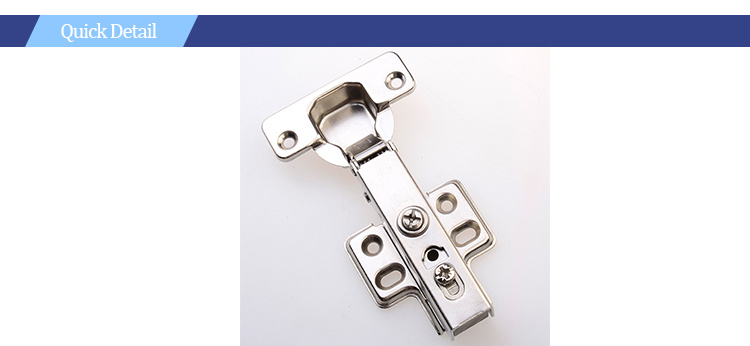

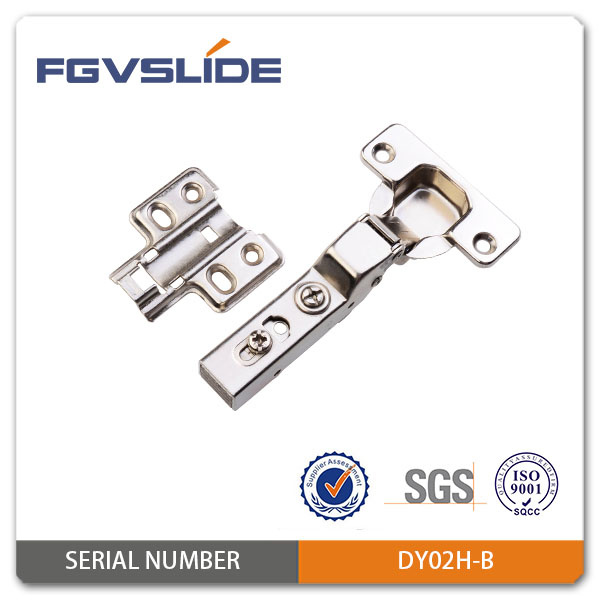

Prod Model:	DY02H
Name:	High Quality Fitted Kitchens Cabinet Hardware Chin
Feature:	Normal, Durable
Plate:	4 Hole, 2 Hole, Butterfly Plate
Cup Diameter:	35mm
Cup Hole Distance:	45, 48, 52mm
Cup Depth:	11.3mm
Application:	Concealed Cabinet Door
Test:	SGS Test
Certificate:	ISO9001
Market:	North America, South America, Europe, Africa, Ect.
Finish:	Nickel Plated
Material:	Iron
Type:	105-110 Degree

Product Description

High quality fitted kitchens cabinet hardware china

ITEM NAME	High quality fitted kitchens cabinet hardware china	ITEM NO.	DY02H
MATERIAL	Steel	FINISH	Nickel Plated
CUP DIAMETER	35 mm	CUP HOLE DISTANCE	45 / 48 / 52 mm
FUNCTION	Normal	HOLE PATTERN	2 holes or 4 holes, butterly
STYLE	Full overlay / Half overlay / Inset	OPEN ANGLE	110 Degree

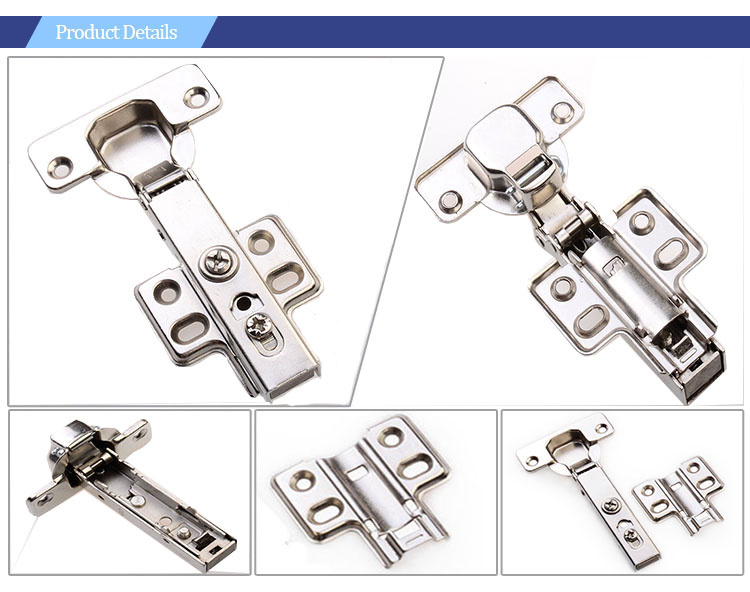

Product Detail

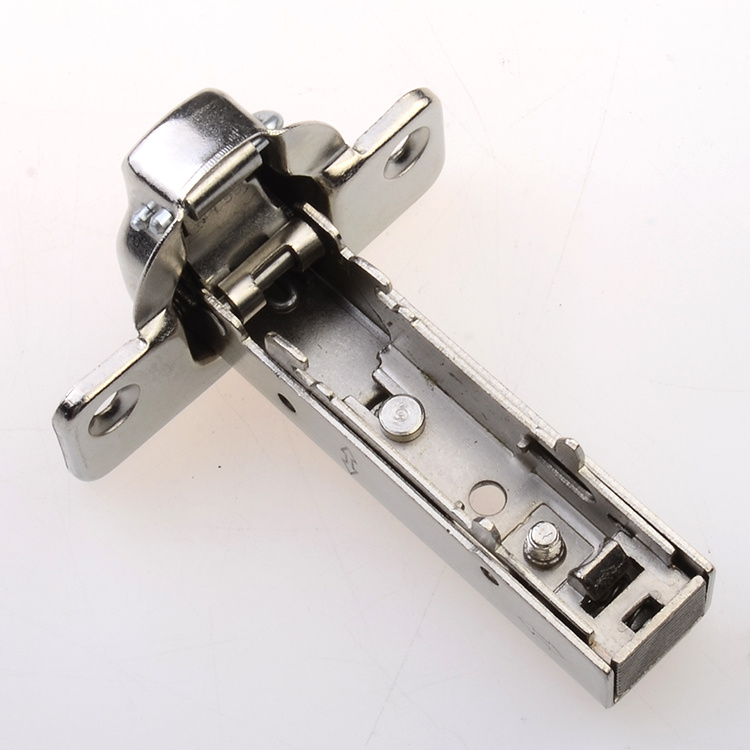

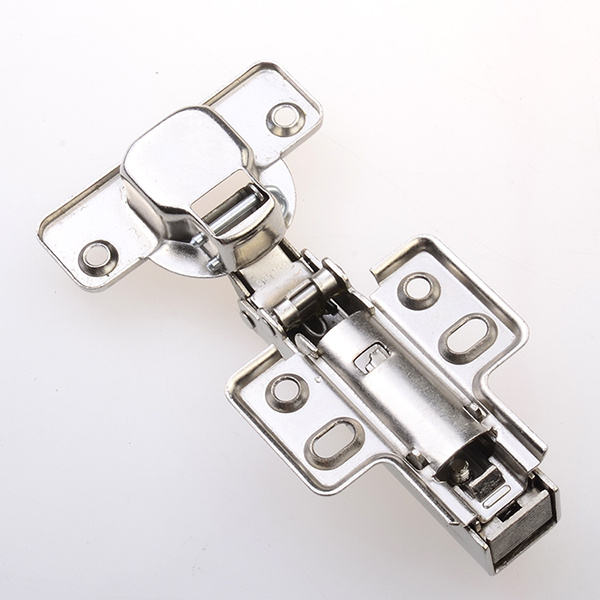

1. Type: Furniture hinge, concealed hinge
2. Material: Stainless Steel 201 or SUS304
3. Package: Buckle Package
4. Style: Half overlay / Full Overlay / Inset
5. Opening angle: 90-110 degree
6. Cup Diameter: 35 mm
7. Cup hole distance: 48 mm
8. Depth: 11.3 mm
9. Plank thickness: 14-21 mm
10. Door(c) distance: 3-7 mm
11. Weight: 60g
12. Certification: ISO9001
13. Test: SGS
14.50000 times open-close SGS test

Our Service
1. Prompt and flexible quotation
2. Customized package
3. Considerate after-sale service
4. Well-known global market
5. Reliable quality

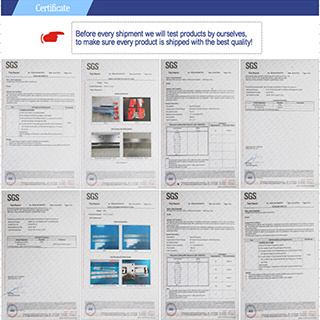

Testing	SGS TEST
	Passed over 50,000 open-close
	Passed 48 hours salt spray test
Sample	Sample free and small order can be accepted
Features	Strengthened adjustable screw can widen the adjustable ranges and longer using life.
	Widening manganese steel spring,can disperse force when the hinge closed. Strengthened spring, thickness 2.5mm instead of common one thickness: 1.2mm
	Adopt advanced hydraulic system,longer life time,smaller volume

Packing Details
We supply two kinds of hinge'spackage mostly:
1.100 pieces into one plastic bag, one plastic bag into one carton;
2. 2 pieces with screws into one small plastic bag, 100 plastic bags into one carton.
Plastic bags can be customized base on 120 thousand pieces hinges inquiry.

Item No	Description	N.W(kg)	G.W(kg)	CTN Size/MM	Q'ty/CTN
DY02H	Normal hinges	16	16.3	400255200	200

Company Profile

Foshan Shunde Dongyue Metal & Plastic Co., Ltd. (FGVSLIDE Enterprise Limited) is located in 2002, with an experienced sales team with 13 years i this field.
Specialized in producing different widths high quality slides: 53mm/45mm/35mm in full extension and 35mm/27mm/17mm in single extension
Our products are sold to European, USD, Germany, UK, Denmark, Brazil, Iran, Sweden and Japan.
Several international famous brands cooperated with us, for example: HAFELE, WURTH, HAILO, EBCO, EUROFIT, etc..
Registered own brand FGVSLIDE, some countries with agent already. We are interested in collaborating with importers of furniture hardware, who must be motivated, responsible, and have an established sales network.
Our products have SGS test. Including 48 hours salt fog test, extension test(75000 times of the basic one and 50000 times of the ones with fuction).
Import POM material, using the best electroplating technoligy from Taiwan.

Exhibitions
We took part in the Canton Fair since the 108^th Canton Fair. In the meanwhile, we also took part in foreign exhibitions like: International Woodwork Fair in U.S.A., Hardware Exhibitions in Brazil and South Africa.

FAQ
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 50000pcs. If need colorful bags, then MOQ need 120000pcs; If there
is no need for brand logo and package, MOQ is 5000pcs for normal hinge. And 1000pcs for soft close hinge.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass production
quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose and the
country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-45 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, 70% before shippment if you book the shippment, or 70% against scanned B/L
if we book the shippment.
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare.
If there are some quality problems, such as finish problem, damaged problem, please kindly take some photos and
show to us proof, also please show us the carton image to locate the quality supervisor. After we verified the
problem, we will give refund or resend the goods.
7. What's the price term?
EXW/FOB/CNF/CIF depends on customer's requirement.

Contact Us Now!

Foshan Shunde Dongyue Metal & Plastic Products Co., Ltd, also known as FGVSLIDE Enterprise Ltd. And FIFAN Hardware, are experience furniture hardware manufacturer since 2005 and have been supplier of HAFELE Korea, Mobile, Wurth and The Home Depo for more than five years. 90% export. Main market in US, Canada, South America, Europe and Middle East ect.

Since our foundation, we are aim to manufacture the most durable furniture hardware to make your daily life more convenient and assured! In order to reach that goal, we work hard on developing new technologies, and focus most of our time on products quality control during the producing! We will do the drawer slides & hinges cycle tests by ourselves for each order, and we can also provide SGS test if required!

Each year, we will attend different Exhibitions of the hardware industry, such as the CIFF & the Canton Fair in China, the IWF in USA etc. During the Exhibitions, we will present our new develop products and meeting with our old and new clients!

If you have any hardware require, please feel free to contact us now. We sincerely hope to become your most reliable friends who help you enlarge your business and earn more market share!

Thank you so much.

Welcome to contact us

Yours best friend

Phyllis Wu
