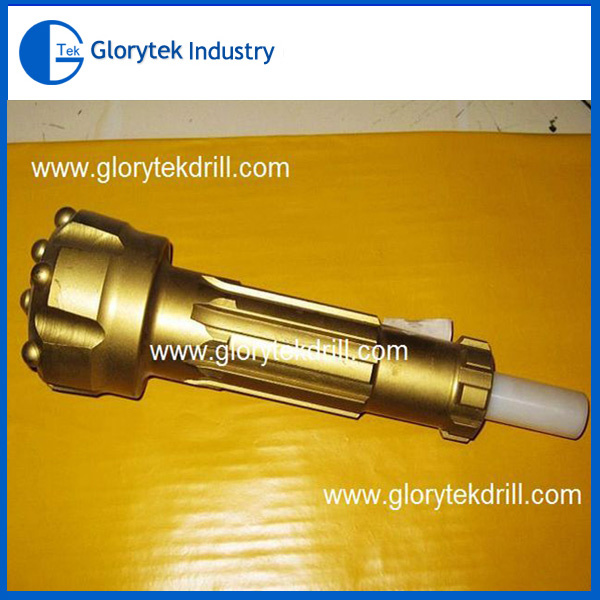

High Quality DTH Hole Opener Bit (Diamond/ Tungsten Carbide)

High Quality DTH Hole Opener Bit (Diamond/ Tungsten Carbide)
Price: US $ 100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: GL360
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No: DTH Bits
Bit Shank: DHD, Cop, SD, Ql, Br, Numa, Mission, PDC
Bit Face: Flat, Concave, Convex, Drop-Center, Double Gauge F
Button Shape: Spherical, Ballistic, Parabolic, Conical
Color: Black, Gold, Red, Blue, Grey
Sizes: 2 Inch to 30 Inch
Processing: Forging
Face: Flat, Convex, Concave
Quantity: Small Quantity Is Acceptable
Usage: Coal, Ore, Water Well, Pneumatic
Type: Rock Drill Rig

Product Description


Product Description
We can design and manufacture according to customer's requirement of the Bit Dia\No. Air holes\carbide button shape and the face shape. High air pressure and low air pressure.
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide

All products are compatible with many products manufactured by Sandvik, Atlas Copco, etc, all our products are widely used in mining, tunneling, quarrying, construction, and civil engineering project.

DTH bits
1.manufacture as your requirement
2.bit diameter, face shape
3.carbide button shape
4.number of air hole
Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
 The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Convex Face
 For  high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Flat Face Bit
 This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Carbife button shape selection:
1. Domed/Round Button
Domed/Round Buttons are usually used as gauge buttons of DTH Bits, suitable for every abrasive and very hard formations.
2. Parabolic/Semi-Ballistic Buttons
Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
3. Ballistic Button
Ballistic Buttons are usually used as front buttons of DTH Bits, suitable for medium abrasive and mesium hard formations. They can also be used as gauge buttons if the rock is soft.
4. Sharp Button
Sharp Buttons are usually used as front buttons of DTH Bits for soft formations where fast penetration rates are possible.
5. Flat Button
Flat buttons are usually used as protection buttons to reduce wear on rubbing surfaces of dth bits.
shank can be available:

1), Dia. 64mm-70mm shank Bulroc BR1
2), Dia. 70mm-95mm shank Halco MACH20, Bulroc BR2
3), Dia. 90mm-102mm shank COP32, COP34, Halco MACH303, M30, DHD3.5, Bulroc BR3
4), Dia. 105mm-152mm shank COP44, DHD340, Halco MACH44, SD4, M40, QL40, Bulroc BR4
5), Dia. 135mm-165mm shank COP54, DHD350R, COP54, Halco MACH50, SD5, M50, QL50, Bulroc BR5
6), Dia. 152mm-254mm shank COP64, DHD360, SD6, M60, QL60, Bulroc BR6
7), Dia. 203mm-330mm shank COP84, DHD380, SD8, QL80
8), Dia. 254mm-380mm shank SD10, Numa100
9), Dia. 305mm-508mm shank DHD1120, SD12, N120, N125
10), Dia. 405mm-864mm shank SD15, SD18
11), VKP80, VKP95, CIR90, CIR100, CIR110, CIR150, CIR200...

Button Bits:

Future:
Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength).Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
 Recommended for eliminating hole deviation
Widely used drifting and tunneling
Bit face design is ideal for medium-hard to hard abrasive rock

Shank can be available:
R25/R32 button bits: from 41mm to 115mm
T38/R38 button bits: from 57mm to 89mm
T45 button bits: from 70mm to 105mm
T51 button bits: from 89mm to 127mm
ST58 button bits: from 89mm to 127mm
GT60 button bits: from 102mm to 152mm
EL68 button bits: from 115mm to 152mm
ST68 button bits: from 115mm to 152mm
Buttons shape: Domed,spherical, parabolic (semi-ballistic), ballistic
Face shape: flat face, drop center, uni-face;
Skirt type: normal, retrac, straightrac

Type

Number of
Air hole

DIa.(mm)

Weight(kg)

Gauge Button

Front Button

Matching
DTH Hammer

GL65PQ

1

68-72

1.5

4×12

3×12

GL65

GL75PQ

3

75-77

2.4

5×12

3×12

GL70

GL76PQ

2

76-78

2.5

5×12

3×12

GL76

GL76-78

2

78-82

2.6

5×12

3×12

GL80PQ

3

82-84

3.0

5×12

6×12

GL80 /80X

GL90A

3

90-95

3.6

6×14

4×12

GL80XD-90

3

90-95

3.4

6×12

4×12

GL80XD

GL80-II-80

3

80-82

3.0

5×12

4×12

GL80-II

GL90B

3

90-95

3.8

6×14

4×12

GL90/90-I

GL90T1

2

90-95

3.6

6×14

1×12
3×12

GL90T2

2

90-95

3.8

6×14

4×12

GL90T3J

3

90-95

3.6

6×14

4×12

GL90T5

2

90-95

3.6

5×14

4×12

GL90-100

3

100-105

4

6×14

5×12

GL90-105

3

105-110

4.2

6×14

5×12

GL90-110

3

110-115

4.5

8×14

3×12

GL90-120

3

120-125

5

8×14

3×12

GL90-130

3

130-135

6.8

9×14

4×12

GL110-110

3

110-115

6.1

6×14

5×12

GL110

GL110-115

3

110-115

6.3

6×14

5×12

GL110-120

3

120-125

7

6×14

6×12

GL110-125

3

125-130

7.1

6×14

7×12

GL110-130

3

130-135

7.3

6×14

7×12

GL110-135

3

135-140

8

6×14

7×12

GL110-140

3

140-145

8.2

6×14

8×12

GL110-150

3

150-155

9

6×14

8×12

GL150-155

3

155-160

16.3

15×16

4×14

GL150

GL150-165

3

160-165

17.3

15×16

5×14

GL150-185

3

180-185

19.6

15×16

6×14

GL150-200

3

200-205

23

9×16

12×14

GL170-175

3

175-180

22.8

15×16

8×14

GL170

GL170-185

3

185-190

23.24

15×16

8×14

GL170-195

3

195-198

24

15×16

10×14

GL170-200

3

200-203

25.8

15×16

9×14

GL170-210

3

210-213

26.5

12×16

6×14
6×16

GL170-220

3

220-223

28.5

15×16

11×14

GL170-230

3

230-233

32

15×16

12×14

GL170-240

3

240-243

36

21×16

6×14

GL170-250

3

250-253

45

15×16

4×14

Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.

Scope of products:

Blasthole Drilling Rigs
1: Compressor Integrated Type
2: Compressor Separated Type

Water Well Drilling Rigs
1: Truck Mounted Type
2: Crawler Type
3: Trailer Type

Piling Machinery
1: Rotary Drilling Rigs
2: Anchor Drilling Rigs
3: Auger Drilling Rigs

Drilling Auxiliaries
1: DTH Hammer and Bits
2: Button bit, Chisel bit, Cross Bits
3: Drill Pipe or drill Rod
4: Tricone Bits
5: PDC Bits
6: Downhole motor or Mud Motor
7: Pumps
