Prod Model: |
DLKP08 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |

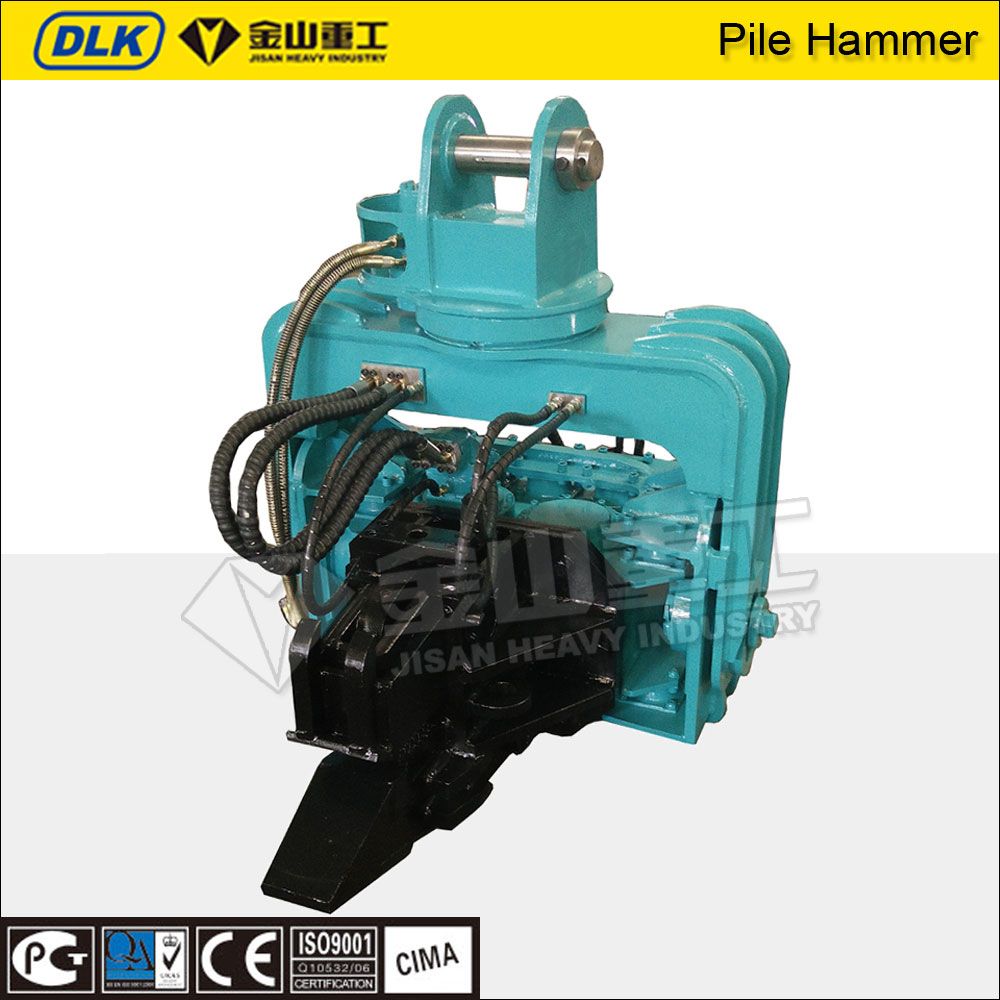

Excavator Mounted Vibro Hammer |
Weight: |
2500kg |
Material: |
High Strength Steel |
Composition: |
Assistant Hand, Main Body, Clip Mouth |
Dimension(L*W*H): |
1500*1600*1750 |
Warranty: |
14 Months |
Service: |
OEM Accepted |
Operating Principle: |
High Frequency Hydraulic Vibratory |
Suitable Excavator: |
24-32 Ton |
Color: |
Black, Yellow, or as Customer Request |
Type: |
Vibratory Pile Hammer |
Power Source: |
Hydraulic |
Product Description
Features:
JISAN DLK series hydraulic vibratory hammer is the vibratory driving piling equipment which is popular among a wide variety of foundation projects.
Apart from driving and pulling elements such as sheet piles and pipes, vibratory hammers are also used for soil densifying or vertical drainage, especially suitable for municipal, bridges, cofferdam, building foundation, etc.
With advanced technology, vibratory hammer has advantages of low noise, high efficiency, non-pollution and non-damage to piles, etc.
Advantages
1. Applied to driving and pulling steel plate, cement pile, steel rail, round pipe, steel H-pile, Lasson pile
2. fast conversion between driving and pulling work
3. less tension when pulling piles
4. no damage to the bottom or top of steel plate and steel rail pile
5. No damage to the buildings even working frequently nearby
6. Silent work and short construction period, overcome environmental problems
Parameters:
Item\Model | Unit | JSP20 | JSP40 |
Eccentric Moment | Nm | 40 | 85 |
Frequency | rpm | 2800 | 2800 |
Centrifugal Force | KN | 300 | 570 |
Amplitude | mm | 6.8 | 14 |
Working Pressure | bar | 280 | 300 |
Oil Flow | L/min | 155 | 255 |
Max Turning | degree | 270 | 270 |
Weight | Main Body | kg | 2080 | 2940 |
Extension Boom | kg | 740 | 1070 |
Total weight | kg | 2900 | 4100 |
Applicable Excavator | Ton | 20-30 | 35-50 |

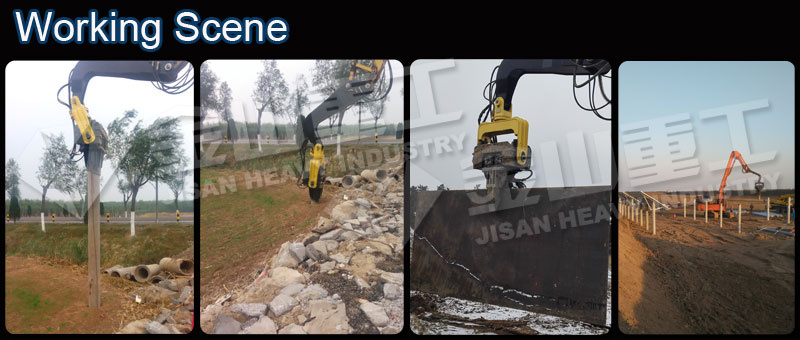

Working SceneJISAN high frequency hydraulic vibratory pile driver is using vibrating pile sinking to drive or extract piles. It is especially suitable for municipal, bridges,cofferdam,building foundation etc.

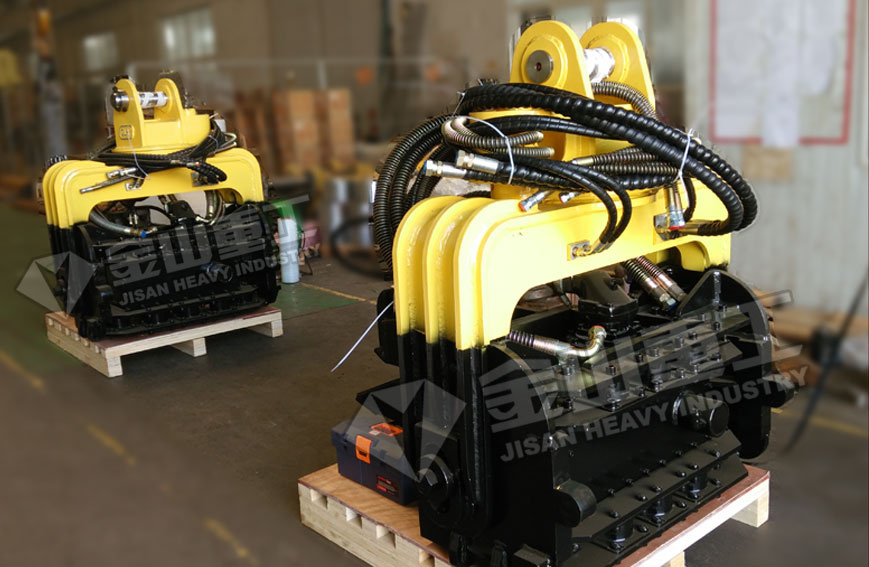

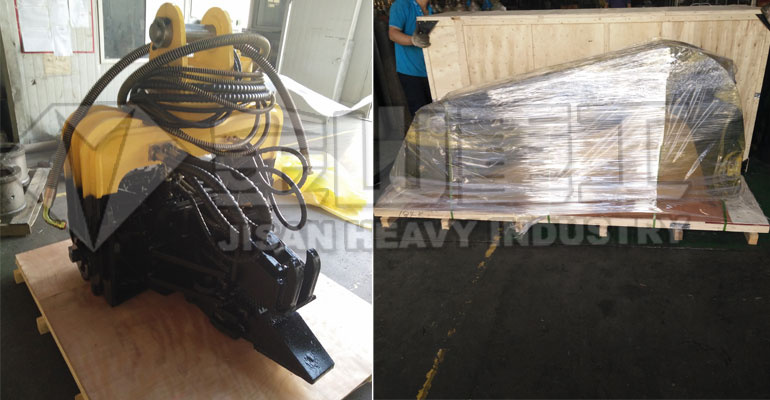

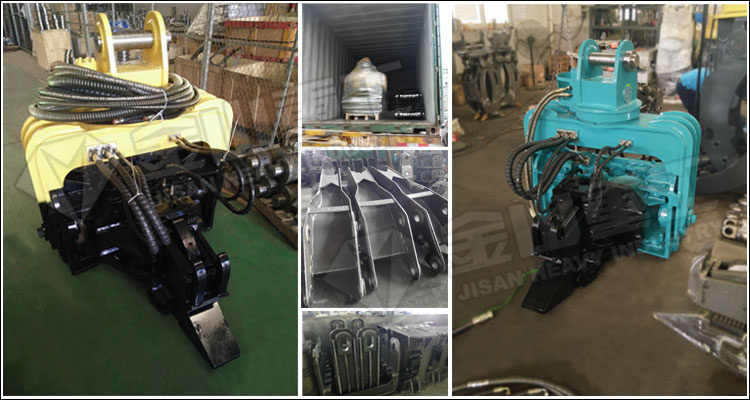

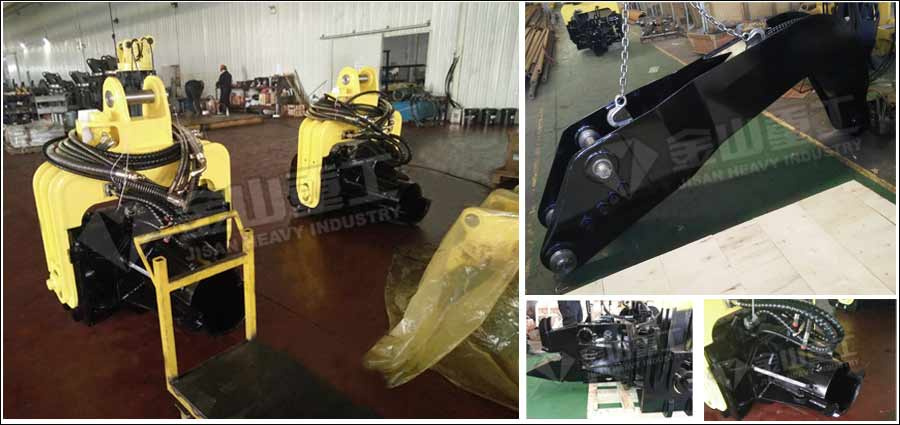

Package and ShippingThe standard set of pile hammer include:
- The body of pile driver
- Goose neck (vice arm)
- Clamp;
- Accessories.
Company Introduction
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experience. Our products have been exported to many countries in the world including India,Saudi Arabia, Iran, Brazil, Australia, New Zealand, Southeast Asia, USA and France etc.
With advanced imported CNC Center and strict quality control management, our products have been approved by ISO, CE authority.
Our Service
1. 7Days *24Hours phone and email service
2. Your inquiry will be replied in 24 hours
3. Well-trained and qualified staff to answer all your questions
4. OEM Service available
5. Warranty: 14 months warranty for hydraulic pile hammer, beyond the warranty period, all spare parts offered to you with our cost price (not including freight).
Contact Information
If you have any questions, please contact me by below ways:
Mr. Scott Ning
Mobile: 0086-18615951533
Website: www.jisanbr.net

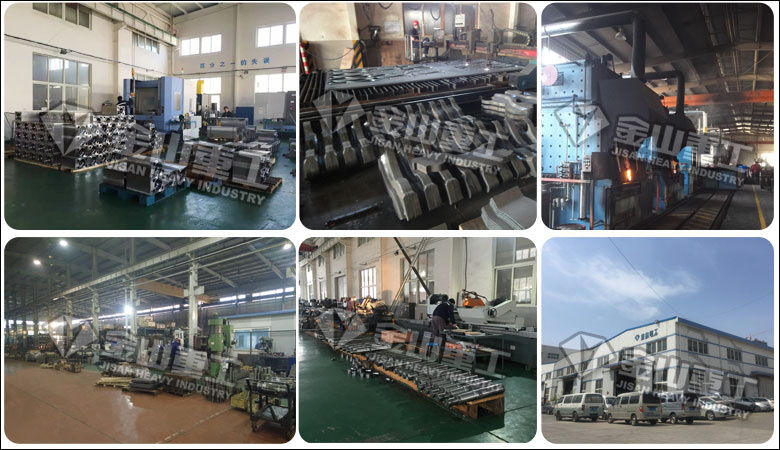

Jisan Heavy Industry Ltd. Is a modernized manufacture enterprise specializing in independent R & D, manufacturing of all the excavators matching equipments. The company is equipped with Plasma Cutting Machine, Edge Milling Machine, Welding Machine, CNC Machine, Sand and Spraying Equipment, Flaw Detector those processing and testing equipment, to lay a solid foundation for ensuring the advancing production capacity.
The company mainly produces all kinds of excavator front-end equipments: Quick Coupler, Ripper, Hydraulic Compactor, Hydraulic Breaker, Hydraulic Wood Grapple, Stone Grapple and Hydraulic Shears. The company has JISAN and DLK two series brand, which can suit all domestic and foreign excavators, Komatsu, Hitachi, CAT, Kobelco, Doosan, Sany, Liugong, XCMG, etc. Meanwhile tailor special devices under different working conditions according to customer's operating environment.
The company has independent import and export rights. Products are sold all over the world. The company provides supporting and processing services for the domestic and foreign many excavator manufacturers to maximize meet customers' requirements.
The company has high-quality technical team, perfect quality control system and service network; Quality is the life of enterprise. Grasp the quality source, in terms of production, strictly control of the homemade quality and production process. The company implemented 6S management, and continually improve the quality awareness of staff, combined with the assessment mechanism to supervise and inspect, and carry out quality one-vote veto to ensure product durability, reliability, fundamentally set up the concepts of Quality First.
In the future, JISAN Company will make full use of rich experience accumulated and the core competitive advantage formed in the past few years. Through the implementation of Elaboration- Diversity-Globalization the three strategic goals, promote enterprise development; Make a professional excavator front-end equipment manufacturers to stride forward the world first-class enterprise.
