Mobile Phone, PCB, Integrated IC, Cable, Computer,
Installation Mode:
Rotary Jack
Cards Support:
Single Card
Working Frequency:
Low Frequency
Interface Type:
Zif
Shape:
Bar
Feature:
Fire/Flame Retardant
Product Description
High Quality DC Female connector DC Power Jack -- It is widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Advantage
NO.1
Good quality!
NO.2
10 years manature!
NO.3
Many types of circuit breaker switch we can supply
NO.4
High quality, competitive price, great service!
NO.5
The best indicator light at the best price!
The Basic Technical Parameters
Item
DC Power Jack
Mterial
PBT PPA
Rating
0.3A30VDC
Packing
Carton
Contact Resistance
≤0.03Ω
Insulation Resistance
≥100mΩ
Temperature
-20-70Degree
Withstand Voltage
AC 500V(50Hz)/min
Type
0.8mm DC Power Jack
Elactric life
10000 Cycles
Terminals & Mid pins
Copper with silver plated
Main Technical Parameters
Experimental Current
Starting Condition
Experimental Time
Expect Result
1In
Cold Start
1h
Not Trip
1.5In
Followed The Experiment
t<=1h
Trip
2In
Cold Start
(t1)2s≤t≤60s(t2)
Trip
6In
Cold Start
(t3)0.1s≤t≤2ss(t4)
Trip
10In
Cold Start
(t5)0.02s≤t≤0.5s(t6)
Trip

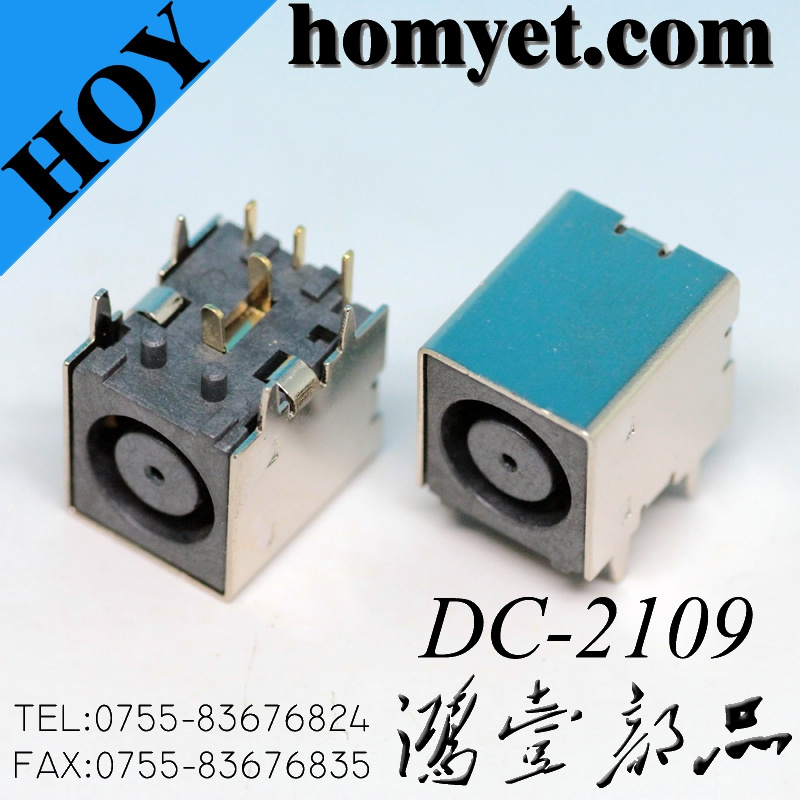

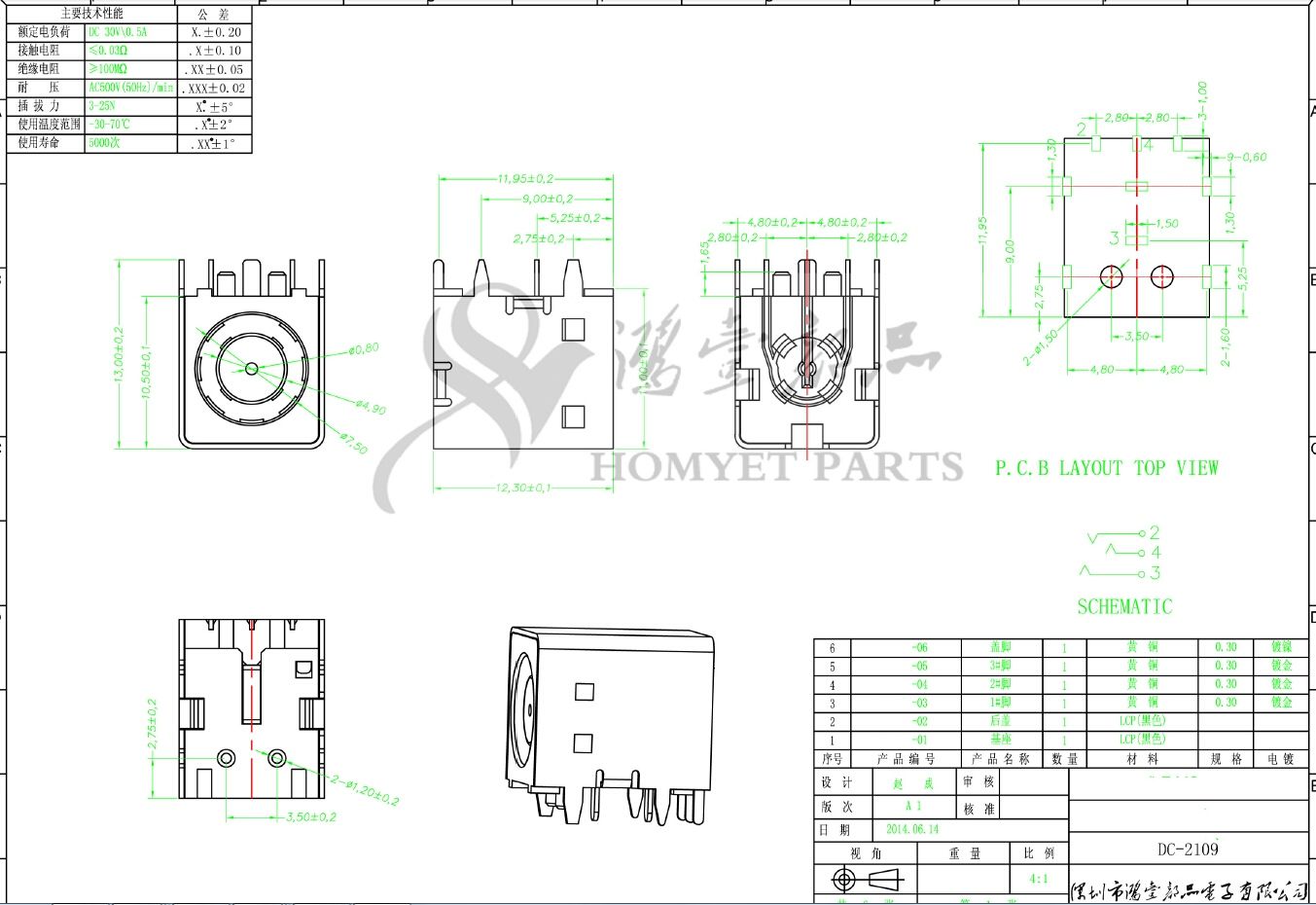

Product Picture&Drawing
OTHERS Please kindly inform us which items you are interested, and the best price will be provided you upon receipt of your new enquiry ASAP. Any questions about more items, please feel free to contact us. We are sincerely looking forward to establish cooperative relationship with you. Free sample is available! If you need any parts, please kindly send us your drawing or sample for quotation.
