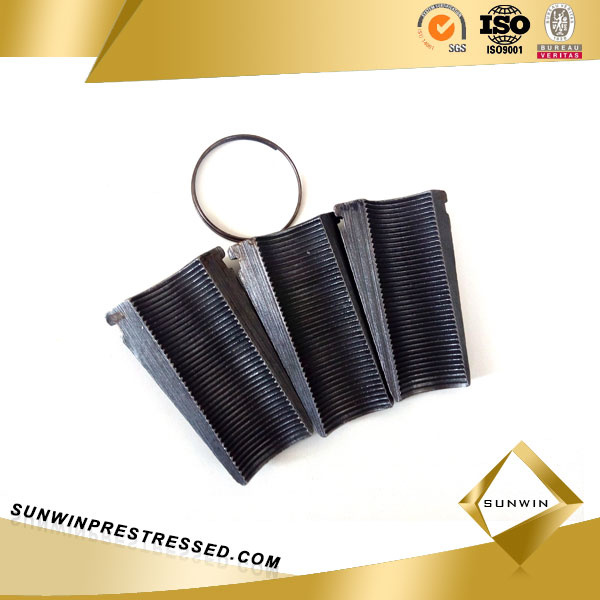

High Quality Anchor Wedge for Building

High Quality Anchor Wedge for Building
Price: US $ 2.5/Set
Trade Terms: FOB,CFR,CIF
Min Order: 10/Set
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: YJM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name: Round Galvanized Multistrand Anchorage for PC
Brand: Sw
Place Of Origin: Tianjin,China Mainlan
Material Of Anchor Head: 45# or 40cr
Wedge Material: 20crmnti
Hardness Of Anchor Head(HRC): 50~100
Hardness Of Working Wedge(HRC): 20~35
Anchor Efficiency Coefficient: No Less Than 0.95
Total Strain Of Ultimate Tension (%): No Less Than 2.0%
With-Draw Of Wedge After Stressing: No Big Than 6mm

Product Description

Round Galvanized Multistrand Anchorage for PC Strand
1. Our prestressed anchorage wedge can be used to anchor PC strand which strength below 2000Mpa.

2. Applicated for: Prestressed concrete structure. Such as, large span railway and highway, bridge, crane girders, rock-soil anchoring engineering, multi-floor industrial plant, coal, sports venues, etc.

3.YJM 13 serie round anchorage suit for 12.7mm-15.2mm strand and YJM 15 series round anchorage suit for 15.2mm-15.7mm strand

4.Material: Steel, 40Cr/C45

5.Model Number: YJM 13/15 series

6.Hardness of work wedge(HRC): 50~100

7.Certificate: ISO,BV,SGS

8.Number of Holes:1-55 holes

9.Multistrand Anchorage is suitable for Φ'12.7, Φ'15.2 strands. It gets rid of the disadvantages of over concentrated pre-stress and large sizes in two directions in group anchor.

10.The stress distribution is reasonable and the thickness of the components can be further reduced. The anchorages can work with YBZ2×1.5-63 electric oil pump and QYC 270 jack.

ItemRound Galvanized Multistrand Anchorage for PC Strand
FeatureRound Shape
Galvanized Or Black ( Chemical Dioxide Surface Treatment)
Well Deburring and Chamfering
Mature & Efficient Design
1 - 55 Holes Available
Standard AssemblyWedge
Anchor Head/Barrel
Bearing plate
Spiral reinforcement
Apply ForPC Strand
StandardGB/T 14370-2007
MOQ10 Pieces
Packing DetailsCarton packet inside with plastic bags,Outside packed by wooden box
Warranty1 Year
PaymentT/T,LC,D/P,West Union



Product Advantage:


1. Independent R & D

2. Easy operating & High Efficiency Performance

2. Quality Guarantee

3. Price Competitive

4. Quick Delivery

5. 100% Contract Performance Rate

6. Strict After-sale serivce

7. Ecomonc & Environment-fridently



FAQ:


1) If we can offer sample: Yes
2) If accept OEM: Yes



Tianjin Sunwin Prestressed Technique Co., Ltd is located in Xiqing Economic and Technological Development Area of Tianjin city, China mainland. We are a professional manufacturer specialized in kinds of prestressed concrete anchor, PC strand, PC wire, post tension equipment and inspection equipment, and trade all kinds of steel products. Product quality, enterprise credit and the construction technology enjoys a good reputation both at home and abroad. There is assets of more than 10 million dollars, annual output value of 40 million, staff of more than 200 people, participate in national standards in which more than 30 senior engineers, can join in foreign construction site. With advance production equipment and sophisticated professional testing equipment more than 200 sets. Have the ability to undertaking variety of level structure of railway, highway, bridge projects, high-rise building, tunnel, water conservancy, mining facilities required for large construction projects of prestressed tensioning construction capability.

Our company has passed ISO9001, BV, SGS quality management certification, and established quality management system according to it, strictly control the whole process from the raw material procurement, production, inspection and after-sales service. Focus on technological innovation, scientific management. "quality first, customer supreme" for the purpose to participate in market competition. And has become the China's leading enterprises of prestressed anchorage series products.

Participate in national, provincial and municipal key projects, our high quality and technical team get widespread credit by users and the national quality supervision departments. We developed overseas market from 8 years ago, have rich experience.

Establish customer file management system, strictly ensure goods same with pictures, drawings. Customer service email tracking monitoring the order from beginning to end, also after-sales feedback. Our products have been exported to 30 countries such as UK, Australia, Philippines, Thailand, Korea, Japan, Iran, Bangladesh, Brazil, Colombia.

Our core values is guided by customer demand, ultimate responsible for the product quality as the vision, open cooperation with global partners, serve people, serve society together by the prestressed tensioning technology.
