High Precision Cylindrical Roller Bearing for Machine Tool Spindles
Price: |
US $ 0.2/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
2300E |
Noise Level: |
Emq V1 Z2 Emq V2 Z3 Emq V3 Z4 |
Seals Type: |
Z, RS, Zz, 2RS |
Structure: |
Cylindrical |
Certification: |
ISO9001:2000 SGS |
Tolerance Level: |
ABEC-1 (P0) ABEC-3 (P6) |
Internal Clearance Codes: |
C0, C2, C3, C4 |
Lubrication: |
Oil, Grease, Dry |
Precision Rating: |
P0, P6, P5, P4, P2 |
Noise Leve: |
Z1, Z2, Z3, Z4 |
Type: |
Roller |
Product Description
Product Description |
Brand | Cylindrical Roller Bearing |
or OEM |
Name | Cylindrical Roller Bearing, Insulated bearing |
Model | N, NU, NJ, NF, NUP, NN, NNU, FC, FCD, FCDP, NNCF,NNF,SL etc |
NU222, NNU4952, N236, NJ315, NF2 |
16 ,NNCF2218, NNF5008, SL185032… |
Material | GCr15SiMn, GCr15, G20Cr2Ni4A |
Certificate | SGS, ISO9001:2000 , BV |
Precision | P0, P6, P5, P4, P2 |
ID Size: | 5mm-1600mm |
Clearance | C0,C1,C2,C3,C4,C5 etc. |
Seals Type | RS, 2RS, R2, Z, 2Z, 2RZ etc |
Features | Cylindrical Roller Bearing |
the most representative kind of rolling bearing with a wide range of applications.The raceways of both its inner and outer rings are in arc groove form capable of bearing radial load and bi-direcrtional axial load,occasions requiring low noise, low vibration. |
Is the separable bearing with low friction The has the advantages of compact structure high rigidity and load capacity etc. |
Application | widely used in automobile, electrical equipment, instrument, building machinery, rolling stock agricultural machinery and various specialized machineries,machine spindle application and are used for cool and hot mills. |
Delivery Time | 2-7days |
Package | card board package, pallet, wooden case or according to the requirement of the customers |
Price | FOB, CRF, CIF |
Payment Terms | A.100% irrevocable L/C at sight |
B.30% T/T in advance, 70% L/C or T/T |
C. Documents against Payment |
D. Others |
Contract Details | Tel:86-15064878019 |
|
Releated cylindrical bearing number |
Number | | | | d(mm) | D(mm) | B(mm) | Weight(kg) |
N202E | NJ202E | NU202E | | 15 | 35 | 11 | 0.049 |
N203E | NJ203E | NU203E | NUP203E | 17 | 40 | 12 | 0.068 |
| NJ2203E | NU2203E | NUP204E | 17 | 40 | 16 | 0.055 |
| NJ303E | NU303E | NUP303E | 17 | 47 | 14 | 0.127 |
N204E | NJ204E | NU204E | NUP204E | 20 | 47 | 14 | 0.119 |
| NJ2204E | NU2204E | NUP2204E | 20 | 47 | 18 | 0.154 |
| NJ304E | NU304E | NUP304E | 20 | 52 | 15 | 0.16 |
| NJ2304E | NU2304E | NUP2304E | 20 | 52 | 21 | 0.224 |
N205E | NJ205E | NU205E | NUP205E | 25 | 52 | 15 | 0.145 |
N206E | NJ206E | NU206E | NUP206E | 30 | 62 | 16 | 0.219 |
N207E | NJ207E | NU207E | NUP207E | 35 | 72 | 17 | 0.317 |
N208E | NJ208E | NU208E | NUP208E | 40 | 80 | 15 | 0.399 |
N209E | NJ209E | NU209E | NUP209E | 45 | 85 | 19 | 0.457 |
N210E | NJ210E | NU210E | NUP210E | 50 | 90 | 20 | 0.517 |
N211E | NJ211E | NU211E | NUP211E | 55 | 100 | 21 | 0.693 |
N212E | NJ212E | NU212E | NUP212E | 60 | 110 | 22 | 0.909 |
| NJ2213E | NU2213E | NUP2213E | 65 | 120 | 31 | 1.54 |
N314E | NJ314E | NU314E | NUP314E | 70 | 150 | 35 | 2.89 |
| NJ2315E | NU2315E | NUP2315E | 75 | 160 | 55 | 5.14 |
N216E | NJ216E | NU216E | NUP216E | 80 | 140 | 26 | 1.62 |
N317E | NJ317E | NU317E | NUP317E | 85 | 180 | 41 | 4.8 |
| NJ2218E | NU2218E | NUP2218E | 90 | 160 | 40 | 3.29 |
N219E | NJ219E | NU219E | NUP219E | 95 | 170 | 32 | 2.99 |
| NJ2220E | NU2220E | NUP2220E | 100 | 180 | 46 | 4.92 |
N322E | NJ322E | NU322E | NUP322E | 110 | 240 | 50 | 10.7 |
N224E | NJ224E | NU224E | NUP224E | 120 | 215 | 40 | 6.02 |
| NJ2324E | NU2324E | NUP2324E | 120 | 260 | 86 | 23.8 |
N228E | NJ228E | NU228E | | 140 | 250 | 42 | 16.8 |

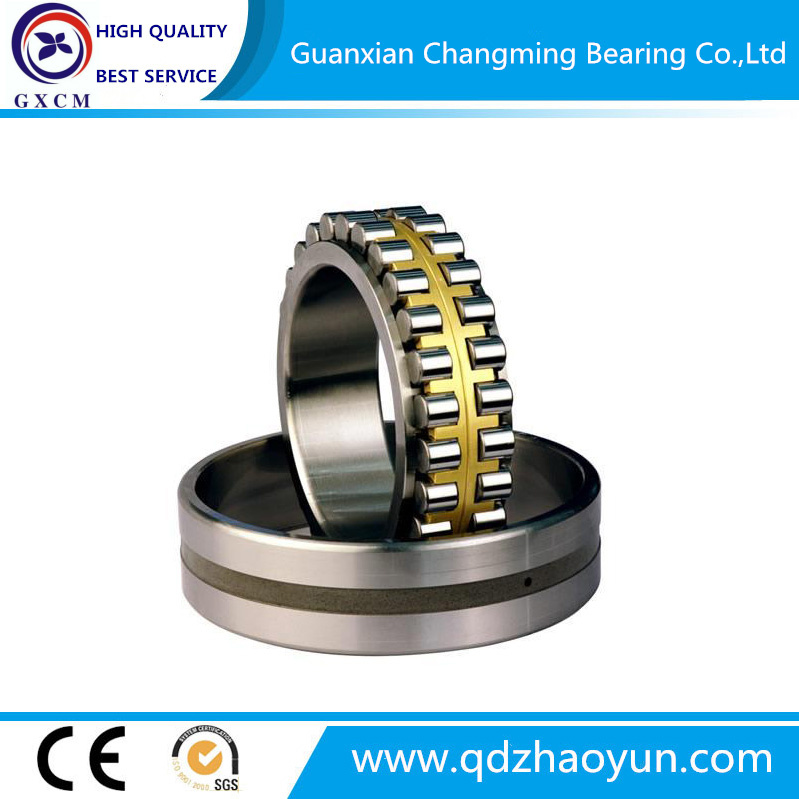

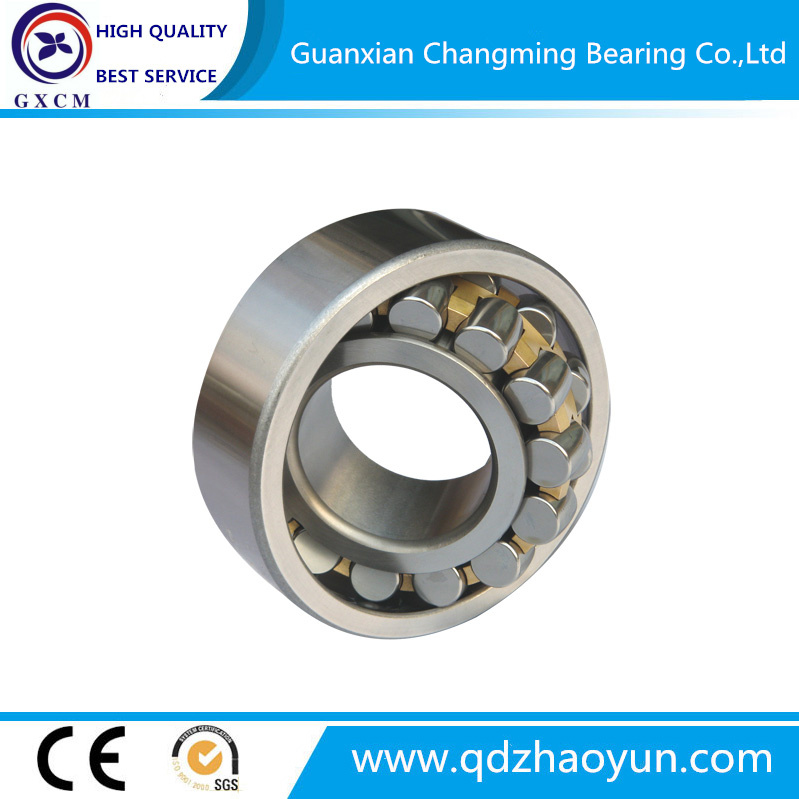

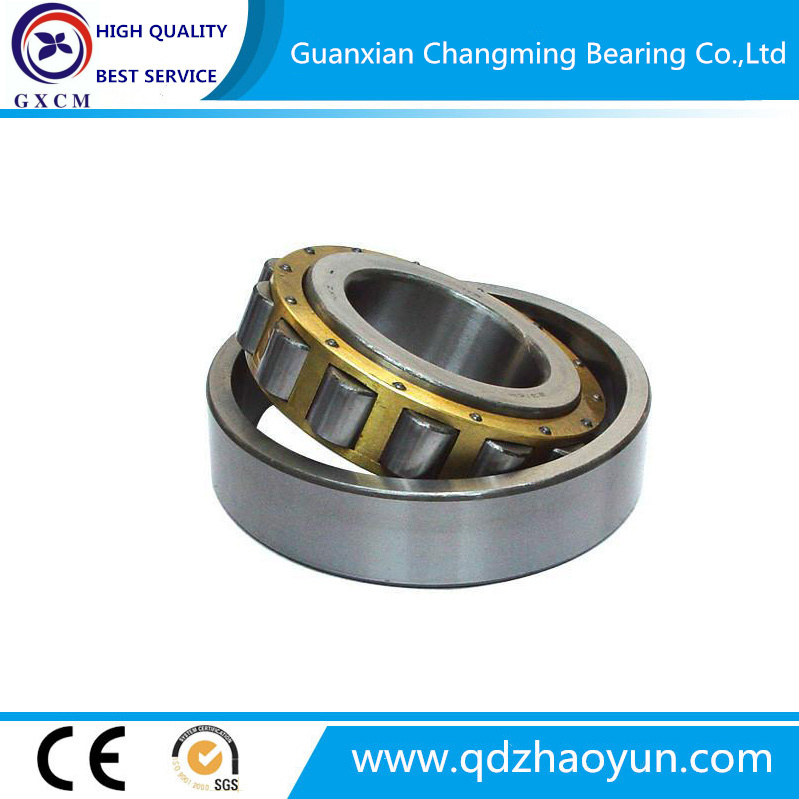

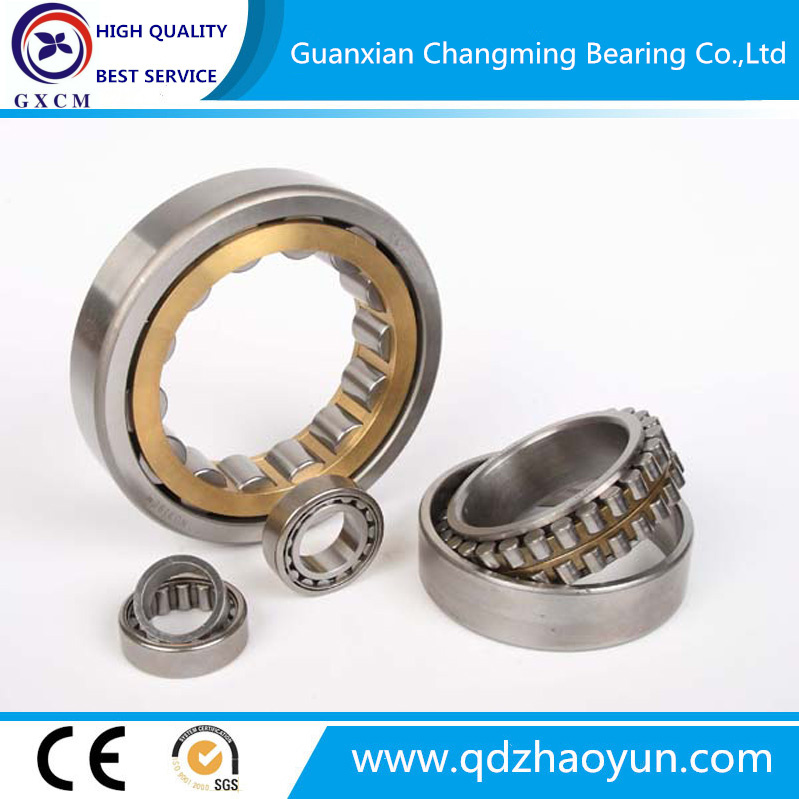

Detailed images
CONTACT US
Guanxian Changming Bearing Co., Ltd is a manufacturer and trader which is specialized in the research, development and production of bearing, auto spare parts, gardening products.
We have been devoting ourselves to production of deep groove ball bearing, tapered roller bearing, spherical roller bearing, cylindrical roller bearing, flange bearing, stamping bearing and all kinds of auto spare parts and gardening products for over 30 years, to make sure we are professional and competitive in this product. "GXCM" is our registered trademark. We own the most advanced full-automatic production equipment, experienced production group and strict quality control system. Besides, our factory also regards the products R&D and Teamwork as the most important thing in enterprise's survival and development.
As a professional manufacturer, we are always looking for the long term business partner to establish win-win success. We insist on developing particularly according to customer's need to make sure we supply them with suitable and satisfying products. We believe that supports, understanding, loyalty is the only way to lead us to win-win success.
We would like to establish business relationship with customers all over the world. We will try our best to fulfill successful cooperation between us.
