DIAMOND TOOLS As increasing of the higher quality and performance requirement of diamond tools by customers, diamond tools become the most important polishing tools that widely ues in grinding and cutting of ceramic,stone,and artificial stone area. The product series including diamond roller, diamond cylindrical wheel, diamond squaring wheel, diamond chamfering wheel, diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond chamfering wheel , diamond resin bond squaring wheel, diamond abrasive, cutting blade, segment, diamond gang saw etc, it has the characteristic of high sharpness, good effect, long working lifetime, high efficiency&environment protecting and low cost, we can also supply other size and formula upon different requirements, different processed material.

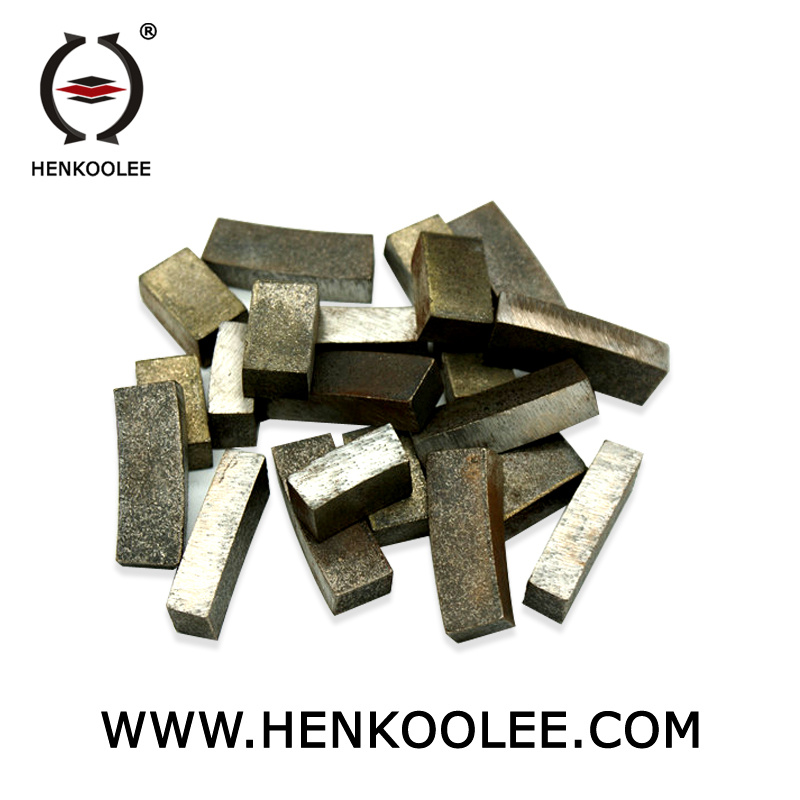

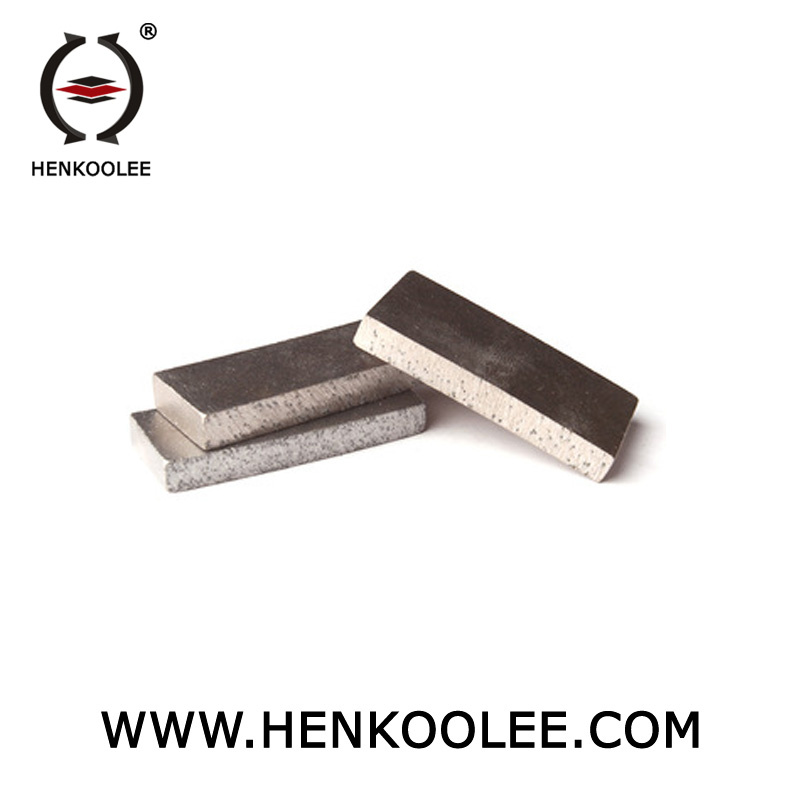

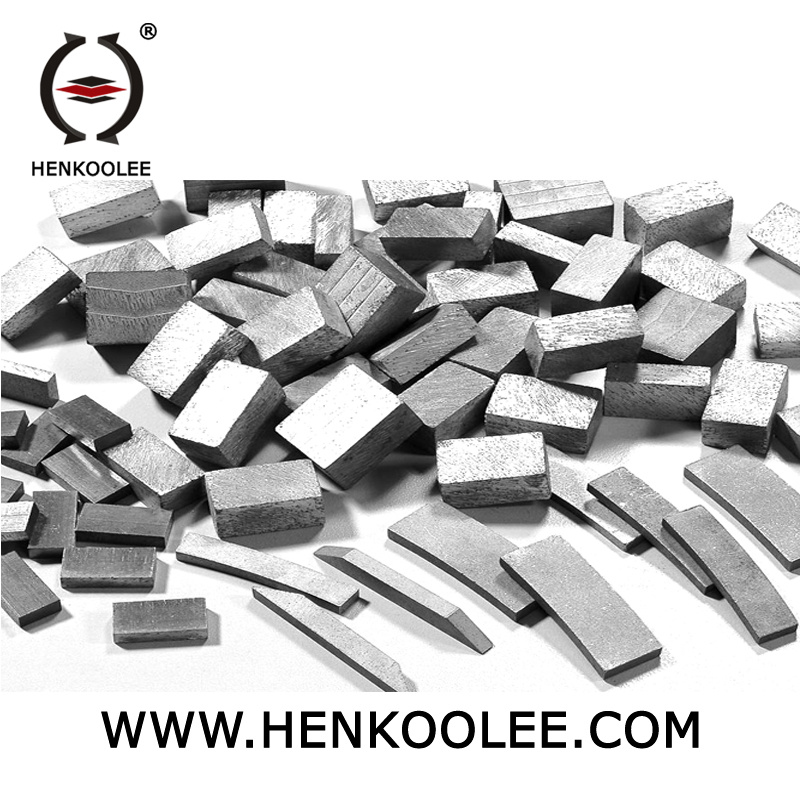

DIAMOND SEGMENTS FOR CUTTING GRANITE MARBLE AND OTHER STONE Diamond Segment can be produced for cutting granite, marble, asphalt, tile, concrete, fire-proof materials or for continuous polishing machine. Our diamond segments for large circular saw blades are always manufactured in sandwich design. No matter what the shapes, the aim is to obtain a good cooling and easy flush away the chipping. Diamonds and bond in the outer and inner layers are carefully designed to ensure cutting stability. SPEC AND PARAMETER
DIAMETER
DIMENSION OF SEGMENTS
No.OF TEETH
INCH
mm
LENGTH
THICKESS
HEIGHT
10"
250
40
3
8\10
18
12"
300
40
3
8\10
22
14"
350
40
3.4
8\10
25
16"
400
40
3.6
8\10
29
18"
450
40
4
8\10
32
20"
500
40
4.2
8\10
36
24"
600
40
4.6
8\10
42
28"
700
40
5.6
8\10
42
32"
800
40
5.6
8\10
46
SPEC AND PARAMETER
DIAMETERD
SEGMENT DIMENSION
CORE THICKNESS
SEGMENT No.
(MM)
L x W x H
(MM)
(MM)
900
24 x 6.6/6.2 x 10
5
64
24 x 6.6/6.2 x 15
1000
24 x 7.4/6.8 x 10
5
70/72
24 x 7.4/6.8 x 12
24 x 7.4/6.8 x 15
1100
24 x 7.4/6.8 x 10
5.5
74
24 x 7.4/6.8 x 12
24 x 7.4/6.8 x 15
1200
24 x 7.5/7.0 x 10
5.5
80
24 x 7.5/7.0 x 12
24 x 7.5/7.0 x 15
1300
24 x 7.6/7.0 x 10
6
88
24 x 7.6/7.0 x 12
24 x 7.6/7.0 x 15
1350
25 x 8.4/7.7 x 12
6
88
25 x 8.4/7.7 x 15
25 x 8.4/7.7 x 20
1400
24 x 9.0/8.4 x 10
6.5
96
24 x 9.0/8.4 x 12
24 x 9.0/8.4 x 15
1600
24 x 9.2/8.6 x 12
6.5
104/108
24 x 9.2/8.6 x 15
24 x 9.2/8.6 x 20
1800
24 x 9.5/9.0 x 12
7
120
24 x 9.5/9.0 x 15
24 x 9.5/9.0 x 20
2000
24 x 10.6/9.6 x 15
8
128
24 x 10.6/9.6 x 20
2200
24 x 11.5/10.5 x 15
8.5
132/136
24 x 11.5/10.5 x 20
2500
24 x 12/11.5/11 x 20
9.5
140
24 x 12/11.5/11 x 30
2700
24 x 12/11.5/11 x 20
10
140
24 x 12/11.5/11 x 30
3000
24 x 12.5/12/11.5 x 20
10
160
24 x 12.5/12/11.5 x 30
3500
24 x 13/12.3/11.1 x 20
10
180
24 x 13/12.3/11.1 x 30
Application:For trimming and slabbing Granite

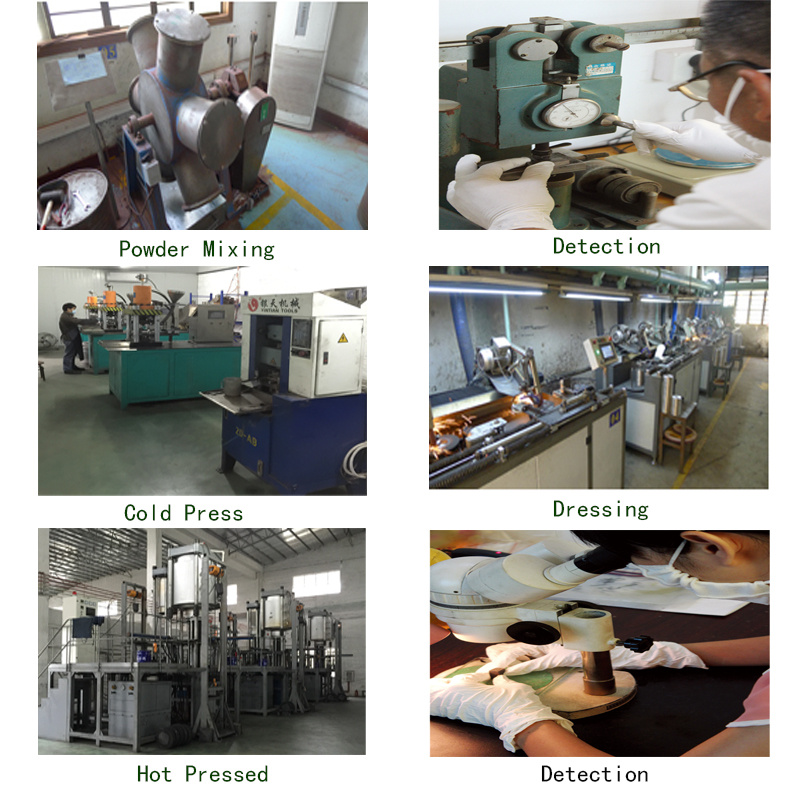

PROCEDURE
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
