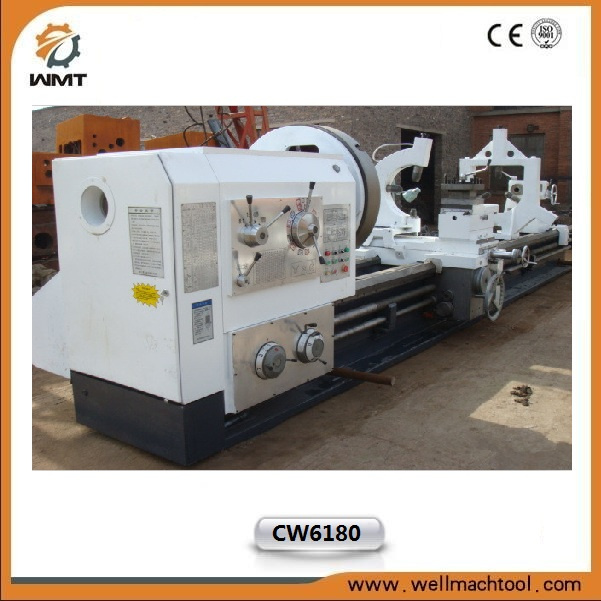

Heavy Duty Horizontal Lathe Machine CW6180 with Ce Approved

Heavy Duty Horizontal Lathe Machine CW6180 with Ce Approved
Price: US $ 10450-10500SET
Trade Terms: FOB,CFR,CIF
Min Order: 1SET
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: CW6180
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Spindle Bore: 105mm
Max. Swing Over Bed: 800mm
Distance Between Centers: 850-11850mm
Machine: Lathe
Voltage: 110V, 220V, 380V
Clour: Customer Appoint
Package Style: Fumigated Poly-Wood Case
Payment: T/T, Paypal, LC, West Union
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision
Tool Holder: 4-Station Toolpost
Processing Accessory: Steel Workpiece

Product Description

Feature for Horizontal Lathe CW serials:
This heavy duty horizontal face lathe series include : CW6163B,CW6180B,CW6280B, CW6110B.This lathe is a special purpose heavy duty horizontal face lathe and it is suitable for turning the internal/external cylindrical surface, conical surface, end face and so on with large-diameter, medium length for all kinds of workpieces .

Main specification :


MODELCW6163CW6180(A)CW61100(A)CW61120(A)
CW6263CW6280(A)CW62100(A)CW62120(A)
CAPACITYMax.swing over bedΦ630mm(24-3/4")Φ800mm(31-1/2")Φ1000mm(39")Φ1200mm(47-1/4")
Max.swing over gapΦ830mm(32-3/4")Φ1000mm(39")Φ1200mm(47-1/4")Φ1400mm(55")
Max.swing over cross slideΦ345mm(13-1/2")Φ480mm(18-3/4")Φ680mm(26-3/4")Φ680mm(26-3/4")
Center distance850/1350/1850/2850/3850/4850/5850/7850/9850/11850mm (33 1/2",53",73",151 5/8",191",230 3/8",309",387 3/4",466 1/2")
Width of bed600mm(23 1/2")
HEAD STOCKSpindle holeΦ105mm(4 1/4") (Φ130mm(4 1/4"),available for CW6180)
Spindle taperΦ120mm(4 3/4") taper 1:20
Spindle speeds0.75-1000r/min5.5-730r/min
GEAR BOX-THREAD&FEEDSMetric threads mm1-240mm (52)
Inch threads TPI1-14 (26)
Module threads mm0.5-120mm (53)
Diametral threads DP1-28 (24)
Longitudinal feeds range0.1-24.3mm/r
Cross feed range0.05-12.15mm/r
Rapid feed:long/cross4000mm/min,2000mm/min
TOOL-POSTTool section32mm×32mm(1-1/4"x1-1/4")
CARRIAGECross slide travel370mm(14-1/2")430mm(17")
Compound rest    travel200mm(7 3/4")(travel for A type:170mm(6 2/3"))
TAILSTOCKSleeve diameter100mm(3-3/4")120mm(4-3/4")
Sleeve taperMorse 6
Sleeve travel240mm(9 1/2")
STEADY RESTSteady restΦ20-200mm(3/4"-7 3/4")
Follow restΦ20-135mm(3/4"-5 1/4")
MOTORMain motor11kw(15kw) 15HP(20HP)
Rapid feed motor1.1kw (1.5HP)
N.Wkgs4600/5000/5200/5800/6400/7000/7900/9000/104000/11700kgs
OVERAL SIZELength3000/3500/4000/5000/6000Φ7000/8000/10000/12000/14000mm
Width1170mm
Height1250mm
Standard Accessoires
4-jaw chuck, vibrashock
two centers, tool box with tools
wrenches, coolant system
follow rest, English Operation manual
Accuracy test report Schneider Electrical part
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operationcan contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

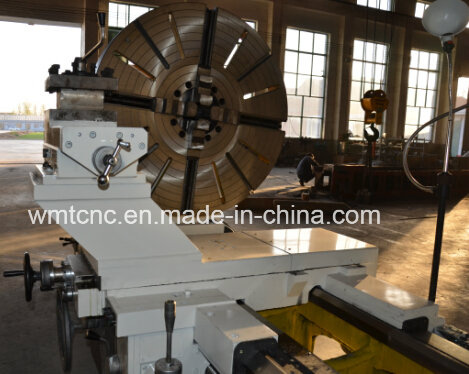

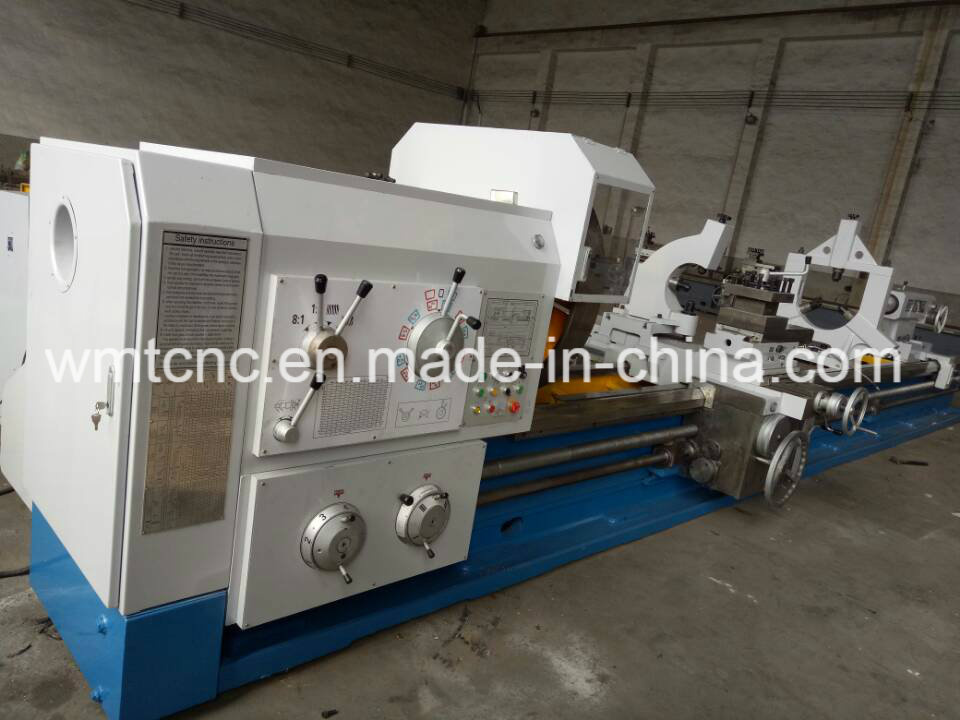

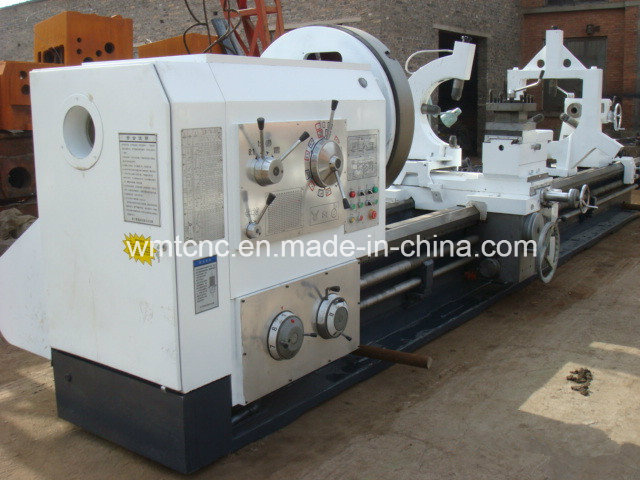

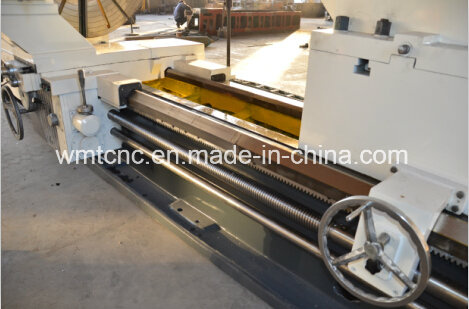

Mahine Details:







Welcome to contact with us!
Tel: 0086 566 2091958
Fax: 0086 566 2091968
PH/whatsapp/facebook:+86 18715475947

WMT CNC Industrial Co., Ltd. is located in the southwest of the Yangtze River in Anhui Province with famous Buddhist shrine in the north of Jiuhua Mountain. The transportation facilities here are very convenient, directly linked with many metropolis like Shanghai, Beijing and Shenzhen via the highway, international airport, and high-speed railway. As one of the most professional manufacturers in China, WMT company is focused on developing, manufacturing and selling various CNC milling, CNC lathe, milling and drilling machines, drilling machines, lathe machines and multi-purpose machines etc.

Since the company was founded, the concept of combining "artisan spirit" and "smart CNC manufacturing" have always been infiltrated throughout the whole process of R&D, production and sales of various products.

With advanced machining measuring equipment, and scientific management system to ensure our product with high precision, high rigidity and reliability. Our machines have been sold to more than 50 countries and regions successfully and are enjoying a wide and well-known popularity in the European and American market, etc.
