Application:
Insulators, Electrical Winding Insulation
Type:
Insulation Sleeve
Chemistry:
Organic Insulation
Thermal Rating:
250 250
Maximum Voltage:
<10kv
Classification:
Organic Insulating Material
Product Description

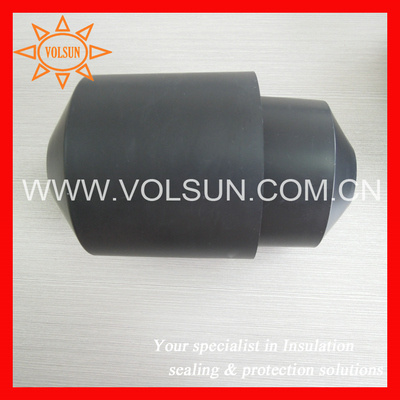

Heat Shrink Cable End Caps for Cable Terminations
Description MDRS-CAP Heat Shrink Cable End Caps for Cable Terminations, with flat adhesive coating inside, are typically used to seal cable terminals against moisture etc.
Features Good sealing, waterproof, moisture proof Ultraviolet resistant and weather resistance RoHS compliant Continuous Operating Temperature: -55°C~110°C Shrink Temperature: 120°C Standard colors: Black
Techinical Data
Test Properties
Test Method
Typical Data
Tensile Strength
≥14MPa
ASTM D 412
Elongation at break
≥400%
ASTM D 412
Density
1.05g/cm3
ASTM D 792
Elongation after heat ageing
≥300%
ASTM D 412
dielectric strength
≥15kV/mm
IEC 60243
Volume Resistivity
≥1014Ω .cm
IEC 60093
Dimensions
Size(mm)
As Supplied ID(mm)
Length (±10%)
Length of Adhesive (±10%)
Size after shrink (±10%)
ID(mm)
Wall thickness W (±10%)
Standard Type
Φ12/4
≥12.0
40
15
≤4.0
2.6
Φ14/5
≥14.0
45
18
≤5.0
2.2
Φ20/6
≥20.0
55
25
≤6.0
2.8
Φ25/8.5
≥25.0
68
30
≤8.5
2.8
Φ35/16
≥35.0
83
35
≤16.0
3.3
Φ40/15
≥40.0
90
40
≤16.0
3.3
Φ55/26
≥55.0
103
50
≤26.0
3.5
Φ75/36
≥75.0
120
55
≤36.0
4.0
Φ100/52
≥100
140
70
≤52.0
4.0
Φ120/60
≥120
150
70
≤60.0
4.0
Φ145/60
≥145
150
70
≤60.0
4.0
Φ160/82
≥160
150
70
≤82.0
4.2
Φ200/90
≥200
160
70
≤90.0
4.2
Standard Type
Φ14/5
≥14.0
55
30
≤5.0
2.2
Φ42/15
≥42.0
110
40
≤15.0
3.3
Φ55/23
≥55.0
140
70
≤23.0
3.8
Φ62/23
≥62.0
140
70
≤23.0
3.8
Φ75/32
≥75.0
150
70
≤32.0
4.0
Φ75/36
≥75.0
170
70
≤36.0
4.2
Φ105/45
≥105
150
65
≤45.0
4.0
