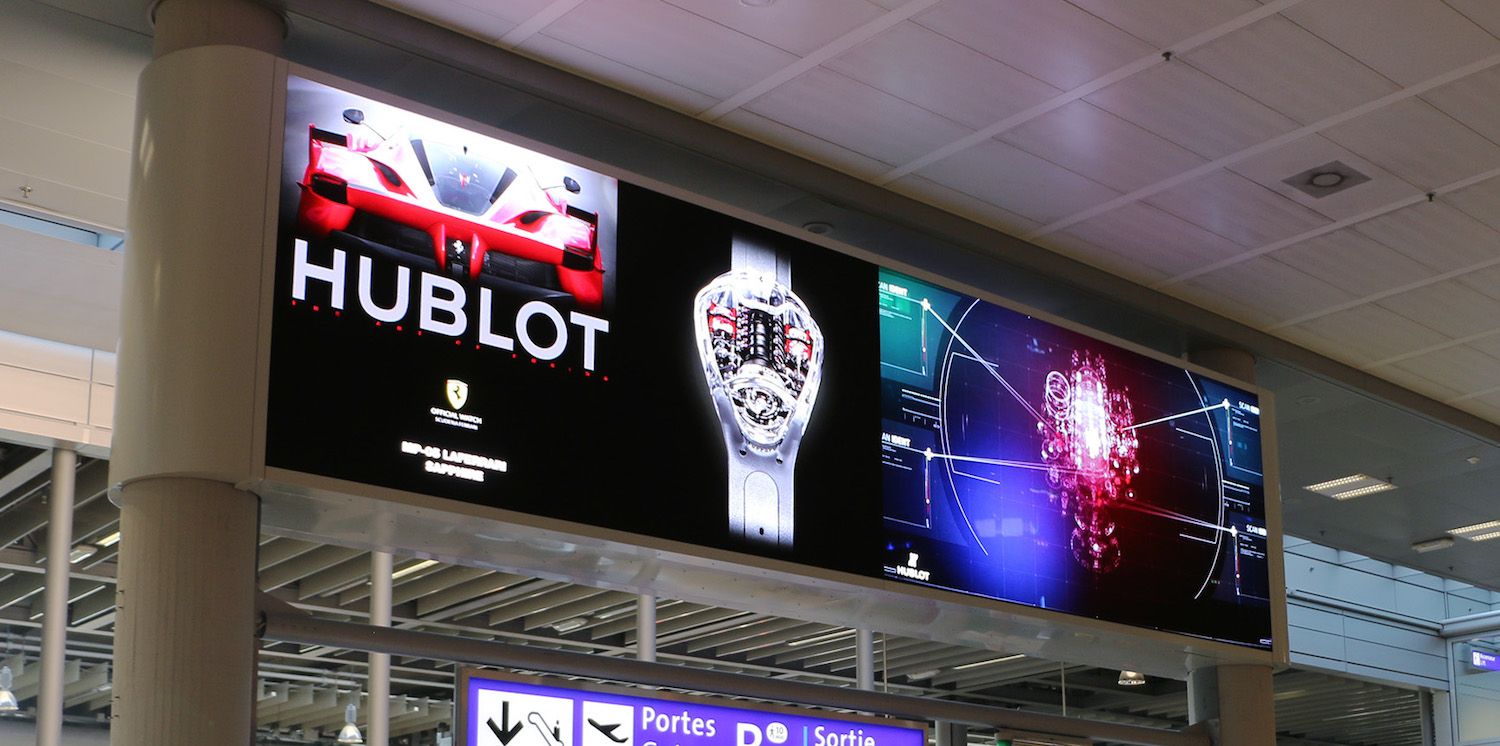

Application Indoor stage, Banks, stock exchange centers, bus station,Theme park, Airport, Commercial advertising, Mobile media.
Product feature 1.Thanks to the SMD triad technology, the screen is capable of wide viewing angle, smoother surface and stability. 2.Seamless splicing . 3.High gray level and lower brightness delivers good display performance and vivid image. 4.quick installation and easy maintenance, front or rear maintenance.
Specification
ITEM NO
GA-ISR-P2
GA-ISR-P2.5
GA-ISR-P3
GA-ISR-P4
Module Parameter
Pixel Pitch
2mm
2.5mm
3mm
4mm
Pixel Density
250000 dot/m2
160000 dot/m2
111111 dot/m2
62500 dot/m2
LED Configuration
1R1G1B
1R1G1B
1R1G1B
1R1G1B
LED Type
SMD1515Black
SMD2121Black
SMD2121Black
SMD2121Black
Module resolution
64×64 dot
64×64 dot
64×64 dot
64×32dot
Module Size
128×128 mm
160×160mm
192×192 mm
256×128 mm

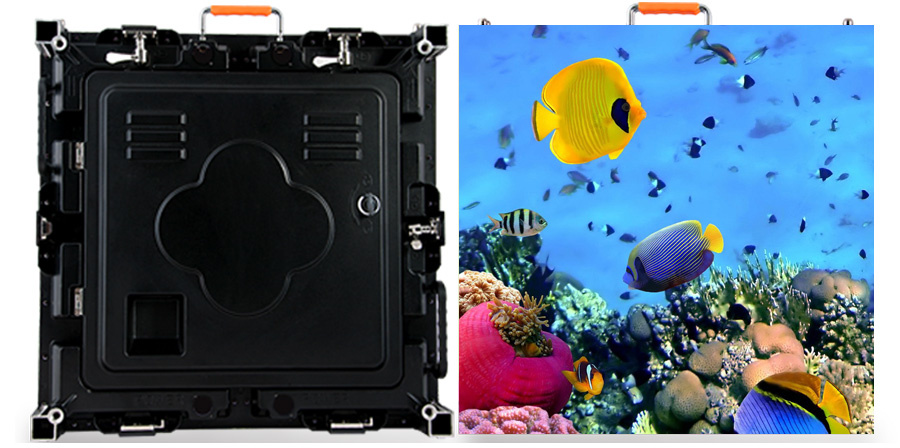

Cabinet Parameter
No of module
4×4
3×3
3×3
2×4
Cabinet Size
512×512mm
480×480mm
576×576mm
512×512mm
Flatness
Gap ≤0.2mm
Maintain Way
Rear
IP Rating
IP 43
Cabinet Material
Aluminium die casting
General Parameter
Driving method
1/32
1/32
1/32 & 1/16
116
Driving IC
MBI-5124
Gray Scale
65536
Refresh rate
≥1000 Hz
Brightness
≥1000 CD/m2
Color temperature
4500K<&<9500K
View angle
H:140°, V:120°
Uniformity of the luminance
≥97%
Max.Power Consumption
≤800W/m2
Avg.Power Consumption
260W/m2
Input Voltage
AC90~264V,50/60Hz
Frame Rate
60Hz
MTBF
9000 Hours
Operating Temp/Humididy
-20ºC - 50ºC / 10%-80%RH
Certification
FCC,CE,Rosh
Blind spot rate
≤0.01%
Support Input
Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA
Control Distance
Ethernet cable≤100m & Fiber Optic>100m

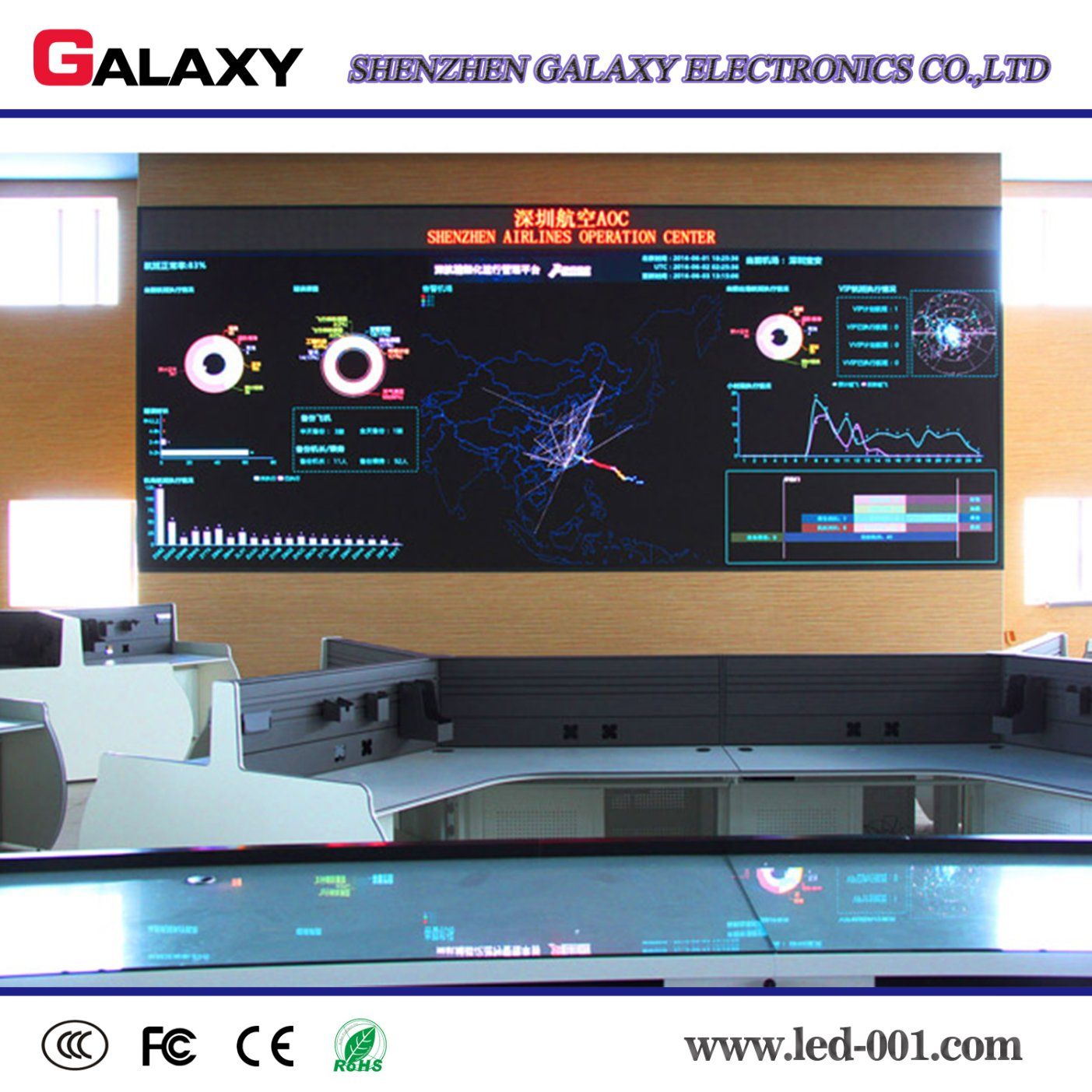

Case
Remark
1.Price term:Total quotation is based on FOB Shenzhen 2.Warranty period: 2 years 3.Payment term: 30% deposit,Balance before shipping. 4.Packing method: flight case & wooden case 5.Delivery time: 20 days after deposit
