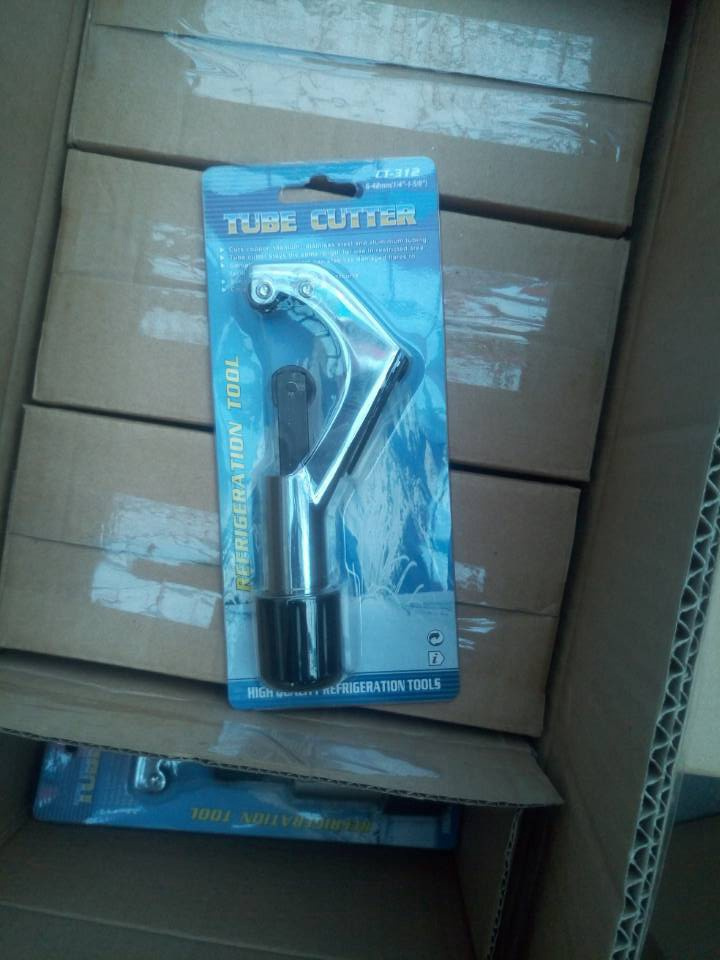

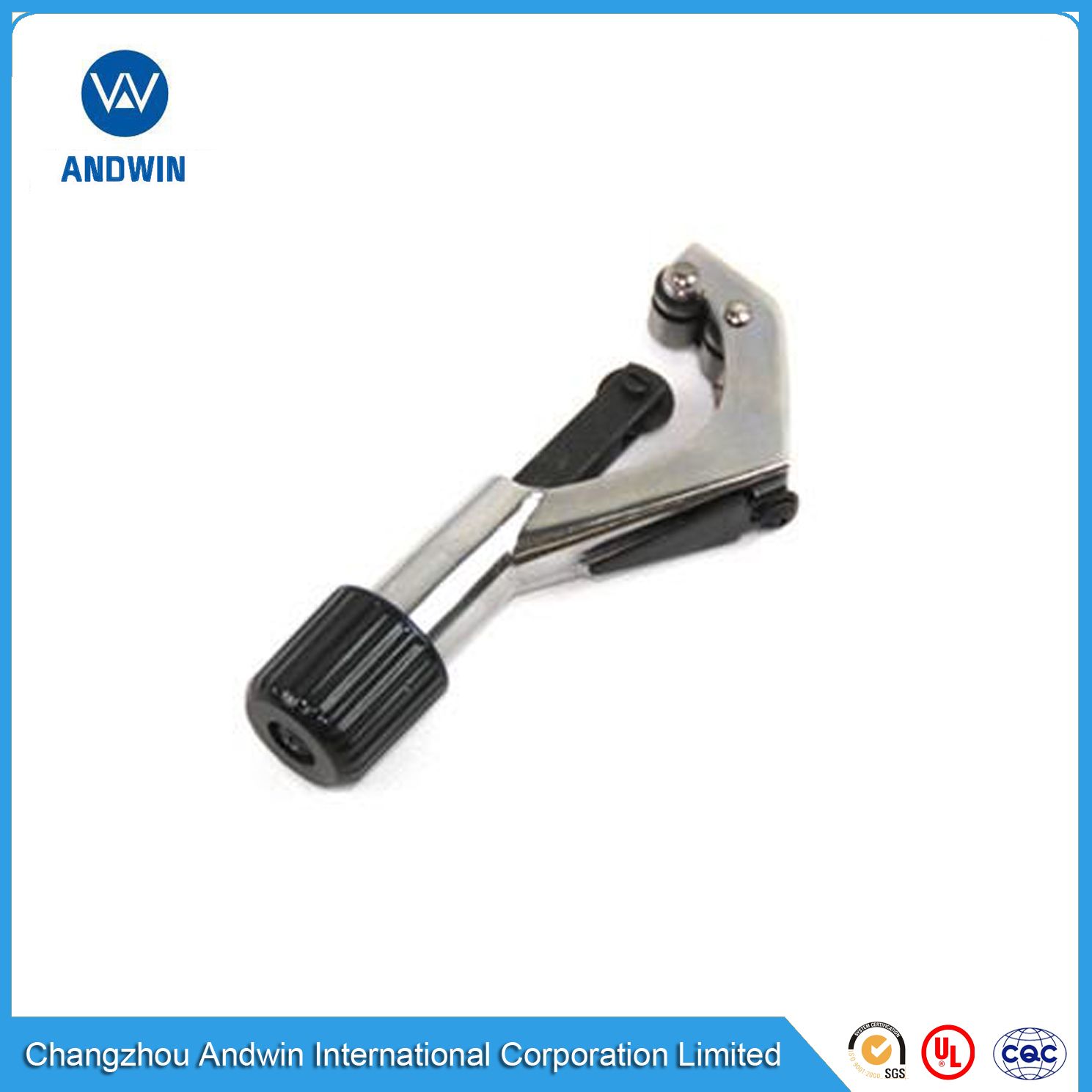

tube cutter CT-312 Used for: refrigeration special tool, suitable for cutting copper tube, aluminum tube, suitable for the narrow pace's operation.
Cutting copper,flexible tube,stainless steel and aluminum tubing. Tuber cutter can remain in the same circle to do roll cutting. Smooth roller has the groove, can stabilize bad bell mouth and cut it easily. Cutter uses the GCr15 material,can accurately and sharp cut pipe fittings. Some cutters equipped with spare blades. II. Type: as below, can be customized.
NO.
Name
Specification (mm)
Material
Qty/Case (pcs)
G.W/N.W (kg)
Carton size (cm)
CT-274
Tube cutter
1/8"-1-1/8"(3-28mm)
aluminium alloy
50
14/13
53x21x30
CT-105
Tube cutter
1/8"-1-3/8"(3-35mm)
aluminium alloy
50
13/12
53x21x30
CT-106
Tube cutter
1/8"-1-1/4"(3-32mm)
aluminium alloy
50
13/12
53x21x30
CT-1021
Tube cutter B
1/8"-1-1/4"(3-32mm)
aluminium alloy
50
13/12
53x21x30
CT-312
Tube cutter
1/4"-1-5/8"(6-42mm)
aluminium alloy
50
17/16
29x61x33
CT-107
Tube cutter
1/4"-2"(6-50mm)
aluminium alloy
50
22/21
29x61x33
CT-1033
Tube cutter
1/4"-1-3/8"(6-35mm)
aluminium alloy
40
20/19
40x30x35
CT-1034
Tube cutter
1/4"-1-3/4"(6-45mm)
aluminium alloy
40
21/20
40x30x35
Other types for your reference:
NO.
Name
Specification (mm)
Material
Qty/Case (pcs)
G.W/N.W (kg)
Carton size (mm)
CT-1035
Speed tube cutter
1/8"-1-1/4"(3-32mm)
Zinc alloy
50
17/16
530x210x300
CT-1036
Speed tube cutter
1/4"-2"(6-50mm)
Zinc alloy
50
22/21
290x610x330
CT-206
Speed tube cutter
1/4"-2-1/2"(6-64mm)
Zinc alloy
50
22/21
290x610x330
CT-216
tube cutter
1/4"-2-5/8"(6-67mm)
Zinc alloy
20
15/14
440x240x210
III. Testing: Our each process, each parts will be tested by our each production department with professional testing facilities to keep the quality proved.
IV. Packing: Each product will be packed by waterproof packages, then put in the thick and good quality cartons, around the products, some protecting materials will be toegther, then we seal it carefully to make the complete packing. After, we pile them carefully on the good-quality pallets. Finally the outside covers waterproof materials again to make it stronger and avoid the delivery problems.
V. Our Service:
A. Design Services: 1. Design Research 2. Strategy 3. Industrial Design 4. Engineering 5. Prototyping 6. Brand Support
B. Product Sampling: 1. Material Testing 2. Bronze Level 3. Silver Level 4. Gold Level 5. Final Product 6. Certified & Assured
C. Quality Control 1. Raw Material 2. Preproduction Samples 3. in-process standards 4. Pre-shipping
D. Certification: 1. SGS; CE, UL VDE etc. 2. Intertec 3. Bureau Veritas 4. Testing Company of Your Choice
Changzhou Andwin Company located in Changzhou Jiangsu near Shanghai city, which is a professional supplier of materials and parts of air conditioner, refrigerator, wash machine.
Andwin promotes One-Stop Purchasing Service for customers, thus to save customers' costing and time. Set up warehouse in Changzhou, manage all items and integrate resources around China for Customers.
Andwin company businesses cover: Capillary tube, aluminum tube, cu-al bimetal tube(ACC, CCA tube), CAT tube, brass, fan motors for air-con, Compressors, spin motor for wash machines, insulation connection pipe kits for air-con, PE tapes, soldering rod for copper tube and aluminum tube, all hardware such as fasteners, latches… All these items are related with Refrigeration industry, as Andwin is special and professional in this industry.
Through years of hard work, Andwin's successful clients cover Malaysia, Thailand, Korea, Pakistan, Australia, Turkey, Indonesia, India, Sri Lanka, Kuwait and so on. Choosing Andwin company as professional partner in China, you can leave out lots of affairs, will not worry about your fund security and goods quality. Andwin will handle all these for you.
