Gold Suppplier Schedule 40 PVC Pipe Fittings Elbow

Gold Suppplier Schedule 40 PVC Pipe Fittings Elbow
Price: US $ 0.011/Piece
Trade Terms: FOB,CFR,DAP
Min Order: 1000/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: AN09
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 1/2'' to 4''
Certificate: Ce ISO9001
Work Place: Cold Water
Pressure: Pn16
Price: Competitive Price
Main Market: Africa, South America, MID-East
Delivery Time: 20-45 Days After Deposit
Connection: Female
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: Sch40
Technics: Casting
Certification: ANSI
Material: PVC
Color: White Grey Blue and etc.

Product Description

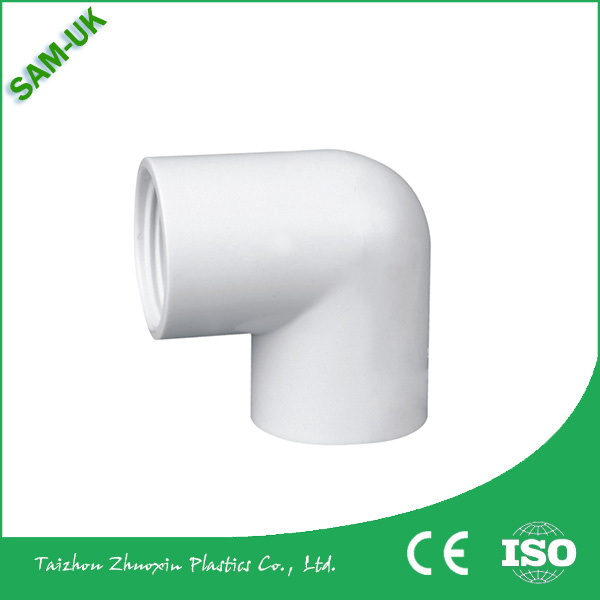

Gold Suppplier Schedule 40 Plastic Pipe Fittngs and PVC Female Elbow
SAM-UK
Product Description
Your best choice

Schedule 40  PVC fittings for supply water ASTM D2466

ITEM NO:ITEM NAME:SIZE
AN01SCH40 PVC Coupling1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN02SCH40 PVC Cap1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN03SCH40 PVC Tee1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN04SCH40 PVC Female Adapter1/2",3/4",1",1-1/4",1-1/2",2"
AN05SCH40 PVC Male Adapter1/2",3/4",1",1-1/4",1-1/2",2"
AN06SCH40 PVC 90 Elbow1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN07SCH40 PVC 45 Elbow1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN08SCH40 PVC Female Tee1/2",3/4",1"
AN09SCH40 PVC Female Elbow1/2",3/4",1"
AN10SCH40 PVC Reducing Tee3/4"x1/2",1"x1/2",1"x3/4"
AN11SCH40 PVC Reducing Bushing3/4"x1/2",1"x1/2",1"x3/4",11/4"x1",11/2"x1",11/2"x11/4",2"x11/2",
2"x4",3"x4",2"x11/4",11/2"x3/4",3"x2",2x3/4"
AN12SCH40 PVC Reducing Coupling3/4"x1/2",1"x1/2",1"x3/4",11/4"x1",11/2"x1",11/2"x11/4",2"x11/2",
2"x11/4",21/2"x2",21/2"x11/2",3"x21/2",3"x2",4"x3",4"x21/2",2"x1"
AN13SCH40 PVC Reducing Female Elbow3/4"x1/2",1"x1/2",1"x3/4"
AN14SCH40 PVC Reducing Female Tee3/4"x1/2",1"x1/2",1"x3/4"
AN15SCH40 PVC Reducing Bushing MIP*FIP3/4"x1/2",1"x1/2",1"x3/4"
AN16SCH40 PVC Plug3/4"x1/2",1"x1/2",1"x3/4"
AN17SCH40 PVC Clip1/2",3/4",1",1-1/4",1-1/2",2",3",4"
AN18SCH40 PVC Compression Coupling1/2",3/4",1",1-1/4",1-1/2",2",2-1/2",3",4"
AN19SCH40 PVC Union1/2",3/4",1",1-1/4",1-1/2",2"
AN20SCH40 PVC Elbow with Brass1/2",3/4"
AN21SCH40 PVC Coupling with Brass1/2",3/4"
AN22SCH40 PVC Tee with Brass1/2"


1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength
3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards
10) Extremely long usage life for at least 50 years


Product:

Schedule 40 Plastic PVC pipe elbow for supply water

Color:

grey white or cystom

Size:

1/2 inch~4 inch

Material:

UPVC

MOQ:

20 cartons for size

(We could accept small quantity & mixed orders.)

Packing:

3 layers corrugated paper carton, could also be customized.

OEM:

Customer's logo, private label or design is acceptable.

Sample:

We are very glad to offer samples for your testing.

Payment:

T/T, Paypal, Western Union or Alibaba Trade Assurance

Terms of shipment:

FOB/CIF/CRF

Port of shipment:

NINGBO/SHANGHAI

Company infomation

 Taizhou Zhuoxin Plastics Co., Ltd. (SAM-UK,which was established in 2006 and located in "The home of plastic and mould in China," Huangyan.We are a professional manufacturer in producing 'SAM-UK" brand products .Our main products are PVC,CPVC, PP ,PPR  pipes ,pipe fittings, valves, taps, and so on .Currently we mainly supply ANSI standard ,NBR standard, BS standard ,DIN standard etc .We own the certificates of SGS,SONCAP,ISO9001 and CE .Our products are sold well in the world.
   Our company has always believed that quality is the essence of enterprise production .so we spare no efforts to introduce talents, perform 6s management for standardized production. And we have established laboratories and technical inspection department(we have an advanced chemical engineer, several technical personnel).



FAQ

1. Are you a manufacturer or trading company ?
We are professional manufacturer in China, and have in this line for almost 9 years.

2. Would it be possible for us to visit your factory?
Sure, we welcome you at any time! Seeing is believing.

3. Will your company supply samples?
Yes, we do. Samples free, freight collect, freight cost will be refund after confirmation of order.

4. Which payment terms are you accept?
T/T, LC, Western Union, Money Gram are available for us.We accept 30% T/T in advance, the balance should be against.

5. What is your delivery time?
Ahout 30- 61days after received the deposit.

6. What is the port of shipment?
Ningbo or Shanghai port.

7. How to solve the quality problems?
If the products are not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.

8.How should I contact with you ?
You can contact with us with Trade Manager, QQ, Wechat, Whatsapp or send us an email by click Contact Supplier bottom.

 ---------------------------------------------------------------------------------------------------------------------------------------------

Solvent cement  connection( connection for small diameter PVC-U pipes)

1 step

Cut: Cut the pipe vertically by the requirement length, then the chamfer.

Smear: Apply solvent cement to the outside of the pipe end.

Insert: Axis alignment of socket and plug socket mouth, insert pipe socket to the required depth.

Keep: Remain fixed so that the adhesive solidification after insert. Keep it two minutes

and wipe the rest adhesive.

Terminate: Avoid external  forces in 15 minutes. After 48 hours we can test and use.

2  installation instruction

3.Warnings



1) Had better use pvc-u drinking water adhesive. Because pvc-u drinking water adhesive

Doesn't contain any toxic substances. It can ensure drinking water safe.

 2)Smear the adhesive in appropriate amount. Too much adhesive will corrode the pipes and reduce the

pressure- resistant properties.



Flared connections



1 step

pipe cleaning: use dish cloth to clean the matter of the external socket.

Mark the depth line in the insertion.

Install rubble ,lubrication: inside the groove of the rubble seal into socket. In order to convenient installation,

we can wet the rubber ring first and paint lubricants at the end of the pin and rubble seal.

nsert pipe: alignment the two pipes, then insert the socket to the standard position.

 Check whether the installation of the rubble ring is normal.



2  Installation Instruction

3.Warnings

Insert should be along with the pipe axis. Avoid knocking with hammers.

Insert by hand for the pipe of which diameter is under 100mm. Insert with equipment for the pipe

 of which diameter is  above 100mm.



Instructions for usingpvc-u water supply pipe adhesive

       PVC Solvent Cement is mono-component solvent glue with vinyl polymer as main material and is

special adhesive for bonding hard PVC. When PVC-U product surface coated with adhesive, it will swell.

If seal with another pvc product,it can make the surface of pvc molecular produce mutual soluble adhesion

effect. After being solvent evaporation, the junction surface will adhesive together.  This is the principle of

the pipe connection.



The effect of the adhesive joint has a close relationship with the  construction condition.

a.Ensure the joint surface to be dry, clean and oil-free. Otherwise the adhesive strength will reduce.

b.Press on the adhesive face will improve the adhesive strength.

c.Adhesive strength increase with time. ix place in 5-10 minutes, have intensity in 2-3 hours, reach

usage intensity after 24 hours.

d. when the temperature is higher, adhesive solvent evaporation speed fast. The adhesive strength

also increase fast.  It is the opposite when the temperature is low. So for bonding construction of large

 diameter pipes, adhesive and socket connection speed should be fast, in order to avoid the splice

 adhesive has dried up.

The amount of the adhesive will affect the bonding quality of the pipes. The less usage of adhesive

will cause the adhesive incomplete and leakage.  Too much will cause solvent evaporation slow and

even the compression performance  reduce.  For PVC adhesive is pvc strong solvent, the excess adhesive

flowing into pipes will cause two aspects influence: One is to cause serious corrosion, resulting the

pipe rupture in the process of  test the water or usage. The second is that it will form certain water

resistance  in the pipe.



The solvent of the water supply pipe adhesive is the flammable volatile organic solvent. Pay attention

to fire prevention methods in storage and usage.



The quantity of pipe socket for 500ml adhesive is in the following table:



Pipe  diameter

20

25

32

40

50

63

75

110

160

200

250

315

400

  Bongding number

200

180

160

120

100

60

40

32

12

6

4

1

0.5



Taizhou ZhuoXin Plastics Co., Ltd. (SAM-UK), which was established in 2006, is a professional manufacturer of plastic construction materials. Our featured products are UPVC, CPVC, PPR, PPH pipes, fittings, valves and taps. At present, we mainly supply SCH40 ASTM D2466 and D2665, BS 4346 and NBR 5648 standard products, which are widely sold to Southeast Asia, Africa, the Middle East, Australia, America and applied in agriculture, industry and construction...

Our company is located in Huangyan- the cradle of plastics in China, which borders Shanghai and Ningbo on the north while Wenzhou on the south. In addition, the traffic is very convenient-it's only 13 km away from train station, 30 km from airport and 10 kms from the Ningbo-Taizhou-Wenzhou expressway. So it's easy for customers to come.

In terms of production, our factory, covering an area of 3600m2, possesses 4 automatic producing lines, containing 3 raw material blending machines, 30 plastics injection machines and a mold workshop. Upholding the tenet of "quality first, customer supreme, innovation continues", we insist on producing with high technology and surviving on high quality.

Currently we have 150 employees including 5 technicians who meet ISO standard. As the company develops and becomes increasingly international, we are committed to absorb talents and prepare to bloom.

We are winning more trust and better reputation from customers with the principles of market-orientation, surviving with quality, developing with technology and benefiting from efficient management.

Sincerely welcome domestic and overseas customers to visit our company for advising and cooperating.
