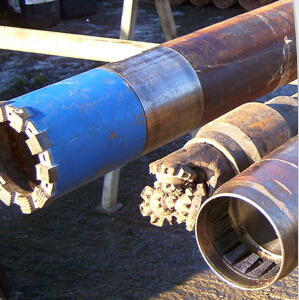

Geobor S Tc Tugsten Carbide Bits for Sandstone and Clay Rock Drill

Geobor S Tc Tugsten Carbide Bits for Sandstone and Clay Rock Drill
Price: US $ 50-100/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Geobor System
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sizes: Geobore S
Use: Rock Drilling

Product Description

This highly versatile system is primarily used to core superficial deposits and weak formations producing 102mm cores.
Geobore S is particularly effective when high quality cores are required in clay, sand or loose? Weak formations. When used by suitably trained staff it can be used to obtain high quality cores in a wide range of geological conditions.
The inner tube assembly latches inside the outer core barrel is lifted to the surface by a retrieval device connected to a wireline cable. The wireline retrieval method greatly improves production rates compared to conventional coring method but also leaves the borehole fully cased at all times ensuring borehole stability in sensitive geology.
Geobore S can be used with a wide range of flushing methods and bit types to improve core quality and penetration rates:
Method 1: As standard for coring medium to hard formations. All bit types can be used depending on geology.
Method 2: For coring in soft to very soft formations. Mainly TC-set bits are used and the bit consists of two parts - pilot and reamer.
Method 3: For coring in very soft or loose formations. The bits are as method 2 but the core lifter case is extended to run 25mm in front of the bit.
Method 4: Full hole drilling assembly, this is an attachment that replaces the inner tube for non coring purposes.



FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.

Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.

Sizes Available:

Diamond core drill bits and diamond non-core drill bits

A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW

H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits: SWF-Long, SWF-Short

U- Gauge Core Bits: UWF-Long, UWF-Short

Z- Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
