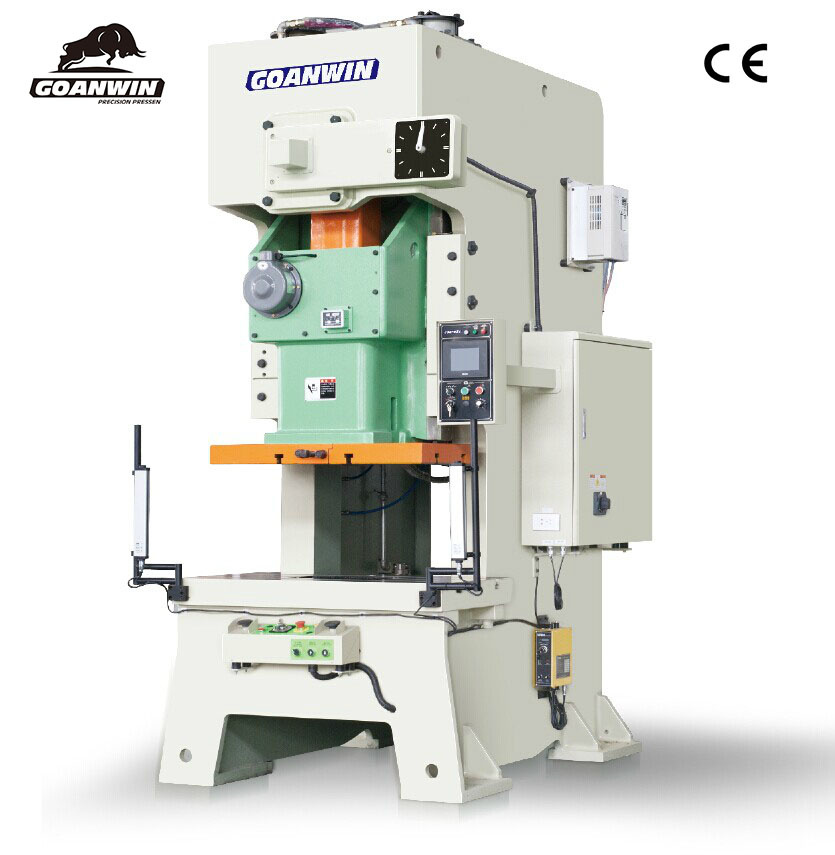

Gap Frame Single Crank Mechanical Power Press 15-400 Ton

Gap Frame Single Crank Mechanical Power Press 15-400 Ton
Price: US $ 1-999/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: C1N series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

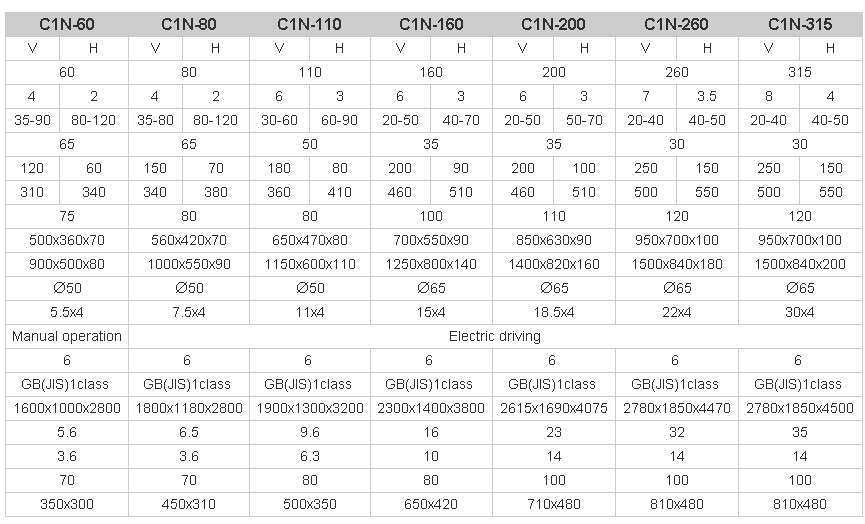

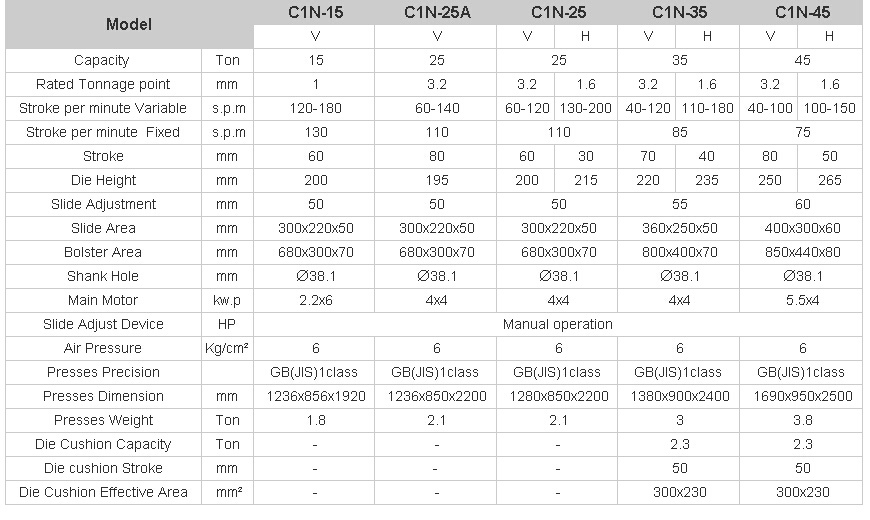

Capacity(Tons): 15, 25, 35, 45, 60, 80, 110, 160, 200, 260, 315
Type: General Punching Machine
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Power Source: Mechanical Drive
Precision: High Precision

Product Description

Gap Frame Single Crank Mechanical Power Press 15-400ton

Application:
Generally suitable for the small, single engineering steel sheet and continuous mould parts blanking, punching, blending, molding, can be single mode, continuous mode, manipulator or add attachment transmission system operation.

Features:
Superior rigidity of frame structure to realize minimum frame deflection
High precision of drive mechanism to guarantee minimum vibration and high quality
Elaborated design of electrical control to match various automation equipments
Comfortable operation environment according with ergonomics
Utility-type motorized grease lubrication system to ensure smooth operation
Multiple operator-machine protective methods to reach national safety standards

Accuracy: JIS First Class












Standard accessories:

Inverter
Touch pad
Preset counter
Electrical cam
Hydraulic over-load protector
Handle Slide adjust device(C1N below 60)
Electric Slide adjust device(C1N 60 or more)
Mechanical Die height indicatot(C1N below 60)
Electric  Die height indicator(C1N 60 or more)
Balance device
Crank angle indicator
Electric stroke counter
Air source receptacle
Against over-run safety device
Misfeed detection consent
Power socket
Maintenance tool box
Operation Manual


Optional accessories:

Electrical automatic lubrication system
Pneumatic die cushion device
Foot switch
Quick die change device(die lifter, clamp and die arm sepjes)
Slide knock-out device
Die room light
Anti vibration press mount
Photo-electronic safety device
Feeder
Uncoiler
Leveler
Mechanism hand



Guaranty & Service

1.      Guaranty period
One year
2.      Guaranty covers
Main parts of the machine, wearing parts not included
3.      Parts delivery
Within 3working days by TNT
4.      Technical support
Technical support via email or video, technicians available for overseas service with reasonable additional costs
5.      Installation & commissioning
Seller can dispatch technicians to do installation & commissioning, technician costs will be on buyer's side


Contact :
Ms.Mindy

NingBo Goanwin Machinery Manufacturing Co., Ltd. is a high-tech enterprise in forging industry located in Ningbo, China. We are professional in design, manufacture, sale, service, trade for mechanical press machines. Goanwin has a core of research and development technology and focus on advanced forging design. Furthermore, Goanwin has a engineering research center, gathered the first-class professional technicians from Germany, Taiwan and Main land China. In Goanwin, We following ISO9001 and 14001 team spirit strictly, create better internal and external environment, to offer best quality and services to our customers.

With many years of efforts and development, Gonawin earned Certificate of High-tech Enterprise, CE Certification, ISO9001 Certification and other more than 86 Certificates of Utility Model Patent. We insist use the best quality of components and parts, always adhere precise process, to ensure the products with high quality. Before delivery, each machine has more than 100 times quality test, including at least 72 hours actual operation in the assembly shop. All priority parts have corresponding encoding and traceability records, all machines are have 24 hours strict test. Each machine must need loading test, voltage test, temperature rise test, precision test before delivery.

Goanwin products have been exported to more than 10 countries, such as America, Europe, Africa and Southeast Asia etc. We also have more than 20 marketing networks in China, each of dealer has complete personnel services. Goanwin offered comprehensive services to our customers, including plan, design and performance, commissioning and maintenance and operator training.

With an accelerated global economic integration, now Goanwin focus on the entire world to spare no effort or funds to introduce technologies, talents to improve products and adjust industrial structure to achieve an international top class level. We will continue to put forth effect to achieve technical advancements to make technical innovations, Quality and Service Improvements.

Goanwin, Let us to create double win.
