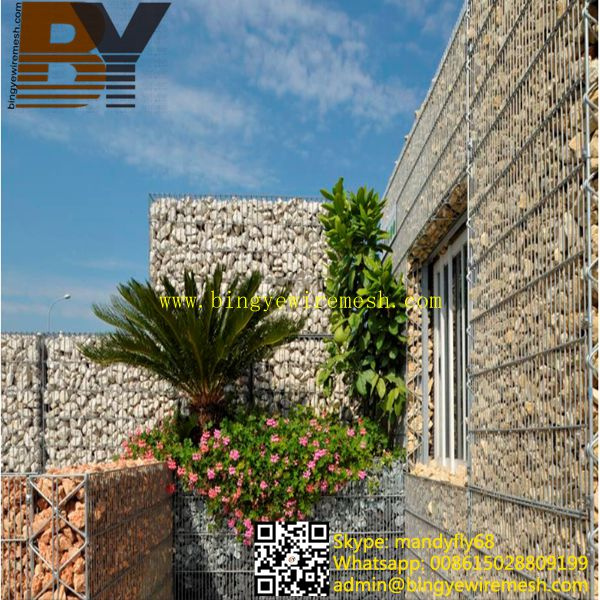

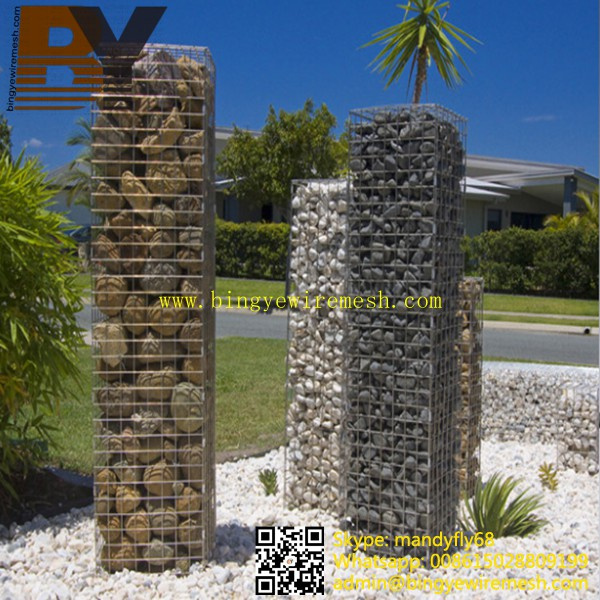

Welded Gabion basket are manufactured from cold drawn steel wire and strictly conform toBS1052:1986 for tensile strength. It is then electrically welded together and Hot Dip Galvanised or Alu-Zinc coated to BS443/EN10244-2, ensuring a longer life. The meshes can then be organic polymer coated to safeguard against corrosion and other weathering effects, especially when the are to be used in salty and highly polluted environments. Our Alu-Zinc* mesh is coated using the Galfan process. Materials applied for Welded Gabion basket are galvanized iron, stainless steel, plastic coated iron wire or even brass wire. Processing Types available include: • straight twist hexagonal wire netting • reverse twist hexagonal wire netting • double-direction twisted hexagonal wire netting Finishes of Hexagonal Wire Netting can be: • galvanized after weaving ,galvanized before weaving , • PVC coated galvanized • hot-dipped galvanized • electro galvanized Specification:
Corrosion Protection
Galvanized
95% Zinc + 5% Alu
PVC Coated
Mesh Size
50.8 x 50.8mm 76.2 x76.2mm
50.8 x 50.8mm 76.2 x76.2mm
50.8 x 50.8mm 76.2 x76.2mm
Unite Size
Wire Diameter
Wire Diameter
Wire Diameter
1 x 1 x 1m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
2 x 1x 1m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3x 1 x 1m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
4 x 1 x 1m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
1 x 1 x 0.5m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
2 x 1x 0.5m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3x 1 x 0.5m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
4 x 1 x 0.5m
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm

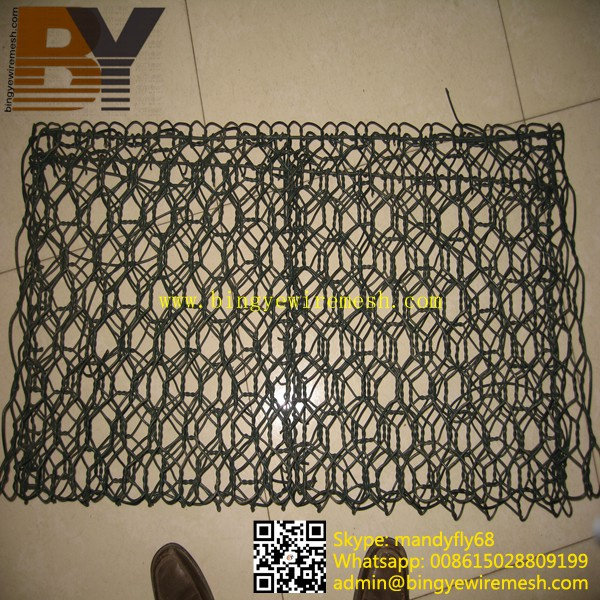

Hexagonal Wire Netting Gabion box/Gabion basket/Gabion mattress 1. Wire diameter: 2.0-3.0mm 2. Mesh Size: 60x80mm, 80x100mm, 100x120mm or as your request 3. Size: 1x1x2m, 1x1x3m, 1x1x4m, 0.5x0.5x2m, 0.5x1x6m or as your request

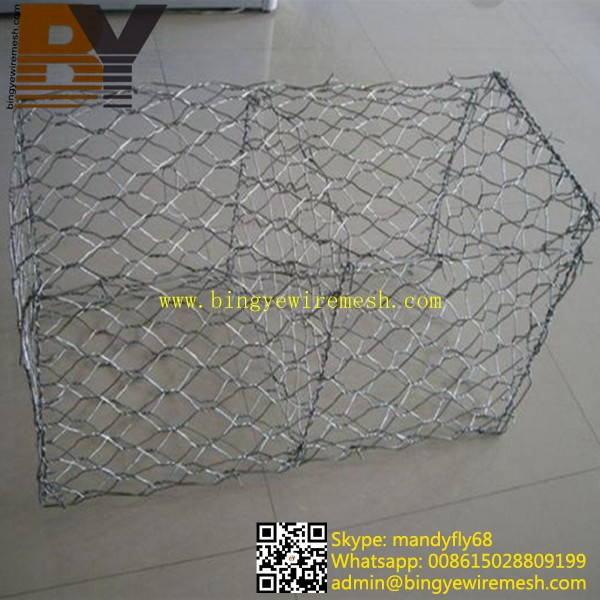

Gabion box Gabion mesh is the gabion which are woven by the hexagonal mesh, the diameter' thickness depends on the mesh size, the dia. Is between 2.0mm to 4.0mm if the material is zinc coated, while the dia will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire dia usually is one gauge thicker than the body wire dia. Purpose: (1) Controlling and leading the river and flood (2) Flood discharge and lead flow (3) rock fall defending (4) preventing the water and soil lost (5) protecting the bridge (6) reinforce fabric (7) seashore recovery project (8) seaport project (9) block wall (10)defending the roadway (11)block wall (10)defending the roadwaygabion box
Opening (mm)
Wire Diameter(Metal Wire) (mm)
Wire Diameter (PVC Coate)/ Inner/Outside (mm)
Strands
60X80
φ2.0-2.8
φ2.0/3.0-2.5/3.5
3
80X100
φ2.0-3.2
φ2.0/3.0-2.8/3.8
3
80X120
φ2.0-3.2
φ2.0/3.0-2.8/3.8
3
100X120
φ2.0-3.4
φ2.0/3.0-2.8/3.8
3
100X150
φ2.0-3.4
φ2.0/3.0-2.8/3.8
3
120X150
φ2.0-4.0
φ2.0/3.0-3.0/4.0
3
