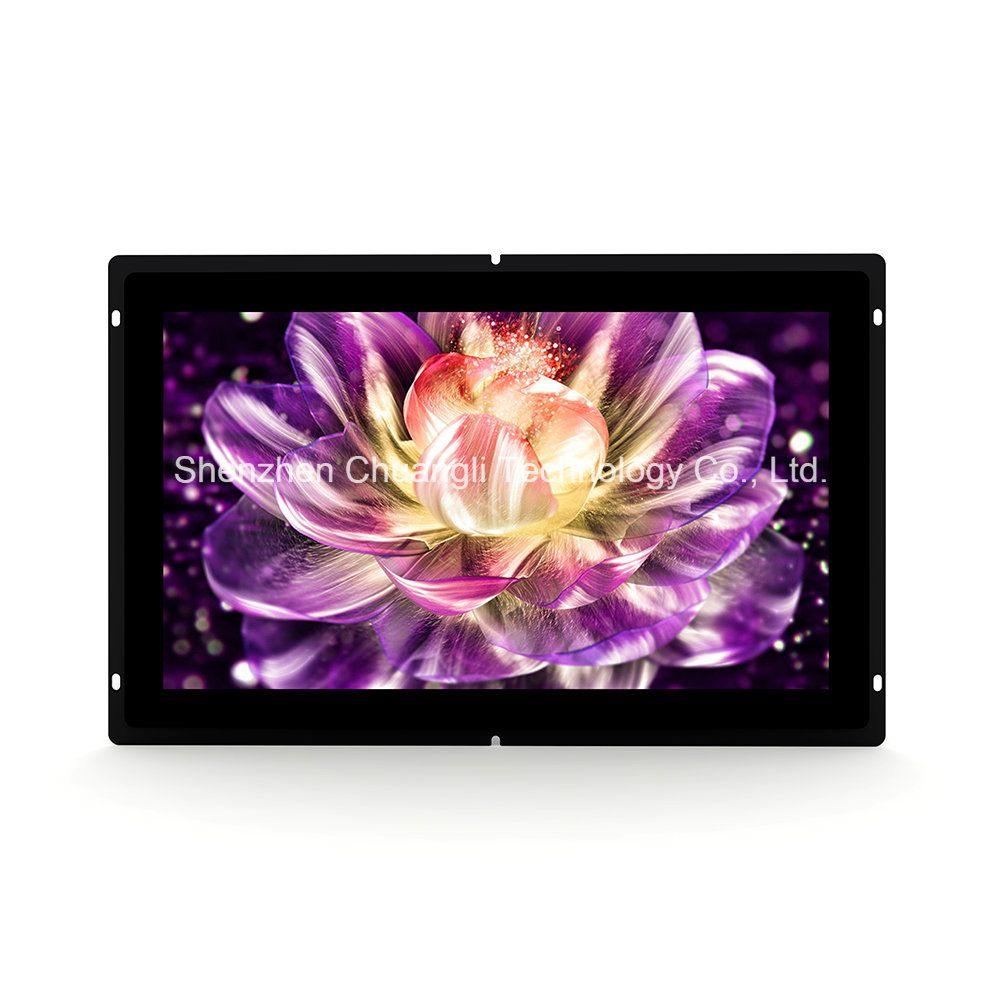

Full HD 1080P 15.6'' LCD Touch Display for Vending Machine Features ♦Unique capacitance technology with the stable and sensitive touch feel ♦High brightness and contrast,Fast responsetime,Multi-color support and the wide viewing angle ♦Touch and display LCD integrated solution ♦Finger touch operation smoothly ♦USB touchscreen interface ♦VGA/DVI video input format
Product Specifications
Model
AIO156A-01
Type
All in One Android
Display Scale
16:9
Active Area
344.5mm*193.5mm
Display Resolution
1920*1080 @ 60HZ
Supported Colors
262K Colors
Brightness (typical)
LCD panel
300cd/m2
LCD panel + Capacitive screen
250cd/m2
Response time (typical)
30ms(TR+TF)
Perspective (Typ.at CR>10))
Horizontal (Left / Right)
85°/85°
Vertical (Up / Down)
85°/85°
Contrast Ratio (typ)
800:1
Connector
VGA/DVI/HDMI
Frequency(H/V)
30~80KHz / 60Hz
Power Supply
Type: external power adapter Input voltage: 100-240 V AC, 50-60 Hz Output voltage / current: 12V/3A
Environmental
Operating temperature
0~50°C
Storage temperature
-20~60°C
Working humidity
5%~90%RH
Storage humidity
5%~90%RH
MTBF
50,000 hours
LED Backlight Life (typical)
15,000 hours
Power Consumption
20W Max
Touch Screen Type
10-point capacitive touch screen
Touch Interface
USB interface
Touch Response Time
<8ms
Authenticate
CCC,CE,RoHS
Warranty
1 year
Android Motherboard Parameters
CPU
Cortex-A9 4 nucleus, Frequency 2.0G
RAM
2G
Memory
Built-in memory TSD FLASH 8G
Decoding Resolution
Up to 1080P
Operating system
Android 4.4
Play Mode
Support cycle, timing, and other multi-player mode Stream
Network Support
4G,Ethernet, WiFi, wireless peripheral expansion
Video Player
AVI(H.264,DIVX,DIVX,XVID),rm,rmvb,MKV(H.264,DIVX,DIVX,XVID), WMV,MOV,MP4(.H.264,MPEG,DIVX,XVID),DAT(VCD format), VOB(DVD format),PMP,MPEG,MPG,FLV(H.263,H.264),ASF ,TS, TP, 3GP,MPG etc. More than 30 kinds of formats
Image Format
Support JPG, BMP, PNG, GIF etc. image formats and supports the view rotate / slide show, up to 4096*4096 Resolution
USB Interface
3 USB HOST
UART Expansion Port
6 (2 RS232, 1 RS485, 2 TTL, 1 TTL+ Flow Control)
WIFI
Internal USB WIFI WIFI/BT Module (optional),802.11b/g/n
HDMI Export
One and Support 1080P output
RTC Real Time Clock
Support
System Language
Support for Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech and other languages
Certificates Office Workshop
FAQ
1. Q: Do you accept OEM&ODM service? A: Yes,We can do OEM&ODM service and can customize products according to the drawings you supply.
2. Q: What about the delivery time? A: Generally, the sample order is 7 to 15 days. While for OEM order or that with special requirement on configuration, then the leading time is 15-20 working days after all order details confirmed.
3. Q: How could I get samples? A: Free sample is not available. If you need to order sample for checking-up, then both the sample and shipping cost should be charged by you, we will deliver them to you after receiving your payment.
4. Q: What's your payment term? A: We always accept T/T and West Union payment with FOB, CIF or EXW price.
5. Q: What kind of delivery method you always choose? A: DHL/FedEx/UPS/EMS is accepted, and it is better if you have your own freight agency.For mass order, we will choose ship by sea.
6. Q: What's the after-sales service you can supply? A: Be free of 1 year warranty and lifetime maintenance service.Any problems about the product we will give you professional response within 24 hours.
7. Q: What's the MOQ of your products? A: We have no limit for MOQ, so you can even buy only 1 piece.
Shenzhen Chuangli Technology Co., Ltd. is located in Shenzhen city and commits to HMI (Human-Machine interaction) solutions, which is a high-tech company integrating products design, research, manufacturing, sales and services. Creately mainly provides intelligent products such as Open Frame Touch Screen Monitor, Touch All In One PC, Touch Kiosk, Touch Panel and etc.
Shenzhen Chuangli Technology owns a strong management team on research, manufacturing and sales, and takes innovative development and quick response as the core management idea, then continuously pursues product technology breakthrough to build one suitable quality management system for the company. Now all the products have passed CCC, CE, FCC and RoHS authentication, then the product quality can be guaranteed.
Shenzhen Chuangli Technology has rapidly grown to become the leading self-service technology brand by offering a sleek and sophisticated product design and an intuitive user experience. Now the solutions have been utilized across multiple industries including healthcare, retail, transportation, financial self-service, gaming and entertainment etc.
Our Service
1. Good quality with cost effective price
2. MOQ is 1 set
3. Product leading time is 7- 15 working days according to the quantity
4. Provide OEM service and can customize products according to the drawing
5. Strictly control every detail of production, and each product will be inspected by our QC team before delivery.
