Feature Of Keentool Wire:
Fast Cutting with Long Life Time
Beads Type:
Sintered Beads
Beads Per Meter:
37 or 40 Bpm
Beads Dimension:
11.5/11 X 6.5mm
Product Description
Description Diamond Wire with rubber reinforcement for quarrying of granite, sandstone, slate and quartz:
Rubberized diamond wire is recommended for granite quarry, the advantages are vulcanized rubber adheres to the beads and cable tightly to fix the position of beads and protect the steel cable from action of abrasive pastes; good flexibility in cutting to reduce the possibility of uneven wear of beads; as well as the good safety guarantee to the saw operator.
Technical Data Technical parameters of Keentool granite cutting diamond wire for your reference as below:
APPLICATIONS
Art No
Specification (mm)
Beads/M
Reinforcement

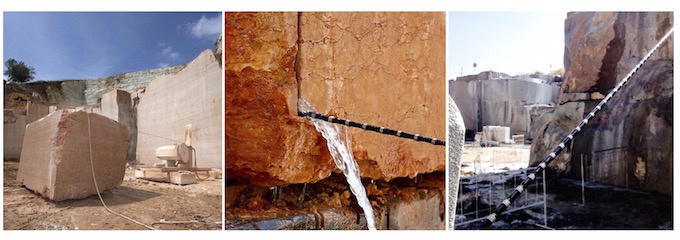

To be widely used for granite quarrying, and block trimming in the mine
ROC-GQ40R
¢11.5×6.5
40
Rubber
ROC-GQ37R
¢11.5×6.5
37
Rubber
ROC-GB40R
¢11.0×6.5
40
Rubber
ROC-GB37R
¢11.0×6.5
37
Rubber
Cutting Material
Linear Speed (M/S)
Cutting Speed (M2/H)
Cutting Life (M2/M)
Soft Granite
28-40
12-20
30-45
Medium Granite
28-35
8-15
20-30
Hard Granite
24-32
4-9
10-20
Abrasive Granite
28-40
10-15
25-35

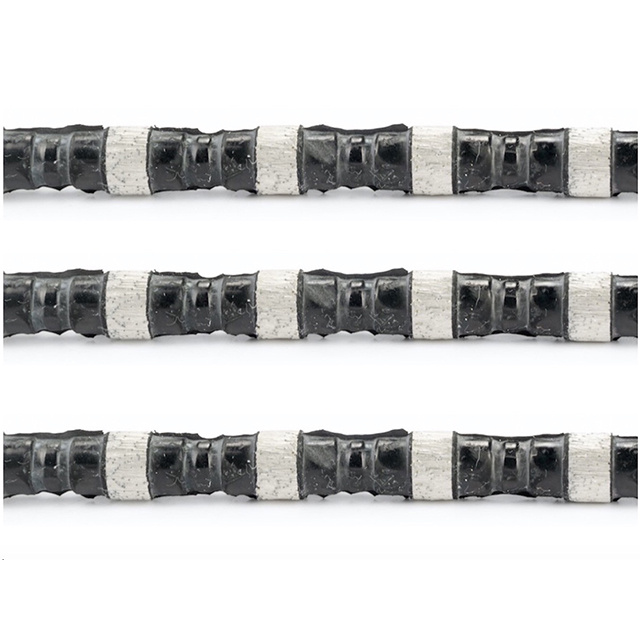

SPECIFICATION OF BEADS
Out Diameter
Length of work layer (mm)
Bead Length
Manufacture Tech
¢11.5
6.5
11
Sintered
¢11.0
6.5
11
Sintered
Keentool Quarry Diamond Wire with Features as below:
Keentool studies the granite material to be extracted to design the best bond, number of beads per meter;
Keentool wires use the top quality steel cable from Germany
KEENTOOL developed special rubber and the technology of vulcanization, make sure our diamond wire can work in most hard-working conditions

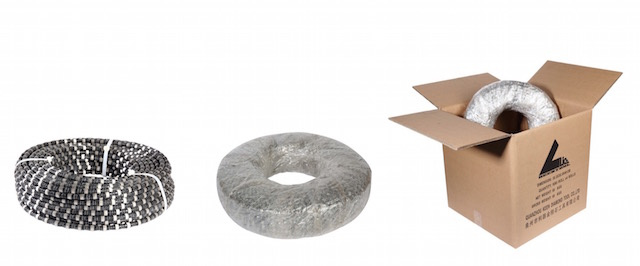

Packaging & Shipping: Packaging: Carton with water proof plastic. Meters/Roll: 50/60Meters/Roll NW: 17KG-18.5KG Sample lead time: In 3 working days. Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire. Our Services: 1. Diamond Wire Cutting Operation Training and Guidance 2. Full Consulting Service and Turnkey Solutions for the Stone Quarry
Always at your service!
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
