Infrared Sensors, Rapid Response,Safe and Reliable
Drive System:
Imported Servo Motor, Linear Guideway, Rack Drive
Fixed Type:
Intelligent Vacuum Adsorption
Max Cutting Speed:
1000mm/S
Cutting Thickness:
0.1-18.0mm(Depend on The Material)
Cutting Precision:
0.1-0.3mm(Depend on The Material)
Rated Power:
11kw
Working Voltage:
AC 220V 380V
Product Description

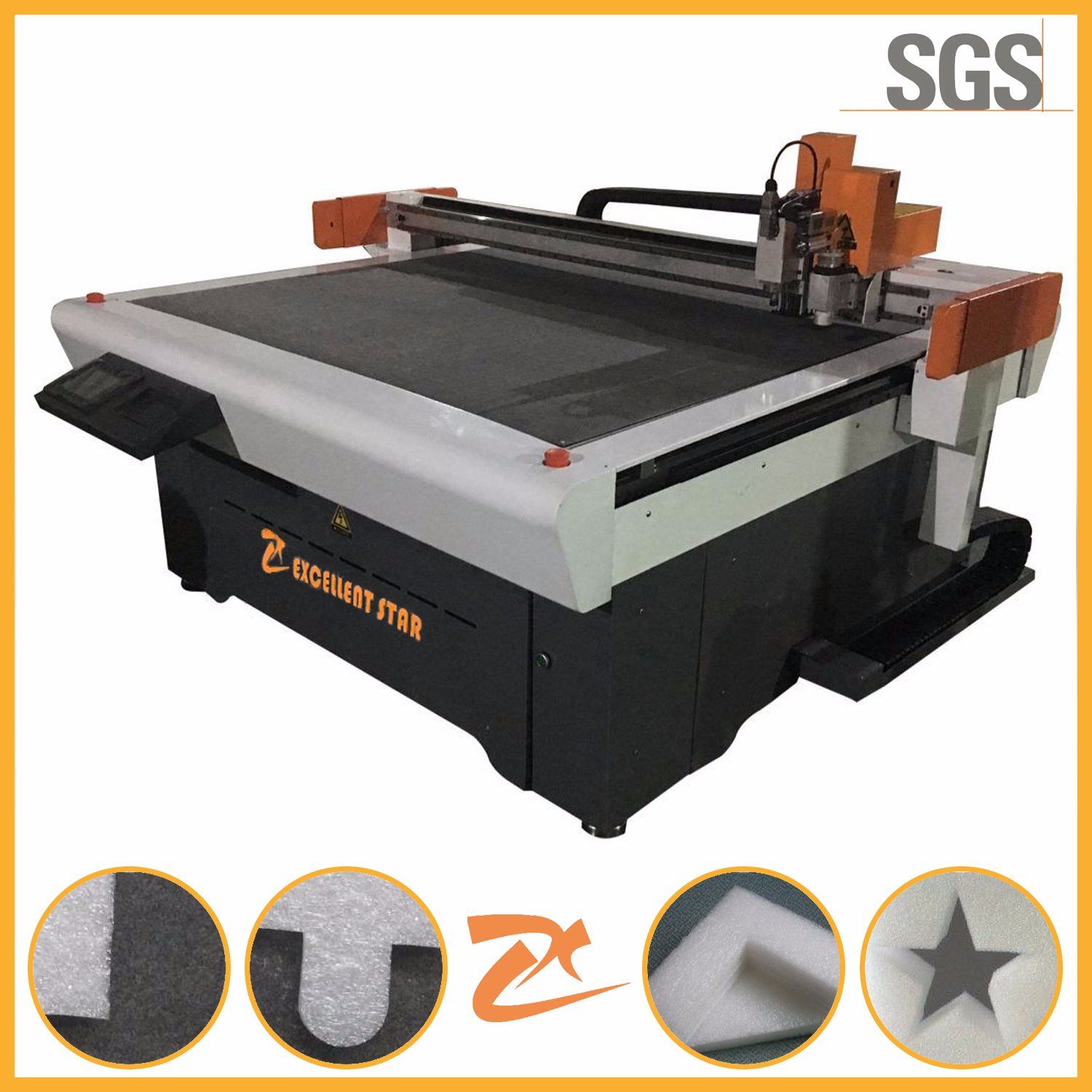

Parameter configuration
Model no.
ZX-1214V
Working area
1200×1400mm(L*W)
Machine size
1930x2055x1240(L*W*H)
Operating characteristic
Can work offline; 24 hours continuous and efficient working
Safty device
With infrared sensors, rapid response, safe and reliable
Max cutting speed
1000mm/s
Translational velocity
1200mm/s
Applicative material
EPE, IXPE, foam, foam composite material, PVC coil, rubber, chemical fiber, leather, fabric, cotton and linen and other flexible materials
Cutting extent
Full cut, kiss cut, dot cut
Cutting thickness
0.1-18.0mm(depend on the material)
Cutting precision
0.1-0.3mm(depend on the material)
Transmission interface
RJ-45
Drive system
Imported Servo motor, imported linear guideway, rack drive
Fixed type
Intelligent vacuum adsorption
Control panel
Liquid crystal display
Standard configuration
vibration cut head, 30 pcs of blade, red light pointing
Other optional configurations
hobbing cut head, half knife cutter, angling cutter, V-shaped cutter, punching tool, milling cutter, drawing pen, automatic feeding, Mark camera
Working voltage
AC 220V 380V±10%, 50HZ
Rated power
11KW

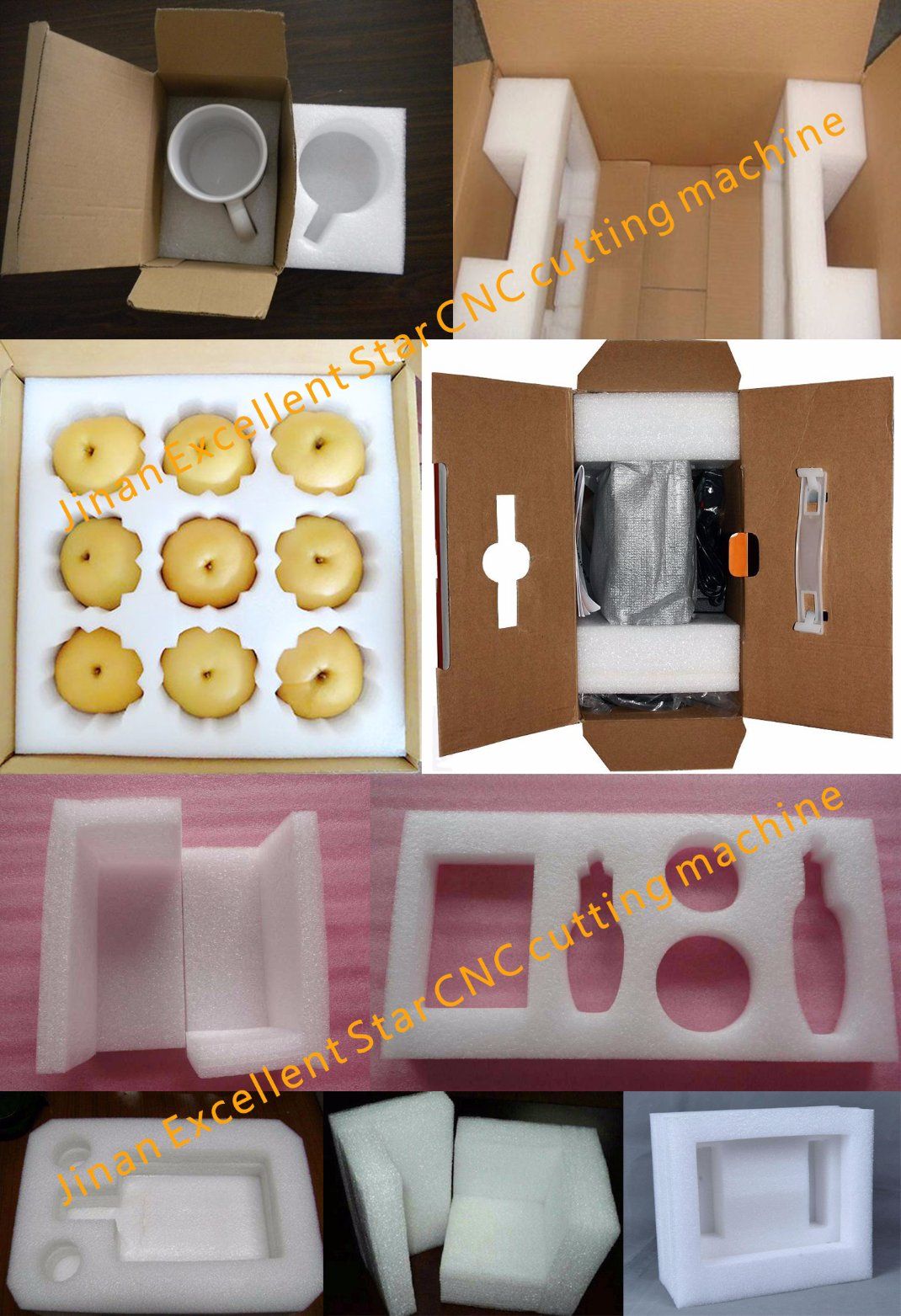

Application: package
EPE, foam, sponge and composite material supply support, buffer, sound insulation, shockproof, it's widely used in package.

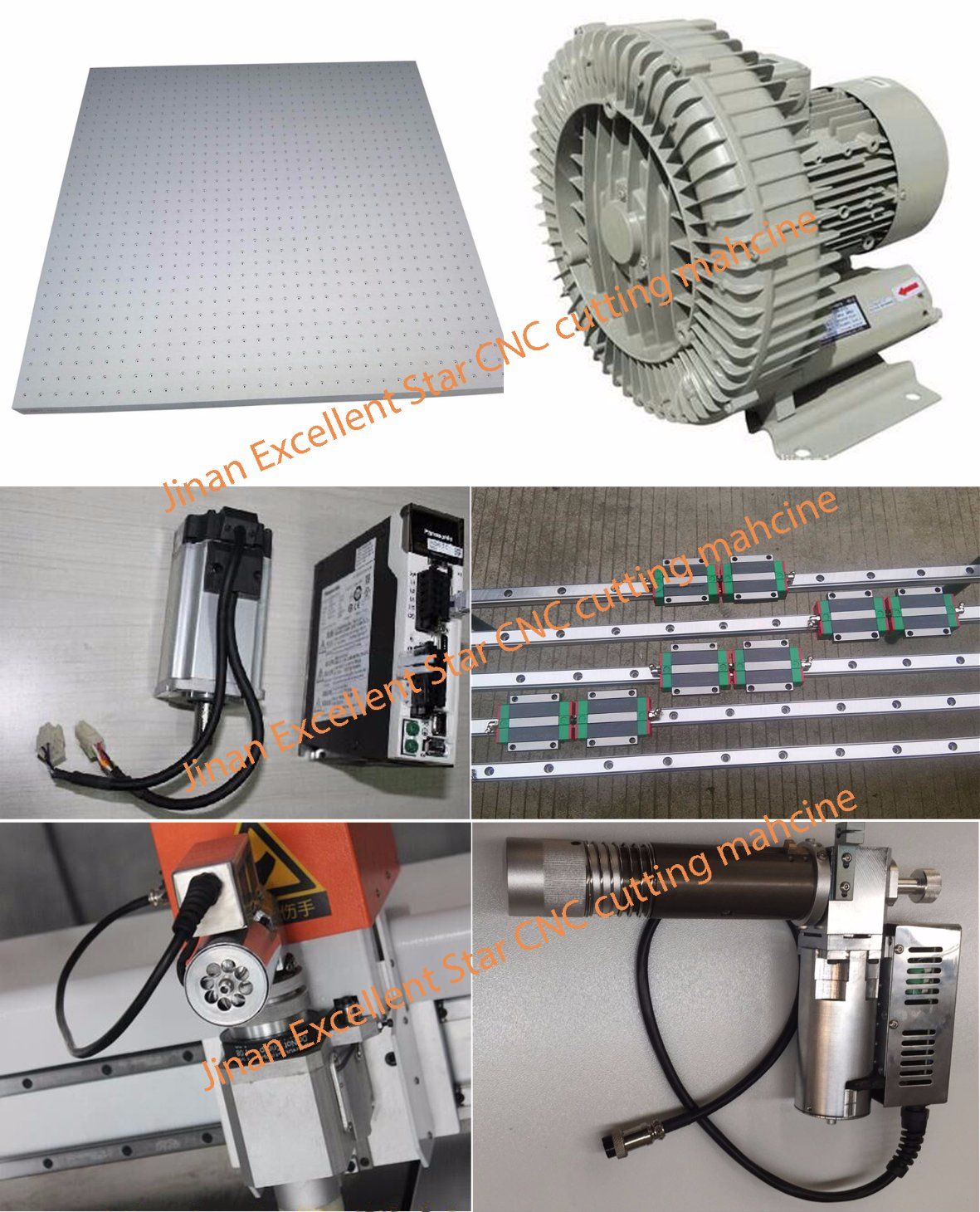

Detail pictures
Our advantage and servise
1. We are manufacturer, so we accept customization and support machine design for your particular request for different purpose or material and etc.
2. We have professional technician, they can help when you need any technological support.
3. Self-development knife head and purpose made high quality knife realize perfect cutting, and more durable than others.
4. With our patented correction system, cutting more exact.
5. We promise to use the best quality component as we alway do, also support customization.
6.One year guarantee, and life-time technological guidance.
Package and transportation

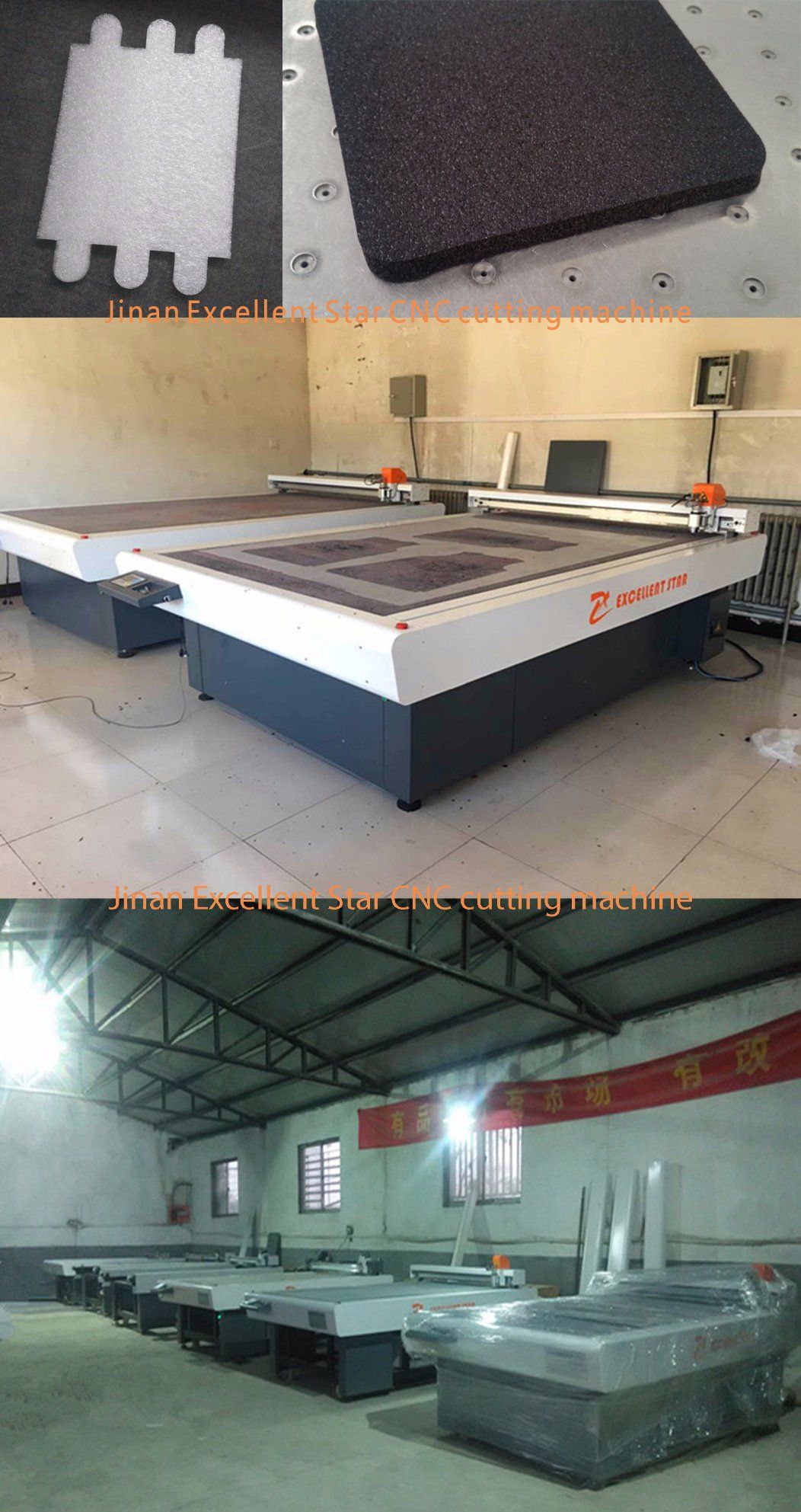

Company profile
Jinan Excellent Star intelligent technology CO.,LTD. is the first company engaged in independent research, produce, market, and after-sales services of vibrating cutting machine in north of China.
From develop the first generation digital cutting machine with our own proprietary intellectual property rights to now the fifth generation, we promote the market demands, fill the void.
And always keep in the forefront of our industry through unceasing innovation.
We promise to offer the best product at same price, the best price at same quality.
Jinan Zhuoxing Intelligent Technology Co., Ltd. is a key state enterprise specialized in research and development, production, sales and service of CNC cutting equipment for leather industry and industry CAD/CAM system.
From the research and development of the first generation of CNC cutting machine with independent intellectual property rights to the birth of the fifth generation of new cutting machine of ZHUOXING, it has promoted the market demand and made up the industry gap. Through the unceasing innovation and refinement, ZHUOXING always walks in the forefront of the industry, and its products have been exported to Europe, South Korea, India, Malaysia, Vietnam, Hong Kong, Taiwan and other countries and regions, and the global network marketing strategy has been realized.
In the future, ZHUOXING will lead more national enterprises to complete industry upgrade from quantity to quality, trademark to brand, labor-intensive to technological innovative, make more "made in China" into "created in China", help our national enterprises stand in the new highs, and fight for better international market.
We supply different kinds of products. High quality and favorable price. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
