Es300 CNC Servo Turret Punching Machine/Punch Press Machine/Power Press

Es300 CNC Servo Turret Punching Machine/Punch Press Machine/Power Press
Price: US $ 20000-90000set
Min Order: 1set
Pay Type: L/C,T/T
Prod Model: ES300
Delivery Time: 45days After Received Deposits
Stations: 12/16/24/32
Rotating Stations: 2-4
Throat Depth: 1250/1500/1700/2000mm
Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Point to Point Control
Control Method: Closed-Loop Control
Numerical Control: CNC/MNC
Performance Classification: High-End CNC Machine Tools

Product Description

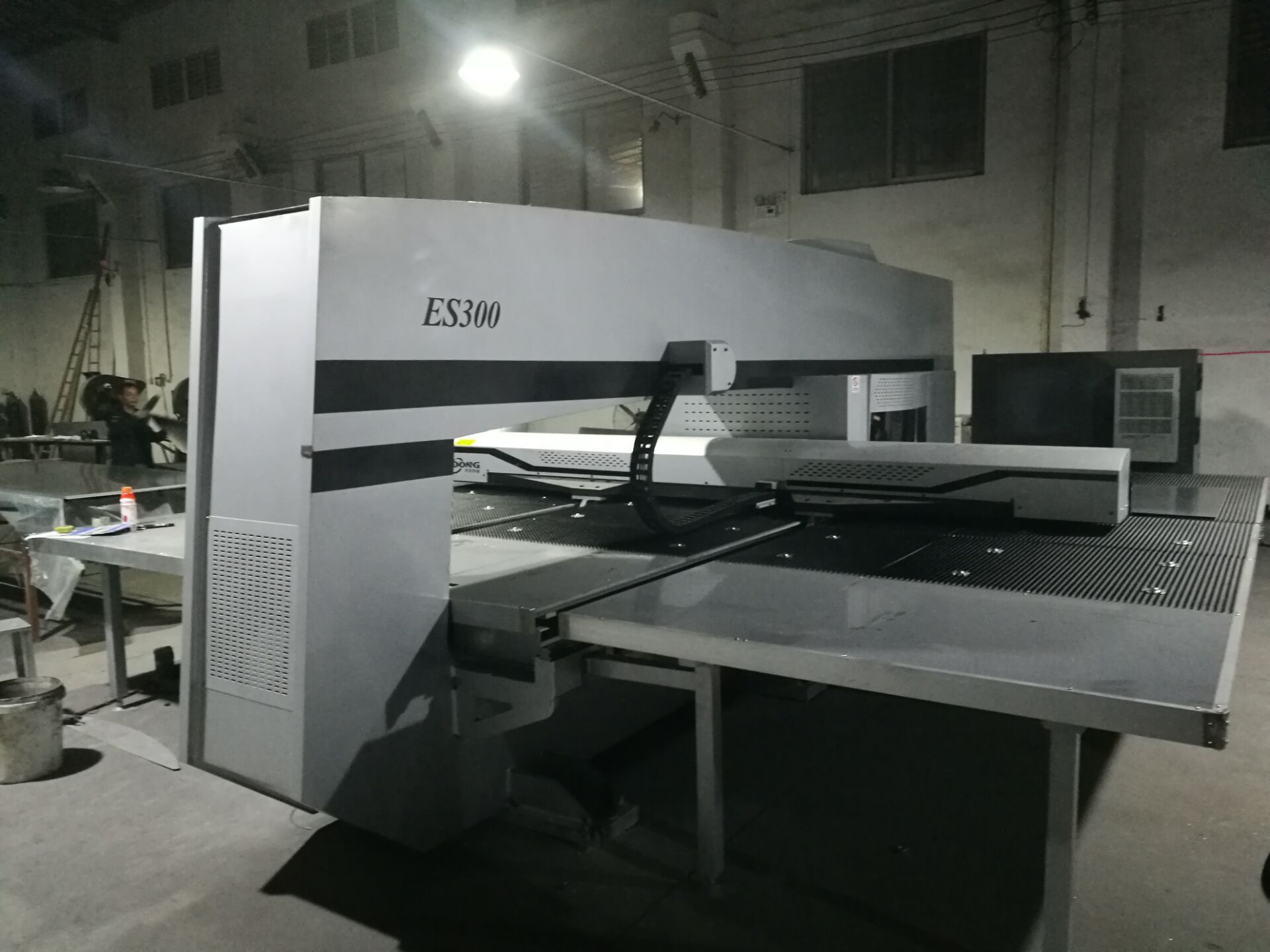

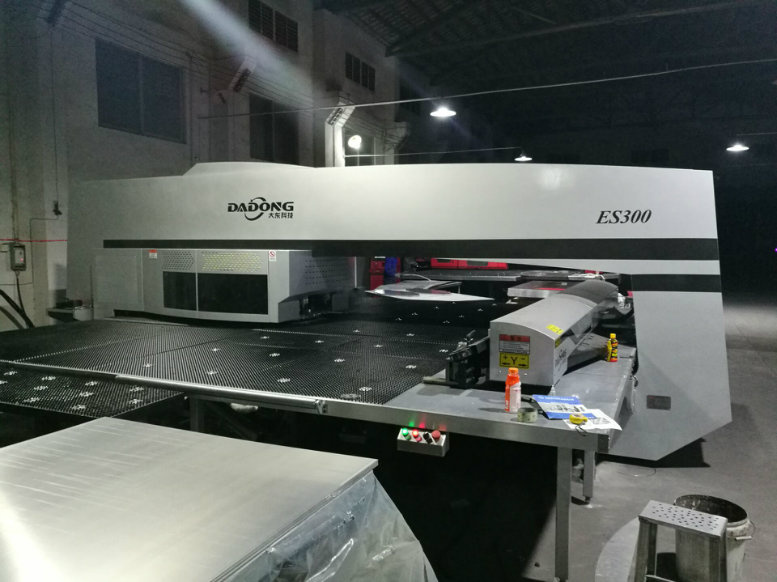

High efficiency CNC Mechanical Turret Punch Press ES300

1, Adopts Taiwan numerical control system and servo module, with quick response and high precision.

2, X axis adopts double guide rail for guiding, gear rack for driving, it is very stable with high-speed and high precision, reached the international level.

3, Five-axis all electric control, can realize punching, stretching, and roller forming etc technology, it is suitable for precision sheet metal processing.

4, Energy conservation, standby without electricity consumption, effectively reduce energy consumption; Can choose downy mode, quiet and environment protection.

No.NameSpecificationUnit
1Punch force 300KN(T)
2Punching typeServo
3Frame construction O-frame
4Max. processing sheet metal X axis5000
(With one re-positioning)
mm
Y axis1250mm
5Max. processing sheet thickness6.35mm
6Max. punching diameterΦ88.9mm
7Max.cylinder stroke32mm
8Max. nibbling speed1500hpm
9No. of clamps3pcs
10No. of re-positioning cylinder2set
11Turret location(rotation station)32(2)pcs
12No. of controlling axis5pcs
13Tool distribution and No.16A/10B/2BZ/2C/2D
14Worktable structureBrush and ball mixed
15Max. feeding speedX axis80m/min
Y axis80m/min
X,Y combined110m/min
16Turret speed30rpm
17Rotational mould speed40rpm
18Punching accuracy ±0.10-mm
19Max. loading weight 150kg
20Air pressure0.6mpa
21Clamp dead area detectionYes
22Clamp splint loose alarm deviceYes
23Overall size Length 5170mm
Width5000mm
Height 2300mm

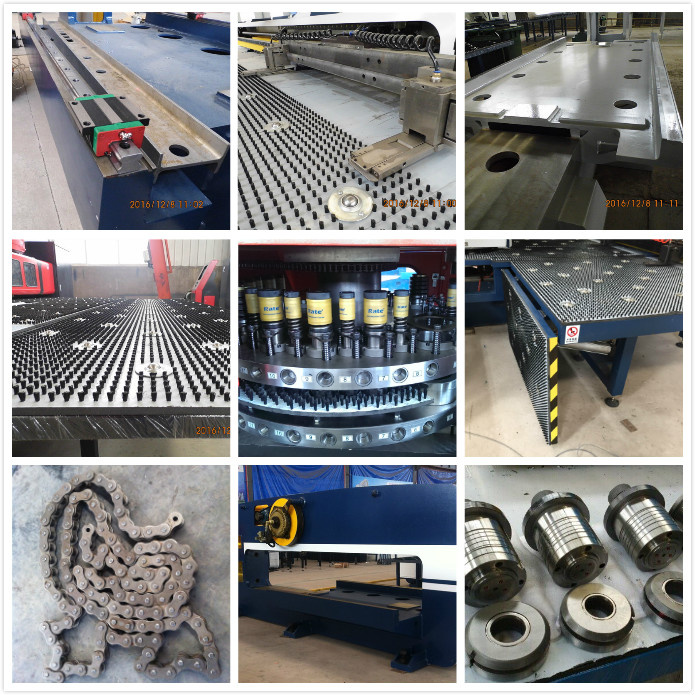

Products details:

1. O-type close press frame special for servo punch press, welding structure, stress relief annealed, strong rigidity, high tonnage, ensure accuracy of machine tool stability for a long time, extend the service life of the machine tool and mould, improve the positioning precision, reliability and durability of the machine tool.

2. Worktable surface with hard brush, its noise reduction, shockproof, protect the surface of the sheet and appearance look good.

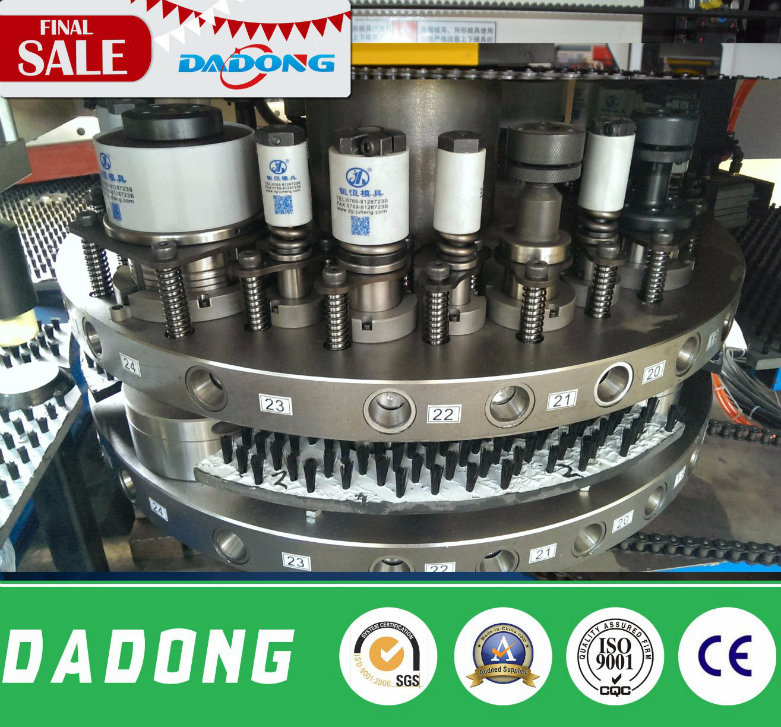

Stations: 32 stations including 2 rotating stations.

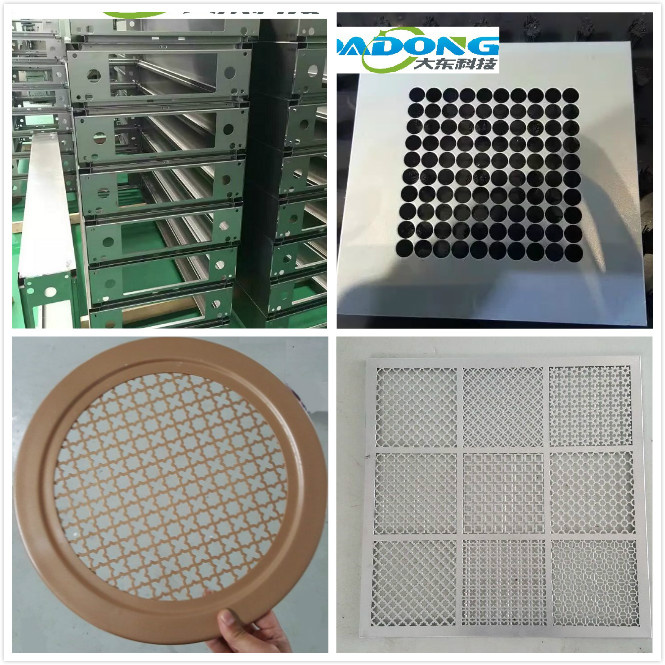

The processing sample:




After-sales:

1. China Top 3 CNC Punching Machine Manufacturer.

2. Inspected by the Inspection Institution of SGS Certification.

3. 100% QC inspection Before Shipment.

4. Best Quality & Best Service with Competitive price.

The exhibition:

 Why Choose us?

1. China top 3 CNC Punching Machine Manufacturer.

2. Inspected by the Inspection Institution of Bureau Veritas Certification.

3. 100% QC inspection Before Shipment.

4. Best Quality & Best Service with Competitive price.

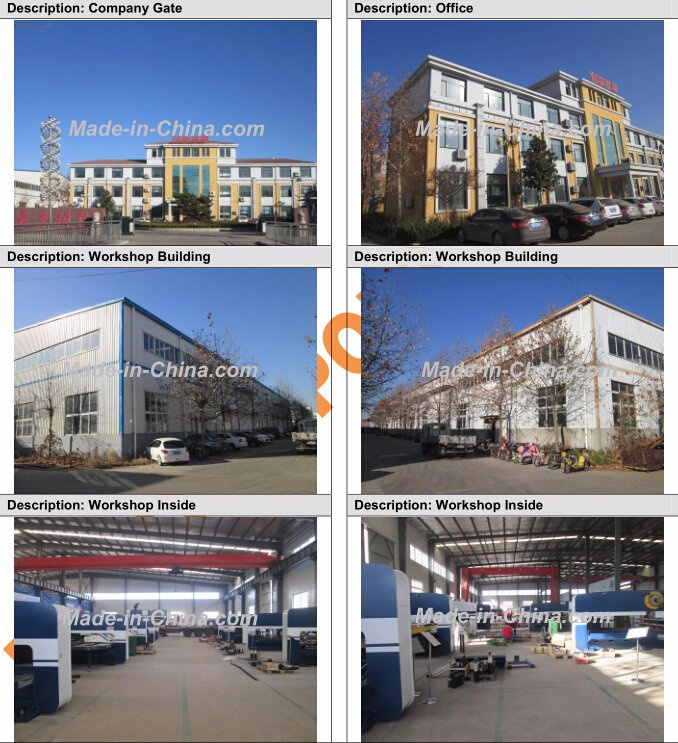

Dadong is a high-tech enterprise that specialized in R&D and manufacturing of CNC Turret Punching machines, the company is based at Qingdao China.

Our mission is to offer affordable optimal solution that can fulfil customer's needs without idle but expensive functions.

With the effort of our management and engineering team, who have combined more than 100 years' experience in turret punching industry, we become the market leader in domestic CNC Turret Punch Press industry, in the following years, we aim to service more and more customers globally.
