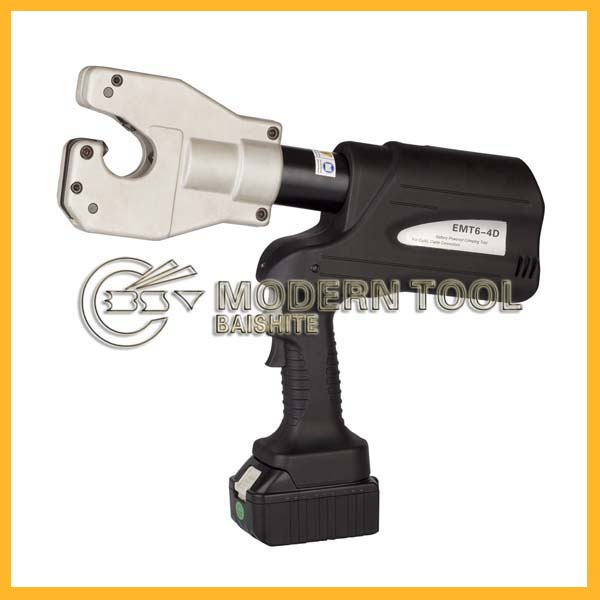

EMT6-4D Battery Powered Dieless Hydraulic Crimping Tool

EMT6-4D Battery Powered Dieless Hydraulic Crimping Tool
Price: US $ 610-700/Piece
Min Order: 10/Piece
Pay Type: L/C,T/T
Prod Model: EMT6-4D
Model No.: EMT6-4D
Crimping Range: 10-240mm2
Output: 6 T
Battery: Li-ion 18V 3ah
Charging Time: 2 Hours
Standard Accessories: 1 Charger 2 Battery 1 Shoulder Strap
Weight: 6.73 Kgs
Dimension: 390*77*380

Product Description

Product Description


The EMT6-4D is a battery powered dielesscrimpingtool,intendedtobe used to crimp Cu/AL cable lugs and connectors, designed with:

4 crimping indentors

Pistol Type Tool Body

Trigger Switch

Manual Retract Button

Auto-Retract Function

Energy saving function

Quick Motor Stop Function

Ram Hold Position Function

Powerful Motor

18V Li-ion Battery

 LED illumination and indicator



FEATURES:

Dieless crimping style allow operator to skip die installation

Pistol Type Tool Body design for better balance and easy handling

Two button control concept foreasy operation by one hand

Manually retract ram in case of need

Automatically fully retract ram and stop motor when complete crimp

Quickly stop motor for safety when release trigger switch

Ram can hold position when release switch & can be partially retracted

Powerful motor ensure quick crimp

Li-ion Battery with high capacity and require shortcharging time

LED illuminate work area&indicate battery capacity, working condition


 Output: 6T
2Dieless Crimping: use 4 indentors to make crimping (3 moveable, 1 fixed)
3Battery: Li-ion  18V  3Ah    Charging Time: 2 Hours
4Crimping Capacity: 10-240mm2
5Do not need to change dies, save working time
6Pistol Tool Body design for better balance
7Powerful motor provide sufficient working force
8High-performance Li-ion battery ensure long working time per charge
9Quick speed hydraulic system ensure quick dies movement with ram advancement
10Quick speed hydraulic system ensure quick dies movement with ram advancement
11With manual retract button, die can be returned at any time during
operation for necessary adjustment
12White LED illuminate dark working area and can remain light for 4
seconds after release switch
13Red LED indicate the working condition of tool and battery
14Plastic case package for easy carrying and storage
15Shoulder strap ensure easy handling for overhead working
