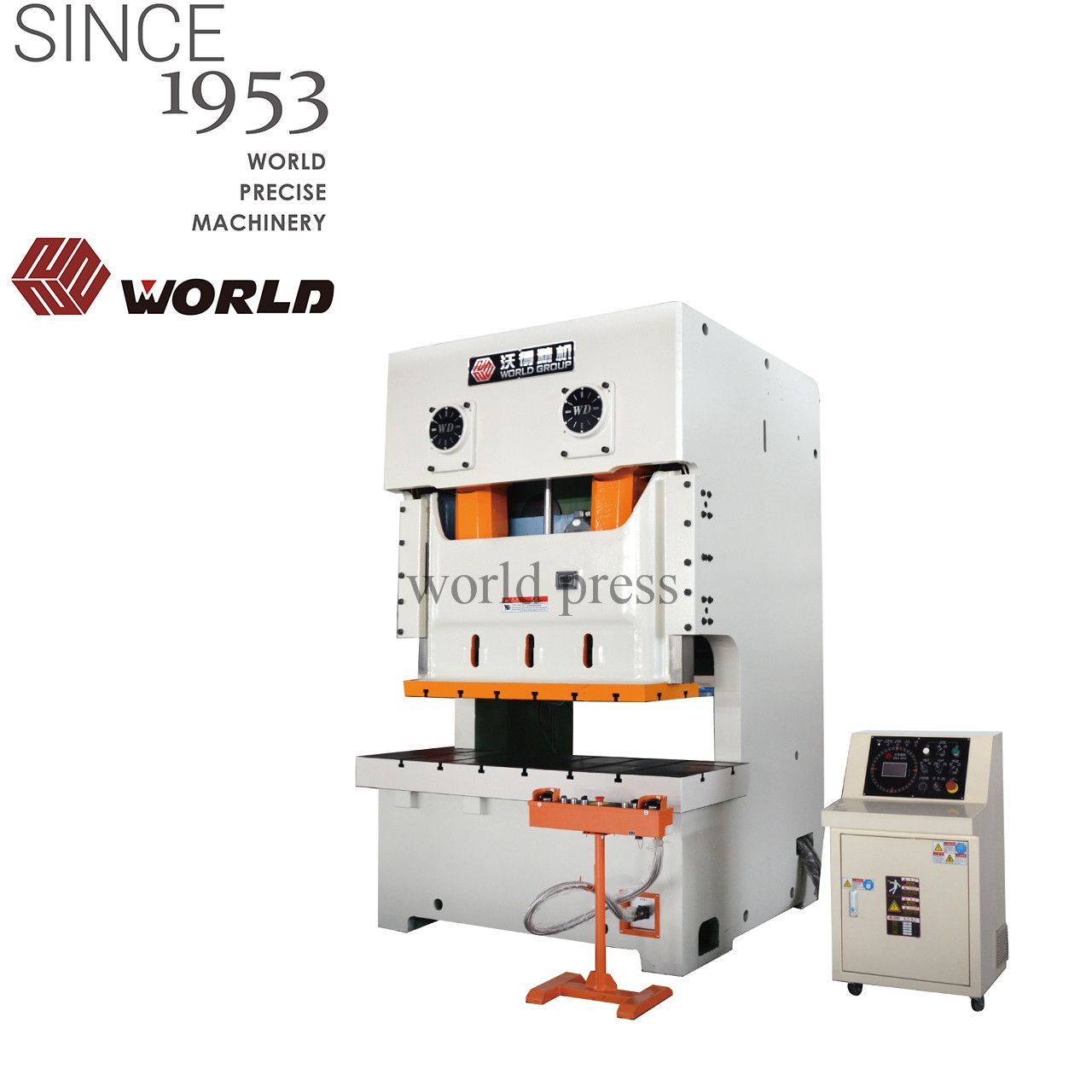

Details: The JH25 C-frame double crank press is the commonly used product in blanking, piercing and cutting the larger piece of sheet metal. The worktable in large size is more suitable for the progressive dies working on different stations, which can greatly improve the production efficiency.

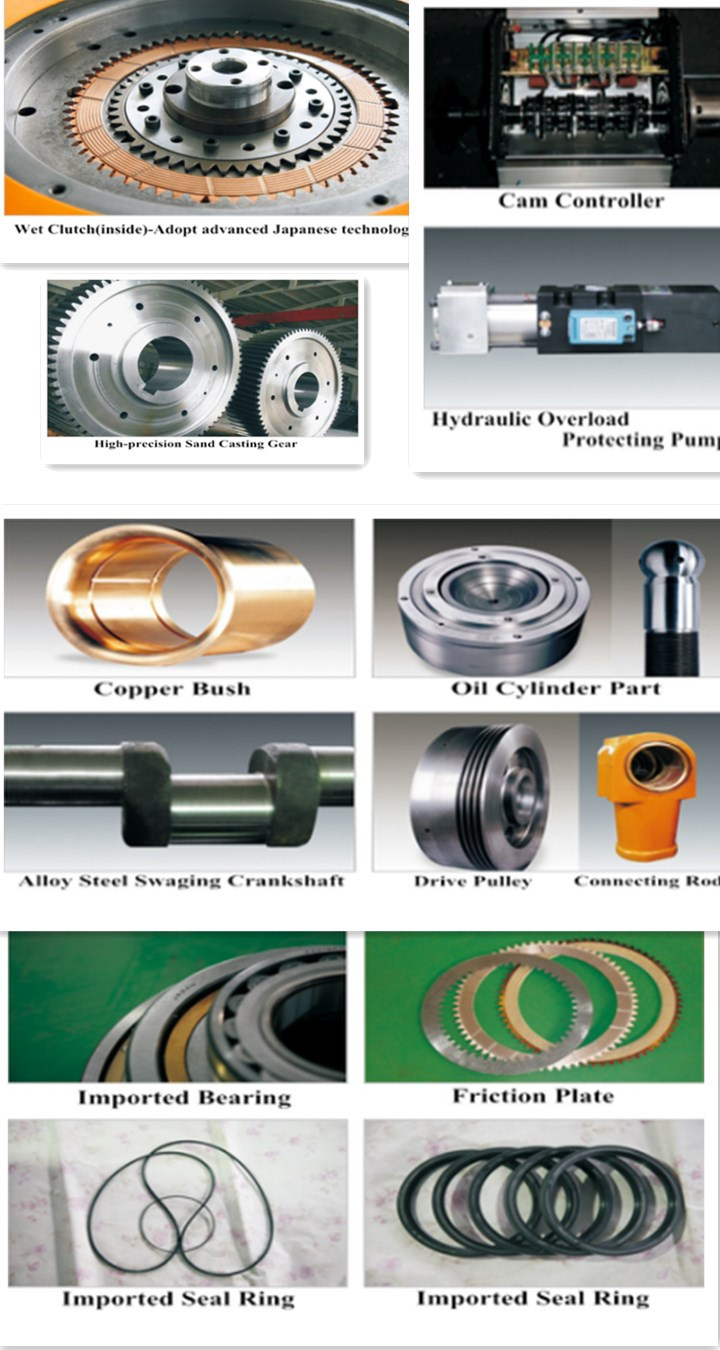

FEATURES: 1. Welded body with steel plate and high intensity; 2.Suitable for multiple dies automatic line and multi level dies continuous punching; 3.Double crankshaft pitmen totally eliminating side forces by reverse rotation; 4.Combined wet multi discs friction clutch and brake; 5.Cluster gear adopts the flooding oil lubrication; 6.Six-face rectangle lengthen guide; 7.Adopts electric die height adjustment with digital display; 8.Equipped with hydraulic overload protecting device.
Specifications of JH25 Series C-frame Two Points Press
Parameter
Unit
JH25-110
JH25-160
JH25-200
JH25-250
JH25-315
Nominal Capacity
KN
1100
1600
2000
2500
3150
Nominal Stroke
mm
5
6
7
7
7
Slide Stroke Length
S
mm
180
200
250
280
280
H
mm
110
130
150
170
170
Slide Stroke
Fixed
S
times/min
50
45
35
30
30
H
times/min
70
60
50
45
40
Variable
S
times/min
35-65
35-55
25-40
20-35
20-35
H
times/min
45-85
40-70
30-60
30-50
30-45
Max. Die Set Height
S
mm
400
450
500
550
550
H
mm
435
485
550
605
605
Die Height Adjustment
mm
90
100
110
120
120
Throat Depth
mm
350
390
430
470
480
Distance Between Uprights
mm
1470
1600
1920
2190
2170
Bolster Size
F x B
mm
680
760
840
920
940
L x R
1880
2040
2420
2700
2800
Bolster Thickness
mm
155
165
170
180
190
Slide Bottom Size
F x B
mm
520
580
650
700
700
L x R
1400
1500
1850
2100
2100
Bolster Surface Height
mm
900
900
1000
1100
1090
Overall Size
F x B
mm
1820
2080
2370
2700
2730
L x R
1970
2150
2550
2850
2840
H
3200
3380
3820
4180
4180
Motor Power
Kw
11
18.5
22
30
37
Weight
Kg
14000
19000
26500
35000
36000
Press Pressure
Mpa
0.5
B
Standard Equipments:
Optional Equipments:
1) Wet clutch
1) Light curtain
2) Hydraulic overload protecting pump
2) Foot pedal
3) Auto lubrication system
3) Leather bag die cushion
4) Manual lubrication system
4) Die quick change device
5) Balance cylinders for slide and upper die
5) Auto feed shaft
6) Digital die height indicator
6) Inverter
7) Joint for miss-feeding
7) Absorbing pads
8) Touch screen
9) Electronic crankshaft angle indicator
10) Cam controller
11) Movable control panel
12) Die height adjusted motor
13) PLC
14) Device for knockout
15) Joint for air
16) Foundation bolts
