Drum Gear Coupling with High Backlash for General Machinery

Drum Gear Coupling with High Backlash for General Machinery
Price: US $ 50.2-52.3/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: WGT9

Product Description

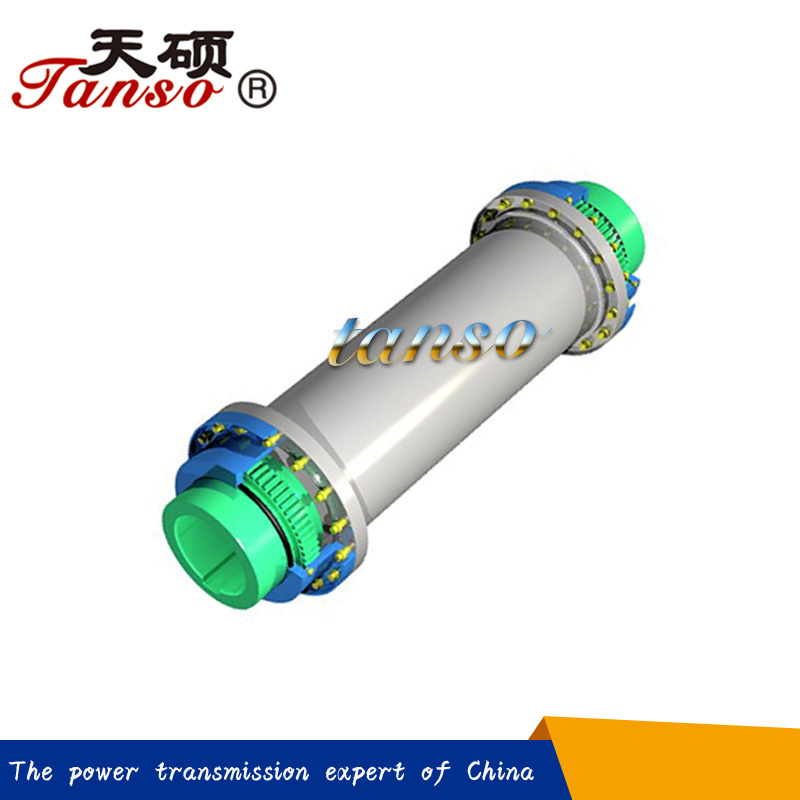

A gear coupling is a mechanical device for transmitting torque between two shafts that are not collinear. It consists of a flexible joint fixed to each shaft. The two joints are connected by a third shaft, called the spindle.

Each joint consists of a 1:1 gear ratio internal/external gear pair. The tooth flanks and outer diameter of the external gear are crowned to allow for angular displacement between the two gears. Mechanically, the gears are equivalent to rotating splines with modified profiles. They are called gears because of the relatively large size of the teeth.

Gear couplings and universal joints are used in similar applications. Gear couplings have higher torque densities than universal joints designed to fit a given space while universal joints induce lower vibrations. The limit on torque density in universal joints is due to the limited cross sections of the cross and yoke. The gear teeth in a gear coupling have high backlash to allow for angular misalignment. The excess backlash can contribute to vibration.

Gear couplings are generally limited to angular misalignments, i.e., the angle of the spindle relative to the axes of the connected shafts, of 4-5°. Universal joints are capable of higher misalignments.

Advantages of Tanso gear coupling

1. Lowest price based on large scale production.

2. High and stable quality level.

3. Widely used in various mechanical and hydraulic fields.

4. Compensation for axial, radial and angular misalignment.

5. Convenient axial plugging assembly.

6. No brittlement at low temperature.

7. Good slippery and frictional properties.

8. Resistance to chemical corrosion.

9. Rich experience working with big companies in this field.


The Flexible Coupling method of connecting rotating shafts is a vital and necessary technique. Large massive shafting, loosely mounted in sleeve bearings and merely joined together by rigidly bolted flanges, cannot provide efficient mechanical power transmission. Especially today, as machine designers and builders demand higher speeds, higher torques, and higher misalignment capacities, the need for "flexibly connecting" this equipment becomes apparent.

A flexible coupling is necessary since it is practically impossible to achieve and maintain perfect alignment of coupled rotating shafts. During initial assembly and installation, precise alignment of the shaft axes is not only difficult to achieve but in many cases it is economically unfeasible. During operation, alignment is even more difficult to maintain. Shaft misalignment - caused by uneven bearing wear, flexure of structural members, settling of foundations, thermal expansion, shaft deflection and other factors - is an operating certainty. Because these factors are extremely difficult to control, a flexible coupling serves as an ideal answer to compensate or minimize the effects of unavoidable misalignment and end movement of coupled shafts.



A flexible coupling must provide three basic functions:

1. Physically couple together two rotating shafts for efficient transmission of mechanical power, transferring the torque of one shaft to the other, directly and with constant velocity.

2. Compensate for all types of misalignment between rotating, connected shafts without inducing abnormal stresses and loads on connected equipment, and without tangible loss of power.

3. Compensate for end or axial movement of the coupled shafts, preventing either shaft from exerting excessive thrust on the other and allowing each to rotate in its normal position.


Three types of misalignment must be effectively accommodated by a flexible coupling.

1. Parallel Offset - axes of connected shafts are parallel, but not in the same straight line.

2. Angular - axes of shafts intersect at center point of coupling, but not in the same straight line.

3. Combined Angular-Offset - axes of shafts do not intersect at point of coupling and are not parallel.

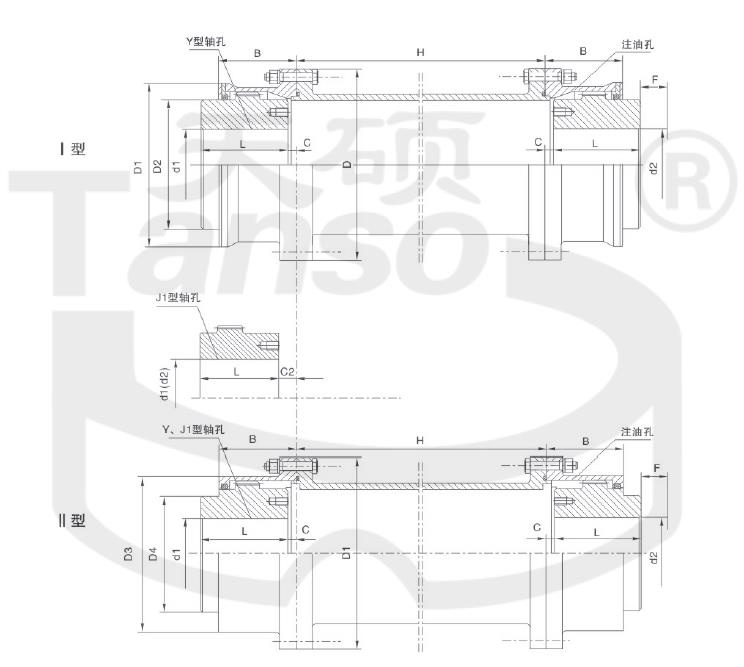

TypeNominal torqueBore diameter d1,d2Bore lengthDD1D2D3D4B
TnL
/N·mYJ1
WGT171012,1432-12211598886058
16,18,1942-
20,22,2452-
25,286244
30,32,35,388260
40,4211284
WGT2125022,2452-1501451181087768
25,2862-
30,32,35,388260
40,42,45,48,50,55,5611284
WGT3250022,2452-1701651401259080
25,2862-
30,32,35,388260
40,42,45,48,50,55,5611284
60,63142107
WGT4450030,32,35,3882-20019516014511290
40,42,45,48,50,55,5611284
60,63,65,70,71,75142107
80172132
WGT5710030,32,35,3882-225215180168128100
40,42,45,48,50,55,5611284
60,63,65,70,71,75142107
80,85,90172132
WGT61000032,35,3882-245230200185145112
40,42,45,48,50,55,56112-
60,63,65,70,71,75142107
80,85,90,95172132
100212167
WGT71400032,35,3882-272265230210160122
40,42,45,48,50,55,56112-
60,63,65,70,71,75142107
80,85,90,95172132
100,110212167
WGT82000055,56112-290272245225176136
60,63,65,70,71,75142107
80,85,90,95172132
100,110,120,125212167
WGT92500065,70,71,75142107315305265245190140
80,85,90,95172132
100,110,120,125212167
130,140252202
WGT104000075142-355340300280225165
80,85,90,95172132
100,110,120,125212167
130,140,150252202
160302242
WGT115600085,90,95172-412385345325256180



Cangzhou Tanso Couplings Co., Ltd. (the former Botou Tianshuo Couplings Factory) specializes in the research and production of expansion coupling sleeve, mechanical drives and mechanical seals. Thanks to our years of experience in research and development of couplings, and favorable conditions and dominant advantages in research and development of high-precision products and mass production, the company can meet customers' demands. The company has passed the certification of ISO9001-2000 Quality Management System, and realized CAD computer aided design and information management, integrating research, development and manufacturing. The company boasts its rich manufacturing experience, strong technical force, complete testing meanings, complete range of specifications and stable and reliable quality. Since its establishment, the company has sold its products throughout China, winning wide appreciation from customers. Based on credit principle, the company has established long-term cooperative relationships with a number of customers. At present, the company, by further strengthening staff training, improving technology level and injecting high-tech contents into products, strives to offer products of top quality and preferential prices.

Our main products include rubber tire couplings, roller chain couplings, safety couplings, diaphragm couplings, drum gear couplings, star-shaped flexible coupling, rubber-cushioned sleeve pin coupling, oldham coupling, plum-shaped flexible coupling, roller chain couplings, flexible pin coupling, flexible pin gear coupling, and so on. In order to meet customers' demands, we, with rich experience, also undertake the plotting and manufacturing of other types of couplings. Under the tenet of "Develop by Technology, Survive by Quality, Benefit by Customers", the company makes all efforts to provide customers with quality products and satisfactory service through advanced production management and strict quality requirements".

Welcome to contact us!
