Drilling Machine with Engineering Geological Exploration Blasting Hole

Drilling Machine with Engineering Geological Exploration Blasting Hole
Price: US $ 9800-25000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: GXY-1

Product Description

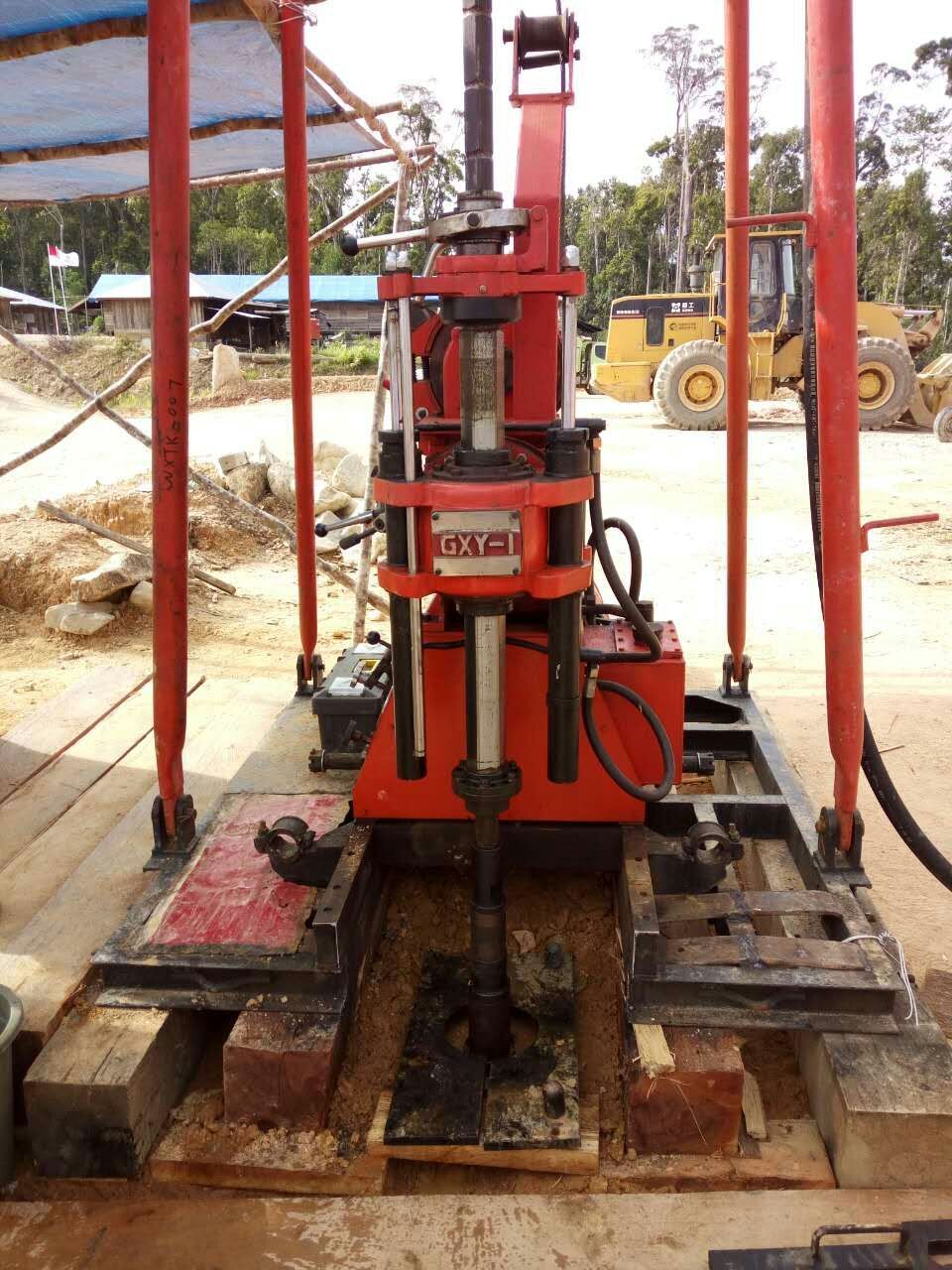

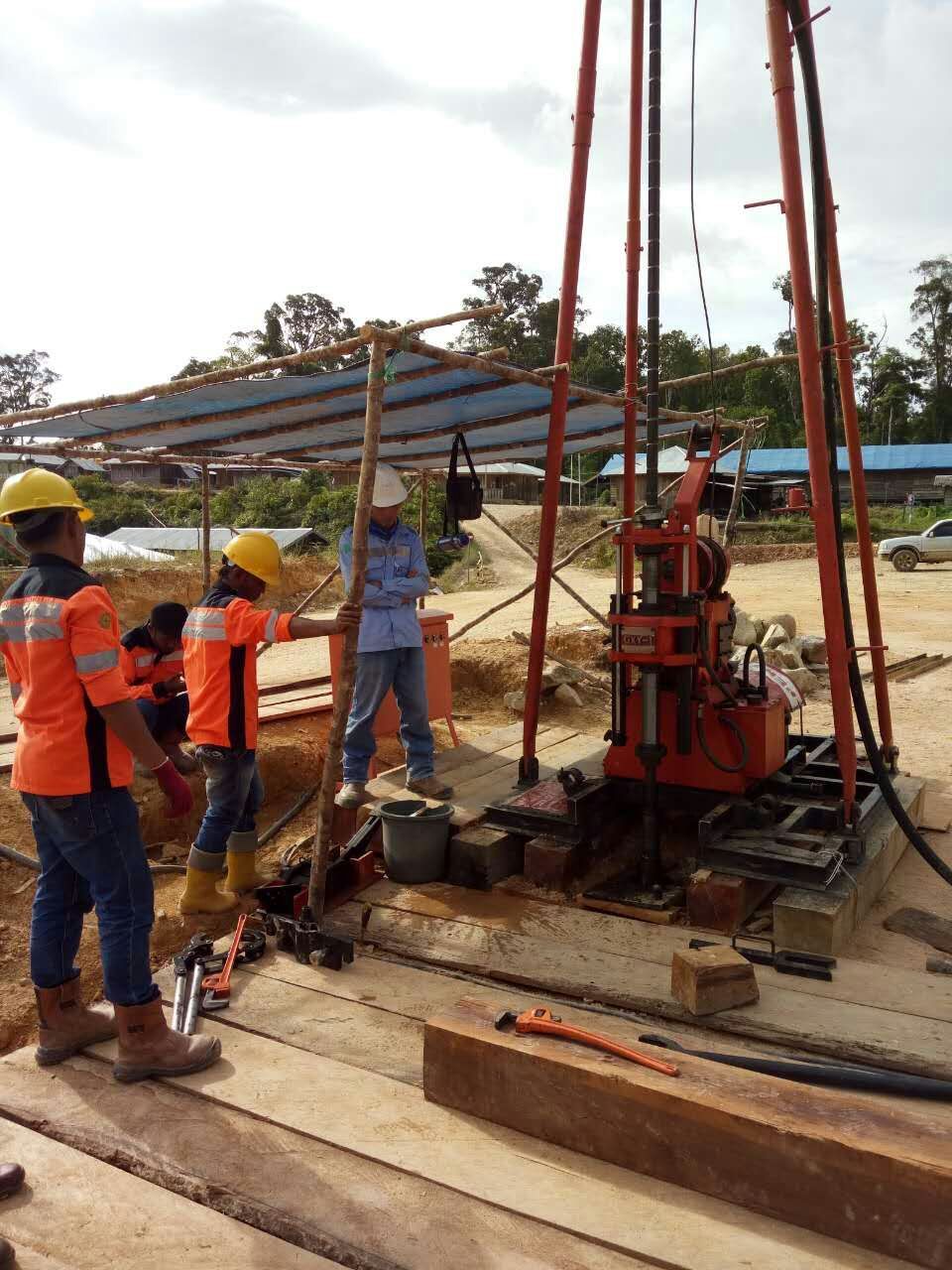

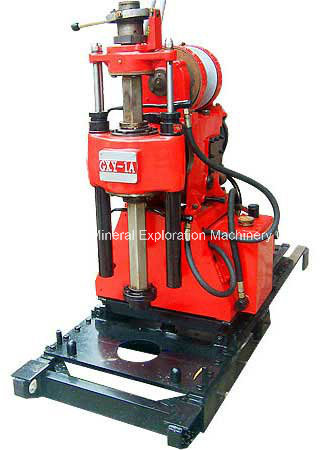

                         GXY-1 CORE DRILLING RIG
Quick Detail:

1. GXY-1 drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.
2. The drill is suitable in the mountain area because it can be carried easily for light weight.
3. The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole.
4. Oening the clinostat, it is easy to lift and loose the drill.

Description:
1. GXY-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3.The drill is suitable in the mountain area because it can be carried easily for light weight
4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.
5. Opening the clinostat, it is easy to lift and loose the drill.

Applications:
1. Engineering geological exploration.
2. Survey and exploration of solid mineral deposit.
3. Blasting engineering hole.
4. Inspecting hole of various concrete stucture.




Specification:
TypeGXY-1
Hole depth150m
Hole diameter110mm
Final hole diameter75mm
Diameter of drill rodsΦ42/50mm
Drilling angle90°-75°
Dimension(L*W*H)1640*1030*1440mm
Weight(without power unit)500KG
Rotary headDirect rotary speed142;285;570 r/min
Feeding stroke450mm
Lifting capacity25kN
Feeding capacity15kN
Max. Torque1200N.m
           HoistRunning speed of drum55;110;220 r/min
Max. lifting capacity, single line10KN
Diameter of steel wire rope9.3mm
Capacity of drum27m
Mud pump(Horizontal  Single-acting)Max. displacement77L/min
Max. pressure1.2Mpa
Stroke100m
Stroke per Minute96min
Diameter of liner80mm
Oil pump (YBC-12/80 Gear pump)Pressure8Mpa
Displacement8ml/r
Speed1500r/min
Power unitElectric motor Model Y132M-47.5KW,1440r/min
Diesel engine Model S110010.3KW,2200r/min

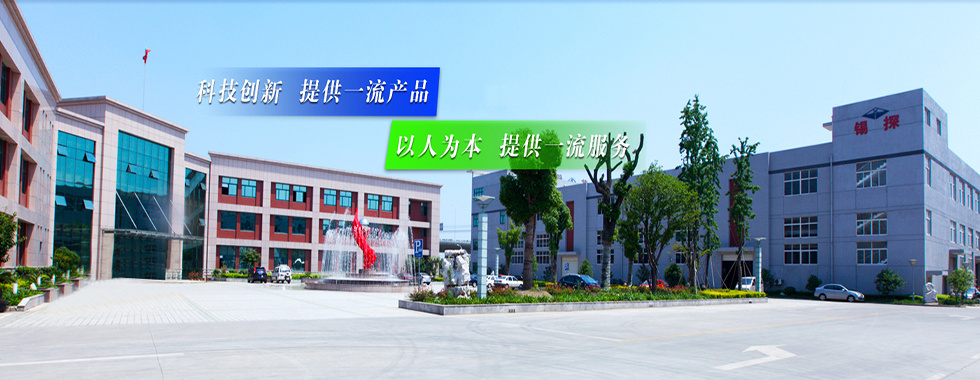

Jiangsu Wuxi Mineral Exploration Machinery General Factory Co., Ltd. (brief name: Jiangsu XiTan ) was was founded in 1956 with a registered capital of 20 million and is a large-scale key enterprise in the industry of geological exploration field.

Our factory covers more than 60, 000 square meters. Equipped with more than 60 years professional manufacturing experience and professional production team as well as more than 200 excellent skillful workers, more than 20 experienced engineers and more than four hundred sophisticated equipments, the high quality drilling equipments will be manufactured.

Our company has advanced and scientific production technology and capacity as well as rapid innovation ability, so that our products account for a large market share in the domestic market. At the same time, our drilling rigs have been exported to Vietnam, Brunei, Iran, Britain, Nigeria and other countries and regions.

We have received the ISO9001-2000 quality system certification. We also obtain the science and technology progress award and second prize issued by the China National Light Industry Association.

Our company is located in Wuxi City. It is 2 km away from the railway station, convenient in traffic and beautiful in environment.

Our company supplies different kinds of products. High quality and reasonable price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
