Drilling Equipment Drilling Tools DHD 380 DTH Hammer

Drilling Equipment Drilling Tools DHD 380 DTH Hammer
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T,Paypal
Prod Model: DTH Hammer DHD 380
Connect Thread: API 2 3/8" API 3 1/2" API 4 1/2 API 6 5/8'' Reg
Model Number: Cop/ SD/ DHD/ IR/ Mission Ect.
Color: Red, Yellow, Gold, Black
Application: Mining or Marble Quarry or Water Well Drilling

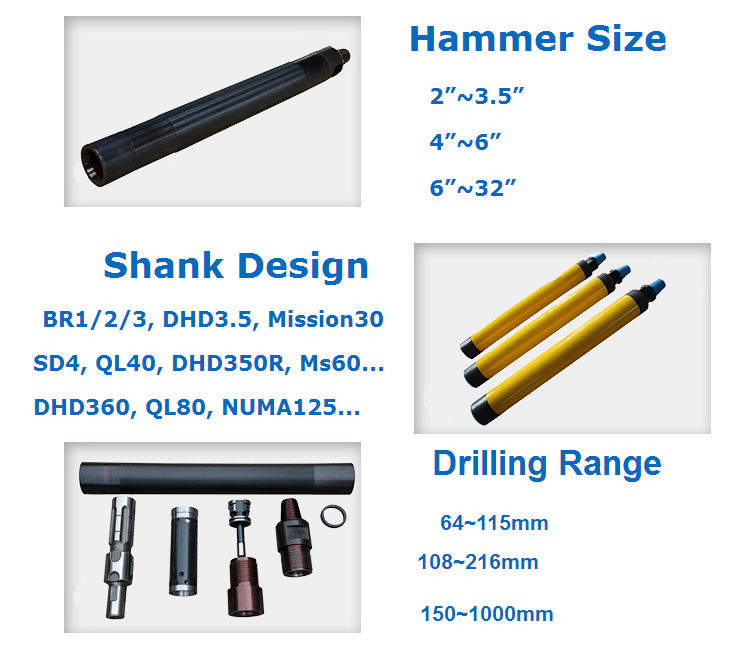

Hammer Size: 2", 2.5" 3.5", 3.8'', 4", 5", 6", 8", 10", 12",etc
Product Name: Drilling Hammer, DTH Hammer, Hammer

Product Description

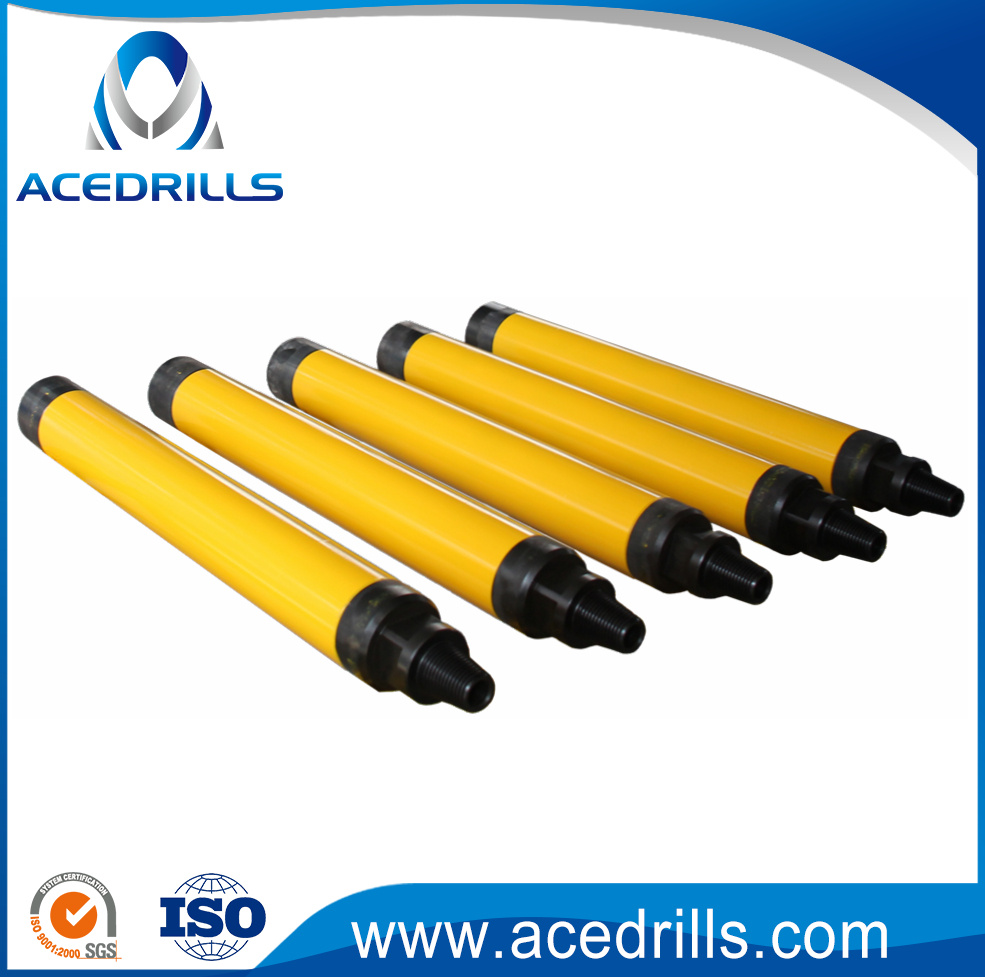

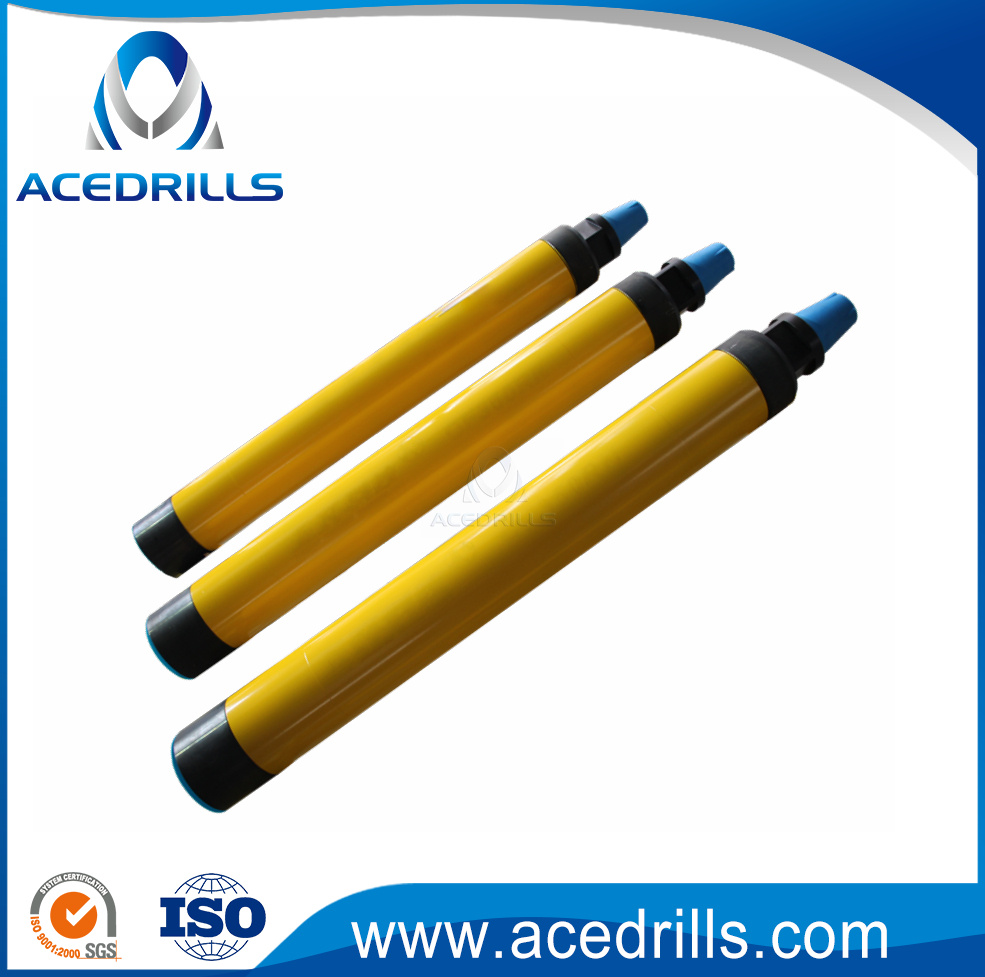

DTH Hammers


General Introduction:
Acedrills' DTH hammers are all simple structure, easy to assemble and disassemble, as well as reliable quality and long service life. Acedrills has various hammer models suitable to drill holes from 64mm to 1000 mm (2-1/2" ~ 39-3/8") in diameter; and come with three kind: low pressure (5 ~ 7 bars), middle pressure (7 ~ 15 bar) and high pressure (7~ 30 bars).

Acedrills' DTH hammers mainly be produced with shank type of DHD, QL, SF, COP, Mission, SD, BR, CIR and ACD series, Diameter ranging from 2" to 8" for mining and quarrying, and 6" to 32" for water-well drilling, oil-well drilling and foundation and so on;


DTH Hammer Selection:
Choosing the right hammer is largely determined by drill machines (mainly compressor output), drilling hole size and type of rock formation. Ideally, the size of the hammer should match the required hole dimension as closely as possible, leaving just enough space for compressed air to flush cuttings and clean the hole.

The optimum range of hole size for blast-hole drilling with DTH method is 90~254 mm (3-1/2" ~ 10") with 3.5 ~ 8" hammers. Smaller blast holes are generally drilled with top-hammer tools, while larger holes typically with rotary drilling tools. In other applications, like foundation drilling, DTH hammers can be used in hole size up to 1,000 mm (39-3/8").

Usually, the smallest hole diameter a DTH hammer can drill is its nominal size, for example, a 4" hammer would drill a 4" (100/102 mm) hole. The limiting factor is the outside diameter of the hammer, because, as hole diameter reduces, airflow is restricted. Maximum hole size for production drilling is the nominal hammer size plus 1"for 5" and smaller hammers and plus 2 for 6" and bigger hammers, for example, for a 4" hammer the maximum hole size is 5" (127/130mm) while for a 8" hammer the maximum hole size is 10" (254mm).

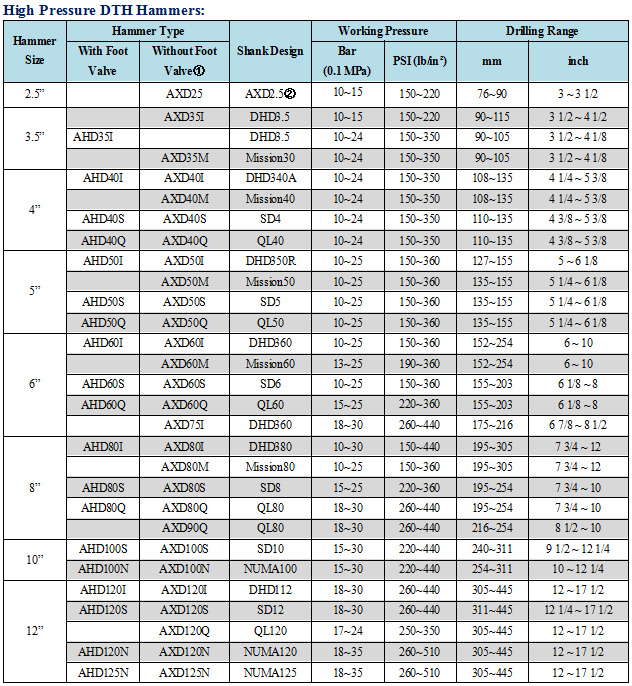

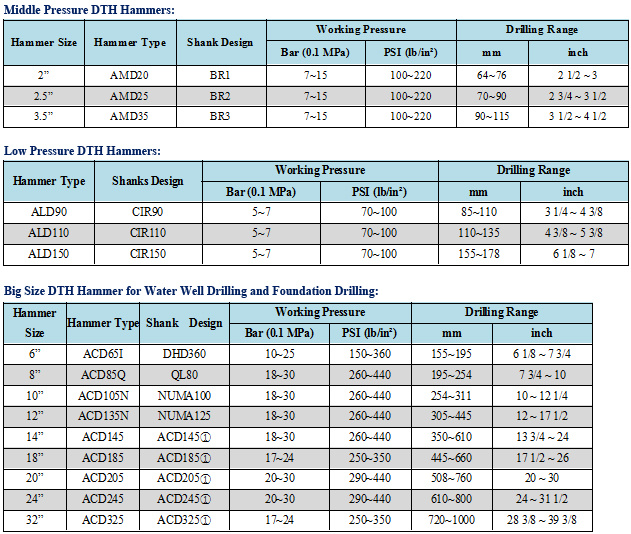

Specification Overview:



Note1: The hammers without foot valve are with lower air and energy consumption, and higher impact frequency; the drilling penetration is 15% ~ 30 higher and oil consumption 10% lower than the ones with foot valve.
Note2: The AXD shank is Acedrills' own design.




Note:  The ACD series shanks are also Acedrills' own design.

How to order?
Shank Type + Top Sub Thread + (With/Without Valve, if this parameter is optional)








Acedrills Rock Tools Co., Ltd. (hereinafter referred to as "Acedrills") is highly specialized in researching, designing, manufacturing and distributing of mining, construction and drilling equipments, tools, accessories and consumables. It evolved from Haixixiang Industry & Trade Co., Ltd (hereinafter referred to as "Haixixiang"), which indicates the company's widely and deeply involved in the global business development and represents all the company staff's persevering effort.

Haixixiang was set up in 1998 by lady Li Runzhu, who was the Guiyang Special Steels' rock drilling tools production director before her retirement and ever LED that rock drilling tool factory experienced its glorious period in the early years. At the beginning, Haixixiang mainly dealt with Guiyang Special Steel's products, and it has been always Guiyang Special Steel's largest agent for a long time.

Since the year 2001, Haixixiang set up its first own rock drilling tools factory, Huixiang Rock Tools Factory, and gradually extended to designing and producing rock drilling tools. And later it constructed other two factories by joint venture. In addition, this company always keeps an open mind and cooperates with other factories from both China and other countries, to get complementary advantages in both products and market. And through such strong enterprises' combination, it is able to offer better and full range products and services.

Now, after more than 15 years' effort and development, Acedrills has become to having huge production and sales capability that it sales more than 250, 000 unit drilling equipments and tools each year, over 150 employees, and has warehouses in Guizhou, Yunan, Sichuan, Hunan, Shananxi and Shanxi and so on, and has appointed sales agents in Xinjiang, Qinghai, Ningxia, Neimenggu, Tibet and Shandong. Moreover, Acedrills also constructed its own truck team to delivery products conveniently and promptly for the Chinese clients.

Before the reorganization, Haixixiang has been making effort to service many exporting companies for a long time, through which its' various products has been sold to out sea market with different brands. At the beginning of 2013, Haixixiang has been reorganized and evolved into Acedrills to service global market directly and will strive to set up its own brand in the international market, and then this company would sale with Acedrills brand and brings the customers more cost-effective and premium products.

Acedrills is new in exporting business, but it is an old player in the business of mining and construction equipments and rock drilling tools.

Acedrills Rock Tools Co., Ltd. is specialized in the development, production and export sales of mining engineering equipment, rock drilling machinery and equipment, and maintain close working relationship with many outstanding manufacturers, aimed to provide customers with fast, stable, economical drilling tool solutions to help customers effectively reduce the overall cost. We always adhere to customer demand-oriented, integrity management, so that we won the trust and respect from customers and partners, the product range continues to expand.

The company's products are mainly fit to the Swedish Atlas Copco, Sandvik, the United States Ingersoll-Rand, and the rest of the world's major brand manufacturing company products, wildly used in earth and rock engineering, mining, water well drilling and foundation engineering constructiong and so on.

Last year in 2016, we accomplished twenty million dollar sales amount. We have four languages sales team, English, Russian, France, Spanish. Mostly, our products are recognized by Chile, Span, Brazil, Russia, Mongolia, Japan, America, French, Malaysia, Singapore buyers.

Acedrills always insistent on:

Constantly self-improving

Products evolving

Service advancing

-- to get yours acceptance and support.
