DIN /SMS/ 3A Sanitary Stainless Steel Food Grade Welded Clamped Pipe Fitting

DIN /SMS/ 3A Sanitary Stainless Steel Food Grade Welded Clamped Pipe Fitting
Price: US $ 2/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: ST1011005
Connection: Welding
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: Sch10
Material: Stainless Steel
Technics: Hot-pressed
Certification: DIN
Color: Silver

Product Description

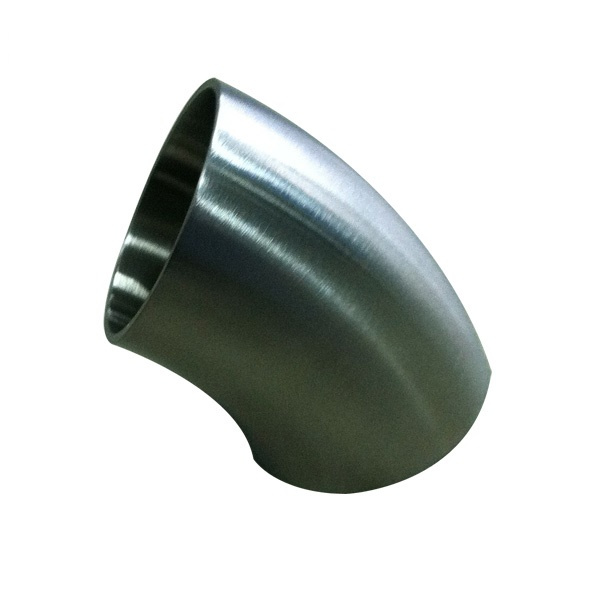

        Stainless Steel Sanitary Pipe Fitting

Product Properties:

 Product name

SS Sanitary Pipe Fitting

 Application

Sanitary Fittings are used on permanent installations where process piping and equipment can be Cleaned in place (CIP) and removal from the system is not required.Weld Fittings are offered in nominal tube sizes 1/2~ through 8~ in T304 and T316L materials.Unifom wall thickness for 1/2~ through 3~ sizes measure .065 (16 ga).In 4~ size,wall thickness measures.083 (14 ga),6~ and 8~ .109 (12 ga).
 Materials
 Body:  SS304,316L
 SIZE:  1/2 '' - 8 '', DN10-DN200
 Standard:  DIN, SMS, 3A, ISO, IDF, BPE, AS
 Connection end:  welded, clamped
 Surface finish:  mirror, matt polished.
 Inside Ra 0.4, outside Ra 0.8.Roundness, thickness equal to meet international food standard.
 Elbow classification:  45 degree,90 degree,180 degree elbows

Product:




Application:

Company Application:

Exhibition:

Packing&Shipping:


Wenzhou kasin valve pipe fitting Co., Ltd. Located in Wenzhou City, is one of the few special factories which can produce high precision fluid equipment in China.

Kasin company own three workshops.

First one is to produce sanitary valve /pipe fittings, second one is to produce industrial valve and pipe fittings; Third one is to produce press fittings.

Here are our products ranges.

Sanitary Valves: Sanitary butterfly valves; Sanitary ball valves/; Sanitary check valves; Sanitary diaphragm valves; Sample valves; Pneumatic butterfly valves

Sanitary pumps: Centrifugal pumps; Self-priming pumps; Lobe pumps; Blender

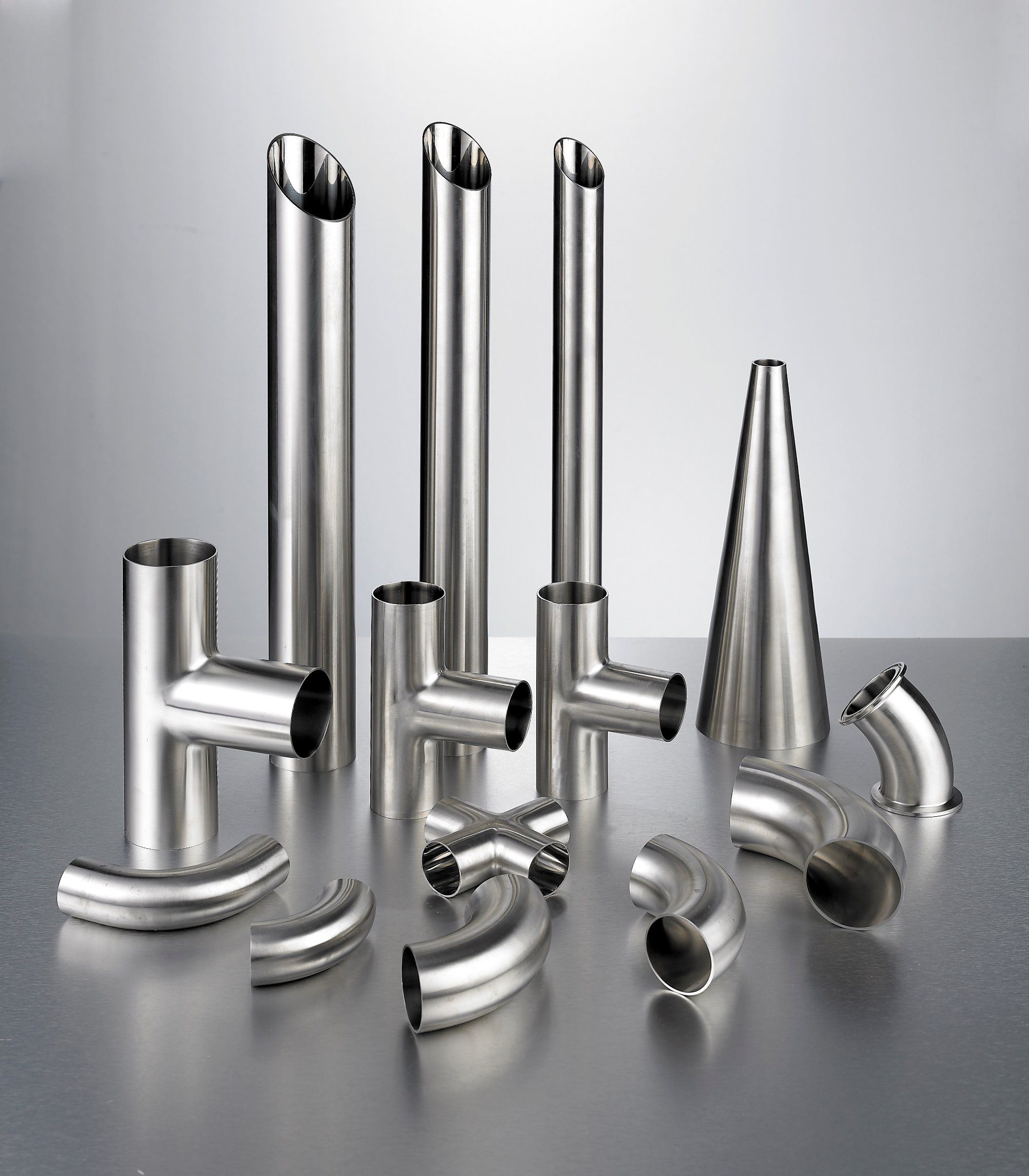

Sanitary fittings: Elbows; Ferrules; Tees; Crosses; Clamps; Reducers; Pipe clips; Pipe holders; Hose nipples; Sight glass; Cleaning balls; Manhole covers/manway doors; Sanitary unions; Sanitary filter; Strainers; Flange /Ring joint Gasket

Sanitary tubes.

Industrial Gate valve /Ball valve

Press fittings: V Profile or M profile.

We also can make the products as per your drawings or samples.

We've had many booths overseas, including Russia, Brasil, Germany, Australia, Germany, etc.

Looking forwarder to cooperating with you!
