Digital Low Speed Diamond Saw with 6" Diamond Blade & Complete Accessories
Description of the digital low speed diamond saw: CY-SYJ-160 is CE certified low-speed diamond saw. It comes with a digital micrometer, digital speed display as well as complete accessories. It accepts 6-inch cutting blade and will be a suitable tool for cutting, dicing and slicing all kinds of materials especially for brittle crystals, ceramics, and TEM samples. The latest version of CY-SYJ-160 is withProtective Plexiglass shield.
Specification of the low speed diamond saw:
Power
110V or 220V AC switch-able for worldwide use High torque DC motor (70W)
Speed range
0-600 rpm with digital display.
Position Thickness & accuracy
Cutting thickness is controlled by digital micrometer with accuracy of 0.003mm The LCD micrometer is water-proof with resolution of 0.001 mm and accuracy of +/-0.003 mm. Thinnest cutting thickness is 0.35mm for most materials
Cutting Width
The cutting width of the slice is controllable from 1mm ~ 24mm by adjusting the LCD digital micrometer.
Sample holder
Two angle adjustable sample holder is included, please click picture below for the details
Mini-vise
Mini-vise can be easily adapted onto the sample holder to clamp rod shape specimens with diameter up to 1'' max.
Cutting Blades
Max 6" diameter blade (it can also adapt 3" and 4" dia. cutting blade ) Max cutting depth is 50mm. Three 6" cutting blades are included for cutting various materials: 6" x 0.5mm x 0.5" Arbor Abrasive SiC Blade for Cutting Non-ferrous Metals 6" x 0.5mm x 0.5" Arbor Abrasive Al2O3 Blade for Cutting Ferrous Metals. One plastic water-proof box is included to protect water fron splashing during cutting Complete accessories are included (see standard list below)
Warranty & Compliance
One year limited manufacture warranty with lifetime support. Rusting and damage due to improper storage condition or maintenance is not covered by warranty.
Certification
CE certified
Package dimension
21" x 15" x 18"
Accessory
Plexi glass protective shield
Shipping weight:
40lbs
Application Notes
Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as coolant during cutting. You may select ou lubricant as coolant which will make diamond blade cut more efficiently and prevents corrosion. Also, you can use W10-30 motor oil as coolant, which is available at any Auto store. Always clean machine, especially the lead screw by WD40 lubricant after each use.

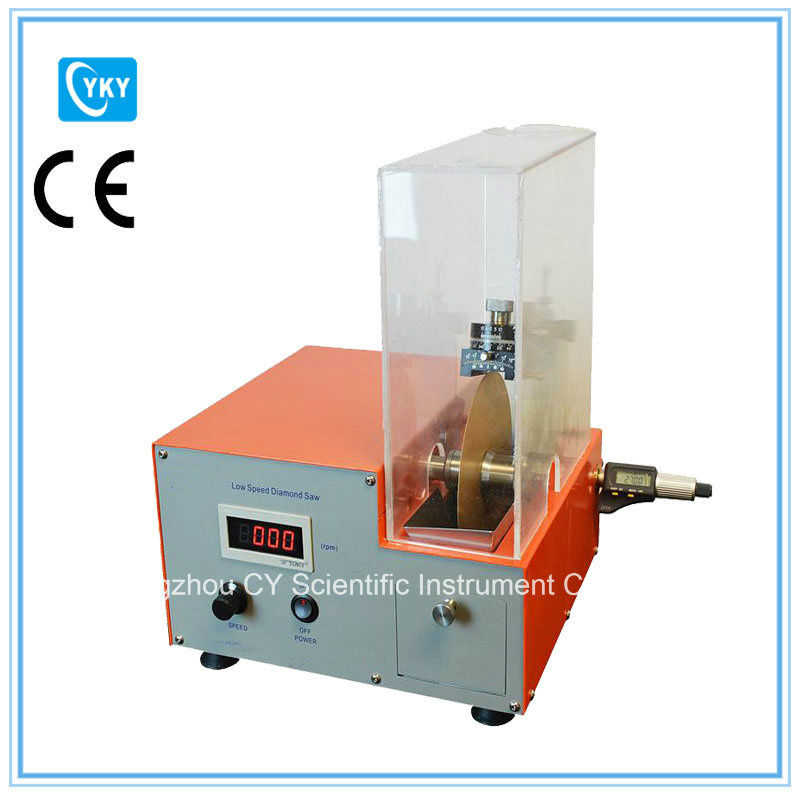

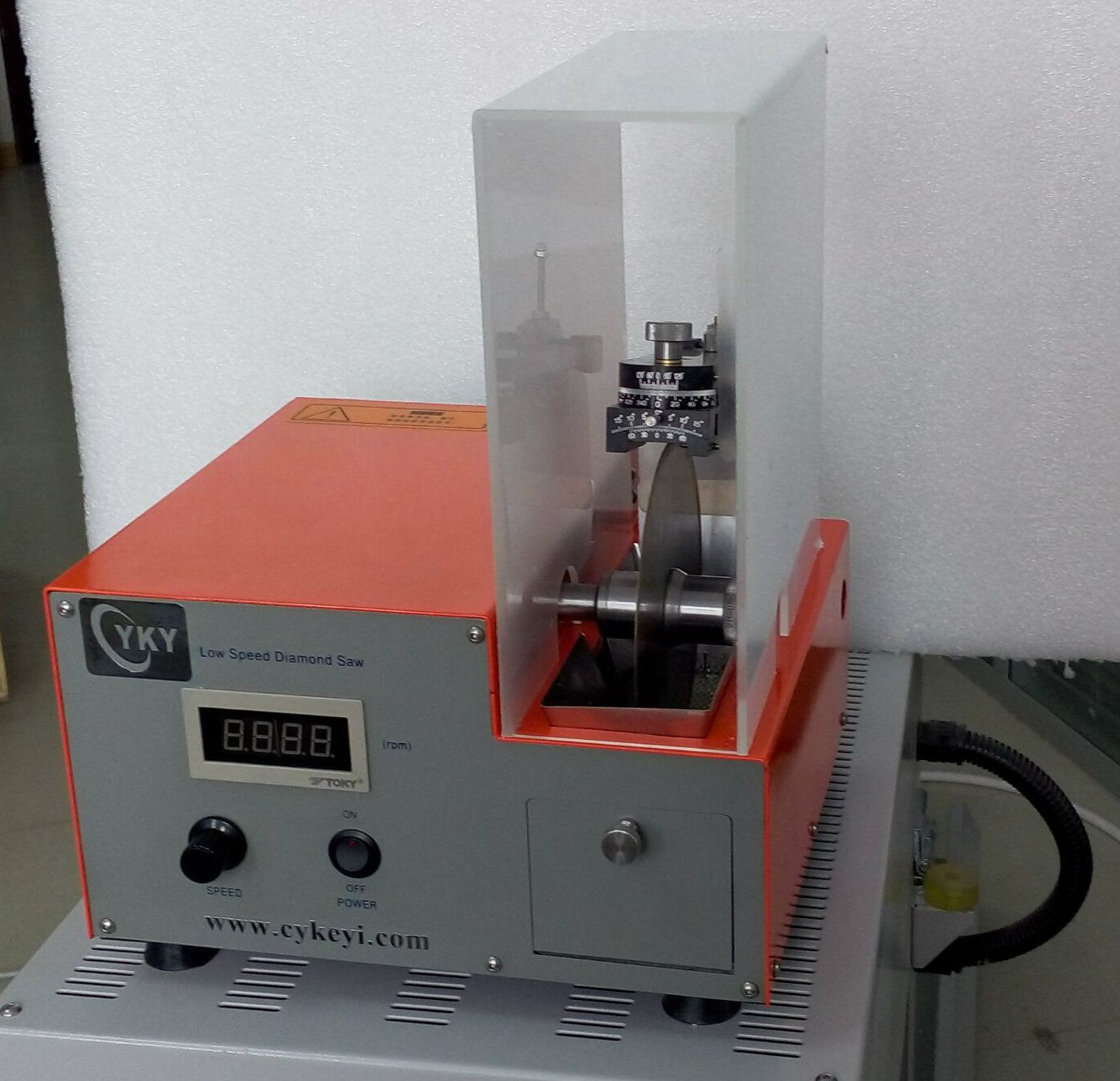

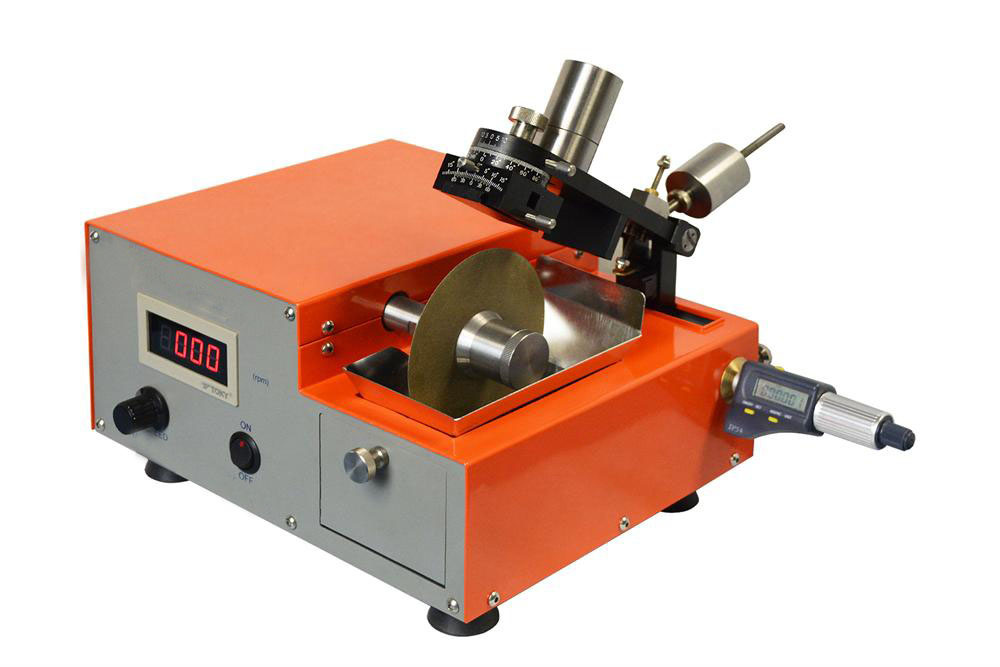

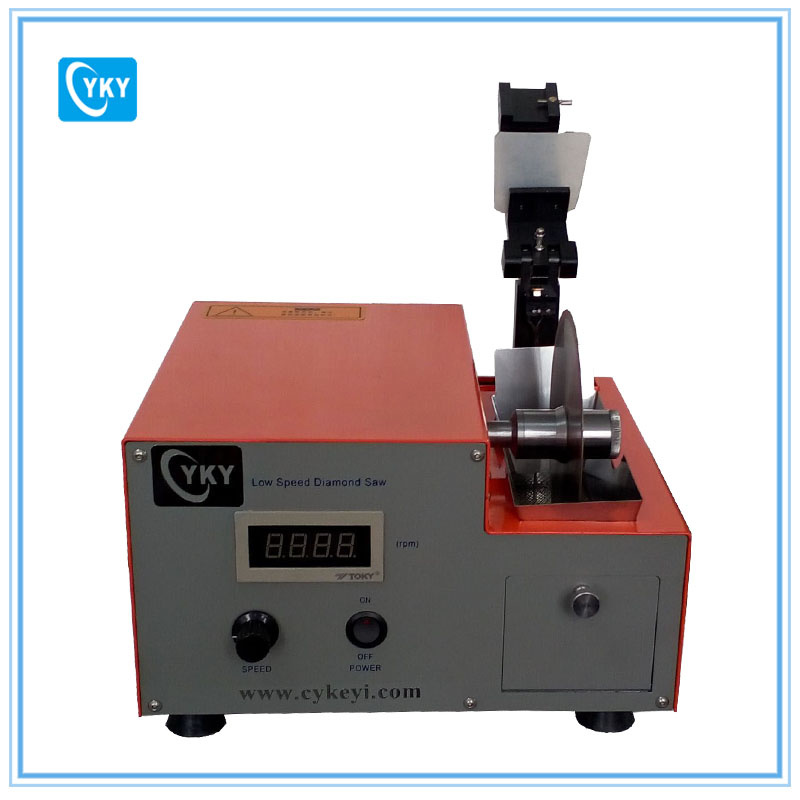

Reference picture of the digital low speed diamond saw:
