Zinc Alloy electric digital smart RFID fingerprint door lock
1.Electronic fingerprint door lock Hotel lock Home Office fingerprint swipe sensor lock
2.Specification
Specification for fingerprint door lock
Specification for fingerprint password door lock
Color
Silver, golden, anti-red
Unlock method
Fingerprint, password,Remote control, Cards and mechanical key
Material
zinc alloy
Power
4 pcs 1.5V LR6 AA Alkaline Batteries, DC 6V
normally continuous opening
Card type
MF1
Password battery life
6000 times
Password capacity
10pcs
Password combination
8 numbers
Fingerprint battery life
5000 times
Fingerprint capacity
100pcs
Fingerprint identifying angle
360°
False acceptance rate
≤0.0001%
Working temperature
-20 degree-70 degree
Working humidity
20%-95%
Accepted for door thickness
35~55mm
Lock weight
6.2-6.5kg
Static working current
≤30μA
Dynamic working current
≤200mA
Reading distance
≤3mm
Reading Time
less than 1s
Unlock records
Lastest 350pcs unlock records
System protection function
Automatically enter the power saving mode without 10s operation
Antistatic interference ability
≤15KV
Low power alarm
less than 4.8V(100 times at least)
3.Product Description

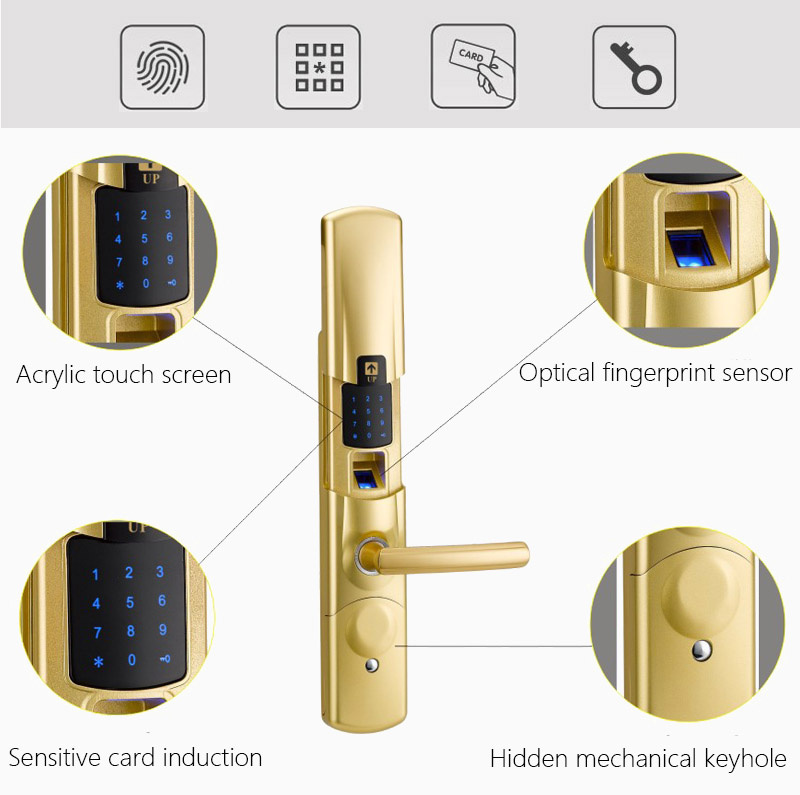

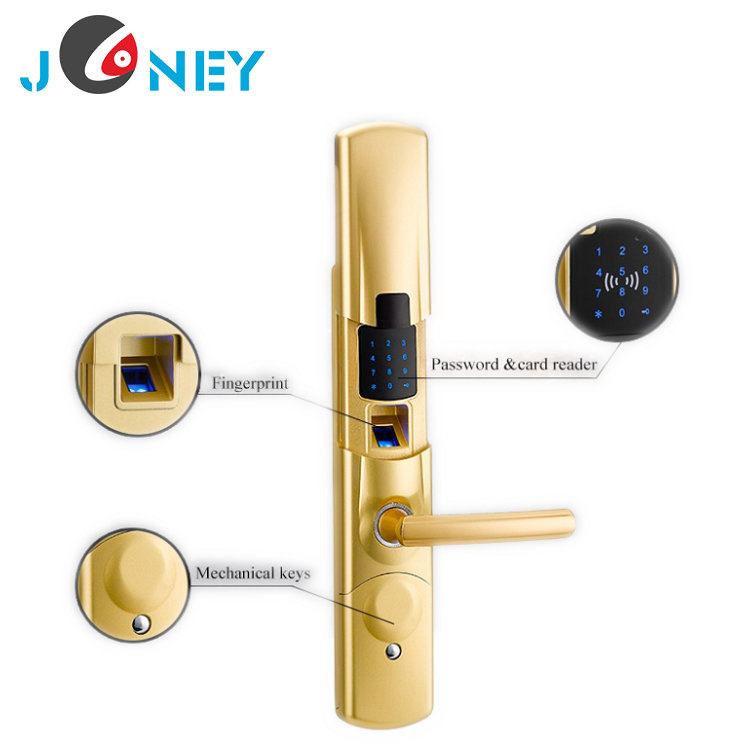

4.Unlock methods: fingerprint, password, cards and mechanical keys

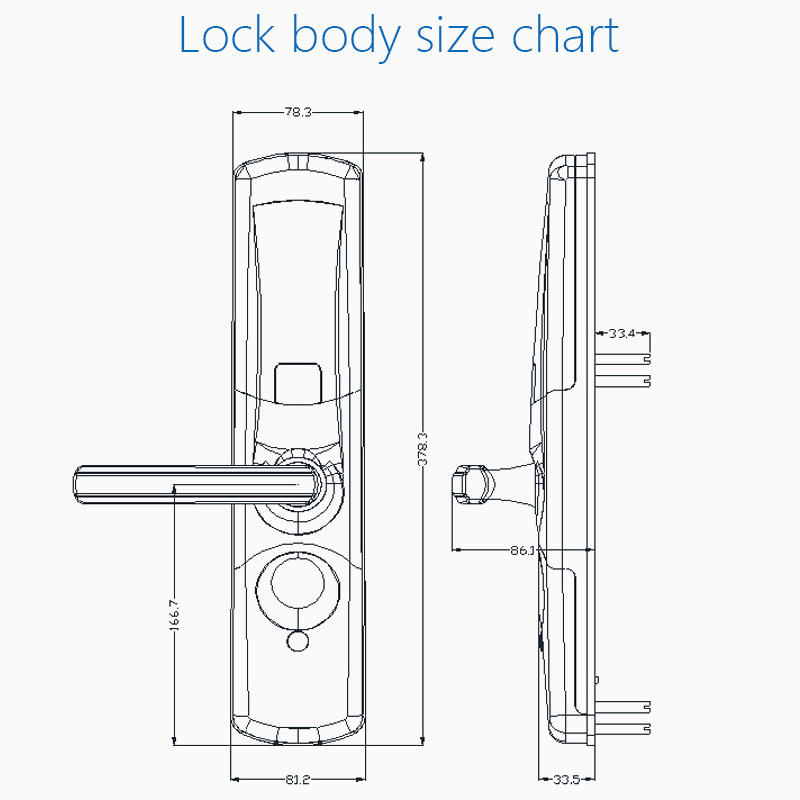

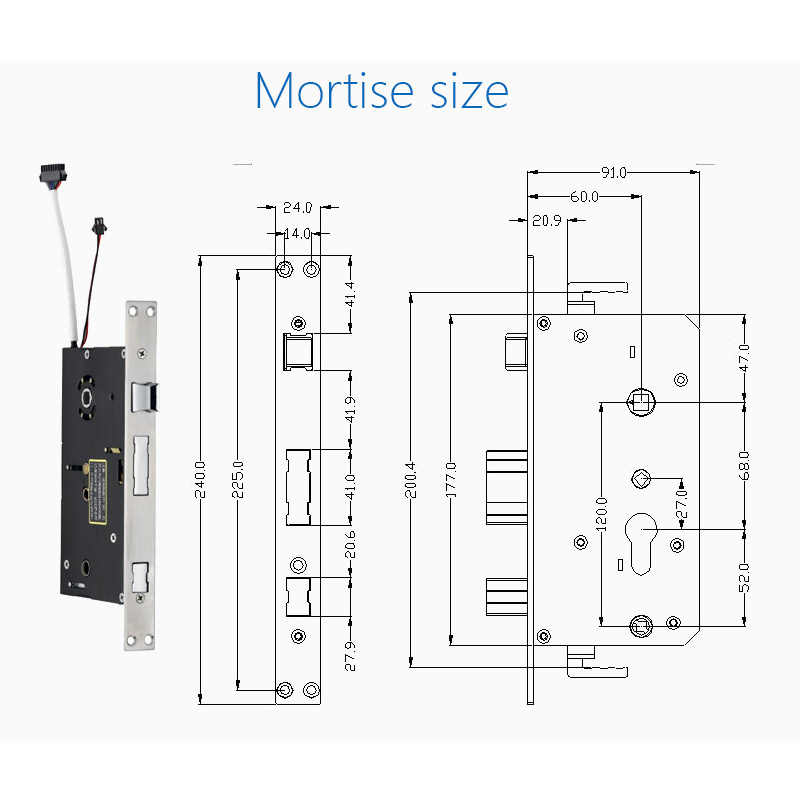

Panel and lock cylinder schematic diagram
The handle installation directions for door locks
1
Llock cylinder
10
Battery Pack (includes batteries)
2
Cross recessed round head wood screws
11
Inner hexagon screw
3
Mechanical Headlock
12
Side trim panels
4
Inner hexagon screw (headlock)
13
Cross recessed countersunk head tapping screws
5
Big square axis
14
Pinch plat plastic case
6
Front Panel
15
Lock pinch plate
7
Big square axis
16
Cross recessed round head wood screws
8
Long square axis
17
Headlock cover
9
Rear Panel
18
Door
