Color:
Red
Gross Weight:
3.0kgs
Hammer Material:
Steel
Type:
Rebound Hammer
Brand:
Sadt
Use Place:
Building, Bridge
Product Description

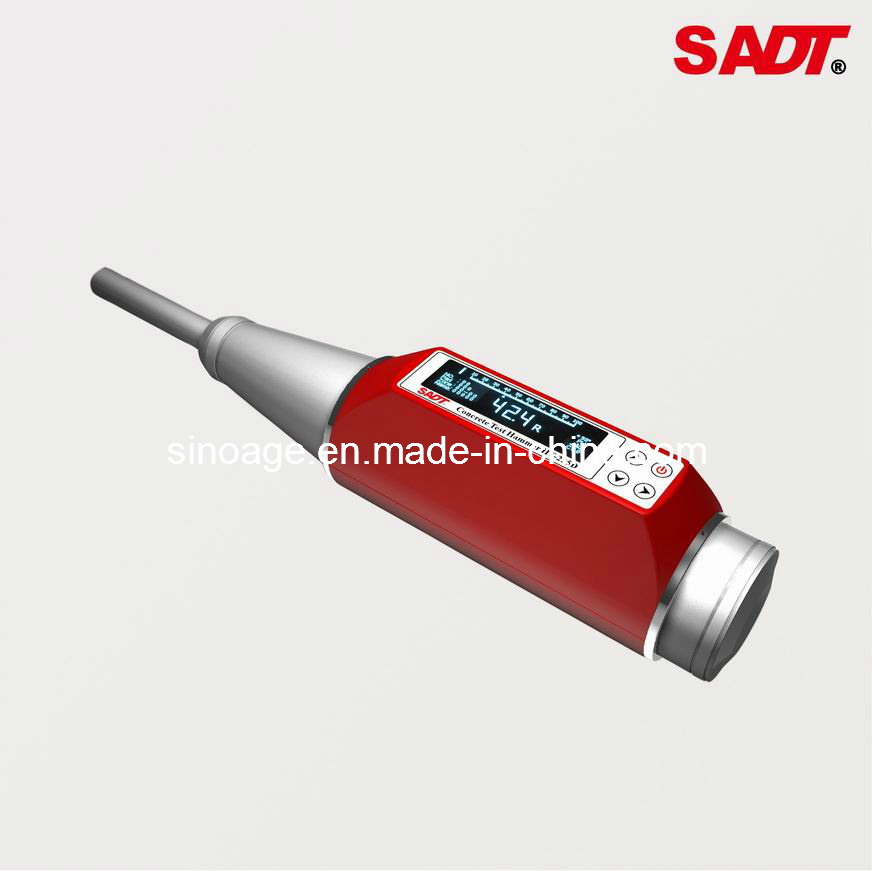

HT-225D concrete test hammer/HT-75D concrete test hammer/HT-20D concrete test hammer is an integrated digital concrete test hammer which combines data processor and concrete test hammer into one unit. It is widely used for non destructive testing quality of concrete testing and building materials testing in finished concrete structure or prefabricated blocks. From its rebound value, the compressive strength of concrete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
KEY FEATURES High contrast OLED display All setup can be made on site Automatic calculating compressive strength Automatic correction of impact direction All data will be stored in memory All data can be transferred to PC by USB cable or blue tooth(optional) Dual display for analogue ruler and digital value
Model
HT-225D
HT-75D
HT-20D
Display
OLED digital
Measuring range
10-100N/mm2
1-25N/mm2
Accuracy
± 0.1R
Impact energy
0.225kgm (2.207Nm)for testing ordinary building and bridge construction
0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick
0.020kgm (0.196Nm)for testing mortal or clay of products
Communication
USB2.0 or Bluetooth(optional)
Storage
data for 4000 concrete structures
Operating temperature
-40º -60º C
Power supply
3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm)
280x75x60
Net weight
1.1kg
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. We are professional producer with ISO 9001 quality system. The main products include: Hartip series hardness tester (HARTIP3000, HARTIP1500, HARTIP1000, HARTIP1800, HARTIP2000, HARTIP2200 and HARTIP1900), ultrasonic thickness gauge( SA40+ SA40, SA40EZ, ST5900), concrete hammer(HT-225D, HT-225A), ultrasonic flaw detector(SUD10, SUD50), gloss meter( GTS, GT60, GT45, GT60N), portable metallurgical microscope (SM500, SM-3), brinell hardness reading automatic measuring system, surface roughness tester and color meter. Most of the products are applied with CE certificate.
Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
