Diamond Wire Saw Machine for Quarry, Granite, Marble

Diamond Wire Saw Machine for Quarry, Granite, Marble
Price: Negotiable/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Prod Model: TSY-37G/TSY-55G/TSY-75G/TSY-110G
Life Time: at Least 10 Years
Warrantee: 1 Year
Cutting Method: Automatic
Usage: Sandstone,Slate,Ect.
Application: Stone Cutting
Automation: Automatic
Type: Stone Cutting Machine
Source Voltage: by Custoners Request
Certification: ISO9001

Product Description

Product Description

Company information:

Skystone has been devoting to manufacture diamond tools for the stone industry since 1994,which has a professional diamond wire saw manufacturing factory ,a stone machine maufacturing factory, a diamond tool R&D center, a equipment R&D center,a mining project technology center and a building cutting technology center. Our range of wires covers all the needs in quarries as well as in processing for marble, granite and abrasive materials. Our product performance have been widely proven in the world, and they are exported to USA Brazil, Iran, Norway, South Africa, Turkey, Russia, Poland and other 30 countries.

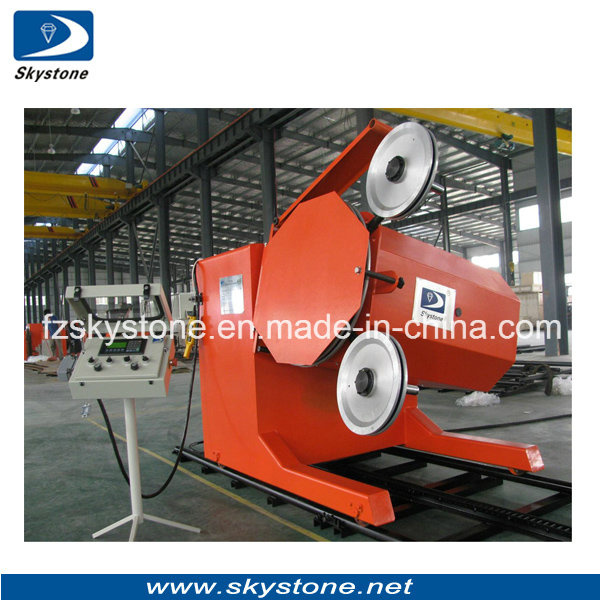

TSY G SERIES



Advantages:



1.Manufactured with first quality materials and components, the TSY G series is a strong and reliable machine that allows to easily make great cuts on any kind of material.

2.The feed movement is automatically controlled by PLC and inverter that allows a precise and complete management of the diamond wire during the cutting , so that to obtain the best output and production on any material.

3.The machine have protection functions which including: wire broken, machine overload, cutting finished,and other malfunction happened, so that to maintain the best efficiency of the system.

4.The motor head can move per side, in order to make two parallel cuts without moving the machine,which is driven by motor with Position Limited Function. The same device allows to make horizontal cuts at ground level without the use of any auxiliary accessories.



G SERIES INVERTER



The model with vectorial inverter control system allows to vary the diamond wire speed from 0 to 40 m/sec. in order to optimize its consumption and get the best output.



Specification:





1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.

2.The cutting process can be automatical controlled accurately.

3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.

4.Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened

5.Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.

6.The machine without phase request.It is needn't to change and distinguish.


Technical Parameter:
Main motor power37-55-75-110kw
Total power40-58.75-78.75-114.5kw
Wire tension and cutting currentautomatic controled by PLC and inveter
Diameter main flywheel800mm
Lateral movement of cutting head1.8 or 2 m
Cutting head rotation360°
Linear wire speed0-40 m/s
length of rails3m*3
Traveling speed0-150m/h
Workind condition-15-40 °c  humidity < 95% (without dew)
Application

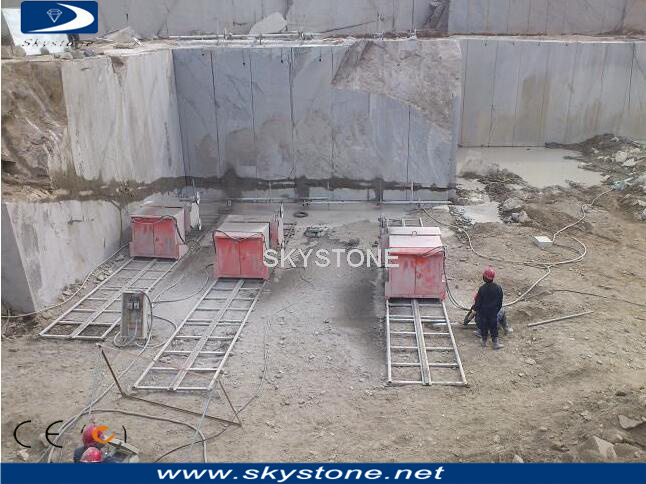

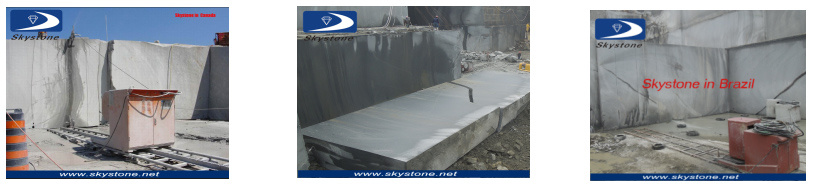

Skystone wire saw machine is widely used for granite and marble quarries all over the world.




Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.

We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
