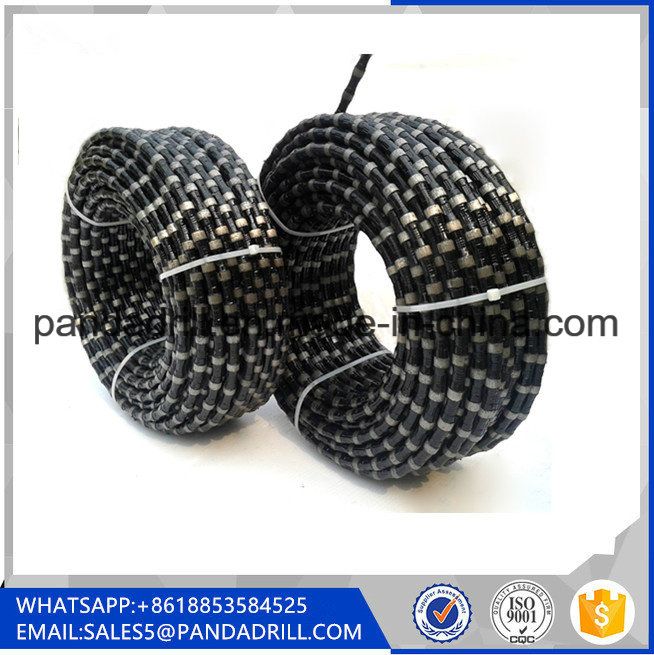

Diamond Wire Saw for Cutting Marble and Granite

Diamond Wire Saw for Cutting Marble and Granite
Price: US $ 30-50/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: PA18, PA20
Blade Material: Diamond
Life Span: 20-40 Cubic Meter/M
Beads Numuber: 40PCS/Meter
Size: 8.0-11.5.mm
Finishing: Ti-Coated

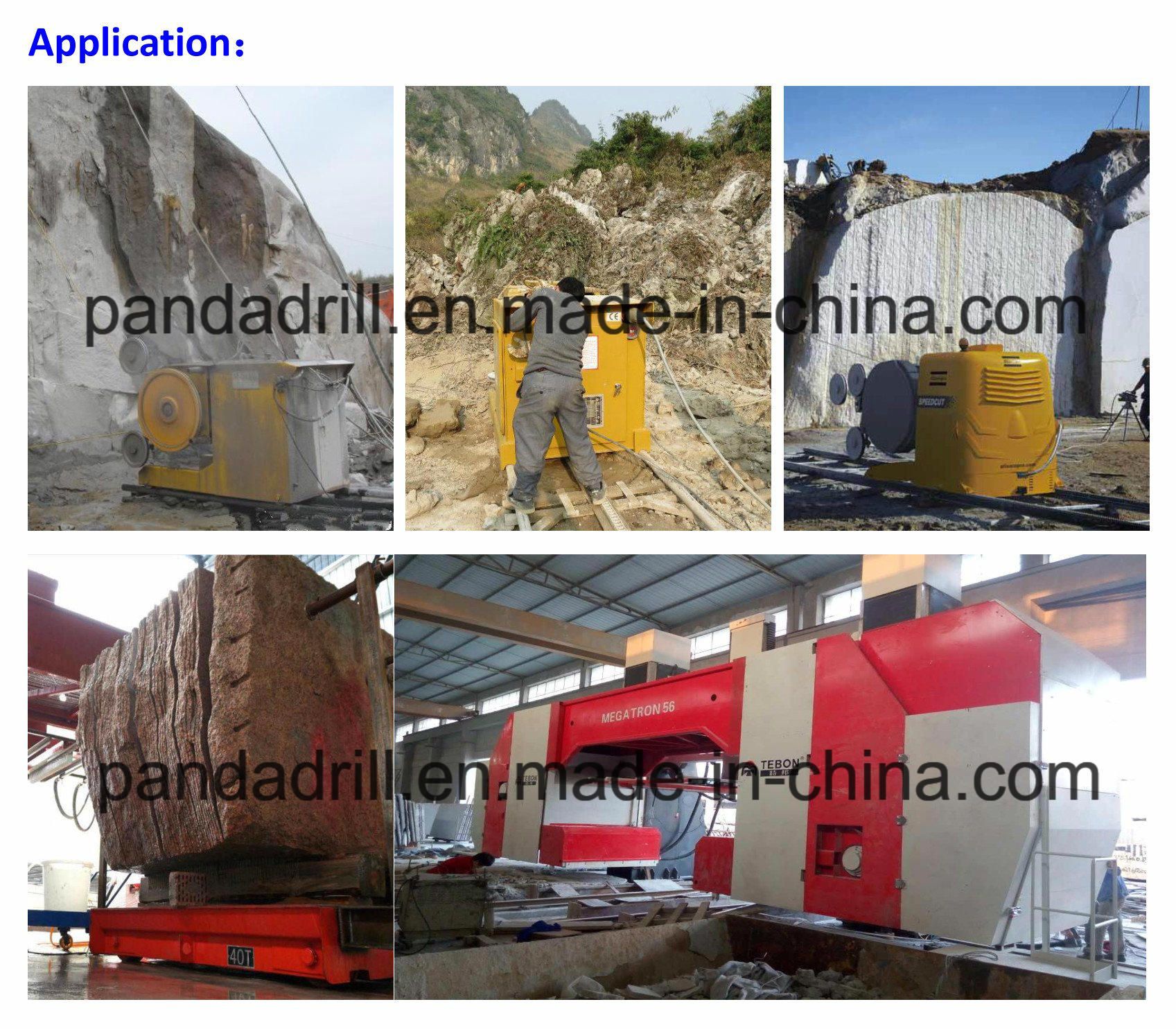

Use: Quarrying, Block Squaring, Profiling, Concrete
Transfer: Air/Sea/Express
Color: Request
Power Type: Air Compressor
Product Name: Diamond Saw Blade

Product Description

Product Description:

PANDAWIRE for stone cutting: Diamond Multi Wire is a newest diamond wire materials used by granite multi wire saw machine to saw granite slabs to replace traditional granite gang saw.

Diamond Multi Wire is suitable for all kinds of granite slab cutting with following specialties:

High cutting efficiency, 10-15 times than granite gang saw machine,

Smooth cutting surface, get the even and smooth slab,

Always involve low power consume and less raw material waste,

Low noise and friendly surroundings,

Easy manipulation and with high yield, low cost, safety and environmental protection etc.



Technical Features:

Suitable for multi wire saw with 5 to 60 wires as a group.

Injecting endless diamond wire is applied to lower wire broken off.

Strong cable with very little distortion effectively reduces mutual interference between the closed loop wire when cutting.

Wire pre-sharpened by machine to ensure easy starting on all kind of granite.

Used to the end of its life without the need for re-coating on it.

Perfect to match with SIMEC, Universo, Gaspari, Pellegrini and Bidese(Breton) multi wire saw machines.

Specification:
Item NO.Bead Diameter (mm)Beads/MeterApplicationCoating
PA18φ7.237Granite SlabsHigh Strength Plastic
PA20φ6.237High Strength Plastic

Parameters:
ApplicationWire Speed(m/s)Cutting Speed(m2/h)Life(m2/h)
Soft Granite28-320.7-1.3 (Pcs No.)6-13
Medium Hard Granite28-320.5-1.0 (Pcs No.)4-8
Hard Granite25-30 (Pcs No.)2-6

Bead Specification:
Bead Diameter(mm)Working Layer Height(mm)Support length(mm)Bead Type
φ7.2H6.5,H7.010.5Sintered
φ6.2H6.5,H7.010Sintered


Other specifications are available according to customer's requirements.

PANDAWIRE Diamond Multi Wire: Modern gang saw can produce 3000 to 4000 square meters of 2 cm thickness slabs, PANDAWIRE Diamond Multi Wire can produce 5000 to 6000 square meters of slabs cut at any thickness between 1 to 5 cm.

PANDAWIRE Diamond Multi Wire most common specs:

1. φ7.3mm Beads, 24.5 LM Diamond Wire, 36 Beads per LM for Granite Multi Wire Saw Machine;

2. φ7.5mm Beads, 17.5 LM Diamond Wire, 37 Beads per LM for SIMEC Granite Multi Wire Saw Machine.



FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?



A: Sure, welcome, here is our address: Yantai, Shandong.


CONTACT:



Pandadrill, founded on 2008 year, is a specialized manufacturers and supplier of Rock Drilling Tools, Stone and demolition tools and consumables for quarrying, mining and construction with 10 years experiences.

We produces high quality rock drilling products by using high quality raw material, utilizing advanced craft technology and imposing strict quality inspection. The products made by Pandadrill are being adopted by various users from all over China and exported to more than 50 countries including America, France, Australia, Canada, Brazil, South Africa, Malaysian, South Korea and other countries. All of our products are highly-reputed by our customers.

Pandadrill tools always committed to provide low cost Rock Drills, stone tools, rock drilling tools, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.

"Continues to provide you with better products", which keep business purposes, we still make constant efforts to adhere to yesterday's achievements as a starting point, whole-heartedly to create first-class products and good services for all customers, in order to create the endless space and wealth for all customers. We believe in Fair Quality, Fair Price, Fair Trading, we are aim to provided quality, convenient, quick service to customer and have gained good reputation in the market.

We are confident for our products and technology and we are always improving our product quality and service to satisfy our clients' various requirement.

Main products:

SMALL HOLE DRILLING TOOLS

TOP HAMMER DRILLING TOOLS

HAND HELD DRILLING MACHINE

DTH TOOLS

ROTRAY DRILL TOOLS

BREAKING TOOLS (STONE & CONSTRUCTION)

GRINDING TOOLS

STONE CUTTING TOOLS

MINING EQUIPMENT
