North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter(mm):
300 - 3500
Core Thickness(mm):
2.2/2.0 - 10.0mm
Cutting For:
Granite Marble Sandstone Limestone etc
Stone Shape:
Block, Square.
Performance:
Fast, Free, Smooth Cutting.
Catalogue:
Diamond Tools
Welding Tpye:
High Frequency
Quality:
95% of Italy Quality 30% of Italy Price
What It's Difference:
Difference Cutting Will Be Try out.
Company Website:
HTTP://Www.Sunnytools.Biz
Manufacturing Arts:
Welding
Usage:
Stone Cutting
Graininess:
Success Formula for Stone Concrete Cutting
Thickness:
Depend on Diameter
Kind:
Diamond Tools
Brand:
Sunny Tools
Saw Blade External Diameter:
1600mm, 1800mm, 2000mm, 2200mm, 2500mm, 3000mm
Specification:
105mm to 3500mm
Product Description
√ Over 20 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time

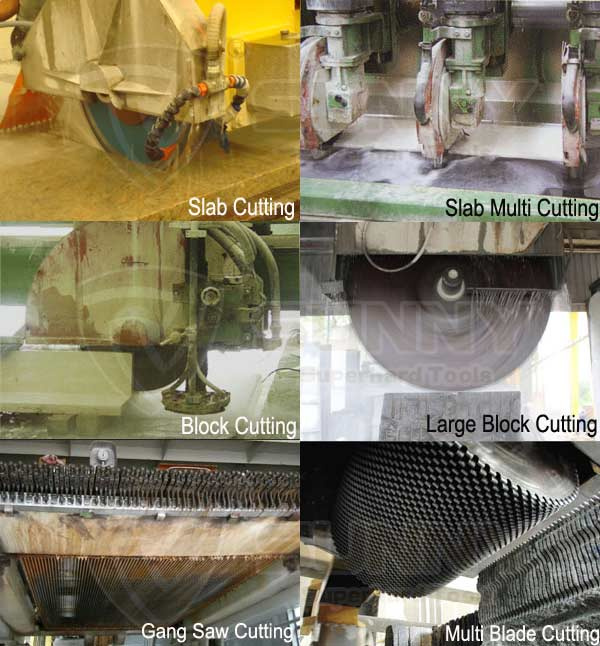

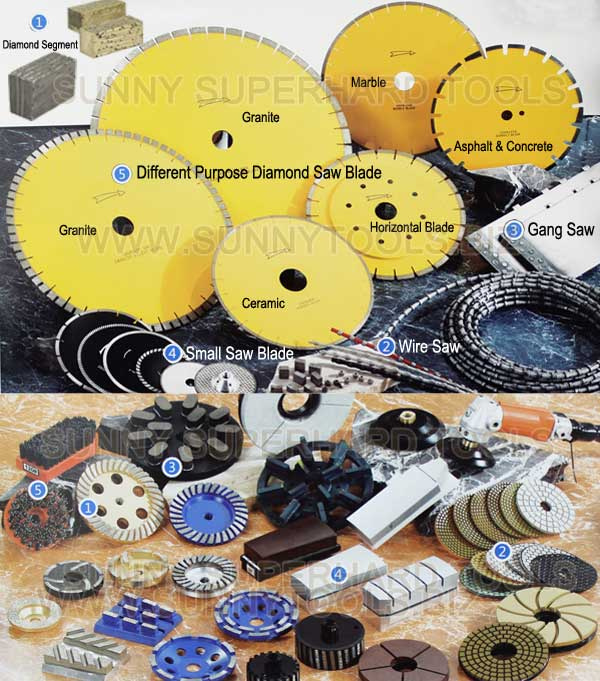

DESCRIPTION Diamond Tools and Diamond blade is widely used: 1. Diamond Tools for different size blade: 350mm-3500mm with different shape and structure. 2. Diamond Tools for various hardness stone cutting: granite, marble, sandstone, limestone, basalt, andesite quartz, construction material etc 3. Diamond Tools for different machine: multi blade cutter, gang saw blade,bridge cutting machine, single arm cutting machine, manual handing machine, able cutting machine etc.
FEATURE 1. Long life & smooth surface. 2. Fast & stable cutting. 3. Smooth cutting. 4. High cutting efficiency to save energy consumption.
Small diameter (300 – 800 mm) diamond circular saw blade segments for cutting
Diameter
Inch
Core Thickness
Segment Size
Segment Number
Silent/non silent
Weld Technology
mm
mm
mm
pcs
φ300
12"
2.2/2.0
40x3.0/2.8x8(10)(12)(15)
21
Silent/non silent
Laser/High Frequency
φ350
14"
2.2/2.4
40x3.0/3.2x8(10)(12)(15)(20)
24
Silent/non silent
Laser/High Frequency
φ400
16"
2.6/2.8
40x3.4/3.6/3.8x8(10)(12)(15)(20)
28
Silent/non silent
Laser/High Frequency
φ450
18"
2.8/3.0
40x4.0/4.2x8(10)(12)(15)(20)
32
Silent/non silent
Laser/High Frequency
φ500
20"
2.8/3.0
40x4.0/4.2x8(10)(12)(15)(20)
36
Silent/non silent
Laser/High Frequency
φ600
24"
3.6
40x4.6x8(10)(12)(15)(20)
42
Silent/non silent
Laser/High Frequency
φ700
28"
4
40x5.2x8(10)(12)(15)(20)
42
Silent/non silent
Laser/High Frequency
φ800
32"
4.5
40x6.0x8(10)(12)(15)(20)
46/57
Silent/non silent
Laser/High Frequency
Big diameter (900 – 3500 mm) diamond circular saw blade segments for cutting
Diameter
Inch
Core Thickness
Segment Size
Segment Number
Silent/non silent
Weld Technology
mm
mm
mm
pcs
φ900
36"
5
24x6.6/6.0x10(12) (15)(20)
64
Non
High Frequency
φ1000
40"
5.5
24x7.0/6.4x10(12) (15)(20)
70
Non
High Frequency
φ1200
48"
6
24x8.0/7.4x10(12) (15)(20)
80
Non
High Frequency
φ1300
50"
6.5
24x8.4/7.8x10(12) (15)(20)
88
Non
High Frequency
φ1600
64"
7.2
24x9.0/8.4x10(12) (15)(20)
108
Non
High Frequency
φ1800
72"
8
24x9.8/9.2x10(12) (15)(20)
120
Non
High Frequency
φ2000
80"
8
24x10.5/9.5x10(12)(15)(20)
128
Non
High Frequency
φ2200
88"
9
24x11.5/10.5x(15)(20)
132
Non
High Frequency
φ2500
110"
9
24x12.5/11.5x(15)(20)
140
Non
High Frequency
φ3000
120"
10
24x13.5/12.5x(15)(20)
160
Non
High Frequency
φ3500
140"
10
24x14.5/13.5x15 (20)
180
Non
High Frequency
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
