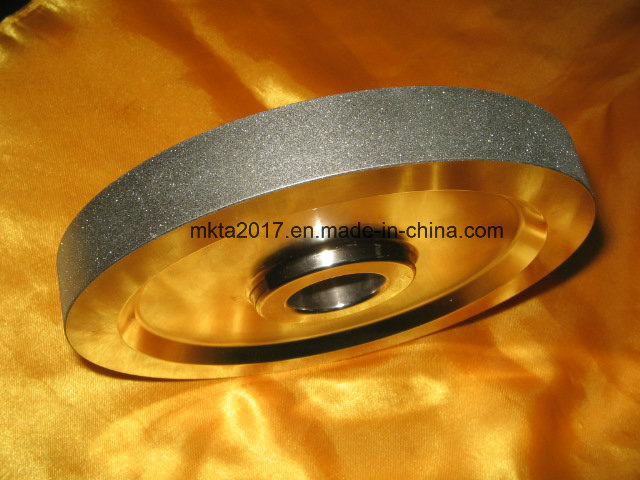

Diamond Tools Diamond and CBN Grinding Wheel

Diamond Tools Diamond and CBN Grinding Wheel
Price: US $ 1.99-19.99/Piece
Min Order: 5/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 002
Application: Edge Grinding, Chamferring, Forming, Polishing
Type & Code: 1A1 1A1r 1V1 9A1 11A2 12A2 6A2
Remarks: Mark Basic Dimensions and Grit Size
OEM: Any Remark on Client Named
Industries: Glass, Optic Lens, Prisms, Magnets, Gemstones

Product Description




Optical imaging lenses have high demanding of tolerance machining accuracy and surface finish.

The machining tools are always our competitive products. We maintain a complete set of soluation for grinding, cutting and amchining of optical imaging lenses and capable of providing a complete set of tools from baiting,cutting, milling, grinding, thickness reducing, rolling,rounding and products as, core whetstones, folding whetstones, edge grinding wheels, ultra-thin metal bond cut-off wheels, super thin resin bond cut-off wheels, blades, fine abrasives pellets and so on.


Diameter:120mm 160mm 200mm 250mm 300mm 400mm
ODM
OEM available






Abrasives: diamond or CBN
Bonding: electroplated, resin bond and metal bond

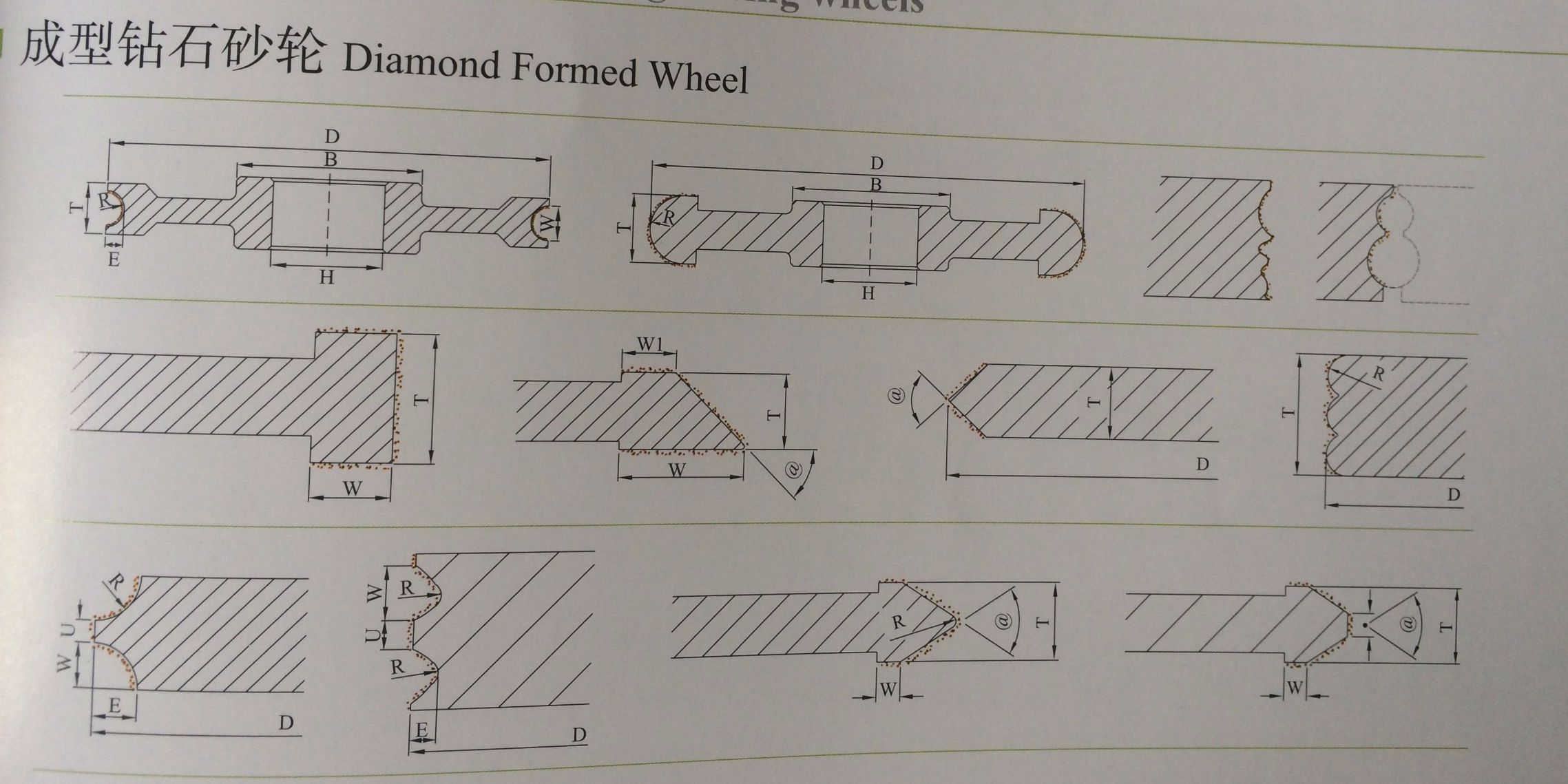

Shape: 1A1 1A1R 1V1 6A2 9A3 11A2 12A2 11V9
Grit size: 80# 120# 150# 200# 240# 280# 320# 350# 380# 400# 450# 500# 600# 800# 1000#
Hole:12.7mm 20mm 25.4mm 30mm 31.75mm 60mm
Thickness:8mm-40mm common standard or with radius, angel as per drawing or demand
Remarks: dimension+grit size  also can put your own logo

application: optical glass,gemstones, semi-conductor, tugsten carbid,edge grinding,shape grinding on rough and fine step.

Advantages: high grinding or cutting speed, procise dimensions, made to customer order or special requirements

All type we can make against drawings, samples and new designations on client requirements.

Package: safe carton packing

LeadTime:8-15 work days

Sample testing support: on agreement we can provide sample for trail

Delivery: TNT DHL UPS FEDEX or by air, by shipping against total weight





HK MKTA Technology Co., Ltd. is a professional manufacturer of diamond and CBN tools, which factory named Shenzhen Mkta Abrasives Co., Ltd, located in Shenzhen.

Adhering to the successful development experience with nearly 10 years, with its high quality products, outstanding reputation, strong development capacity has grown one of diamond abrasive manufacturers and suppliers for China's most outstanding, and further established the in optical products the status of the leading supplier in this field.

Our main products are diamond tools. Diamond wheel in electroplated, metal bond, resin bond. Speically diamond tools for optical lens, gemstones, magents, tungsten carbide tools and so on. Our most advantaged products are superthin cutting or slitting blade with high precision, for cutting off or slitting such as tungsted carbide, crystal, gemanium, GaAs, GaAsP, glass and ceramics, the body used by high speed steel, tool steel, mold steel, bearing steel, and other carbon based matals.

With very competitive products and advanced technology to ensure the customers in the market competition is always in a leading position, our product range across the optical glass, craft glass, sapphire glass, hard alloy and woodworking tools, iron and steel, magnetic materials, ceramics, stone, etc. A variety of deep processing industry.

Often the key to success is a continuous technological innovation and global partners reliable support. We always pay attention to new products, new technology development, technology as the guide of philosophy, to ensure the core competitiveness of the products.

With own technical and experiences, now we can make diamond and CBN tools against customer requirements, drawings, sample and designation.

We are oriented to custom service and technology support, keeping development with clients. With the advantage of globalization, MKTA, is bound to be your successful partner.
