Diamond Drill Bit for Geotechnical Exploration

Diamond Drill Bit for Geotechnical Exploration
Price: US $ 90-280/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: T2-76, T2-86, T2-101, B101, B116, B131, T6-101
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Use: Underground Drilling

Product Description

Diamond Drill Bit for Geotechnical Exploration

Depending on the range of application as well as the cutting media on the core bits, Forsun makes six types of core bits:

---Impregnated Diamond Type

---Surface set Diamond Type

---Tungsten Carbide Type

---PDC Type

---PCD Type

---Electroplated Diamond Type

Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.

Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc..

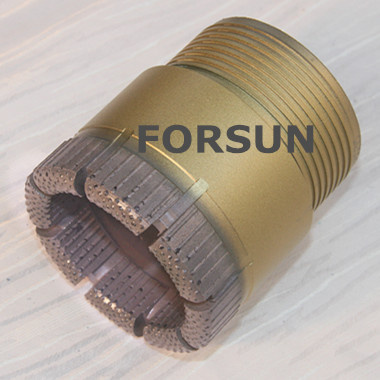

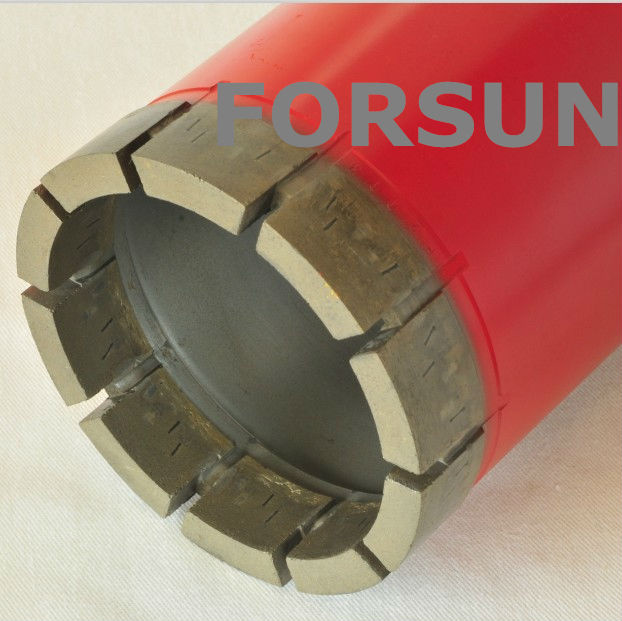

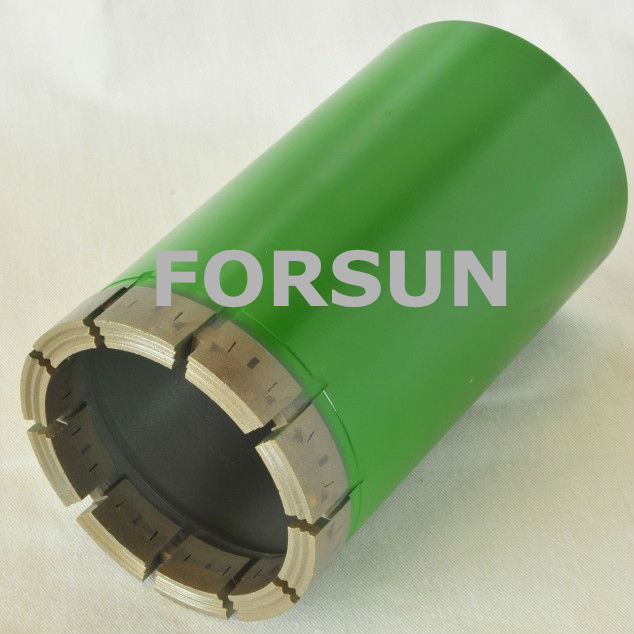

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.


Sizes Available
Wireline series
Geobor S,  AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series
T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series
TT 46, TT 56
T6 series
T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series
T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series
B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series
NMLC, HMLC, 3C, 4C, 6C, 8C
LTK series
LTK48, LTK60
WF series
HWF, PWF, SWF, UWF, ZWF
WT series
RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series
EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series
EWM, AWM, BWM, NWM, HWM
Other sizes
AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L
Chinese standard
56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard
59, 76, 93, 112, 132, 152 mm
Special sizes can also be made as per request.

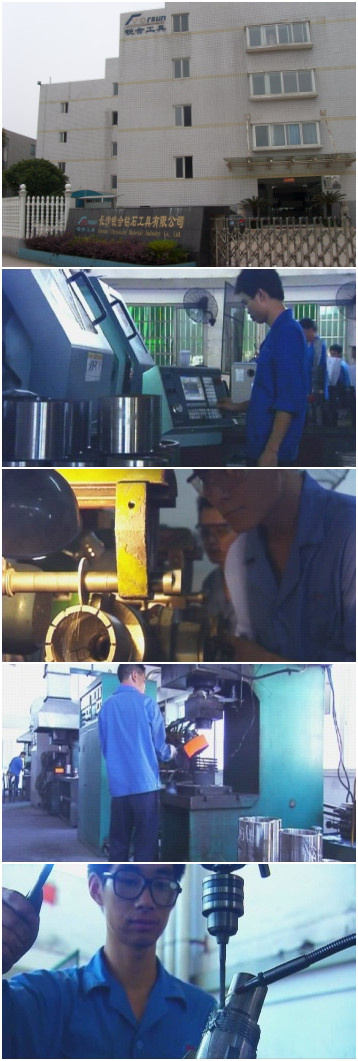

FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.

Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.

Sizes Available:

Diamond core drill bits and diamond non-core drill bits

A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48

B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW

N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW

H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short

S- Gauge Core Bits: SWF-Long, SWF-Short

U- Gauge Core Bits: UWF-Long, UWF-Short

Z- Gauge Core Bits: ZWF-Long, ZWF-Short

T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
