45 Degrees off Horizontal/90 Degrees Vertical Down
Mud Pump:
Bw-320 or as Per Request
Usage:
Water Well
Power Type:
Diesel
Type:
Core Drilling Rig
Condition:
New
Product Description

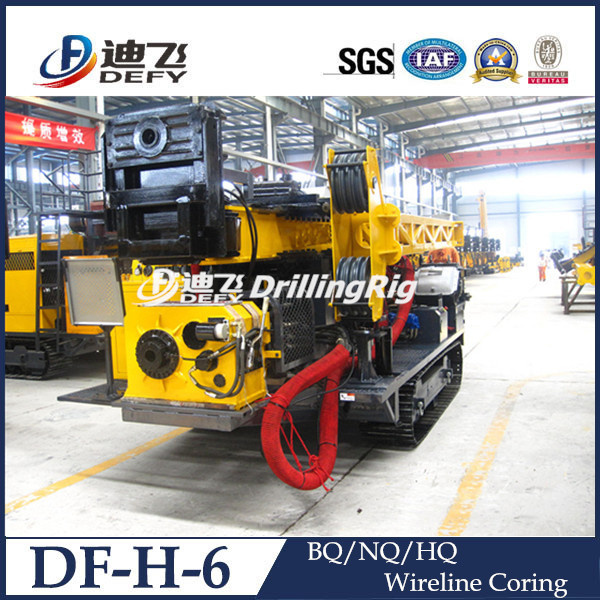

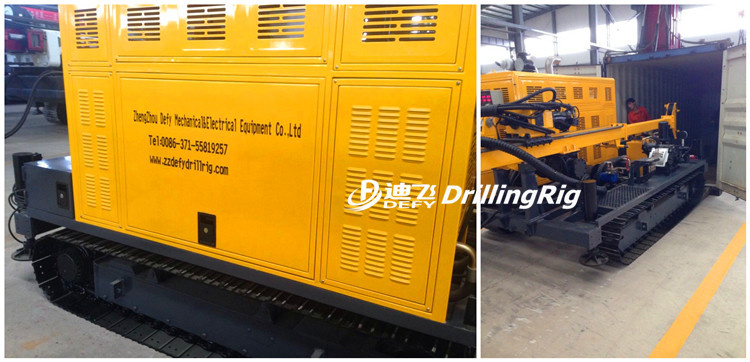

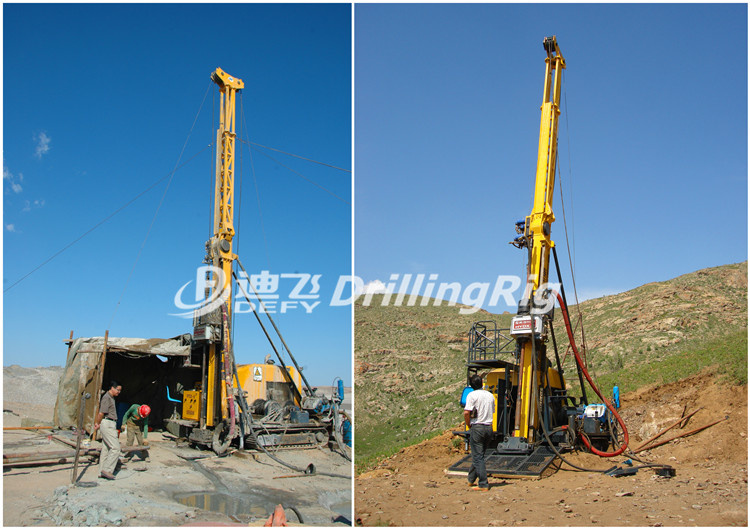

DF-H-6 Diamond Core Drill for 2000m Gold / Coal / Natural Gas Mining
I. Main Features 1. DF-H-6 diamond core drill is operated full hydraulic and adopts the technology of wire-line coring. 2. Widely used for exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries. 3. Driven by strong diesel engine, power head driven by strong hydralic motor, with stepless rotation speed. 4. Humanized design, reasonable structure, environment friendly. 5. Drilling with angle for different project needs. 6. Adopts to international standard drilling tools, abide by BOARD LONG YEAR standards of BQ/NQ/HQ/PQ.
II. Technical Specification
Diesel Engine
Model
Cummins 6CTA (turbocharged;water cooled)
Displacement
8.3L
Power
178kW/240HP
Rated RPM(Factory setting)
2200rpm
Drilling Capacity
BQ
2000 m(6560 feet)
NQ
1600 m(5248 feet)
HQ
1300 m(4264 feet)
PQ
1000 m(3280 feet)
Drill Head
Rotation Motor
Double Hydraulic Motor -variable and Reversible Maker: SAUER-DANFOSS
RPM
Two Shifts/ Stepless Change 0-1100 RPM
Ratios
1st 8.776:1 2nd 2.716:1
Head Opener
sidewise sliding way with hydraulic drive
Hydraulic Chuck(PQ)
Hydraulically opened, Disc Spring Clamping, Axial Holding Capacity of 222400 N
Max. Torque
6400 N·m
Hold Diameter
121 mm(4.76 inch)
Max. Lifting capacity of Spindle
220 kN
Max. Feeding Power
110 kN
Capacity of MainHoist
Hoisting Speed (single wire)
38-70m/min(bare drum)
Hoisting force (single wire)
120kN
Steel Wire Diameter
22 mm(0.86 inch)
Steel Wire Length
50 m(164 feet)
Capacity of Wireline Hoist
Hoisting Force (single wire)
15 kN (bare drum)
Steel Wire Diameter
6 mm(0.24 inch)
Steel Wire Length
2000 m(6560 feet)
Others
Weight
14500 Kg
Transport Dimensions (L × W ×H )
5900×2240×2500mm (232.3×88.1×98.4 inch)
Transport Way
Steel Crawler
III. DF-H Series for your option:
Model
Drilling capability
Spindle speed
Chassis
BQ
NQ
HQ
DF-H-2
350
230
120
0~900 rpm
Crawler Or truck
DF-H-4
1000
700
500
0~1100 rpm
Crawler Or truck
DF-H-5
1500
1300
1000
0~1145 rpm
Crawler Or truck
DF-H-5W
1500
1300
1000
0~1145 rpm
Trailer
DF-H-6
2000
1600
1300
0~1100 rpm
Crawler Or truck
DF-H-8
3200
2400
1700
0~1250 rpm
Crawler Or truck

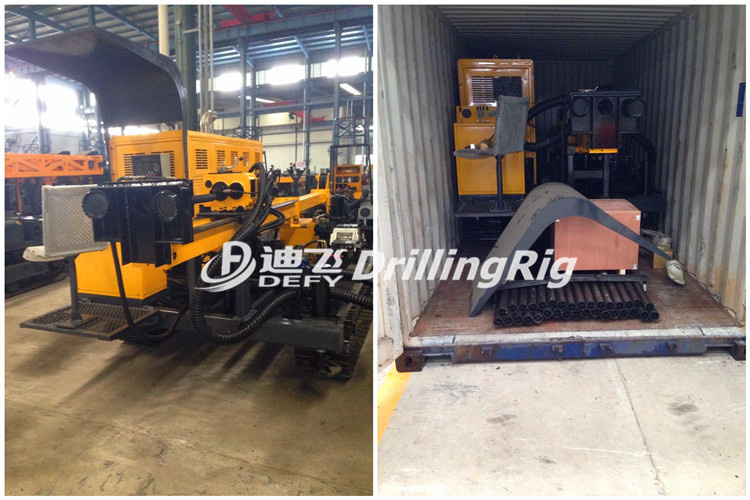

*What We Offer: 1. Free tranning in factory; Overseas technic support; 2. One year quality warranty; 3. Delivery time usually within 15 days; 4. Detailed operation manual or DVD to guide operation; 5. Accessories for replacement at anytime; 6. Shipment from China to your country.
*Contact Us for Best Quotation: Sales Manager: Ms. Sophie Nie Tel.: 0086-15639080652 www.zzdefydrillrig.com
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.
Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.
Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
