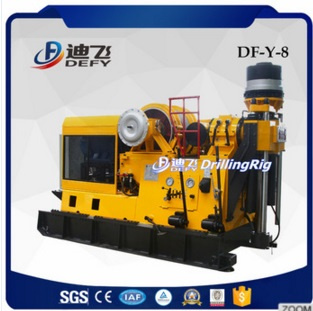

Df-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill

Df-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill
Price: US $ 35000-58000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: DF-Y-8
Voltage: 380V
Power(W): 134kw
Weight: 7900kg Without Power Unit
Warranty: 1 Year
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Max. Torque Of Spindle: 11498n.M
Max. Lifting Capacity Of Spindle: 310kn
Max. Pressuring Force Of Spindle: 145kn
Max. Hoisting Force(Single Rope): 135kn
Application: Water Well, Fundation and Mineral Exploration, Cor

Product Description

DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill
Rotary Core Drill
Portable Core Drill
Diamond Core Drill
Product Application
1.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machin is mainly used for engineering exploration, water well and foundation hole drilling
2.It is used in mineral exploration,groundwater exploration, shallow layer oil and natural gas exploration. and even hole for sap ventilation and sap drain etc. projects with diamond bit or tungsten-carbide tipped bit too.
3.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machine is very widely used in China, it has good performance in South-east Asia, Africa, European countries too.
Structure Features
1.The hydraulic chuck adopts one-way oil supply and equipped with hydraulic lock. The chuck is powerful and stable in clamping.
2.DF-Y-8 3000m Experienced Manufacturer Core Drilling Rig Machine is equipped with water brake, the rig is steady and secure in deep hole drilling.
3.Compact in structure and reasonable layout, and all exposed outside, non overlapped components, it is easier for maintenance and repair.
4.DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill is a kind of core drill rig for medium and deep hole drilling using diamond andcarbide-tipped bits, with mechanical transmission, spindle rotation, hydraulic feeding.

Technical Specifications
DF-Y-8 3000m Portable Hydraulic Diamond Rotary Core Drill

ModelDF-Y-8 Core drill
Drilling depth1000-3000m
Max. lifting capacity of Spindle310KN
Rotation angle of Spindle0-360°
Max. pressuring force of Spindle145KN
Max. Hoisting force(single rope)135KN
Positive Spindle speed63/120/175/220/292/333/364/611/811/1012rpm
Negative spindle speed59/164rpm
Max. Torque of spindle11498N.M
Spindle stroke1000mm
Spindle diameter118mm
Steel wire diameter21.5mm
Content of Winding Drum160m
Dimension(L*W*H)4105*1892*2803mm
Weight(without power unit)7900kg

Related Models of Core Drill Rig
ModelPowerDrilling CapacityDrilling Tools
DF-Y-9170KW/1500rpm2000-4000MBQ, NQ, HQ,PQ
DF-Y-9B170KW/1480rpm2000-4000mBQ, NQ, HQ, PQ
DF-Y-8B134KW/1800rpm1000-3000MBQ, NQ, HQ,PQ
DF-Y-6A84KW/1500rpm1000-2100MBQ, NQ, HQ,PQ
DF-Y-6B84KW/1500rpm1200-2400MBQ, NQ, HQ,PQ
DF-Y-4450KW/1500rpm100-1400mBQ, NQ, HQ,PQ
DF-Y-4242KW/1500rpm100-1100mBQ, NQ, HQ,PQ
DF-Y-431KW/1500rpm700-1000mBQ, NQ, HQ,PQ
DF-Y-231KW/1500rpm300-500MBQ, NQ, HQ,PQ

Company Details
Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience
Our Factory

Related Accessories for Core Drill Rig
Hydraulic System
Diesel Engine
Drilling Tools

Core Drill Working Site

Certificates
Our Service
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. Free training how to use the machine in our factory.
* Performance testing support. Engineers available to service machinery overseas
* View our Factory

Key Points To Buy
In order to order the suitable product,firstly you need to make sure the following details:
application→drilling depth→drilling caliber→stratum

The final right to interpret the drilling rig product is owned by DEFY company!!
Please donot hesitate to contact us if this model is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
Mia Zhang
Mobile: +86-15238355712

:+86-15238355712
Web: www.zzdefy.com.cn;www.zzdefydrillrig.com

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. locates in High-tech zone of Zhengzhou City, China. Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience of production and development makes our product quality rank in the leading position at home and abroad. We are always seeking for ever greater perfection, keeping improving the production technology, offering better user experience.

Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advices whenever you need.

Benefiting from the excellent performance of our drilling rigs, as well as our professional service, we have established friendly business relations with clients all over the world. Our products are serving for projects in Africa, South America, United States, Asia and so on. We cordially look forward to cooperating with you, let's work together to realize win-win result!
