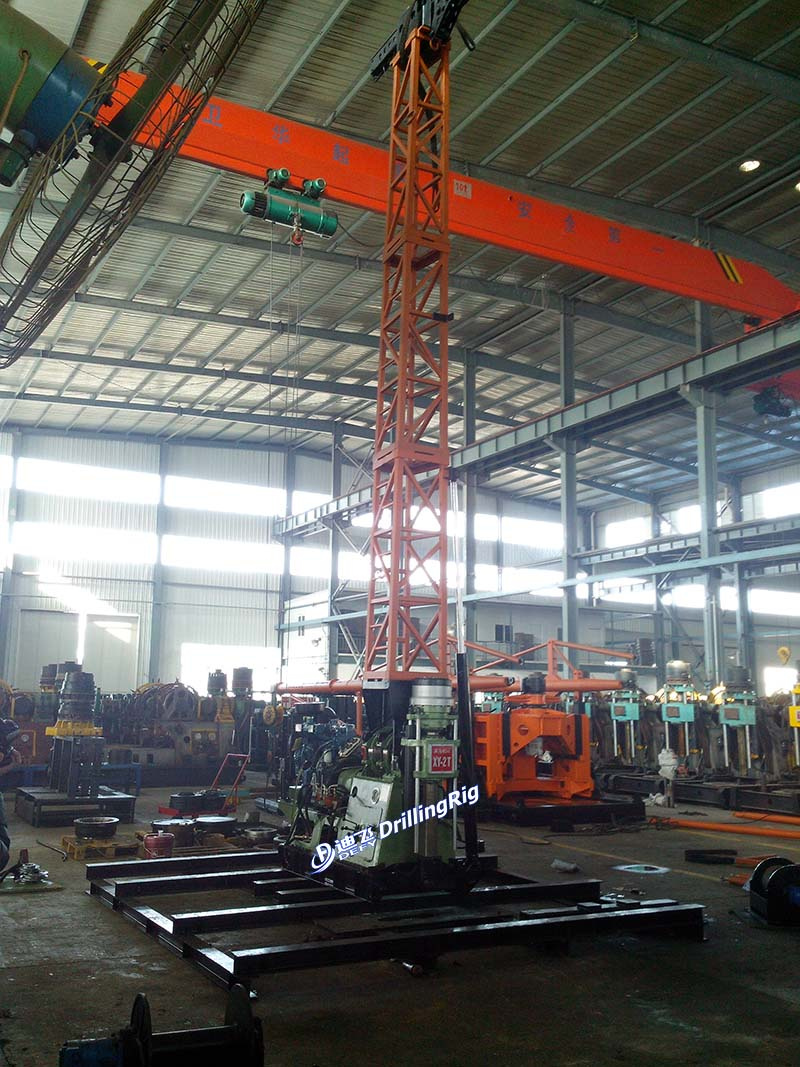

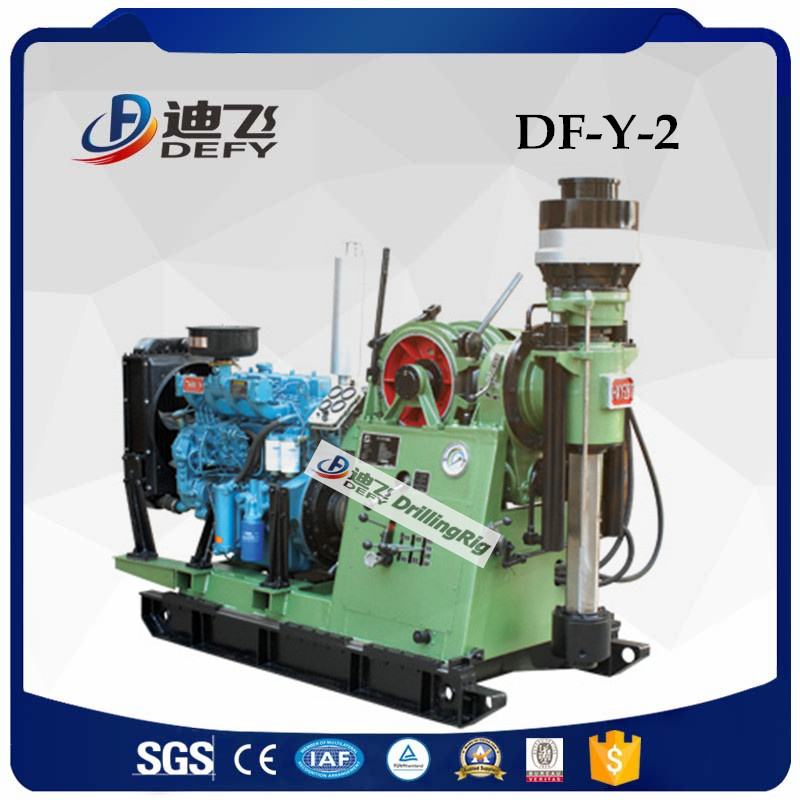

Introduction: The DF-Y-2T core sample drilling rig, integrated rig with tower into one unit, consists of DF-Y-2 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.The tower body of DF-Y-2T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°. Specification:
Drilling depth
100~500m
Rotation angle of spindle
0~360°
Spindle Speed
Positive
92;152;230;330;293;485;734;1056 rpm
Negative
81;258 rpm
Max. Rotary torque of spindle
3.1 KN·m
Spindle stroke
560mm
Diameter of Spindle
96 mm
Power
ZH4100G43 Diesel engine 31 KW/1500rpm
Y180L-4 Electric motor 22 KW/1470rpm
Max. Lifting capacity of spindle
60KN
Max. Pressuring force of spindle
45KN
Content of Winding Drum
45m
Steel wire rope diameter
14mm
Max. Hoisting force
30KN
Specification of the Mast
Drill mast Height
8000mm
Area of the base
3600*2100mm
Number of Pulley
2 pcs
Max. Load of Mast
75KN
Load of Movable Work Platform
70 kg
Adjustable Angles of Mast
45°~90°

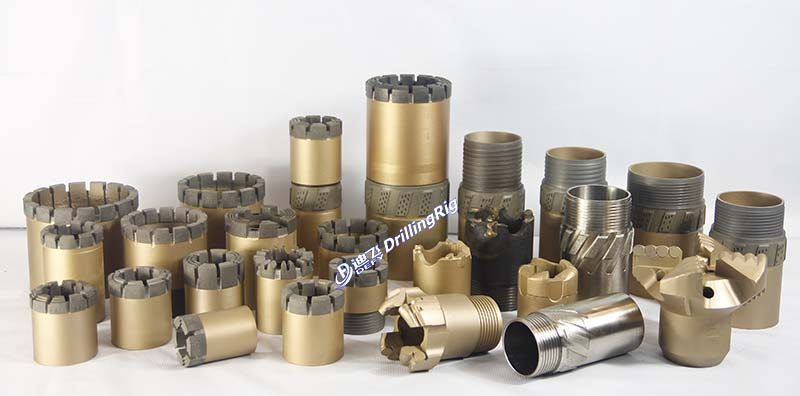

Rock Drill Tools:
