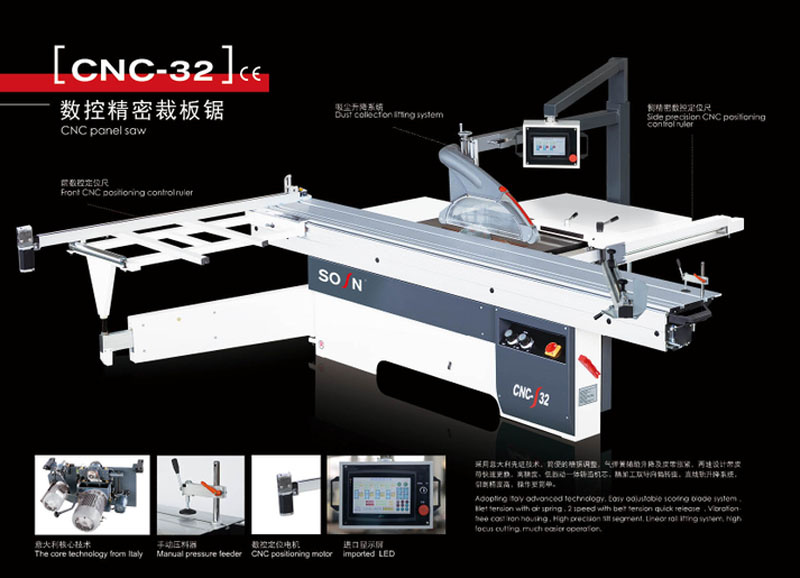

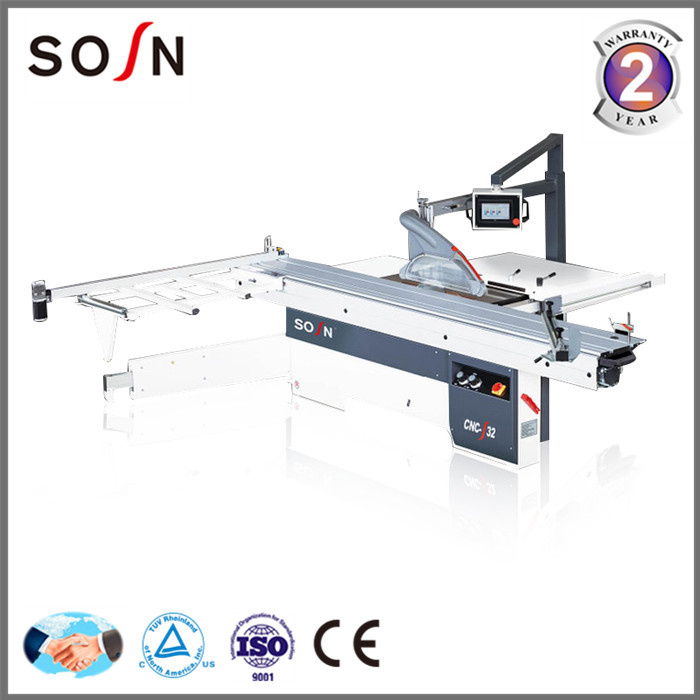

CNC-32TA digital control panel saw (with stepper motor)
Dimension of sliding table
3200x400mm
Gross cut capacity
3200mm
Width of cut between saw blade and rip fence
1250mm
Saw blade diameter
350mm(250-400mm)
Height of cut (300mm)
90mm
Height of cut with saw blade 300mm at 45°
70mm
Speed of main saw spindle
4500/6000rpm
Main spindle diameter
30mm
Tilting saw blade
0-45°
Main motor
5.5kw
Scoring saw blade diameter
120mm
Speed of scoring saw blade
7000-8000rpm
Scoring saw diameter
20mm
Scoring motor
1.1kw
Gross weight
900kg
Overall dimension
3300x3150x900mm

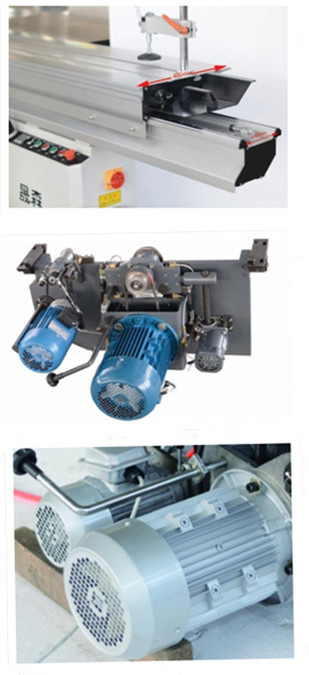

Altendorf sliding table, 400mm width, inner side between rail guide is 145mm, wider, stable, precise working.
Linear guide inner structure More stable and precision
1.5.5kw +1.1kw big power motor, 2.National standard, 3.Cooper wire, 4.Aluminum shells,(radiating faster, not easy to burn out the motor, so this motor's life is much longer than common), 5.Maximum motor power transfer from the Poly-V belt .

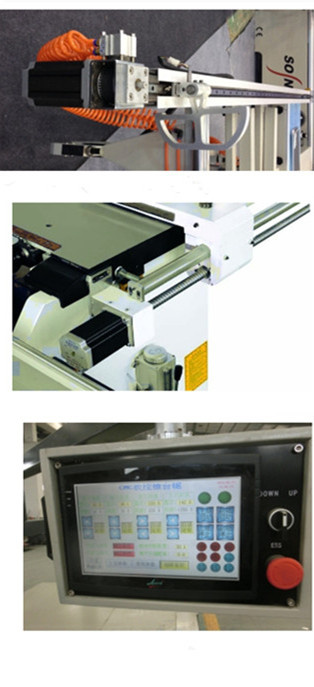

CNC positioning for big ruler
CNC positioning for rip fence
Full CNC control
with imported LED board
Sosn advantages 1.professional manufacture with more than 20 years production experience in woodworking machines.

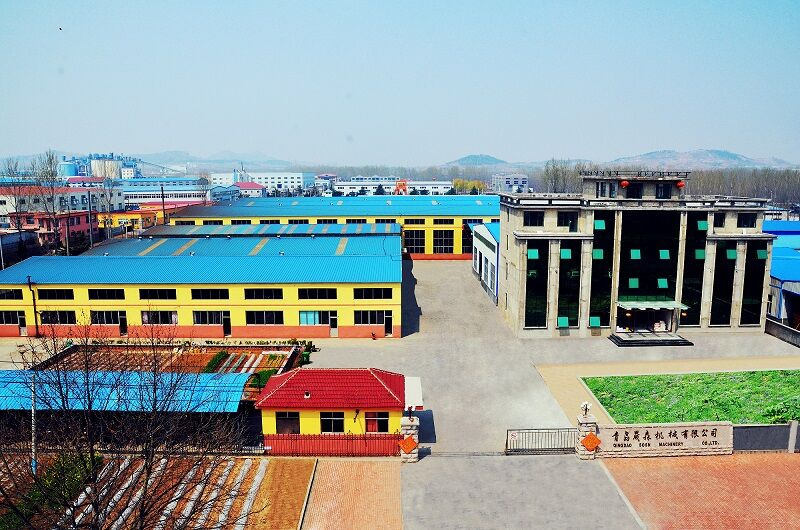

2.11,000 square meter workshop,first class skilled workers,near qingdao port,
5.professional after-sale service available,email and calling is available in 24 hours.
6.more than 70 countries customers have enjoyed SOSN machines.
sosn history SOSN Woodworking Machine is focus on design and manufacture of professional woodworking machines over 30 years. The Main products of SOSN Woodworking Machine are precision panel saw, edge banding machine, drilling machine and CNC router. We have mare than 70 sales agents in China domestic market, and 21 sales agents in 12 foreign countries of oversea market. Our customers and agents are from Southeast Asia, The Middle East, America, Europe, and so on. Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality product to customer on time. In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran technical Engineers, we design and manufacture new electronic panel saw and edge banding machine. SOSN Woodworking Machine are always researching and manufacturing professional and economical woodworking machines to our customers.

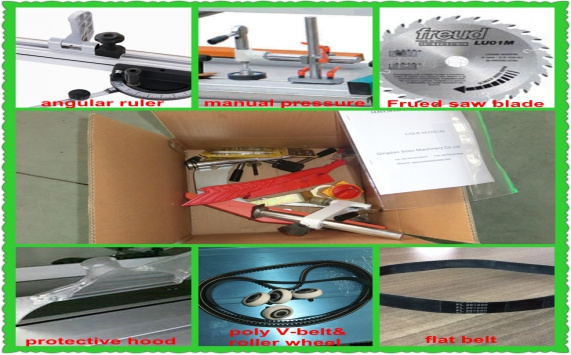

Spare parts of panel saw
Features: 1. Apply to processing all kinds of density boards, shaving boards, wood- based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness. 2. Movable table guide track is plating chromium steel bars structure, exact and durable. 3. With oxidation treatment, movable table surface is beautiful and hardwearing. 4. Made of high-strength extruded aluminum alloy, movable table is high in strength and would not bend.
Should you have any need of the machine , please feel free to contact with us
Qingdao SOSN Machinery Co., Ltd., Is the science and technology knowledge-intensive enterprises which is specialized in the production of woodworking machinery equipment and gathers the research, development, production, sales and service together. The leading products of woodworking products are CNC router, panel saw series, sanding machine series, woodworking drill platoon, vacuum laminating machine, edge banding machine, computer engraving machine and the other seven series and over sixty standards.
SOSN company pursues the tenet of taking honesty as base, quality as life, innovation as subject, and development as theme; Abides by the quality promise to customers; Pays attention to personnel training and introduction; Closely connects and cooperates with scientific research institute; Owns strong technical strength and perfect testing measures; Gathers the advanced technological superiority and precise production equipments together; Has a number of technical staffs who are specialized in the production of woodworking machinery and have deep comprehend and experiences about woodworking machinery, panel saw and the other products. All of these guarantee the high quality and capability of woodworking machinery.
We develops the new products continuously which are sold across the country and to Russia, Ukraine, Middle-East, South Africa, Southeast Asia, Central Europe and the other countries and areas. We have earned the trust of customers and our product process is in the leading level among the same industry of domestic.
SOSN main product,
CNC Router
Panel saw/sliding table saw(manual, electric, digital, CNC, more than 30 kinds)
Edge banding machine: Manual, semi-automatic, full automatic
Boring/Drilling machine
Belt sanding machine
Dust collectors
Solid wood processing machine: Thicknesser and planer, mortiser, band saw, etc
For our every set machine, we have QC to test before sending to our customers, They are experts in the field of woodworking machinery. Because of this, we can keep the quality good and stable for our customers.
High quality, competitive price, good service and regular supply is always we can promise to our every customer, SOSN woodworking machinery is your best choice!
You are warmly welcome to join us in this business line to have a Win-win situation!
