-10~75 Degree C(+14~167 Degree F),Normal; -10~90 D
Insulation Resistance:
10m Ohm Between Lead Wire and Frame(DC 500V)
Electric Strength:
5mA Max at 1500VAC for 1 Min Between Lead Wire and
Blade Material:
Plastic
Electric Current Type:
AC
Mounting:
Free Standing
Certification:
CE
Product Description
Product Description

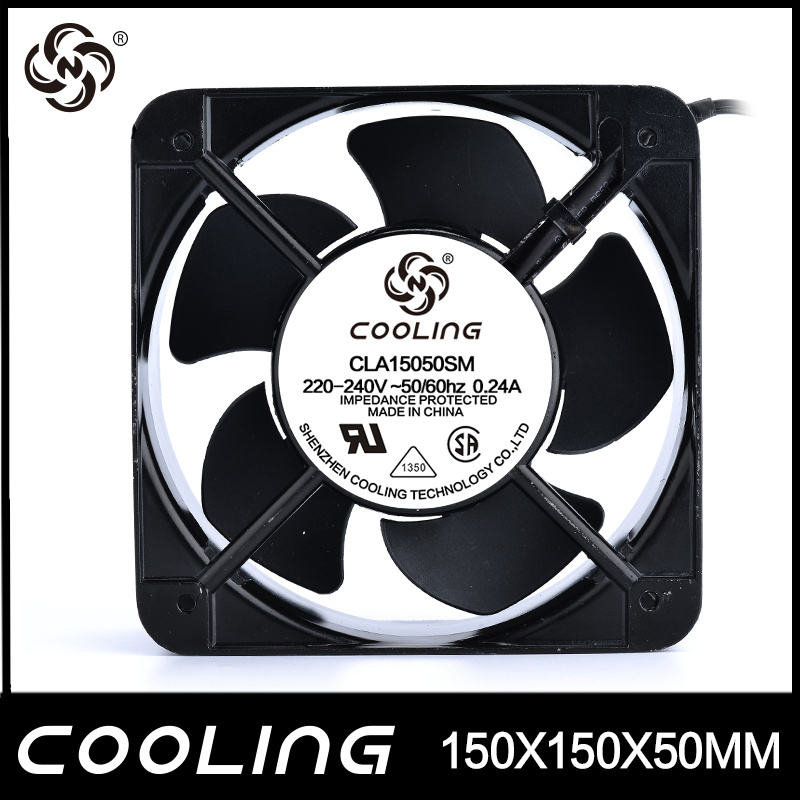

Model No : CLA15051
SIZE :150×150×51mm
CONSTRUCTION :
1.Die-cast aluminum housing 2.Glass fiber reinforced plastic impeller,UL 94V-0 rating 3.High-temperature copper line 4.Insulation Impedance: 500MΩ 5.Resist strength: 2500V/S 6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing
-30ºCto + 75ºC
Sleeve Bearing
-10ºCto + 70ºC
WEIGHT :0.9Kg
PACKAGE :20pcs/carton
Specification:
Model No.
Bearing
Voltage (V)
Frequency (Hz)
Current (A)
Input Power (W)
Speed (RPM)
Air Flow
Static Pressure (mmH2O)
Noise (dB)-A
(m3/min)
(CFM)
CL15051HA1
Ball
110/120
50/60
0.50/0.45
37/36
2600/3000
5.37/6.65
190/235
16.00/17.78
45/50
CL15051HA1
Sleeve
110/120
50/60
0.50/0.45
37/36
2600/3000
5.37/6.65
190/235
16.00/17.78
45/50
CL15051HA2
Ball
220/240
50/60
0.25/0.22
38/35
2600/3000
5.37/6.65
190/235
16.00/17.78
45/50
CL15051HA2
Sleeve
220/240
50/60
0.25/0.22
38/35
2600/3000
5.37/6.65
190/235
16.00/17.78
45/50
CL15051HA3
Ball
380
50
0.11
38
2600
5.37
190
16
45
CL15051HA3
Sleeve
380
50
0.11
38
2600
5.37
190
16
45

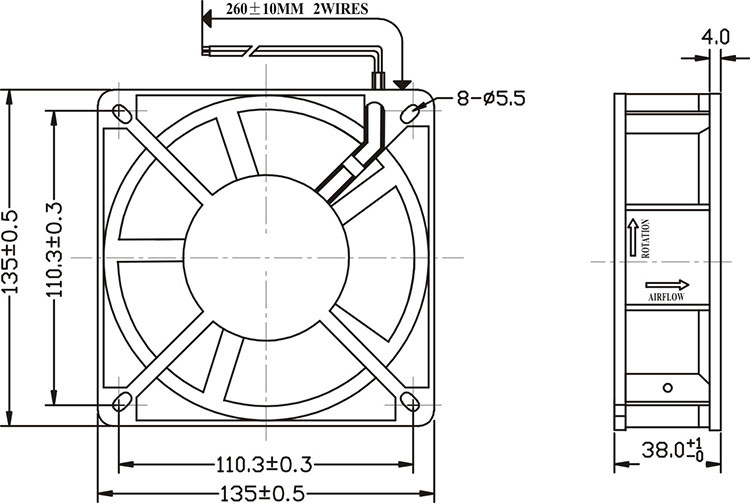

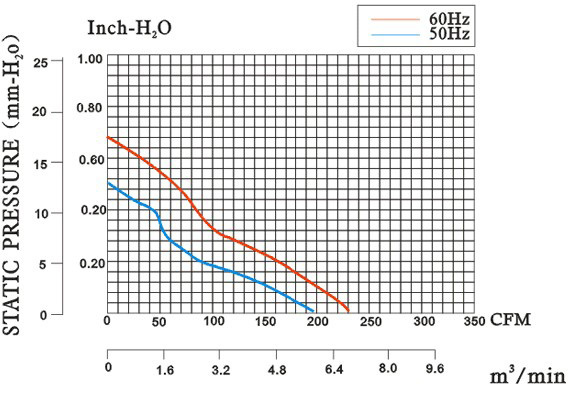

Product struction diagram: Air Flow and Static Pressure:
