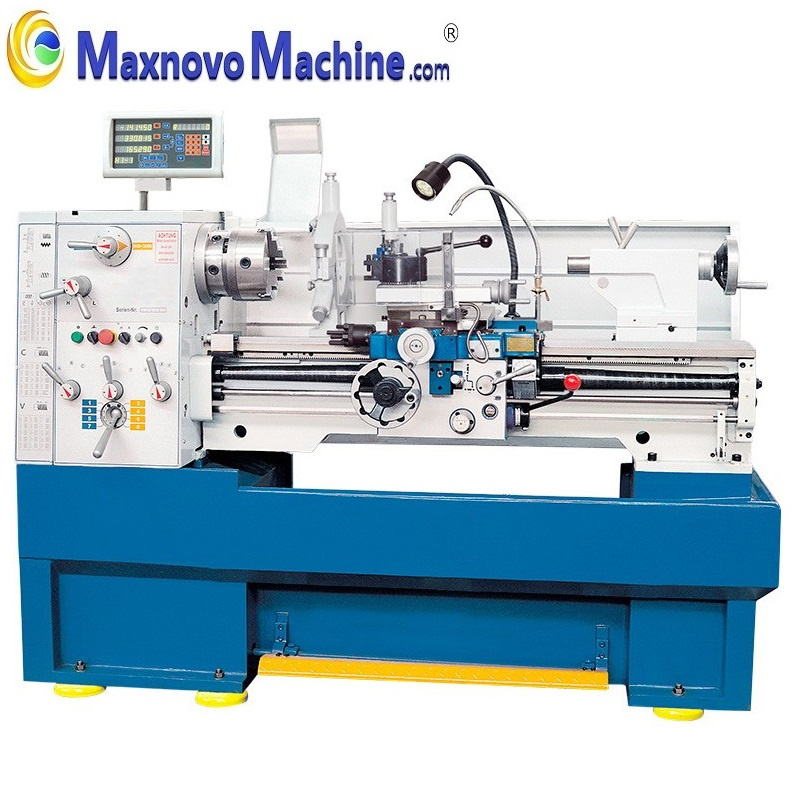

Conventional Metal Cutting Manual Lathe Machine (mm-D420X1500DPA)

Conventional Metal Cutting Manual Lathe Machine (mm-D420X1500DPA)
Price: US $ 0.1/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Prod Model: MM-D420X1500DPA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max Swing Over Bed: 410 mm
Distance Between Centers: 1500 mm
Display Type: Digital Position Indicator
Spindle Taper: Mt6
Tailstock Taper: Mt4
Spindle Bore: 52 mm
Main Motor: 3300W / 2200W
Spindle Speed: 48 to 1800 Rpm
Connecting Voltage: Three Phase 400V
Gross Weight: 1950 Kgs
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

Such kind of MM-D420X1500DPA is the 16" X 60" inch High Precision Universal Big Hole Lathe / Lathe Machine / Metal Lathe / Engine Lathe / Gap-bed Lathe Machine / Precision Lathe Machine / Industry Metal Bench Lathe with Digital Position Indicator .


Precise Centre Lathes. Advanced Technology, Complete Equipment, Easy-to-Operate. DPA Version with Digital Position Indicator.



It is a really fun project. I was talking to my gunsmith one day and he mentioned that he was frustrated with the lathe he had and that no one made a lathe specifically for gunsmithing. I asked him what kind of features he would like to see. He gave me a "laundry" list that included super high precision spindle bearings with high precision ground gears, a tailstock that was precisely tuned at the factory with a lock that could accommodate a torque wrench (the tailstock center can be torqued down to bring it to exact center with the spindle center), two coolant nozzles for chambering, a longer tailstock for precise barrel support, support screws for outboard part of the spindle, etc...To make a long story short, we have incorporated all those features to come up with the first lathe ever to be designed specifically for gunsmithing. Customers will be proud to have them.



16" X 60" inch High Precision Metal Centre Lathe With Digital Position Indicator--Advanced Technology, Complete Equipment, Rasy-To-Operate.




Main   Feature :
Convincing Arguments: Quality, Efficiency and Price   -Centre Width 1500 mm, Turning Diameter Over Lathe Bed Ø 410 mm, Spindle Bore Ø 52 mm-For reducing non-productive time, this machine can install 3-Axis Digital Position Indicator -Easy, smooth and precisely adjustable speed and feed settings-Hardened, polished gears and shafts, also in feed gear unit-Hardened and ground bed guide-ways -Spindle Seat Camlock DIN ISO 702-2 No. 6 -Adjustable scale of the threading gauge -Electrical system with high quality components -Foot brake - foot operate emergency stop device -Heavy ribbed machine bed and massive one-piece cast-iron frame provide solid basis for this machine -Wide, hardened and guide-ways ensure superior turning results and long life -State-of-the-art main spindle bearing with high-quality angular ball bearings-Guaranteed true running accuracy of the spindle nose of better than 0.015mm-Running in an oil bath, hardened and ground with 2 re-adjustable precision taper roller bearings -All metric thread pitch in range from 0.2 to 14mm/rev and all inch threads in range from 72 - 2 threads per inch without replacing change gears by means of gear levers adjustable on control panel -Right-handed / Left-handed rotation on the bed slide switchable via stem -Large, hardened, polished gears-Electro-mechanical foot brake reduces downtime significantly-Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)-The remove-able bridge allows machining of work-pieces with a big diameter-Coolant equipment with separate coolant tank separately with filling level display -and oil separator, Easy and compete draining and cleaning according to DIN-Central lubrication at the bed slide -Base frame and lathe bed made from one-piece mechanize casting -Inductive hardened, polished grey cast-iron machine bed-Centrally located, logical switches for feeds and threads with lead-screw and feed rod-Large spindle bearings and high-precision headstock ensure excellent concentricity -Halogen machine lamp with articulated arm -Acceptance certificate-Protective cover for lead screw (optional) -Connecting voltage Three Phase 400V -Certificate of Original (CO, FORM A, FORM E, FORM F)


Technical  Data :

Product  Name :High Precision Metal Centre Lathe Machine
Product  Item :MM-D420 X 1500 DPA
Machine  Data
Max Swing over Bed :Ø 410 mm
Distance between centers : 1500 mm
Turning Diameter over Cross Slide :Ø 255 mm
Turning Diameter in the Bed Bridge : Ø 580 mm
Length of Bed Bridge :260 mm
Centre  Height :205 mm
Bed  Width : 250 mm
Spindle
Spindle  Taper : MT 6
Spindle  Bore :  Ø 52 mm
Quadruple Tool Holder Height : Max. 20 X 20 mm
Spindle  Seat : Camlock DIN ISO702-2 No.6
Speed  Range
Spindle  Speed : 45-1800 RPM
Number of Steps : 16 Steps
Tailstock
Tailstock Taper : MT 4
Tailstock--Sleeve Diameter / Sleeve Travel : Ø 50 mm / 120 mm
Travels
Travel of Top slide : 140 mm
Travel of Cross slide : 230 mm
Feeds and Thread Pitches
Longitudinal feed in range of : 0.05-1.7 mm/rev   (17 feeds)
Transverse feed in range of : 0.025-0.85 mm/rev (17 feeds)
Pitch-Metric in range of : 0.2-14 mm / rev   (39 thread pitches)
Pitch-Inch in range of : 72-2 GPZ          (45 thread pitches)
Diametric Pitch in range of : 8-44 DP             (21 trapezoid thread)
Modular Threads in range of : 0.3-3.5 mm        (18 modular thread)
Electrical Connection
Main Motor :  3300W / 2200W
Connecting Voltage : Three Phase 400V
Gross  Weight :1950 KGS
Packing  Size :2525 X 915 X 1615 mm
Standard Accessory : Digital Position Indicator, 3-Jaw Chuck, 4-Jaw Chuck, Face Clamping Disc, Foot Brake, Steady Rest, Follow Rest, Machine Lamp, Coolant Equipment, Change Gear Kit, Tools and Box


As a professional OEM manufacturer, We have full sincerity to look for good distributor, wholesaler or agent in your country to enlarge business share together. Please visit our company website ( www.maxnovomachine.com) to send enquiry to us to get direct factory best competitive price immediately, it is only for you !


This high precision 16" x 60" inch metal engine lathe machine with MT6 spindle taper is an incredible value and perfect for small industry. Lead screw lathes with feed gear for demanding users. Vario type with infinitely variable speed control for brushless motor.


We are the OEM manufacturer vendor for very famous Germany Top Brand Machine Company for many years,  we also hope to support you together.



FAQ

1.Question : Are you a factory or trading company ?
Answer: We are an SGS recognized OEM/ODM manufacturer factory with export license. We have an outstanding and experienced team made up of "A" player who have a passion for doing something great to create more value for customers world-wide.


2. Question :  Why choose cooperate with us ?
Answer :  Right people, Right product, Right price ;
Company-wide customer awareness ;
Reliable Quality and All components from world leading suppliers ;
Cost-effective export infrastructure and total supply chain management ;


3. Question : Where is your factory located ?  How can I visit there ?
Answer: With an ISO90001 certified factory located in Yangzhou city , Jiangsu Province , P.R. China . It takes about 2 hours from SHANGHAI by train. It is very pleasure for clients to visit us.


4. Question :  Can you do OEM ?
Answer :  Yes, we have the ability to do OEM / ODM to meet clients' requirements.


5. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.



Since more than 20 years the machine manufacturer company of MAXNOVO MACHINE is always dealing with the development, design and production of metalworking machines, CNC machines and Cutting Machines. It is SGS on-site Audited Chinese Trustable OEM / ODM manufacturer, specialist designer, supplier, distributor and exporter of Lathe Machine, Milling Machine, Drilling Machine, Saw Machine, Cutting Machine, CNC Lathe, CNC Milling Machine, Vertical Drilling Machine, Radial Drilling Machine, Universal Milling Machine, Turret Milling Machine, Multi-function Machine, Rolling Machine and Machine Tools with ISO9001 certified manufacturing factory in Yangzhou City, Jiangsu Province, China.

The MAXNOVO MACHINE is the professional OEM Vendor for world famous Germany Machine companies for many years, so all customers could trust us and cooperate with us.

Quality at a Cost-efficient Price:

Are you looking for a functional metalworking machine or a CNC working machine offering comprehensive features at an economical price? Then you make the right choice by purchasing a MAXNOVO MACHINE metal working machine or a CNC working machine. Our machines are convincing by outstanding quality, accurate manufacturing and offer an "MAXNOVO MACHINE" in price and performance. The quality at a cost-efficient price is our aim for you in the long term.

Intensively Production:

MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China. There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine. We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.

Quality Assurance:

MAXNOVO MACHINE products are produced with high quality standards. The MAXNOVO MACHINE guarantee of quality, the well trained technical quality team is the first contact for adhering to quality on-site. They would do quality management incoming goods inspection and quality management outgoing goods inspection. All MAXNOVO MACHINE products are produced with high quality requirements.

Customer Support:

Customers may rightly expect that our specialists are able to use their full knowledge and experience to their utmost satisfaction. The professional customer consultants support the user and customers with technical information. Moreover, we are also optimizing the export infrastructure and improving the supply chain to make them the most cost-effective for you.

Technical Development:

The technical department has a well-established team of technically highly qualified specialists. Their well-founded expertise allows flexible and creative implementation of all requirements which are demanded for our products and service. The dynamic technical team of specialists comprises engineers, executives who had solid working experience in the field of offering one-stop complete solution for high precision machines.

Social Responsibility:

MAXNOVO MACHINE has a variety of commitments when it comes to culture, community, education and environment.

As a responsible manufacturer of metalworking machines and CNC working machines, we care about the working conditions and social welfare of our employees. We care about the quality and source of the material components. We care about how to make our machines still work well for you even after years of operation. We care about whether our machines have supported clients to increase their product sales and enhance brand image.

Welcome you to Visit our company website ( www.maxnovomachine.com ) to GET your current SPECIALS.
