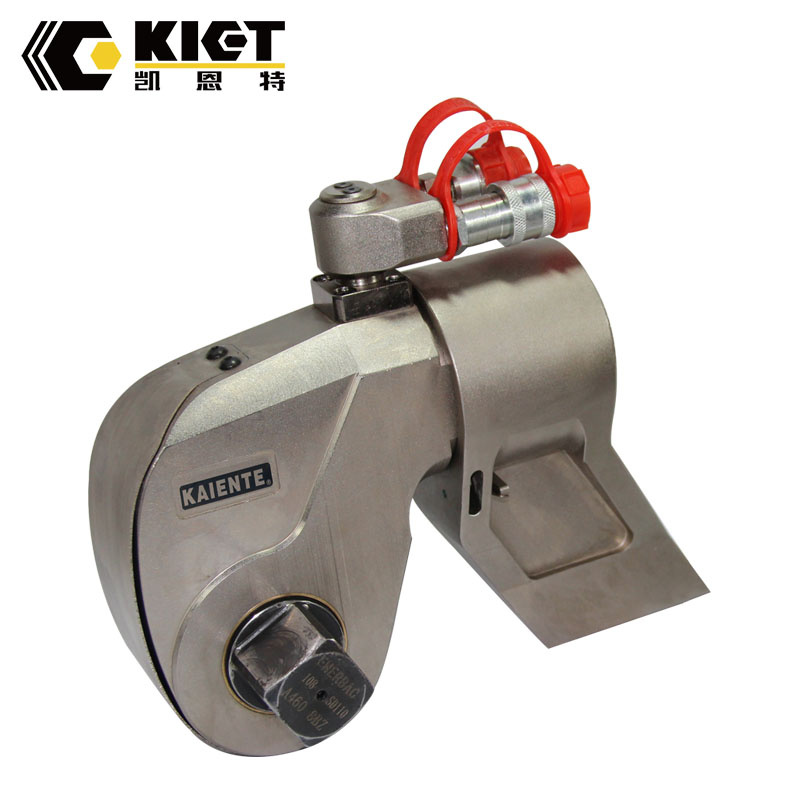

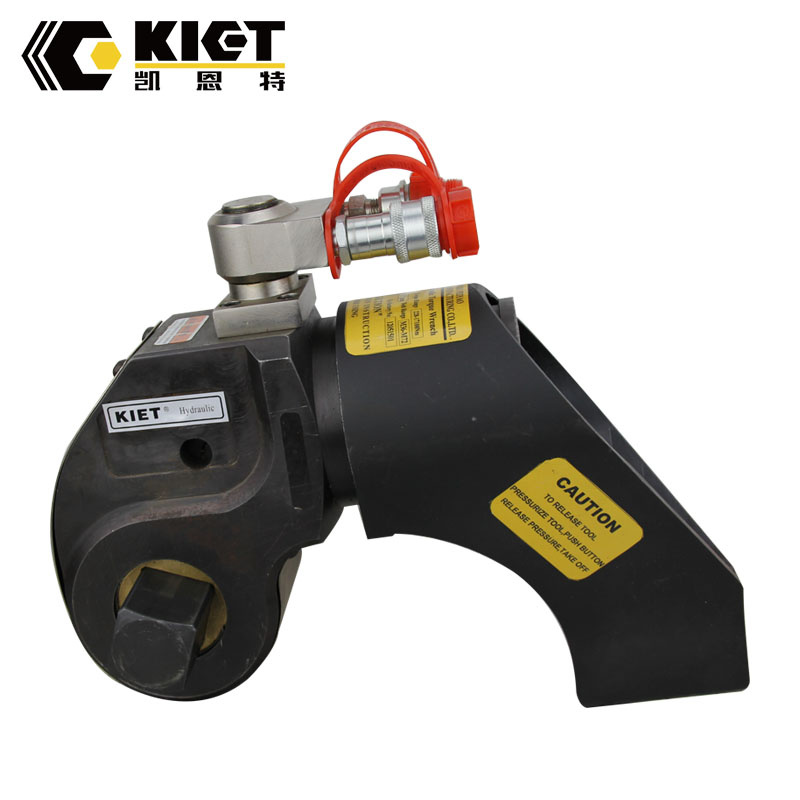

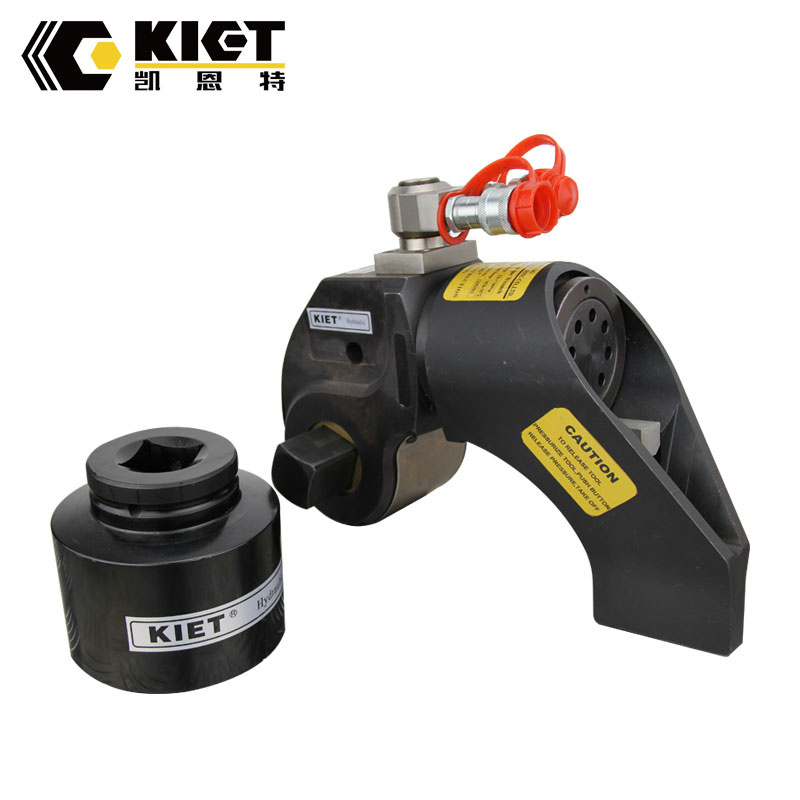

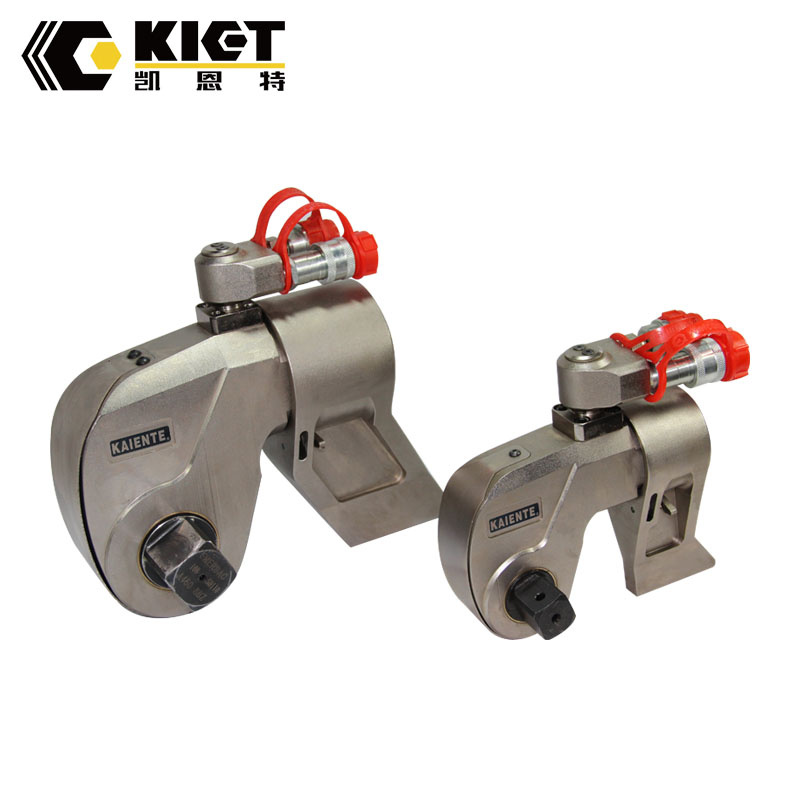

Compact Design Steel Square Drive Hydraulic Torque Wrench

Compact Design Steel Square Drive Hydraulic Torque Wrench
Price: US $ 500-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KET-S
Name: Compact Design Steel Square Drive Hydraulic Torque
Color: Customize
Maximum Pressure: 700 Bar
Warranty: 1 Year
OEM: Yes
Hydraulic Power Units: Piston Pump
Square Drive Range(Inch): 3/4-2 1/2
Max Torque(Nm): 1898-34014
Socket Size(mm): 24-135
Material: Steel

Product Description

Production Description

                                                   Compact Design Steel Square Drive Hydraulic Torque Wrench

Jiangsu Canete Machinery Manufacturing Co.,Ltd

Product Description
KIET Brand Changeable Socket Stainless Torque Wrench

1. 360 degree plug-in, a plurality of position of the support reaction arm
2. The driving using the button is released, can be quickly switched fastening anddisassembly state, the cylinder and the power head
3. The shape of small, light weight, compact structure, operating radius is small,suitable for application occasions with small space
4.The fine tooth design to prevent locking ratchet teeth
5. It has the advantages of compact structure, high strength integral design to ensure         operating radius is very small
6. The lightweight, ergonomic design, convenient operation, even in the use ofspace constrained occasions is Convenient
7. The best strength to weight ratio and torque to weight ratio
8. The single operating nut angle, cylinder rapid return, high work efficiency
9. The all hydraulic wrench surface after nickel plating has good anticorrosion performance The minimum number of moving parts
10. It is simple, convenient maintenance, no need of special tool.
11. The constant torque output to wrench the whole reverse the process provides high    accuracy
12. The wrench single big rotation angle and quick return
13. The reaction in a straight line, reduce the internal torque, improve the accuracy of




Hydraulic Pump Selection:
EPC-220 Solenoid Valve Hydraulic Electric Pump For Hydraulic Torque Wrench

Packaging & Shipping:

We provide Aluminum Alloy Lightweight Box , which can perfectly protect , the shipping can be by express parcel, by air or by sea shipping.

Our Service:

KIET provide one year guarantee  for all the hydraulic torque wrench. We promise if there is any dysfunction of the hydraulic torque wrench during the quality warranty not by outside force, we will replace a new one for free. Any quality defects reported by customers will be responded in 24 hours.

Brief introduction of Kiet:

Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

We are a manufacturer in Hydraulic tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

More Information and questions please contact me as below:

Contact :Aaron
Mobile number: +86 18052610078
Tel:+86-523-81569666
Web: http://www.chinakiet.com/EN/

Welcome to visit our factory !

Model
Socket rangeSquare Drive(In)Max Nm under 700barSocket size
mminchmminch
KET-S150015-505/8-1 7/83/4"1898 Nm    1400 ft.lbs14-242/1-1
KET-S300020-1007/8-3 7/814339 Nm      3200 ft.lbs17-325/8-1 1/4
KET-S600041-1551 5/8-6 1/41 1/2"8144 Nm       6010 ft.lbs17-325/8-1 1/4
KET-S1100041-1551 5/8-6 1/41 1/2"14914 Nm     11000 ft.lbs30-461 1/4-1 3/4
KET-S2500060-2552 3/8-102 1/2"34079 Nm     2514 0 ft.lbs36-851 1/2 -2 1/4

Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,

We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.

We are a manufacturer in hydraulic tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;

Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000)

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
