| Prod Model: |
GS-LFS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
3000X1500mm |
| Model: |
GS-Lfs3015 |
| Cooling Form: |
Water Cooling |
| Laser Wavelength: |
1070nm |
| Medium Of Laser: |
Fiber |
Product Description

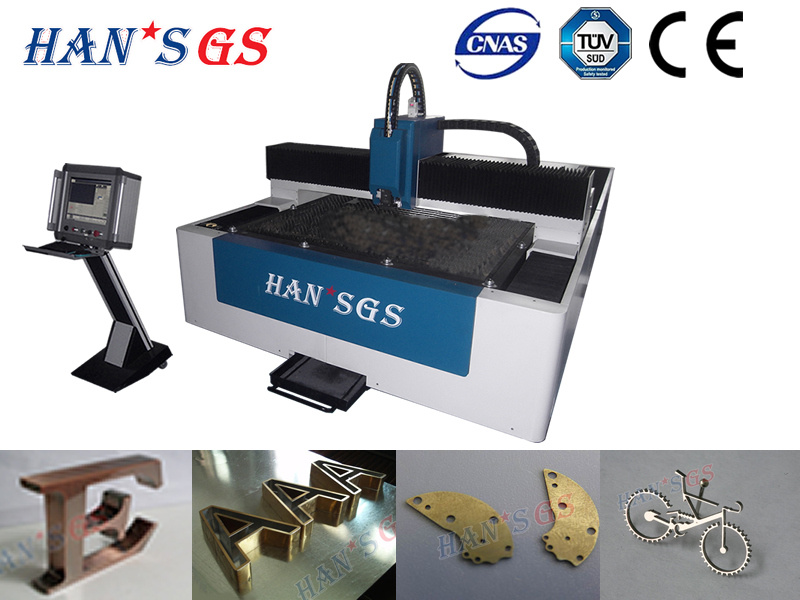

CNC Single Drive Industrial Fiber Cutter Machine Laser Cutters
Introduction:
GS - LFS3015 fiber laser cutting machine is adopted with international advanced technology of high power fiber laser source, combined with the company's independent design gantry CNC machine tool system. High strength whole welding cutting bed, have been handled with high temperature annealing and large CNC gantry milling machine precision processing,thus the cutting bed has very good rigidity and stability. Driven by Precision ball screw and linear guide. It's mainly aimed at the rapid precision cutting of sheet metal under 4 mm. Widely used in metal crafts, metal products, precision machinery, auto parts, electronics, toys, glasses, jewelry, nameplates, advertising and other industries
Features:
1.Adopting world's top imported fiber laser source with stable performance
2.Optic-electricity conversion rate of fiber laser is 3 times than CO2 laser, which is more energy conservation and environmental friendly
3.Power consumption of fiber laser is only 20%-30% of similar CO2 laser cutting machine, very low running cost.
4.Driven by gantry structure, dynamic performance is good. The overall layout is compact, rational, only cover a small area.
5.Equipped with special laser cnc system, which can guarantee efficiency and accuracy during high speed running process.
6.X, Y axis adopt imported ball screw and guide line, equipped with central lubrication devices at the same time to guarantee the long-term stability and reliable running.
7.Vertical and horizontal driving have adopted imported high precision helical gear and rack driving, and equipped with high-precision planetary gear reducer and AC servo system to achieve high precision transmission.
8. There is collection device below cutting bed, small cutting material and metal powder will be collected in it.
Parameters: | Model | GS-LFS3015 |
| Medium of Laser | Fiber |
| Processing surface (L × W) | 3000mm×1500mm |
| Maximum cutting speed | 15m/min |
| Cooling method | Water cooling |
| Laser Wavelength | 1070nm |
| Output Power | 500W |
| Min line width | ≤0.1nm |
| Material cutting thickness | 0.2-6mm |
| Driven method | Imported servo motor |
| Transmission method | Imported ball screw and guild line |
| Power supply | 380V/50Hz/16A |
| Continuous Operating Hours | 24 hours |
| Machine weight | About 3000kg |
| External dimension(length×width×height) | 4270mm×2280mm×1750mm |

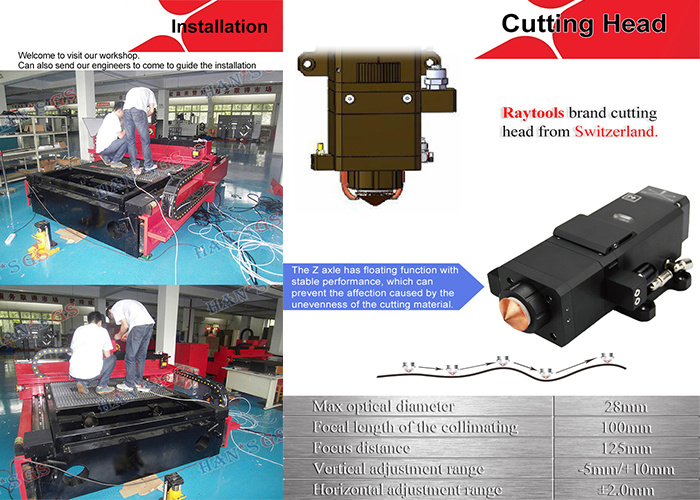

Switzerland Original Raytools Laser Cutting Head
Laser cutting head of stable performance and convenient operation and maintenance
1. non contact capacitor auto tracking system , Z-axis floats stability, auto adjusts optimal focal distance.
2. Two different focus lenses, adapt to cutting various thickness materials, assure the optimal cutting effect.
3. The laser cutting head can bear 2.0Mpa pressure, high pressure gas path, improve cutting ability for the materials difficult to cut such as stainless steel.
Servo Motor of strong rigidity, excellent control ability, accurate, sensitive response
1. Outstanding performance with the highest level of response of amplifier in the industry, the setting time is shortened in a high degree.
2. Enhancement of the Vibration suppression function to improve the track ability and decrease the setting time. Reduce the vibration when driving and reduce the fore-end vibration when stop working
3. Easy start up: simple installation and setting. The connection can be finished one time with Sigma Win+Connection confirmation function.
4. Standard configuration with analog quantity, instruction form of pulse sequence type and MECHATROLINK-II communication command type.

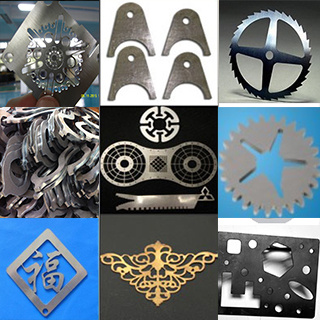

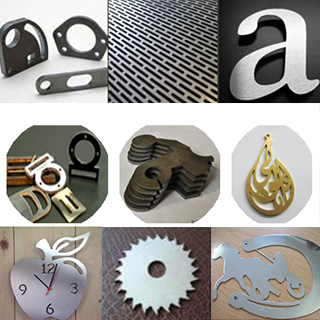

Cutting Materials
It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
