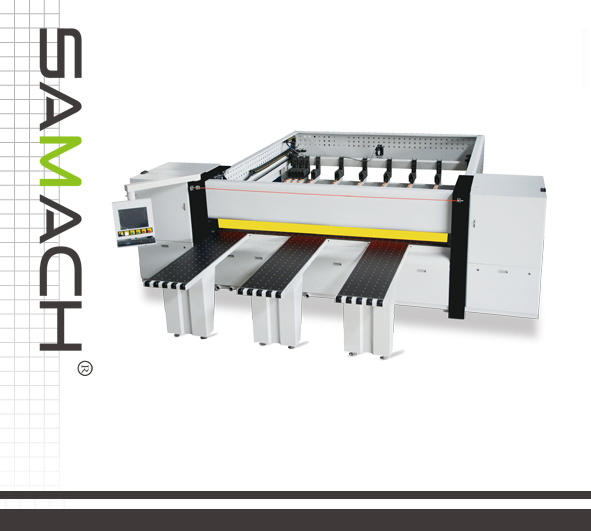

CNC Panel Saw Rcj 2700A/Rcj3200A Computer Panel Saw

CNC Panel Saw Rcj 2700A/Rcj3200A Computer Panel Saw
Price: US $ 25000-35000SET
Trade Terms: FOB,CIF,FCA
Min Order: 1SET
Pay Type: L/C,T/T,Western Union
Prod Model: RCJ2700A/3200A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter Of Main Saw Blade: 400mm
Diameter Of Scoring Saw: 160mm
Maximum Cutting Thickness: 100mm
Maximum Cutting Length: 3200mm
Motor Power: 5.5kw
Type: Table Panel Saw
Layout: Vertical
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: SGS

Product Description


CNC Panel Saw RCJ2700A/3200A/3800A

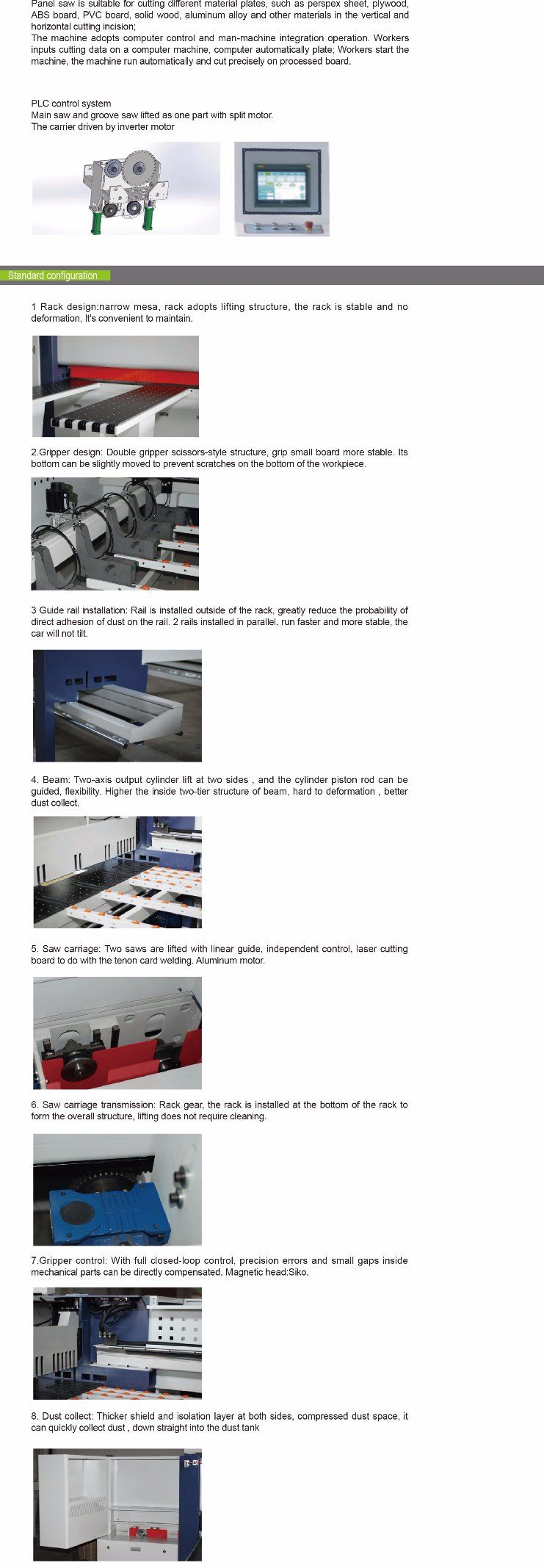

Panel saw is suitable for cutting different material plates, such as perspex sheet, plywood, ABS board, PVC board, solid wood, aluminum alloy and other materials in the vertical and horizontal cutting incision;

The machine adopts computer control and man-machine integration operation. Workers inputs cutting data on a computer machine, computer automatically plate; Workers start the machine, the machine run automatically and cut precisely on processed board.






PLC control system
Main saw and groove saw lifted as one part with split motor.
The carrier driven by inverter motor

Standard configuration:

1 Rack design:narrow mesa, rack adopts lifting structure, the rack is stable and no deformation, It's convenient to maintain.


2.Gripper design: Double gripper scissors-style structure, grip small board more stable. Its bottom can be slightly moved to prevent scratches on the bottom of the workpiece.

3 Guide rail installation: Rail is installed outside of the rack, greatly reduce the probability of direct adhesion of dust on the rail. 2 rails installed in parallel, run faster and more stable, the car will not tilt.

 4.Beam: Two-axis output cylinder lift at two sides , and the cylinder piston rod can be guided, flexibility. Higher the inside two-tier structure of beam, hard to deformation , better dust collect.

5.Saw carriage: Two saws are lifted with linear guide, independent control, laser cutting board to do with the tenon card welding. Aluminum motor.

6.Saw carriage transmission: Rack gear, the rack is installed at the bottom of the rack to form the overall structure, lifting does not require cleaning.

7.Gripper control: With full closed-loop control, precision errors and small gaps inside mechanical parts can be directly compensated. Magnetic head:Siko.


8.Dust collect: Thicker shield and isolation layer at both sides, compressed dust space, it can quickly collect dust , down straight into the dust tank

9.Electrical: Schneider

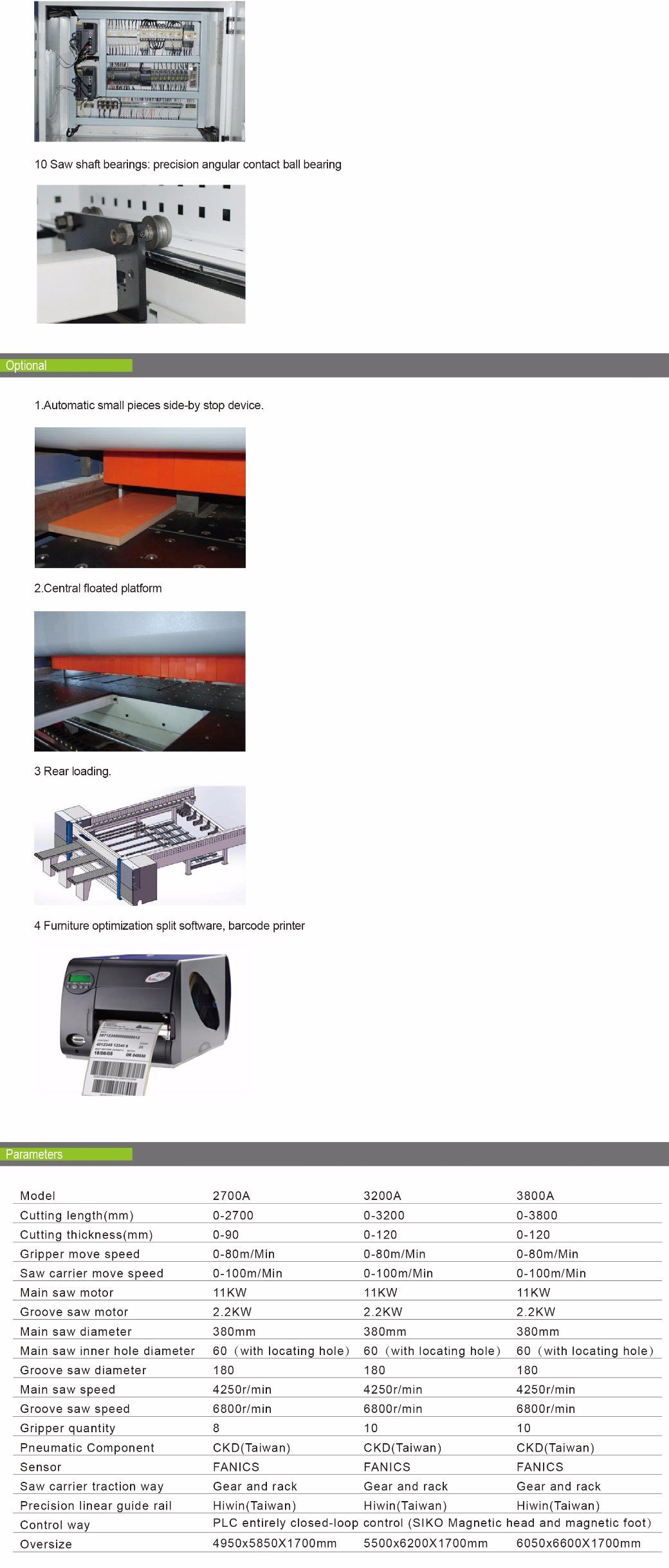

10 Saw shaft bearings: precision angular contact ball bearing


Optional:

1.Automatic small pieces side-by stop device.

2. Central floated platform

3 Rear loading.


4 Furniture optimization split software, barcode printer


Parameters:

Model2700A3200A3800A
Cutting length(mm)0-27000-32000-3800
Cutting thickness(mm)0-900-1200-120
Gripper move speed0-80m/Min0-80m/Min0-80m/Min
Saw carrier move speed0-100m/Min0-100m/Min0-100m/Min
Main saw motor11KW11KW11KW
Groove saw motor2.2KW2.2KW2.2KW
Main saw diameter380mm380mm380mm
Main saw inner hole diameter60(with locating hole)60(with locating hole)60(with locating hole)
Groove saw diameter180180180
Main saw speed4250r/min4250r/min4250r/min
Groove saw speed6800r/min6800r/min6800r/min
Gripper quantity81010
Pneumatic Component CKD(Taiwan)CKD(Taiwan)CKD(Taiwan)
SensorFANICSFANICSFANICS
Saw carrier traction wayGear and rackGear and rackGear and rack
Precision linear guide railHiwin(Taiwan)Hiwin(Taiwan)Hiwin(Taiwan)
Control wayPLC entirely closed-loop control (SIKO Magnetic head and magnetic foot)
Oversize4950x5850X1700mm5500x6200X1700mm6050x6600X1700mm
